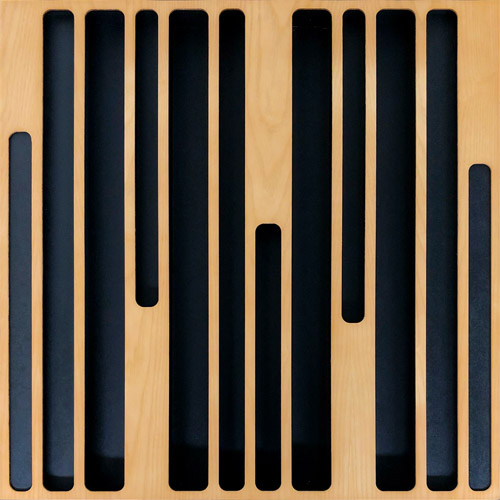

Artnovion Aries W - Diffuser Made In Portugal

Aries - Diffuser

The Evolution of Diffusion.

Diffusion is a prime component of any balanced acoustic treatment.

Aries Diffuser was designed using various diffusion techniques – inspired from traditional numeric sequence diffusers, it is composed of asymmetrical multi-depth wells, in which specific wells use a folded-depth technique to boost the mid-low diffusion range of the panel.

Whilst the panel itself is only 60mm thick, the extended wells on the diffuser are designed to be effective at 160 Hz and 400 Hz, with a linear diffusion pattern from 700Hz upwards – providing Aries diffuser an unheard-of diffusion capacity for its size.

The asymmetric wells are arranged in an optimised sequence to prevent lobing when used in larger arrays – in this, in combination with the extended low-range diffusion, make Aries go lower and outperform any other diffuser in its class – a truly unique approach to diffusion techniques, and a clear advance in performance over the traditional QRD design.

Purpose
- Enlarging sweet spot
- Specular reflection control
- Flutter echo control

Recommended for
- Control room
- Recording room
- Home studio
- Broadcast studio
- Drum room

Type: 1D - QRD Diffuser

Scattering range: 160 Hz to 4000 Hz

Available fire rate:
FG | Furniture Grade

Materials:
- Natural wood veneer | Lacquered HMDF
- HMDF and plywood structure

Integrated fixing system | panel can be rotated 90º to any orientation.

Installation: Integrated Fixing System, already  incorporated on the panel

Dimensions:
FG - LW | 595x595x60mm
FG - NW | 595x595x60mm

Dimensions: 595x595x60mm
Weight: 4.06Kg
