Artnovion Komodo - Bass Trap Corner Made In Portugal

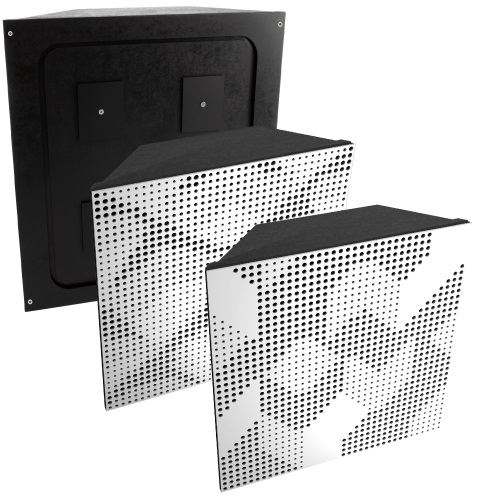

Bass Trap Corner | Perforated

Absorption coefficient | 1/3 Oct. from 32Hz to 160Hz | 1 Oct. from 250Hz to 8 KHz |

The Corner bass trap is the latest in low frequency absorption. This elegant panel integrates a tuneable membrane over a sealed volume, containing a high performance acoustic core. A secondary posterior compartment positions a high density velocity core in the high pressure zone of the room. The panel is completely tuneable, by means of an adjustable weighted membrane, allowing to pin-point the performance of the panel to a target frequency.

The panels' tuneable membrane works in a similar way to a speaker cone, allowing for a much superior - and controlled - performance. A central mass is supported by an elastic membrane - This mass can then be altered to change the resonant frequency of the membrane, stepping the peak performance of the Trap from 57 to 82 Hz.
T.P.D.A. - Artnovion technology

Purpose
- Room mode control
- Bass ratio control
- Low frequency RT reduction
- Improving low frequency response
- Reducing low frequency time decay

Recommended for
- Hi-Fi Listening Room
- Media Room
- Home Cinema
- Living Room

Type:
Tuneable Pistonic Diaphragmatic Absorber

Tuneable absorption range: 58Hz to 82Hz.

.Tuneable weighted diaphragmatic membrane
.Hz-by-Hz fine tuning
.New fine-tuning possibilities.

Material:
- Natural Wood veener | Lacquered HMDF
- Marine grade plywood structural frame
- Calibrated cell acoustic foam

This panels can only be installed on vertical wall corners. Not for ceiling use.

Dimensions:
FG - LW | 595x595x156mm
FG - NW | 595x595x156mm

Dimensions: 595x595x156mm

Weight: 9.86Kg
