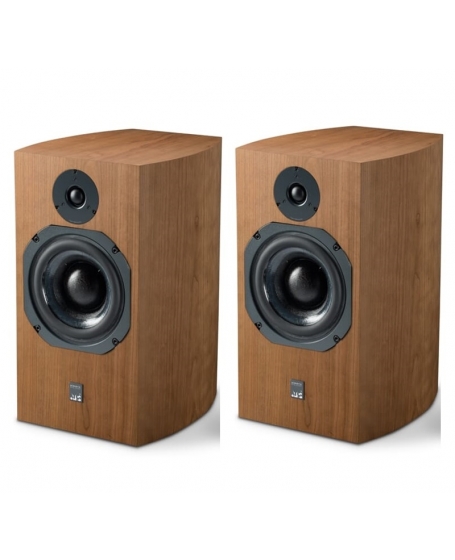

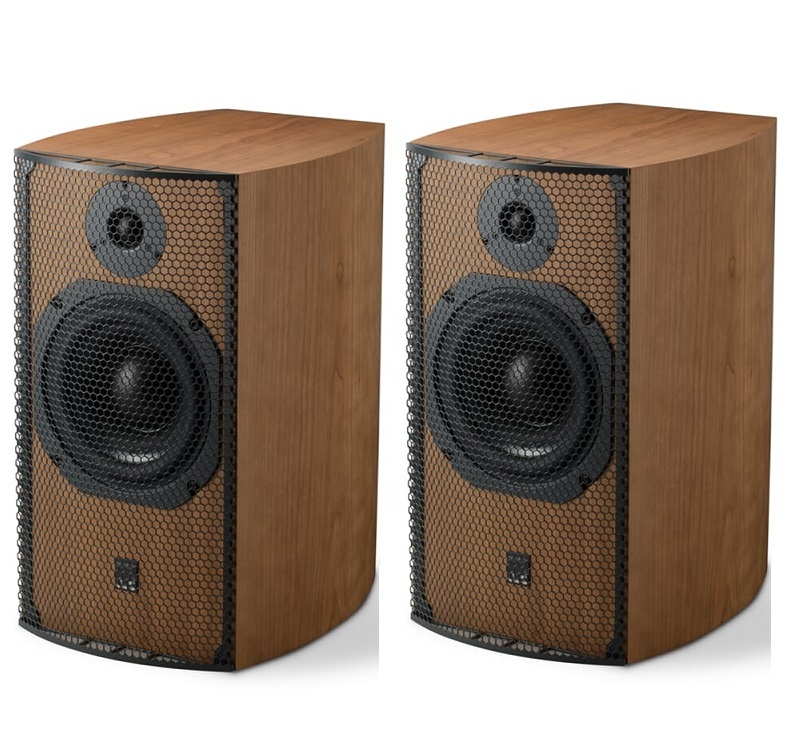

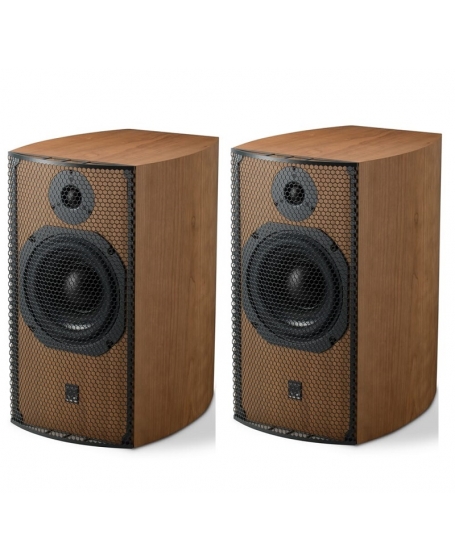

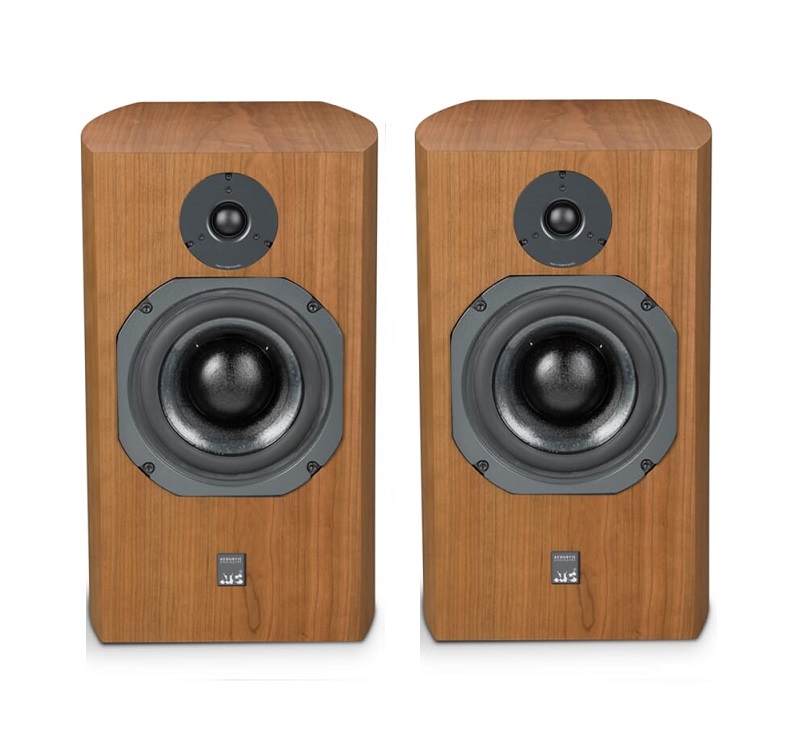

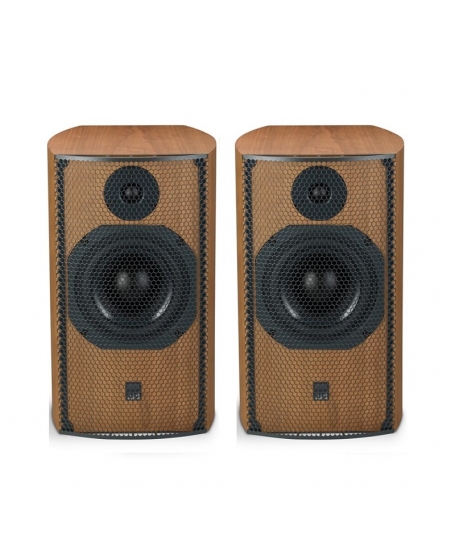

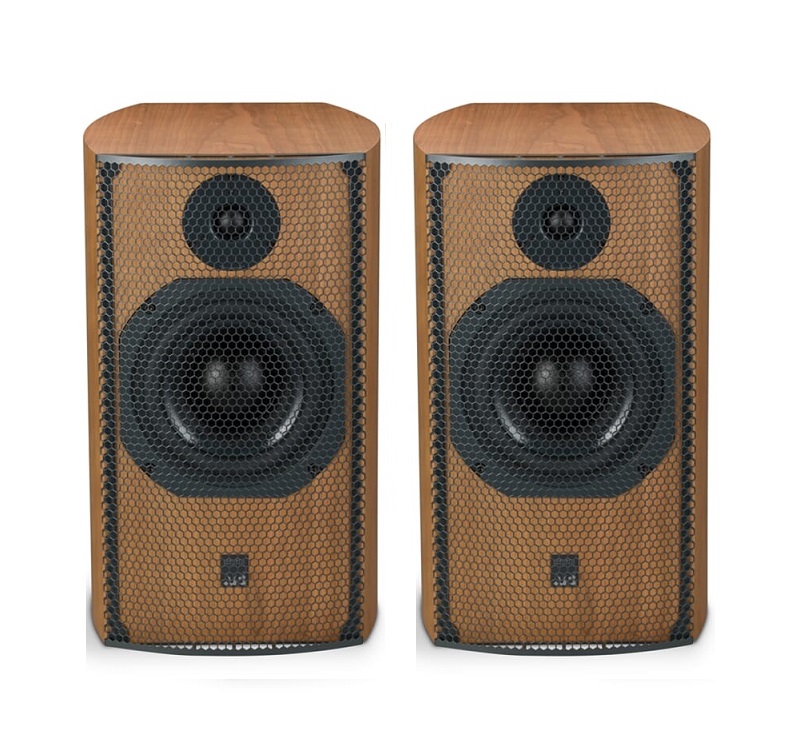

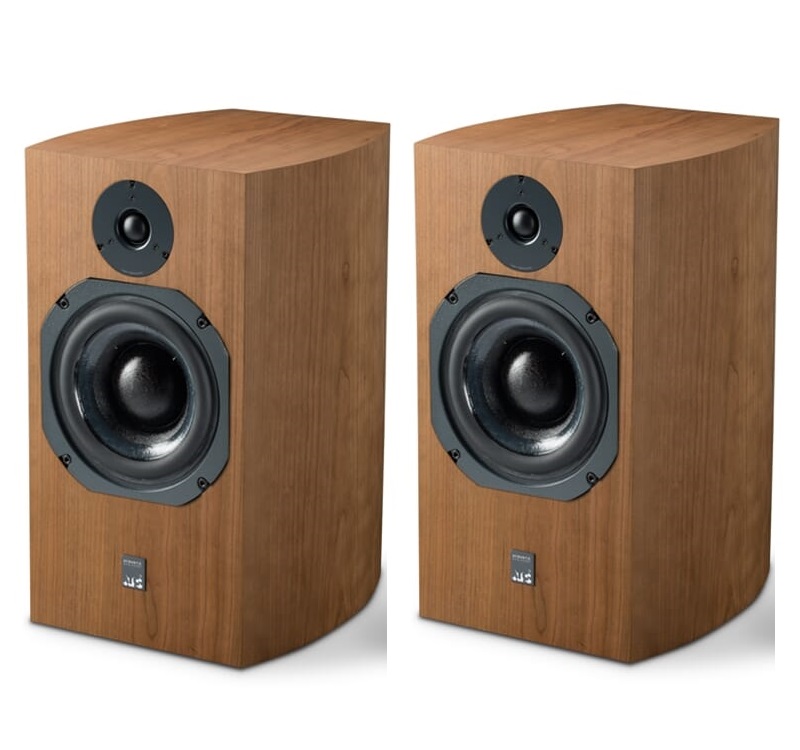

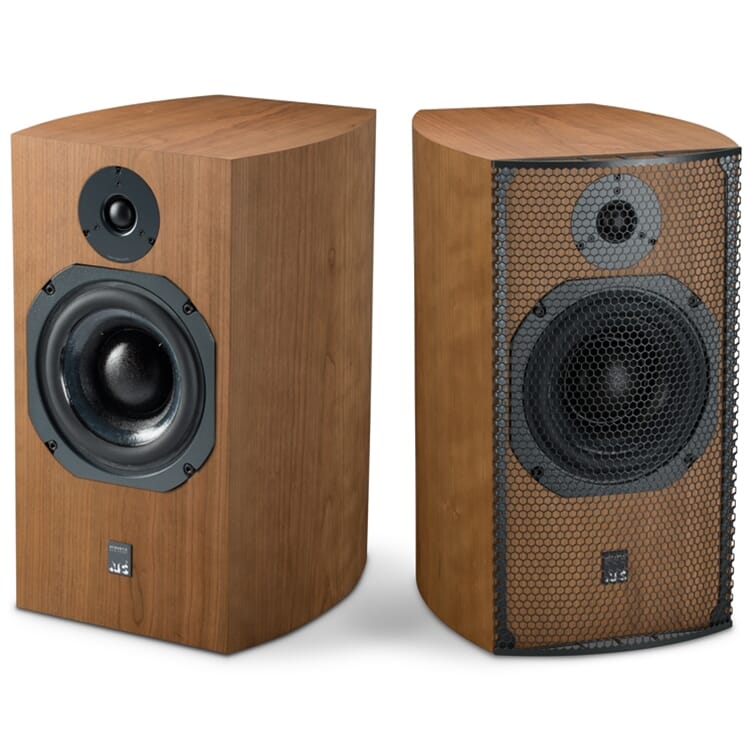

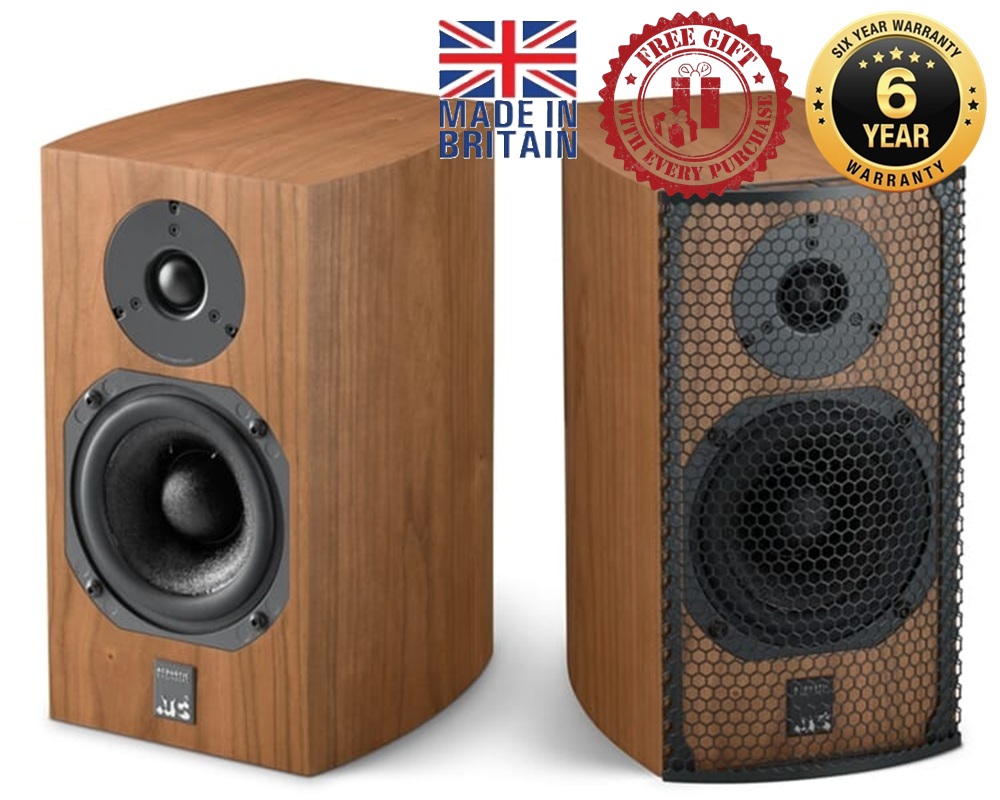

SCM19

Overview

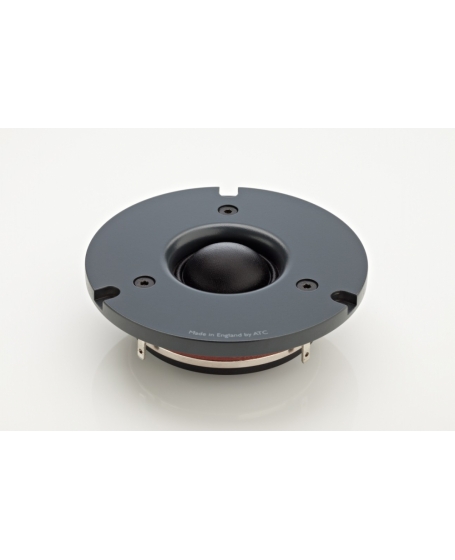

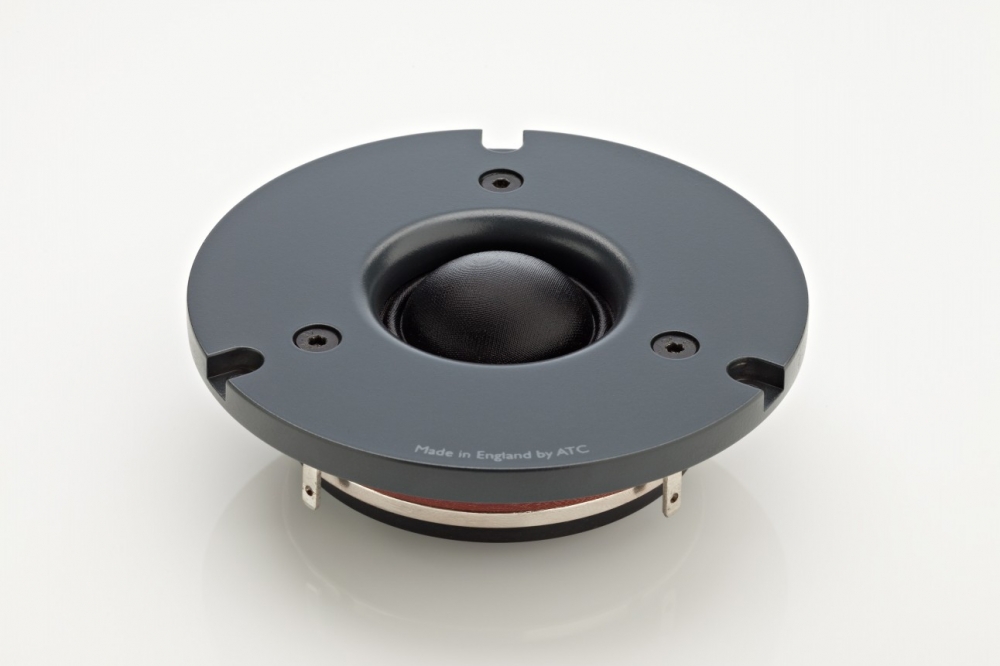

• New ATC designed and built 25mm soft dome HF unit with precision alloy wave guide.

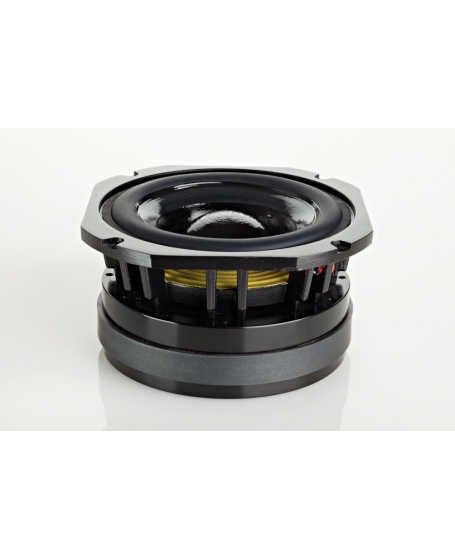

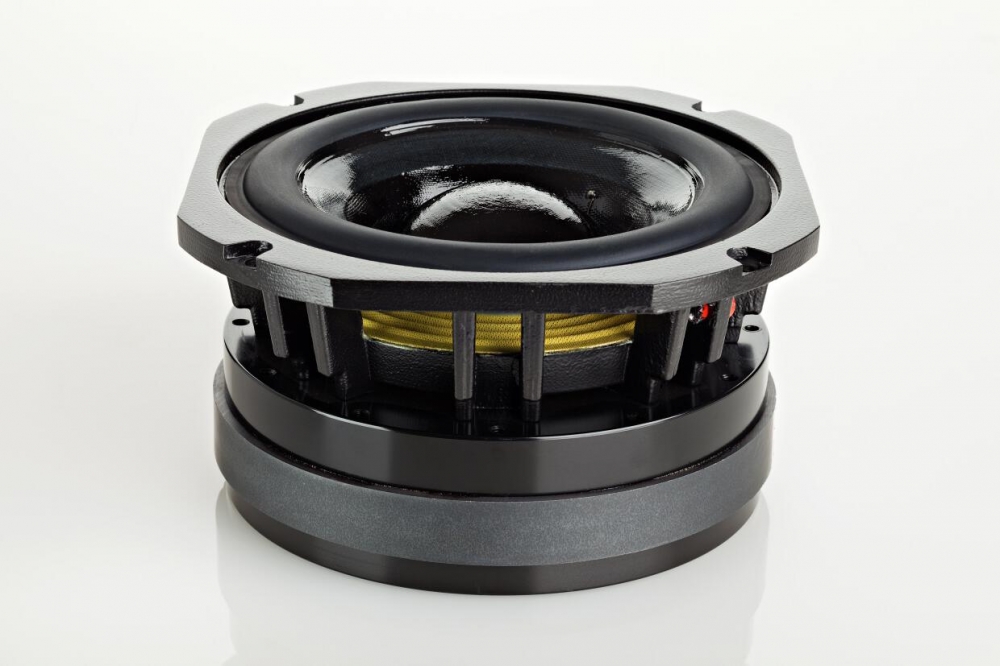

• “SL” spec bass driver with 75mm integral soft dome.
• 9kg optimised short-coil/long gap motor assembly.
• In-house, hand-wound precision flat wire coil.
• Flat impedance curve allowing easy load for amplifiers.
• 6 year warranty.

“Superlative clarity; excellent phase coherence; sublime bass.”  Hi-Fi Choice Magazine, September 2014

概觀

• ATC新設計和建造的25mm軟半球型高音單元採用精密合金波導。
• 精密削弱低音極。
• “SL”驅動技術75mm軟半球型中/低音單元
• 9公斤優化短線圈/長衝程馬達總成。
• 自家手繞精密徧平線圈。
• 平直阻抗曲線允許放大器容易負載。
• 6年保修

Superlative clarity; excellent phase coherence; sublime bass.  Hi-Fi Choice Magazine, September 2014

Drivers: HF ATC 25mm Neodymium soft dome, Mid/LF ATC 150mm SL
Matched Response: ±0.5dB
Frequency Response (-6dB): 54Hz-22kHz
Dispersion: ±80° Coherent Horizontal, ±10° Coherent Vertical
Sensitivity: 85dB @ 1W @ 1metre
Max SPL: 108dB
Recommended Power Amplifier: 75 to 300 Watts
Nominal Impedance: 8 Ohm
Crossover Frequency: 2.5kHz

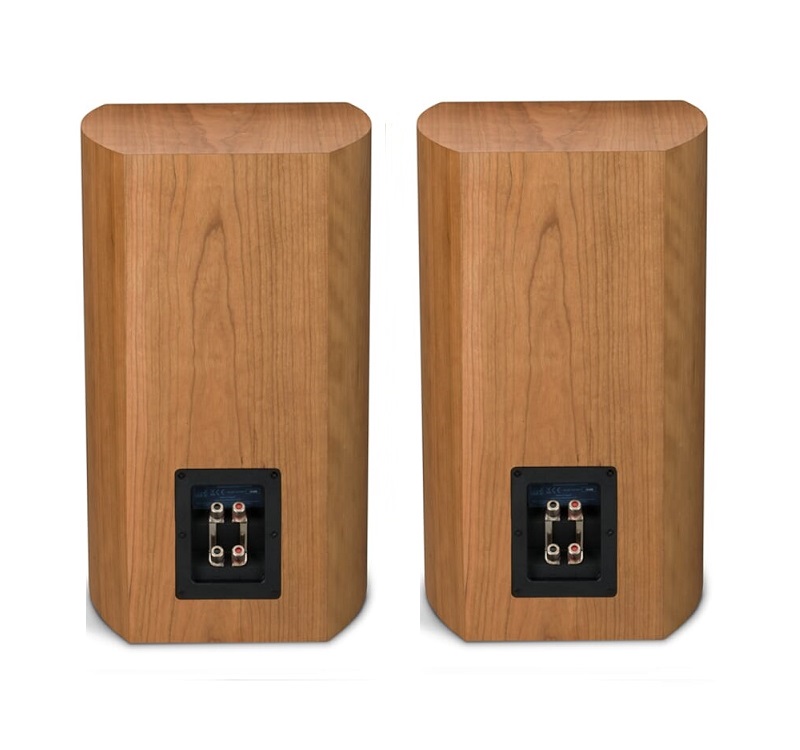

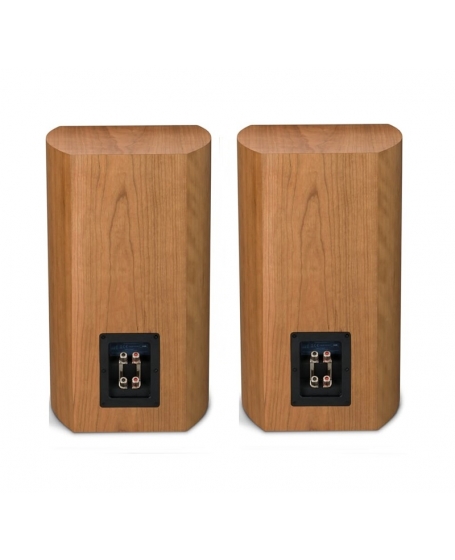

Connectors: Binding Posts/4mm Plugs, bi-wire
Cabinet Dimensions (HxWxD): 438x265x300mm (grill adds 34mm to depth)
Weight: 17.8kg
