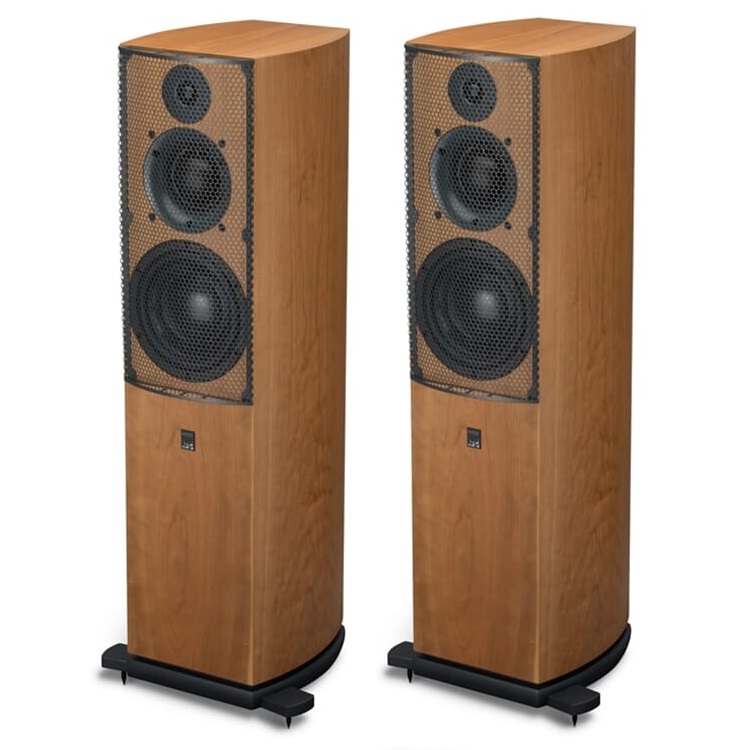

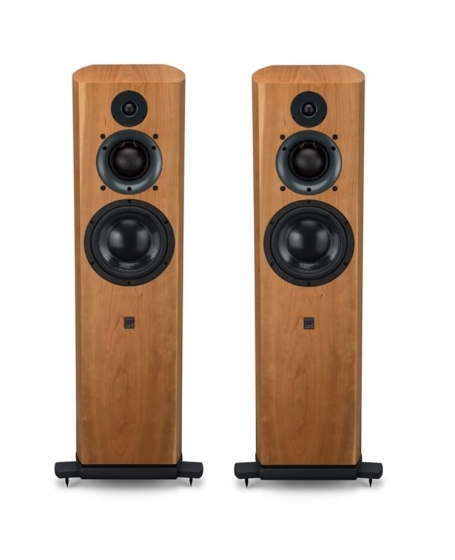

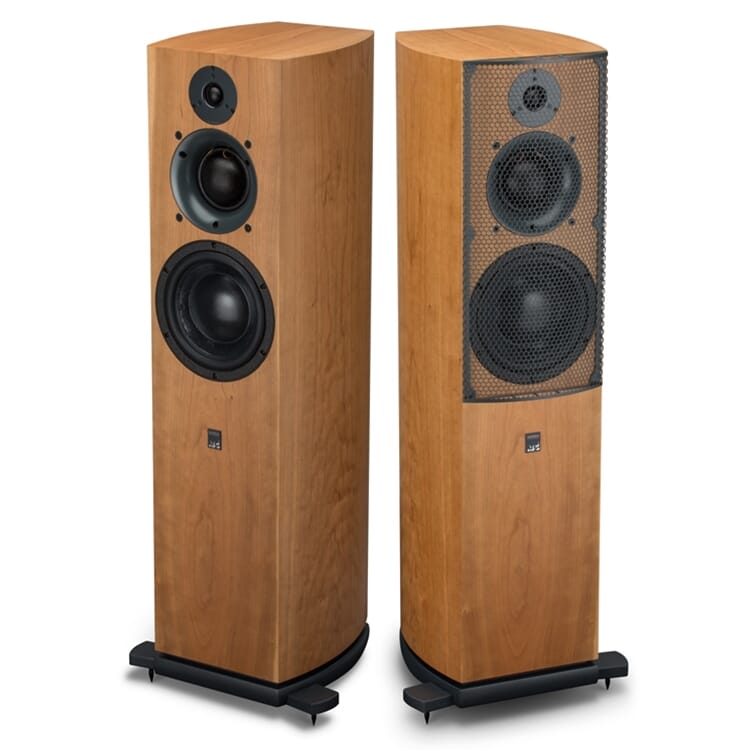

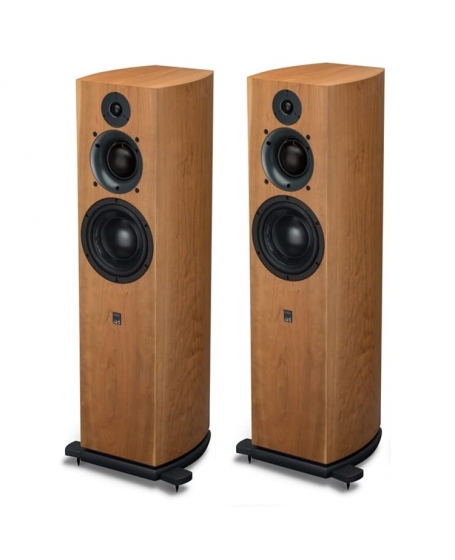

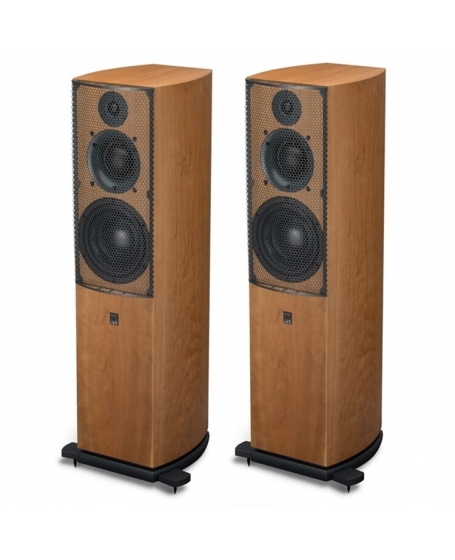

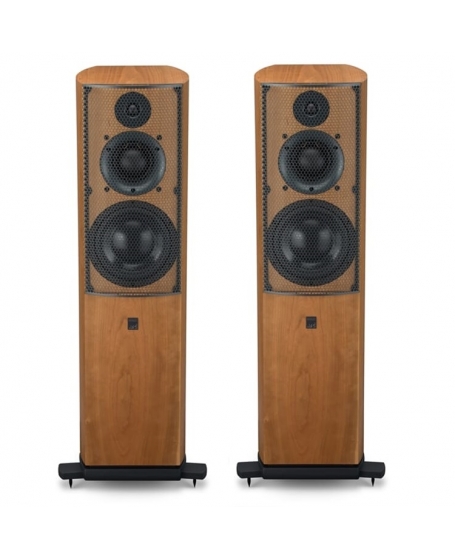

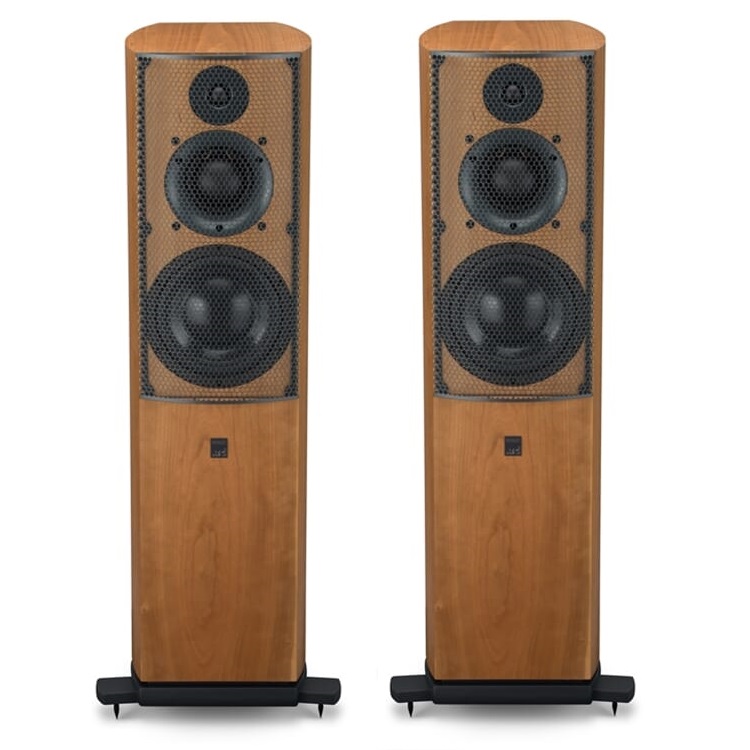

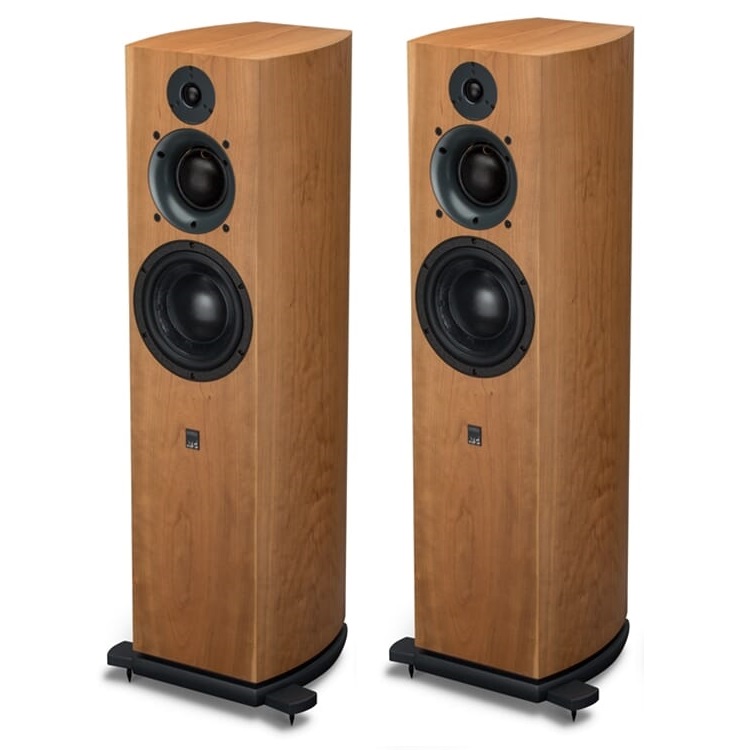

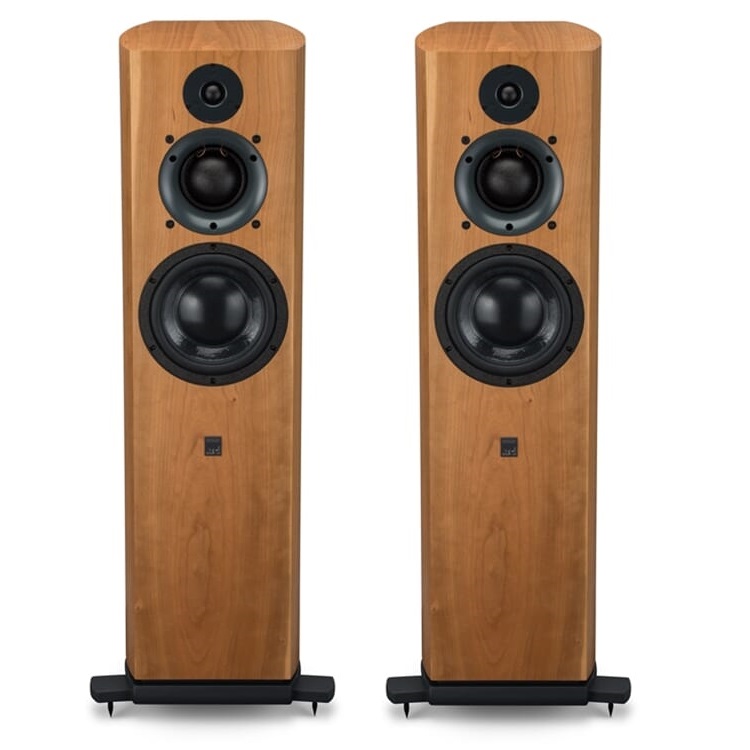

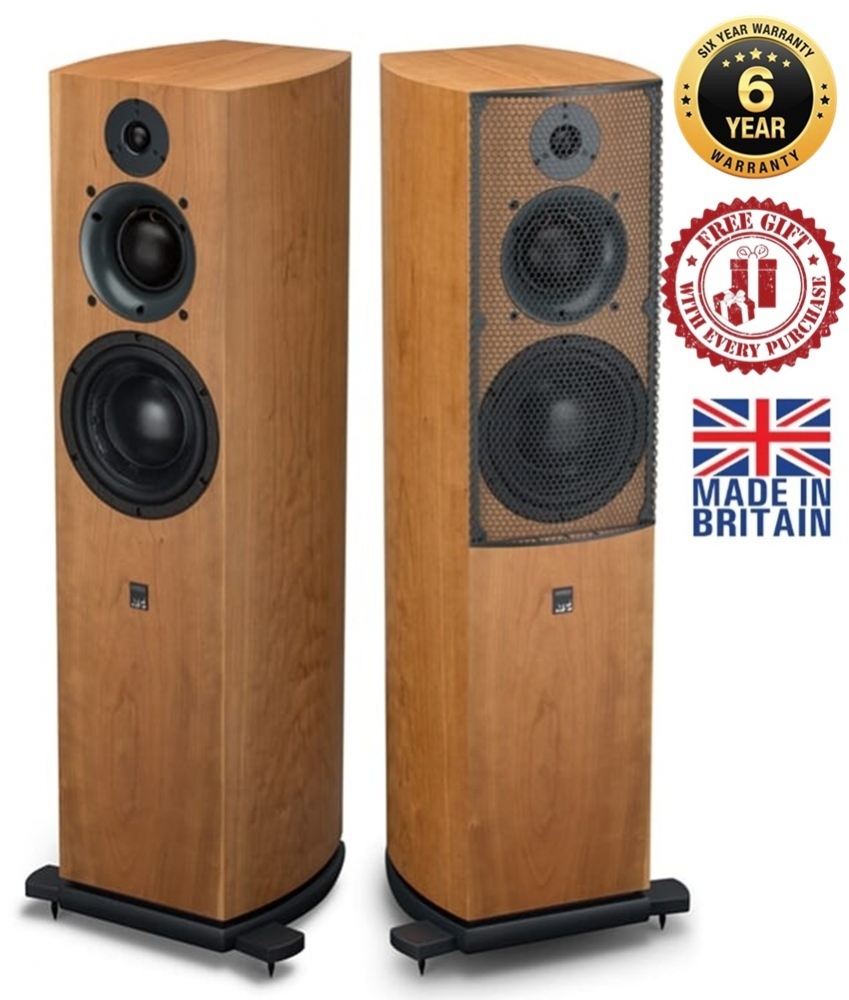

SCM40

Overview

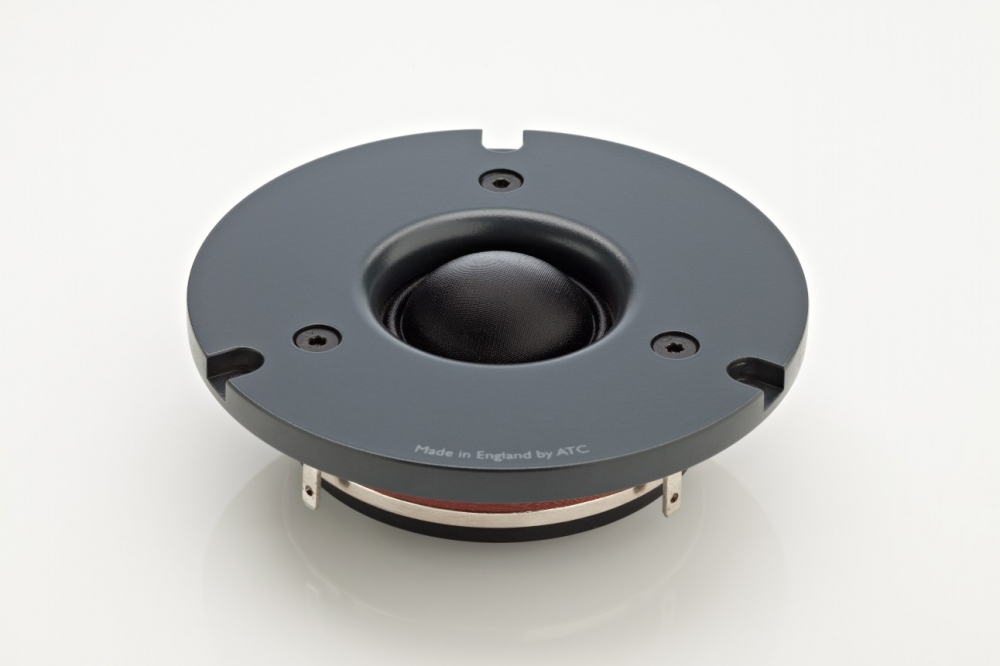

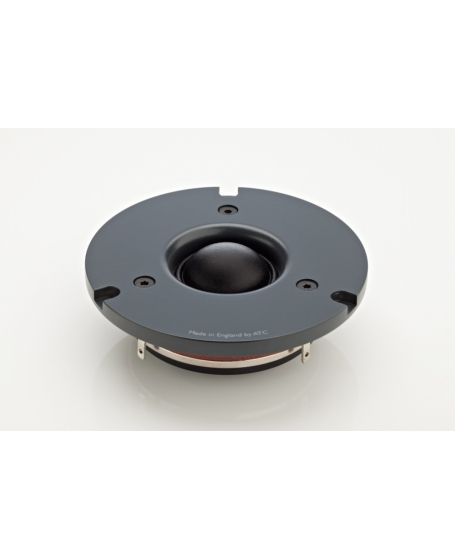

• New ATC designed and built 25mm soft dome HF unit with precision alloy wave guide.

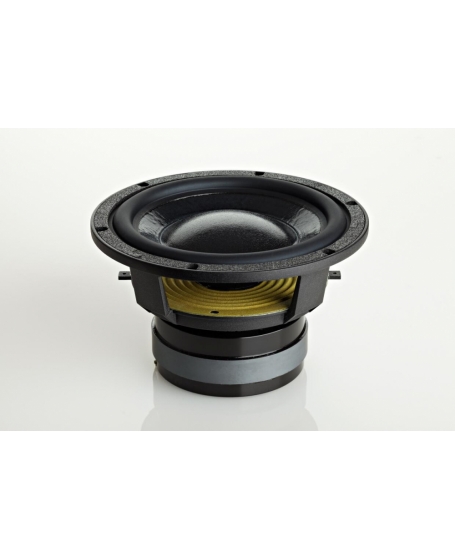

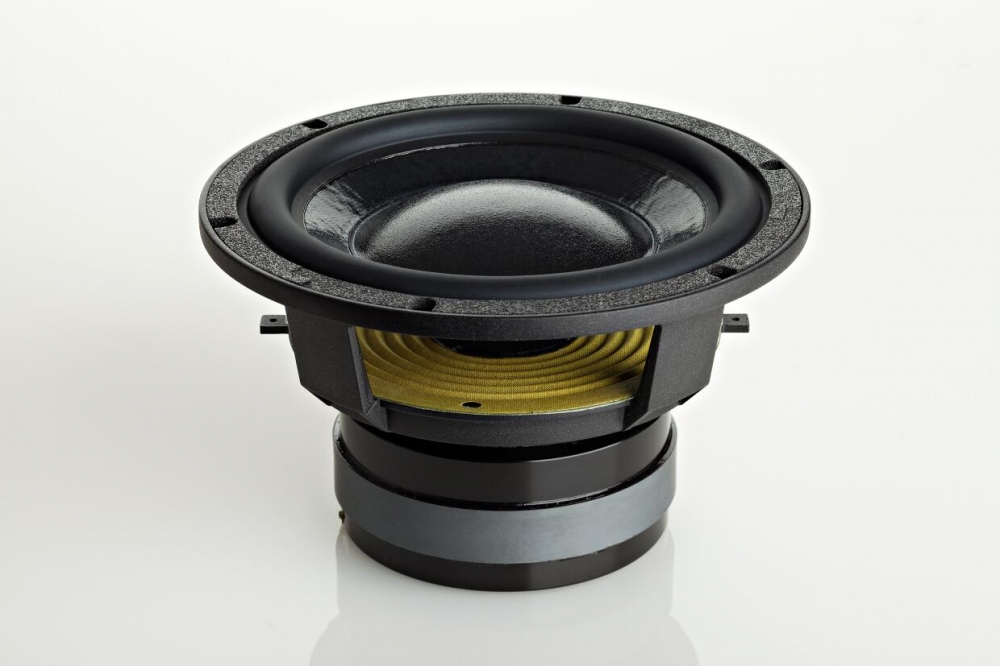

• ATC 164mm bass driver.
• Massive optimised motor assembly.

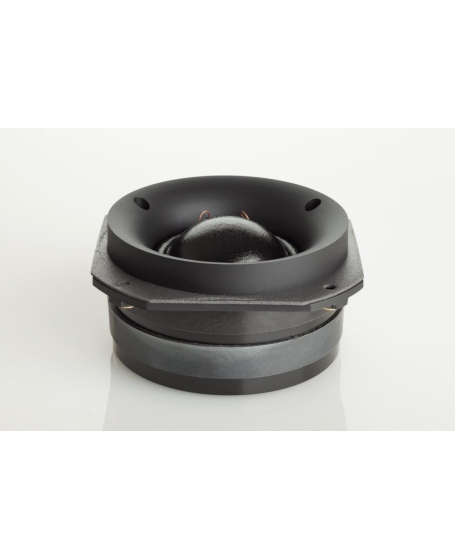

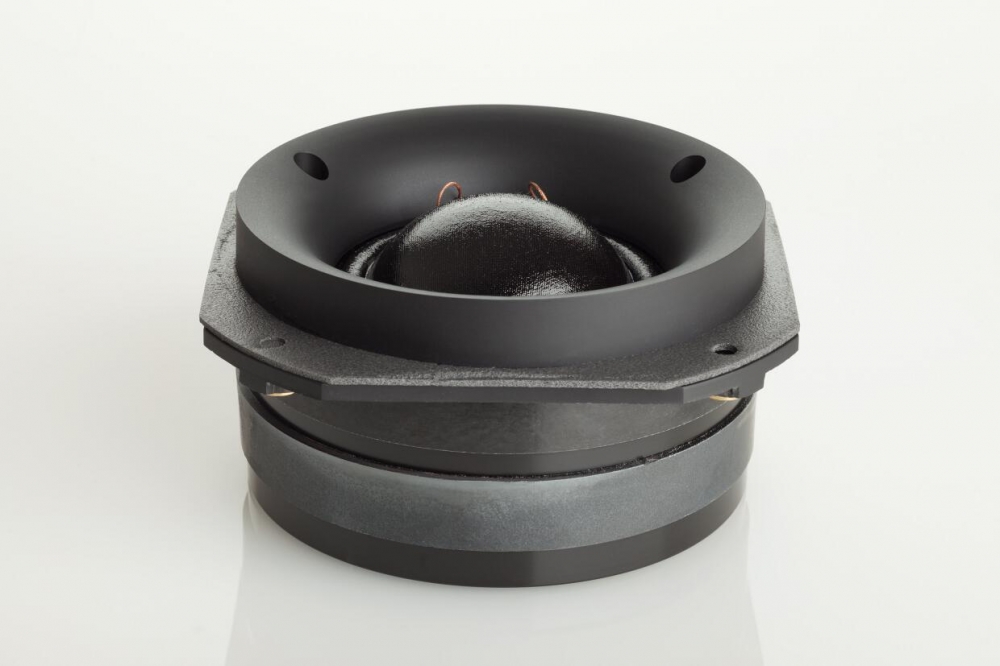

• ATC Soft Dome mid-range driver.
• Flat impedance curve allowing easy load for amplifiers.
• 6 year warranty.

“Given a serious source and recording the new ATC SCM40 is superb – I know of no price rivals that give this level of accuracy, speed and insight…it’s capable of a level of transparency you normally only expect from loudspeakers at three or four times its price.”  Hi-Fi Choice, October 2014

概觀

• ATC新設計和建造的25mm軟半球型高音單元採用精密合金波導。
• 精密削弱低音極。
• ATC 164mm低音單元
• 巨型優化馬達總成。
• ATC軟半球形中音單元
• 平直阻抗曲線允許放大器容易負載。
• 6年保修

“給與一個認真好的音源和靚的錄音，ATC SCM40是一流的 – 我知道沒有相同價格的競爭對手可以提供這個級別的精度，速度和洞察力的…它所夠提供給你的透明度通常只可從價格較它貴三或四倍的揚聲器中才可找到。” Hi-Fi Choice，2014年10月

Drivers: HF ATC 25mm Neodymium, Mid 75mm ATC Soft Dome, LF ATC 164mm SC
Matched Response: ±0.5dB
Frequency Response (-6dB): 48Hz-22kHz
Dispersion: ±80° Coherent Horizontal, ±10° Coherent Vertical
Sensitivity: 85dB @ 1W @ 1metre
Max SPL: 112dB
Recommended Power Amplifier: 75 to 300 Watts
Nominal Impedance: 8 Ohm
Crossover Frequencies: 380Hz & 3.5kHz

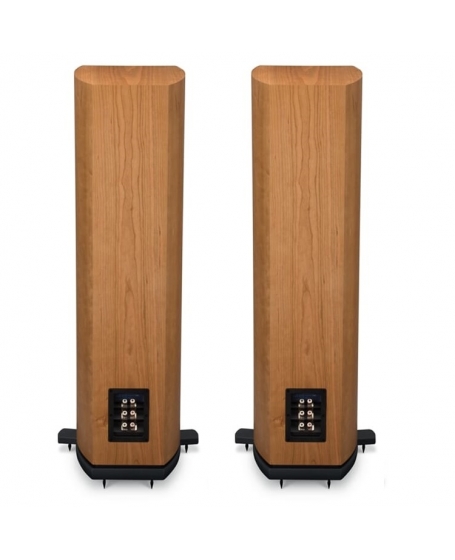

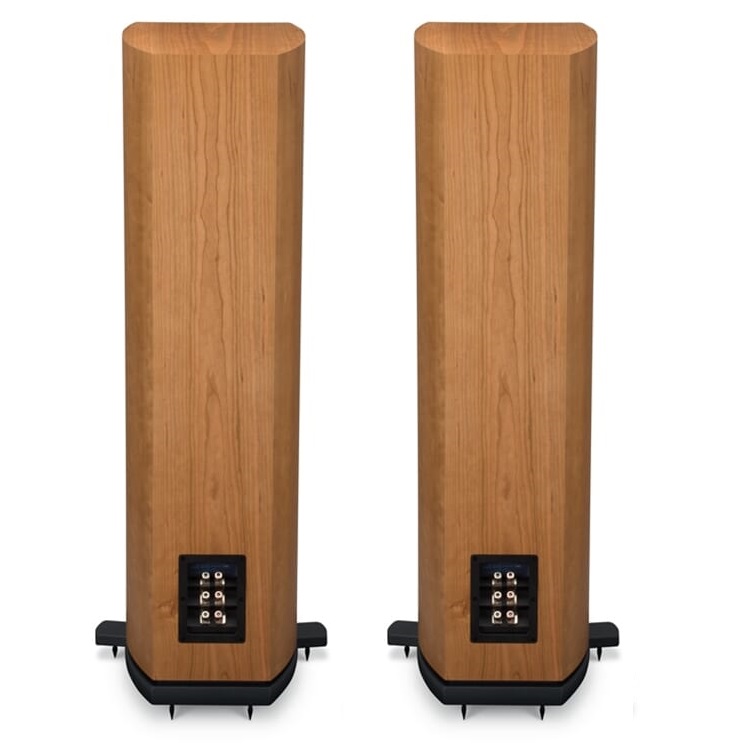

Connectors: Binding Posts/4mm Plugs, tri-wire
Dimensions (HxWxD): 980 x 370 x 305mm (inc. foot plinth, spikes add 25mm to height, grill adds 34mm to depth)
Weight: 31kg
