Audiolab 7000A Integrated Amplifier + Audiolab 6000N Play Wireless Streaming Player
SKU: Audiolab 7000A + 6000N PlayAudiolab 6000N Play Wireless Streaming Player
3 Years Warranty
7000A
Integrated Amplifier
Engineered to deliver clean, dynamic, audiophile-quality sound to your home entertainment system, the silver 7000A Stereo 70W Integrated Amplifier from Audiolab is packed with high-quality components that support a wide range of input sources. The ESS ES9038Q2M DAC processes audio using Audiolab's HyperStream architecture and Time Domain Jitter Eliminator, while the Class AB power amp delivers 70W of power at 8 ohms to an optional pair of speakers. Connect your components through an array of RCA, optical, and coax inputs. Stream from smart devices using Bluetooth aptX, play MQA and other hi-res formats over USB, and enjoy TV audio via HDMI ARC. All of this and more is easily managed via an intuitive GUI on the built-in 2.8" IPS full-color interface.

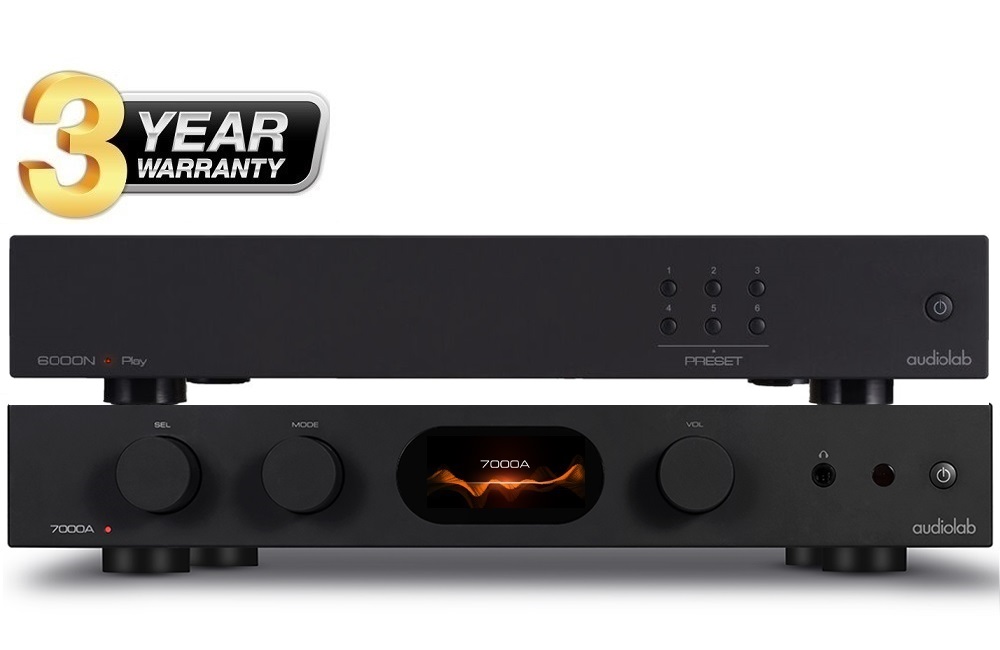

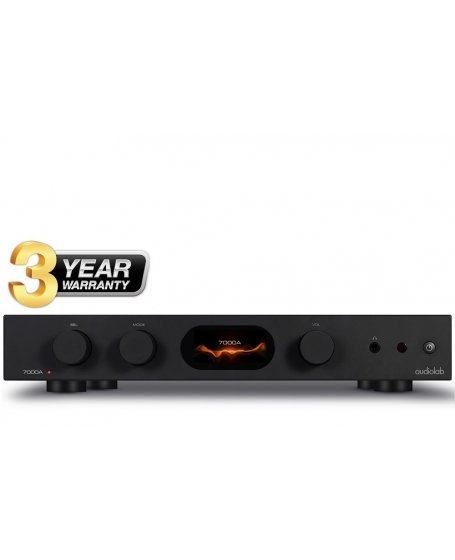

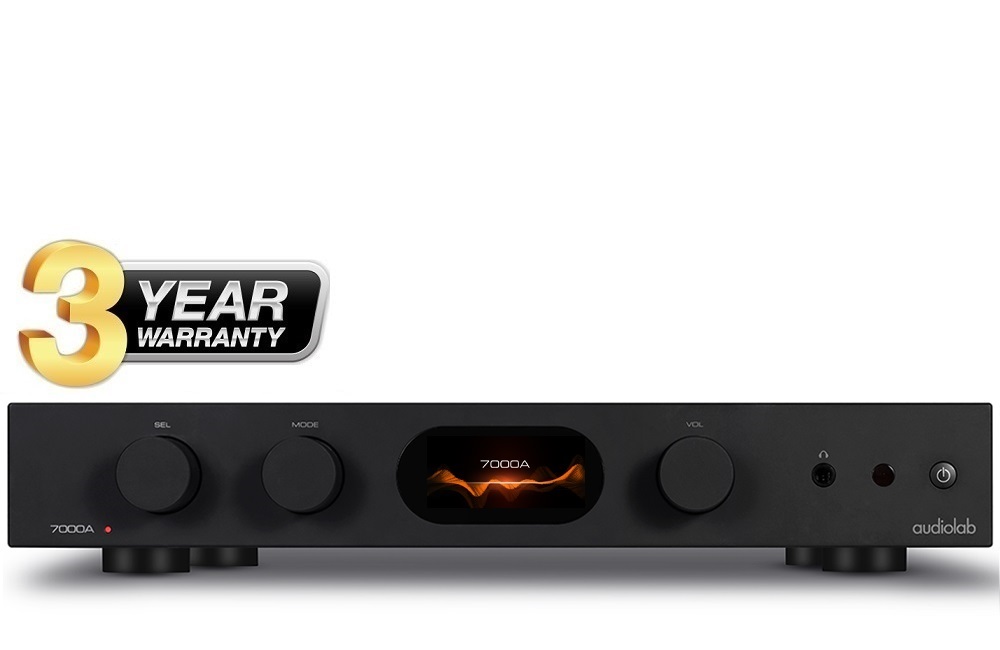

Full-Color Display
Built into the face of the 7000A is a 2.8" full-color IPS LCD screen, which provides detailed information and intuitive control over internal settings, such as the digital phase lock loop of the D/C converter. When not in use, you can select to display working analog or digital VU meters.
Full MQA Decoding
A custom-engineered MQA-certified DAC solution allows the 7000A to complete the full three unfold MQA decoding process internally, which is ideal for subscribers of MQA masters content, such as Tidal's HiFi Plus tier.
Dedicated Amps
Vinyl fans can hook up their turntables using the integrated phono pre-amp that features a low-noise MM phono circuit and precise RIAA equalization. For a more private, but equally dynamic, listening experience, use the dedicated headphone amp with current-feedback circuitry with your favorite pair.
6000N Play
Stream high-quality music to your home audio system via this 6000N Play Network Audio Player from Audiolab. The 6000N comes equipped with an ES9018 SABRE32 Reference DAC chip and support for Hi-Res Audio. The internal circuitry allows you to output content via RCA outputs to a standard amplifier or active speakers, or an optical or coaxial cable can be used to output to an external DAC or amp.

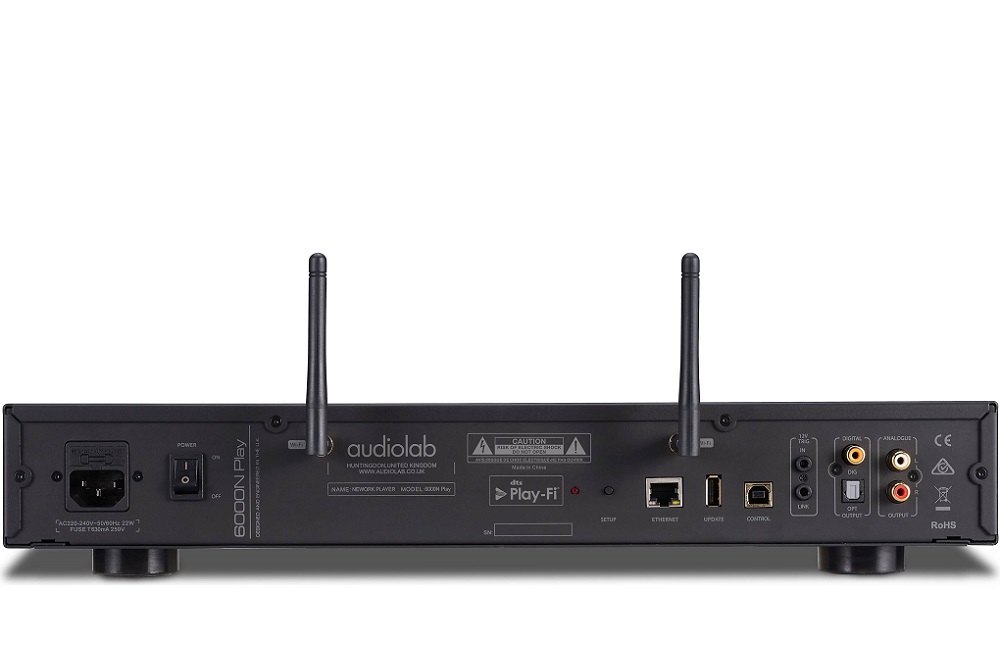

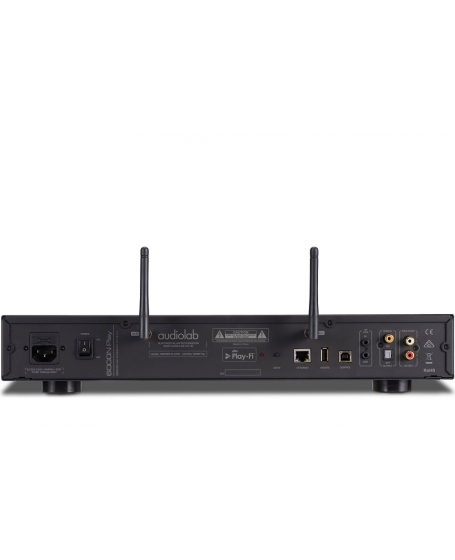

Audio can be transmitted to the 6000N over your home network through a wired Ethernet connection or via dual-band Wi-Fi and the 6000N's dual antennas. Stream from desktop or laptop computers, smartphones, tablets, NAS drives, or music servers. It supports devices running Windows, Mac, and Android operating systems. It's also compatible with DLNA-compatible home media servers. Stream music files or from a wide variety of music services. Integrated Alexa support provides control via voice commands, or you can use the DTS Play-Fi app from a Windows, Android, iOS, or Kindle mobile device.
Streaming Service Support
In addition to files stored on your devices or network, you can stream online audio from a variety of sources, such as Internet Radio, Qobuz, Spotify, TIDAL, Apple Music, Amazon Music, Deezer, QQ Music, KKBox, Pandora, TuneIn, Napster, iHeartRadio, SiriusXM, and SoundMachine.
DTS Play-Fi Whole Home Support
DTS Play-Fi compatibility allows you to use the DTS Play-Fi app to control your audio experience, but it also lets the 6000N integrate into a whole home audio setup by connecting wirelessly to other Play-Fi-equipped devices.

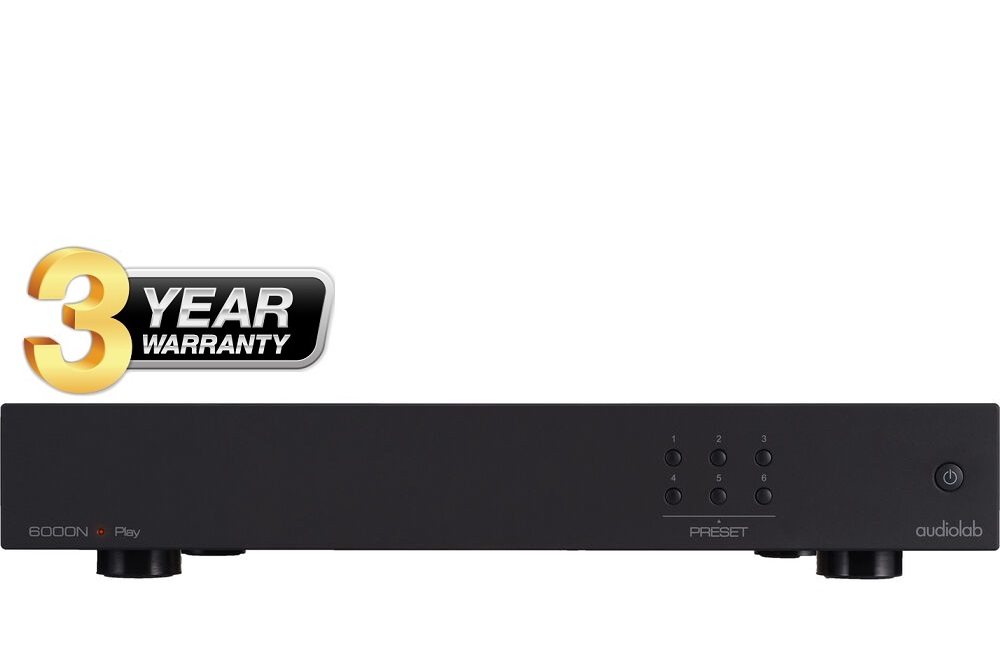

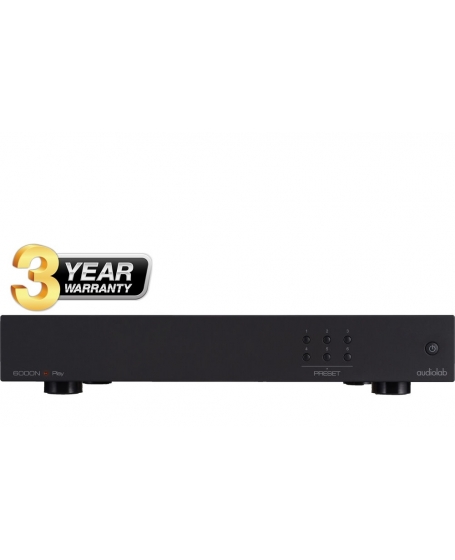

Integrated Presets
A total of 6 preset buttons on the face of the 6000N component operate just like those found on an FM tuner. However, with the 6000N, you can set each preset to an online streaming service or your favorite playlist. All without the need of using a mobile app.
7000A Specifications
General Description | Integrated Amplifier |
Design Philosophy and Core Technology | - 2 x 70W (8 ohms) / 2 x 110W (4 ohms) Class AB |
- ES9038Q2M 32-bit DAC | |
- 2.8" (480x640mm) Full View IPS LCD | |
- Built in Certified Hardware MQA Full Decoder (PC USB, Coax / Optical) | |
- Bluetooth 5.0 (aptX / aptX LL) Support | |
- Low Noise Moving Magnet Phono Stage | |
- Dedicated Current-Feedback Headphone amp | |
- Integrated / PRE-POWER / PRE only Modes | |
- VU Digital / VU Analogue Meter | |
- USB Upgrade Support | |

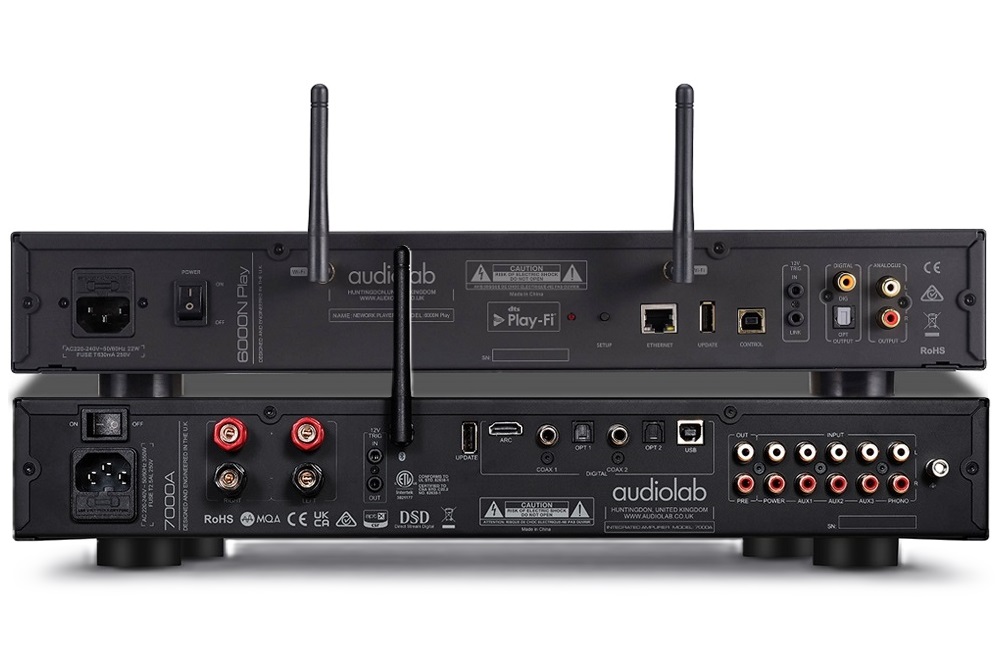

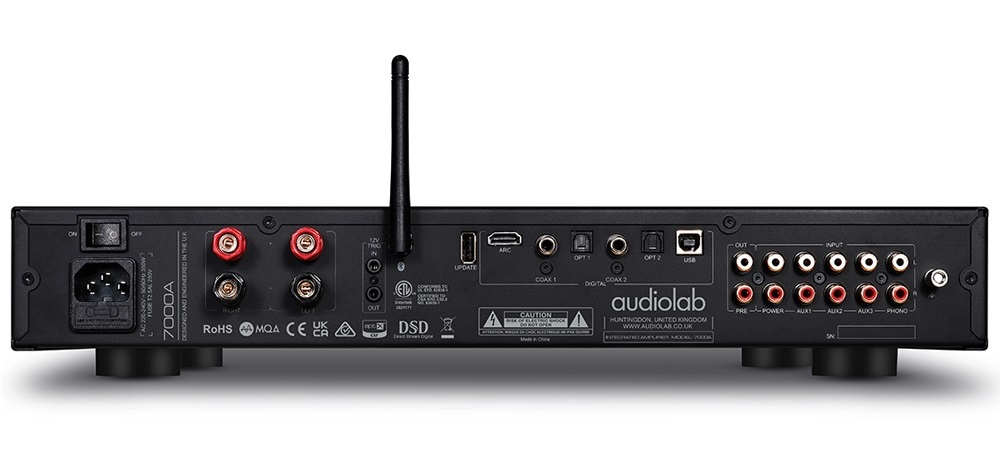

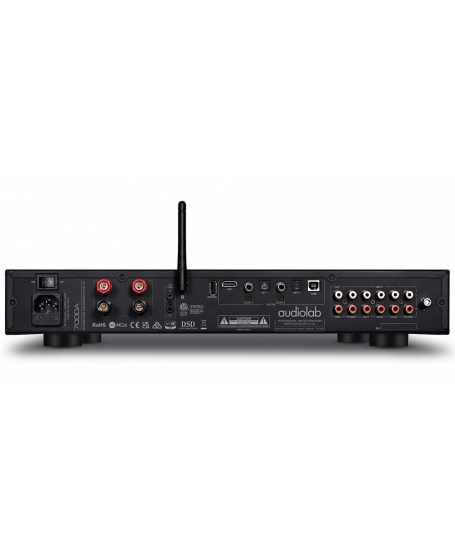

Inputs | 3 x Analogue, 1 x Phono (MM), 1 x Power Amplifier, |
2 x SPDIF (Coax), 2 x SPDIF (Optical), 1 x HDMI ARC, | |
1 x PC USB (USB B), 1 x Bluetooth (aptX/aptX LL), 1 x 12V Trigger | |
Outputs | 1 x PRE Amplifier, 1 x Stereo Speaker, 1 x Headphone, 1 x 12V Trigger |
Sampling Frequency | Optical / Coaxial: 44.1kHz - 192kHz; |
PC USB: 44.1kHz-768kHz (PCM) / DSD64, DSD128, DSD256, DSD512 | |
Preamplifier Section | |
Gain | +6dB (Line); +55dB (Phono MM) |
Input Sensitivity | 820mV (Line, Volume = 0dB); 3.1mV (Phone MM, Volume = 0dB) |
Input Impedance | 10K (Line); 47K // 100pF (Phono MM) |
Total Harmonic Distortion (THD) | < 0.0005% (1kHz @ 2V, Volume = 0dB) |
Frequency Response | 20Hz-20kHz (+/-0.1dB) |
Output Voltage | 2.3V max. (Volume = 0dB) |
Output Impedance | 100 ohms |
Signal-to-Noise Ratio | > 110dB (Line, A-weighted); > 76dB (Phono MM, A-weighted |
DAC | |
D to A Converter | ES9038Q2M |
Total Harmonic Distortion (THD) | < 0.0005% (1KHz @ 0dBFS) |
Output Level (0dBFS, 1kHz) | 2.1Vrms |
Max. Sampling Frequency | Optical, Coaxial: 192kHz; |
PC USB: PCM768kHz, DSD512 | |
Power Amplifier Section | |
Gain | +29dB |
Rated Power Output | 2 x 70W (8 ohms, THD<1%); 2 x 110W (4 ohms, THD<1%) |
Frequency Response | 20Hz-20kHz (+/-0.3dB) |
Total Harmonic Distortion (THD) | <0.003% (1kHz @ 40W / 8 ohms) |
Input Sensitivity | 720mV |
Signal-to-Noise Ratio (S/N) | > 110dB (A-weighted) |
Max. Output Current | 9A |
Headphone Amplifier | |
Total Harmonic Distortion (THD) | < 0.01% (1kHz, 50mW) |
Output Impedance | 4.7 ohms |
Load Impedance | 20-600 ohms |
General | |
Standby Power Consumption | <0.5W |
Net Weight | 8.4kg |
Gross Weight | 10.7kg |
Dimensions (mm) (W x D x H) | 444 x 340 x 78 |
Carton Size (mm) (W x D x H) | 500 x 455 x 140 |
Finish | Black / Silver |
Power Requirements | 220-240V ~ 50/ 60Hz; |
(depending on region) | 100-120V ~ 50/ 60Hz |
Standard Accessories | Power Cord, Remote Control, User Manual, Antennas, etc. |
6000N Play Specifications
Digital Section: | |
Digital Output Level | 500 +/- 50mVpp |
Output Impedance | 75Ω |
Maximum Resolution | 192kHz/24bit |
Digital Output | 1 x coaxial , 1 x optical |
Variable Output Voltage | 0 – 2.1V |
DAC | ES9018K2M |
Frequency Response | +/-0.5dB(20Hz-20kHz,ref.1kHz) |
Total Harmonic Distortion (THD) | <0.003% (1kHz @0dBFS , BW=20-20kHz) |
Signal-to-noise Ratio (S/N) | >115dB(A-weighted) |
Analogue Output Impedance | 100Ω |
Standby Power Consumption | <0.5W |
Requirements (depending on region) | 220V—240V~50/60Hz |
100V—120V~50/60Hz | |
Dimensions (LxHxW) | 445 x 80 x 330mm. including feet, terminals and controls |
Net Weight | 4.9kg |
