9000N

Developed to be the perfect digital streaming companion for the flagship audiolab 9000 series, the new 9000N is the result of over three year’s development and innovation to provide a critically stable, high-resolution wireless (and wired) digital music playback.

Overview

Digital face

Debuting earlier in 2022, the audiolab 9000 series exemplifies audiolab’s reputation for delivering class-leading amplifiers and, more recently, CD playback. Having forayed into entry-level streaming with the wildly successful, multi-award-winning 6000N Play and, more recently, the 7000N Play, the more high-end 9000N has been eagerly anticipated!

The 9000N answers the 9000 series and its natural progression towards a more premium hi-fi solution while answering overwhelming customer demand for a solidly built and impeccably finished streaming component.

Flexible and capable

The format of the 9000N reflects the crisp elegance of the 9000A and matching CDT. Equipped with rotary controls and an absence of buttons (except for the power switch), the 9000N also implements the 4.3in colour screen, as found in the rest of the series – the perfect window for presentation for your digital music files… including full-colour album artwork!

The screen displays a variety of information in a more visually appealing way than most other streaming devices, many of which have traditionally relied upon the accompanying app for operational feedback and user control and interface. The 9000N’s display offers full menu controls, an array of options, and user settings, including multi-language selection and general display options.

Most impressively, the 9000N display presents details of format data, playback information and, as mentioned above, full-colour album artwork display. Album artwork is visible in the default playback screen but can also be expanded for an artwork-emphasised playback screen. The display can even be set to display a VU meter in ‘analogue’ or ‘digital’ form, showing real-time decibel levels for the left and right channels – a satisfying graphical representation of the music as it plays. For a more minimalistic option, the display can be dimmed or turned off completely, as the user prefers.

Stream like a dream

Proudly developed to combine an incredibly capable and equally stable streaming platform with audiolab’s digital know-how, world-beating DAC implementation and signal flow, and the intuitive 9000 series general user interface, for the ultimate streaming solution.

The audiolab 9000N app offers immediate access to Qobuz and Tidal, with full access to hi-res and MQA content, as well as Spotify, TuneIn internet radio and UPnP music server systems and digital audio files stored on USB HDD devices.

The app offers intelligent search functionality and full access to, control of and even the creation of user-defined playlists, folders and album grouping functions. File information, track detail and app-in-app search, select, and compilation functions are easily accessible. Qobuz and Tidal users will be pleased to know that, unlike some other apps and platforms, the hi-res and Master Quality Authenticated (MQA) tracks can be easily identified with icons within the app itself, with no need to hop between the service and device apps to find such content.

Unlike comparable technology from other manufacturers, the 9000N offers wireless playback over a Wi-Fi connection, not solely dependent on the albeit sometimes preferable wired /ethernet connection. This, along with the full album artwork and ESS9038Pro DAC chipset integration, represents several advanced features for the 9000N to boast.

Yet, it is also not limited to the audiolab 9000N app; the 9000N also offers playback via Airplay II as well as Tidal Connect and Spotify Connect for those who prefer the proprietary streaming service app.

And to add to the impressive list of digital audio platform compatibility, the 9000N is Roon Ready. Roon Ready devices are network players with Roon’s own streaming technology built right in, connected over your ethernet or WiFi network. These devices make bit-perfect high-resolution audio simple because they require no configuration, they give you access to the best audio quality and they provide stable, reliable playback.

Digital circuitry

The hardware is based upon a Quad Arm® Cortex®-A53 core MCU with 1.8 GHz per Core. This powerful ‘brain’ behind the system ensures seamless, rock-steady operation and additional benefits such as album artwork caching; for faster loading of the accompanying artwork files, thus enhancing the user experience and visual aesthetic.

Ever since the much-admired M-DAC launched more than a decade ago, Audiolab has been famed for the performance of its DAC circuitry. The 9000N incorporates the ES9038PRO – an eight-channel DAC chip representing the pinnacle of ESS Technology’s current Sabre range. This is accompanied by proprietary circuitry to make the most of the chip’s HyperStream II architecture and Time Domain Jitter Eliminator technology for unprecedented dynamic range and ultra-low distortion.

No company knows more about making the most of Sabre DAC technology than Audiolab, having worked with it for years through several product generations. Although consistently technically excellent, these DAC chips are also challenging to implement to maximum effect and must be integrated into a product’s circuit design with care to extract their full sonic potential. The post-DAC active filter is a critical element, and Audiolab has developed a new circuit that is perfectly tailored to make the most of the ES9038PRO

The 9000N also delivers full decoding of , the hi-res streaming technology. This means that the complete ‘three unfold’ decoding process is performed internally, as opposed to just the final unfold in the manner of an MQA ‘renderer’, making the 9000A an excellent amplifier for subscribers to Tidal’s ‘HiFi Plus’ tier where Tidal Masters (MQA) content can be found. It is officially Roon Tested, too, ensuring it works seamlessly in a Roon audio environment.

Versatile connectivity

As any audiolab fan would expect, the 9000N incorporates state-of-the-art digital-to-analogue signal conversion. The 9000N offers connectivity via analogue XLR or RCA outputs. As a standalone MQA full decoder, it can be used with any amplifier or secondary pre-amp system that offers analogue connections. Further magic is employed through the digital output and option ‘MQA Pass through functionality’. For users who may employ an equally powerful DAC (9000A owners, for instance), the 9000N can stream and throughput an untouched MQA signal (from Tidal or Qobuz, for example) which that secondary DAC can then decode. This offers further functionality and versatility, not to mention a totally unadulterated signal flow – a benefit for the purists.

High-end audio that shoots for the stars but doesn’t cost the Earth

The 9000 series enters the streaming realms with a view of bringing the epitome of affordable high-end audio – build quality to be proud of, versatile functionality without a hint of compromise, and a performance that delivers every detail of the music and brings it to life in captivating style. It provides remarkable sonic consistency across all manner of digital and analogue sources, always musically engaging yet also refined.

Model    9000N
General Description    Network Player
Design Philosophy And Core Technology    ESS Sabre ES9038Pro 32bit DAC
Quad Arm® Cortex®-A53 core,1.8GHz per Core
Audiolab 9000N Streaming technology (IEEE 802.11 a / b / g / n / ac,2.4/5GHz)
UPnP AV protocol with audio streaming extension (Open Home)
Built-in Certified MQA Full decoder (via streaming & PC USB)
Native support for Spotify Connect, TIDAL Connect, MQA, Qobuz and TuneIn Radio
Roon Ready
Gapless Playback
High-resolution album artwork display
USB storage / flash drive / USB hard disk (Single-partition FAT32, exFAT and NTFS) playback
4.3" (800 x 480px) IPS LCD screen
iOS (11.0 or later) / Android (Android 4.0 or later) required for App control
The audiolab 9000N App Features    Native support for TIDAL, MQA, Qobuz and TuneIn Radio
Tidal MQA icons to easily identify high-res music
Qobuz high-res icons to identify high-res music
Volume control
High-resolution album artwork display
Artwork caching
Intelligent search functionality
Multiple Playlist complications & functionality
Multiple tag handling
Composer tag support
Album-grouping in playlist
Automatic internet links to artists / album / songs
Saving and restoring of playlists (including Tidal and Qobuz)

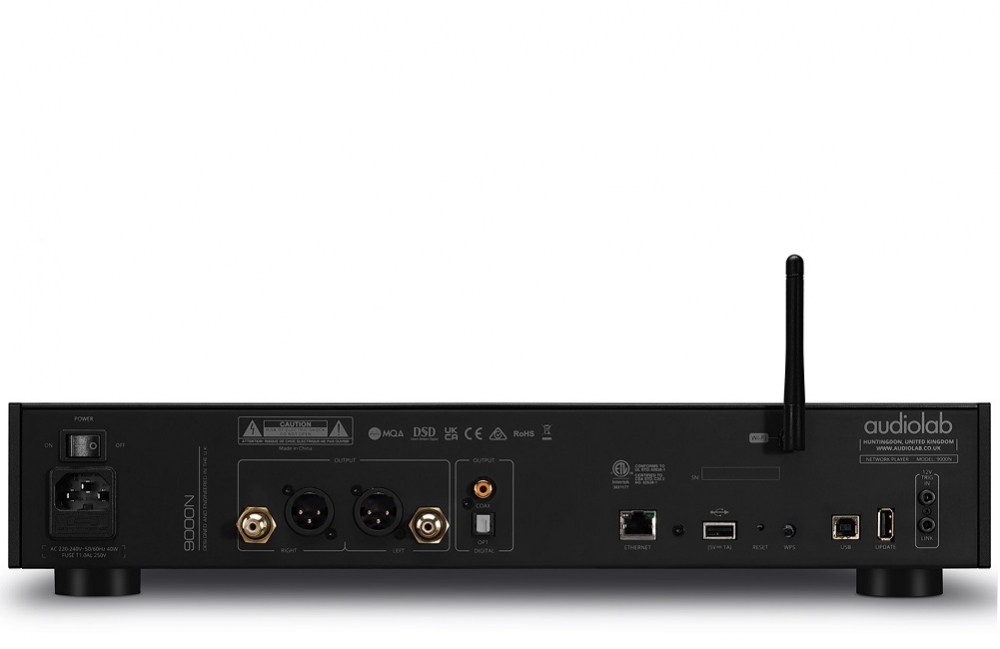

Inputs    1 x Network Streaming
1 x PC USB (USB Type-B)
1 x Ethernet 10/100 / 1000 Base-T Ethernet
1 x 12V Trigger
Outputs    1 x RCA (pair)
1 x XLR (pair)
1 x Optical
1 x Coaxial
1 x 12V Trigger (Link)
Supported File Formats    DSD Lossless: DSF (DSD), DIFF (DSD), DoP (DSD)
PCM Lossless: FLAC, Apple Lossless (ALAC), WAV, AIFF
Compressed (lossy) Audio: MP3 MQA
Sampling Frequency    PCM: 44.1kHz-768kHz (705.6kHz / 768kHz Fixed-point supported via Audiolab 9000N App streaming)
DSD: DSD64, DSD128, DSD256, DSD512 (Native)
Digital Section
Digital Output Voltage    500mV +/- 50mVpp
Output Impedance    75Ω
Frequency Response    -0.01dB (20Hz - 20kHz, ref.1kHz)
Max. Sampling Frequency    192kHz / 24bit
Digital Outputs    1 x Coaxial , 1 x Optical
D to A Converter
Variable Output Voltage    0 – 2.05V
DAC    ES9038Pro
Frequency Response    +/-0.5dB (20Hz - 20kHz, ref.1kHz)
Total Harmonic Distortion    <0.001% (1kHz @ 2.05Vrms)
Max. Sampling Frequency    768kHz / 32bit
Signal-to-noise ratio (A-weighted)    >116dB(RCA), >120dB(XLR)
Output Impedance    120Ω
General
Standby Power Consumption    <0.5W
Net Weight    6.2kg
Gross Weight    8kg
Dimensions (mm)(W x H x D)    444 x 89 x 333
Carton Size (mm)(W x H x D)    514 x 470 x 161
Finish    Black / Silver
Power Requirements
(depending on region)    220-240V ~ 50/ 60Hz
100-120V ~ 50/ 60Hz
Safety Regulation Conformity
Standard Accessories    Power Cord, Remote Control, User Manual
