QR 1

THE BOOKSHELF/STANDMOUNT MODEL
The design goal of the QR series has always been to offer the most advanced technology in a perfectly finished and proportioned high-end package. The sound is big, bold and dynamic, yet subtle and detailed when required and an excellent solution for all types of music. The fascia plate is machined from a single piece of Aerospace Grade Aluminium. It has been precision machined, glass blasted, brushed and then anodized in an attractive Tungsten Titanium Grey. It features a rose gold-plated dispersion mesh, which works as an S-Stop filter. This new Audiovector drive unit has the ability to work like a perfect piston over several octaves of the frequency band without the distortion normally found in aluminium/diamond drive units. This means music sounds warm, precise and detailed, yet dynamic and musical.

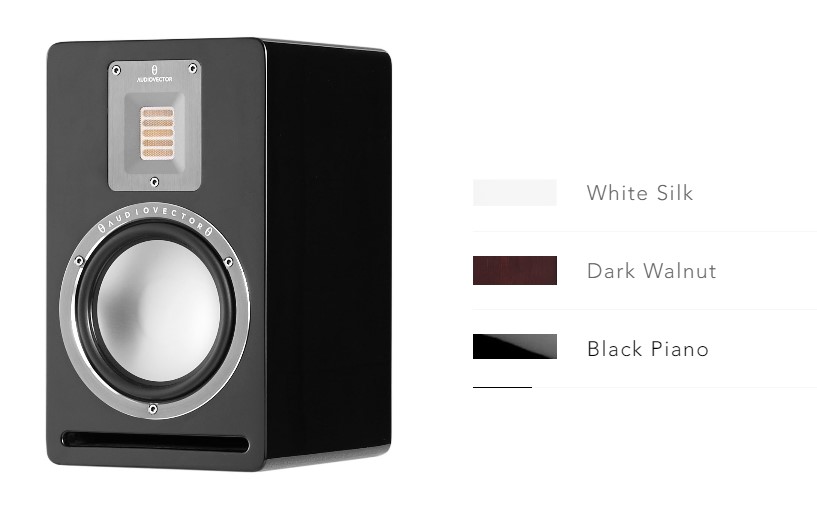

COLOURS AND VENEERS

At Audiovector we only use carefully selected real wood veneers.

Standard finishes: White Silk, Dark Walnut, Black Piano

CLOTH GRILLES INCLUDED

SPECIFICATIONS QR 1
FREQUENCY RESPONSE 45 – 45 kHz
GOLD LEAF UPPER LIMIT 105 kHz
TREBLE SYSTEM Gold Leaf AMT with S-stop
BASS DRIVERS 6” Pure Piston technology
BASS SYSTEM Q-port bass reflex
PRINCIPLE 2 Way
X-OVER FREQUENCIES 3000 Hz
SENSITIVITY 86 dB/W/m
POWER HANDLING 150 W
IMPEDANCE 4 Ohms
DIMENSIONS CM HEIGHT/WIDTH/DEPTH 32,5 x 19 x 23,2
