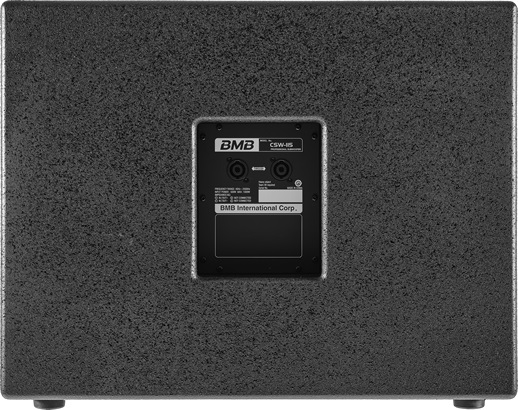

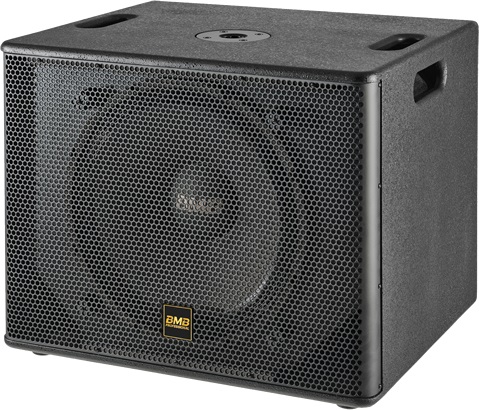

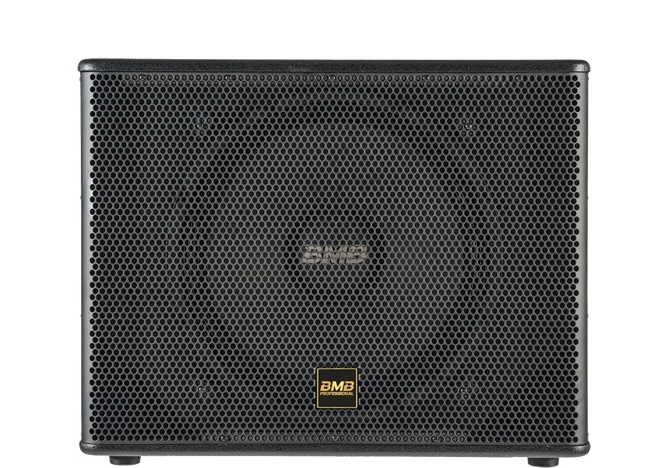

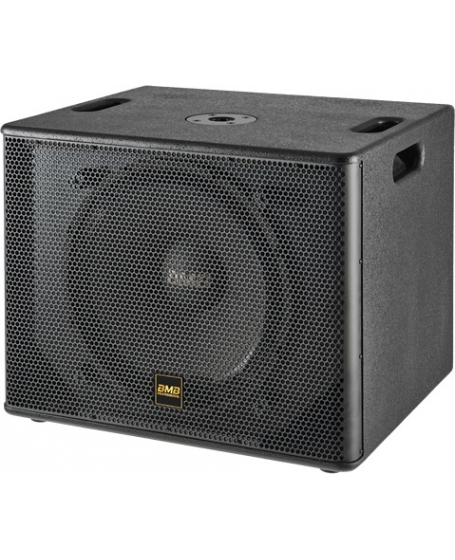

BMB CSW-115

CSW Series

Make your singing more comfortable and enjoy your beat.

A subwoofer for karaoke developed by karaoke maker BMB that pursues comfortable singing.
By adopting a triangular bass reflex hole, you can make a speedy beat even though it is a bass reflex type.
In addition, the height of the main body can be lowered, resulting in a compact housing.

Selling point

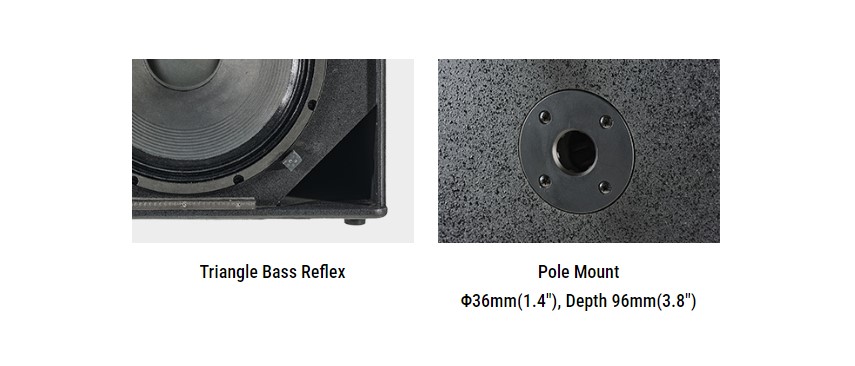

• Triangle Bass Reflex
  Will provide comfortable and speedy beat.
• Pole Mount
  Add speaker on the top of subwoofer via pole.

CSW-115 [15"]
System Type    1 Way 1 Speaker Bass Reflex
Frequency Range(-10dB) *1    45Hz～3.1kHz
Frequency Response(±3dB) *1    50Hz～3.0kHz
Sound Pressure Level *2    93dB
Impedance    8Ω
Max Sound Pressure Level *3    120dB(Peak 126dB)
Power Capacity    Continuous 500W, Program 1000W, Peak 2000W
Dimensions(H×W×D)    465mm×580mm×488mm
(18.3"×22.8"×19.2")
Shipping Dimensions(H×W×D)    597mm×706mm×615mm
(23.5"×27.8"×24.2")
Net Weight    24.0kg(52.9lbs)
Shipping Weight    30.6kg(67.5lbs)
Input Connectors    Speaker Connector(4P)×2
Pole Mount Cap    Φ36mm(1.4"), Depth 96mm(3.8")
LF Driver    380mm(15.0") Cone, 75mm(3.0") Voice Coil×1
Enclosure Construction    15mm(0.6") Plywood
*1 Full space (4π) conditions
*2 1w1m on-axis, swept-sine in anechoic environment
*3 Calculated
