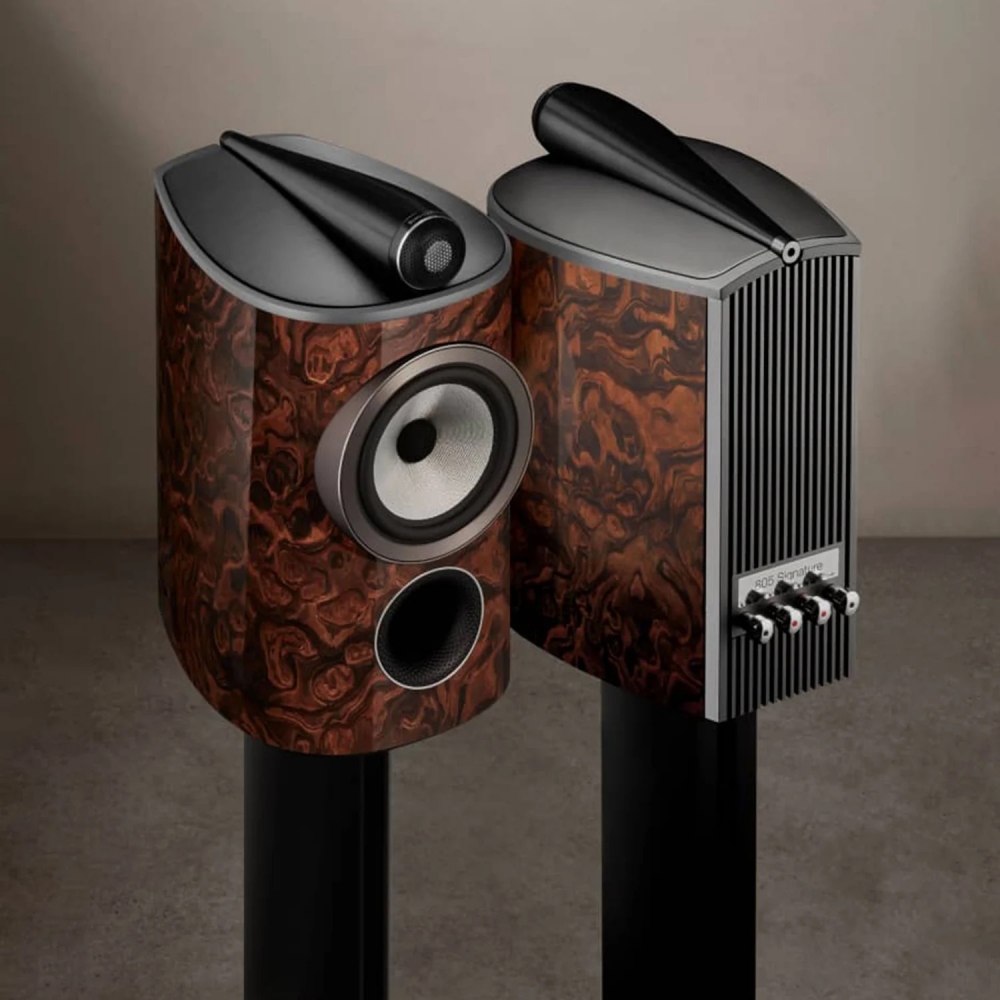

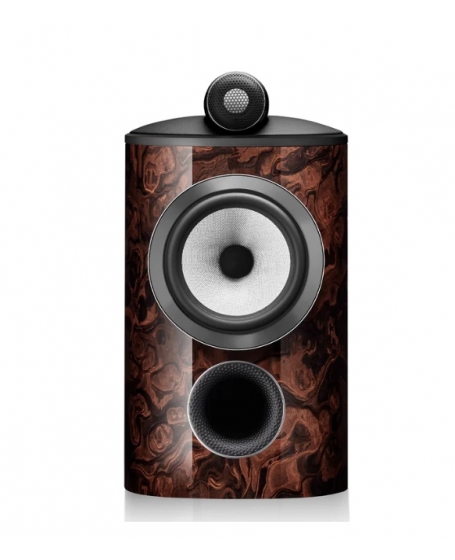

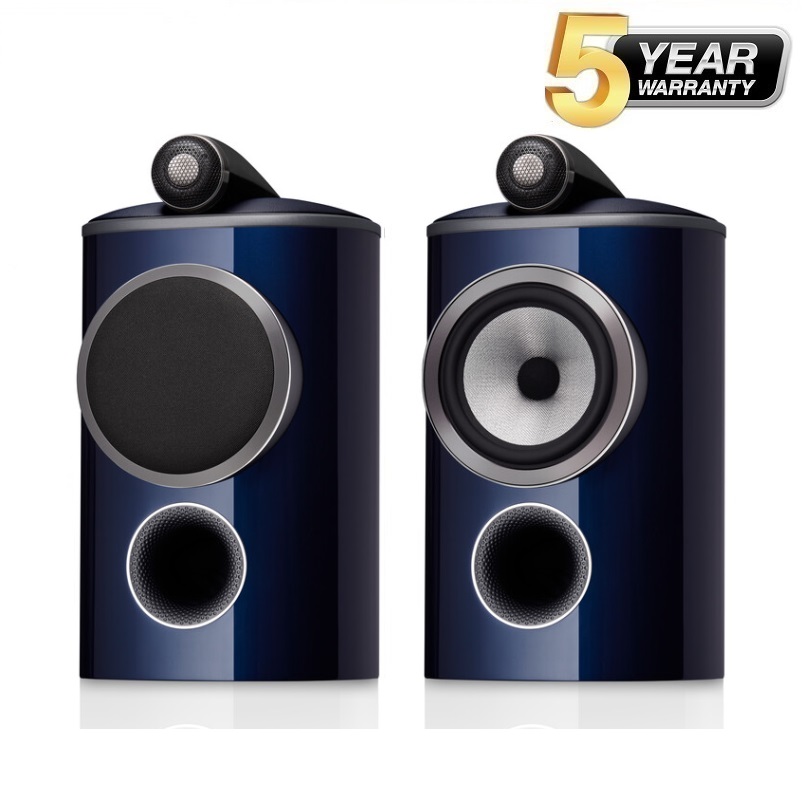

805 D4 Signature

The 805 D4 Signature stand-mount loudspeaker is compact and powerful. It features fully optimized technologies, including that all-important Diamond Dome tweeter and Solid Body Tweeter-on-Top. It’s proof positive that small can still be beautiful.

Compact and powerful

The 805 D4 Signature stand-mount loudspeaker is compact and powerful. It features fully optimized technologies, including our Diamond Dome tweeter and Solid Body Tweeter-on-Top. It's proof positive that small can still be beautiful.

Diamond Dome tweeter

One of our most significant accomplishments over the past two decades, the ultra-stiff, supremely accurate Diamond Dome tweeter is the perfect combination of low mass, exceptional stiffness, and outstanding accuracy. Fifteen years after we introduced it, we haven't found a better tweeter dome technology.

All-new tweeter grille

Our Solid Body Tweeter-on-Top housing features an elongated form with a longer tube-loading system and an all-new design of tweeter grille, producing an even more free and open sound with high frequencies.

Upgraded crossover

Our 805 D4 Signature uses upgraded rear-mounted crossover designs mounted on stiff aluminum spines. This isolates the sensitive capacitors from the unwanted effects of air pressure within the enclosure and makes for a very effective heatsink to ensure optimum performance when in use.

Continuum™ Cone

Thanks to its composite construction, the Continuum™ Cone avoids the abrupt transitions in behaviour that can impair the performance of a conventional drive unit. The result is a more open, neutral performance from the 805 D4 Signature. Voices and instruments can be heard with precision and transparency.

Discover 801 D4 Signature

The 801 D4 Signature is an optimized version of our most advanced loudspeaker. It features meticulously evolved technology, carefully crafted design, and unique finishes that culminate in the pinnacle of performance. This is Bowers & Wilkins' flagship loudspeaker perfected.

Technical features Diamond tweeter
Solid Body Tweeter-on-Top
Continuum™ cone bass/midrange
Matrix™
Anti-Resonance plug
Flowport™

Description
2-way vented-box system
Drive units
1x ø25mm (1in) Diamond Dome high-frequency
1x ø165mm (6.5in) Continuum™ cone bass/midrange
Frequency range
 -6dB 34Hz to 35kHz
Frequency response(+/-3dB from reference axis)
42Hz to 28kHz ±3dB
Sensitivity (on axis at 2.83Vrms at 1m)
88dB
Harmonic distortion
2nd and 3rd harmonics (90dB, 1m on axis)
<1 % 90Hz - 20kHz
<0.3% 120Hz - 20kHz
Nominal impedance
8Ω (minimum 4.6Ω)
Recommended
amplifier power
50W - 120W into 8Ω on unclipped programme
Max. recommended cable impedance
0.1Ω
Dimensions
Height: 440mm (17.3in)
Width: 240mm (9.4in)
Depth: 373mm (14.7in)
Net weight 15.6kg (34.3lbs)
Finishes Cabinet: California Burl Gloss
Grille: Black
