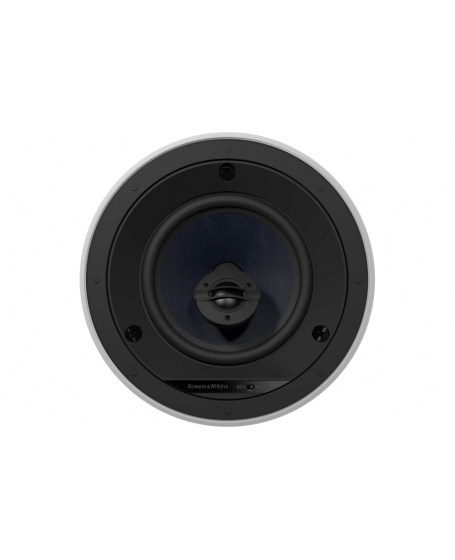

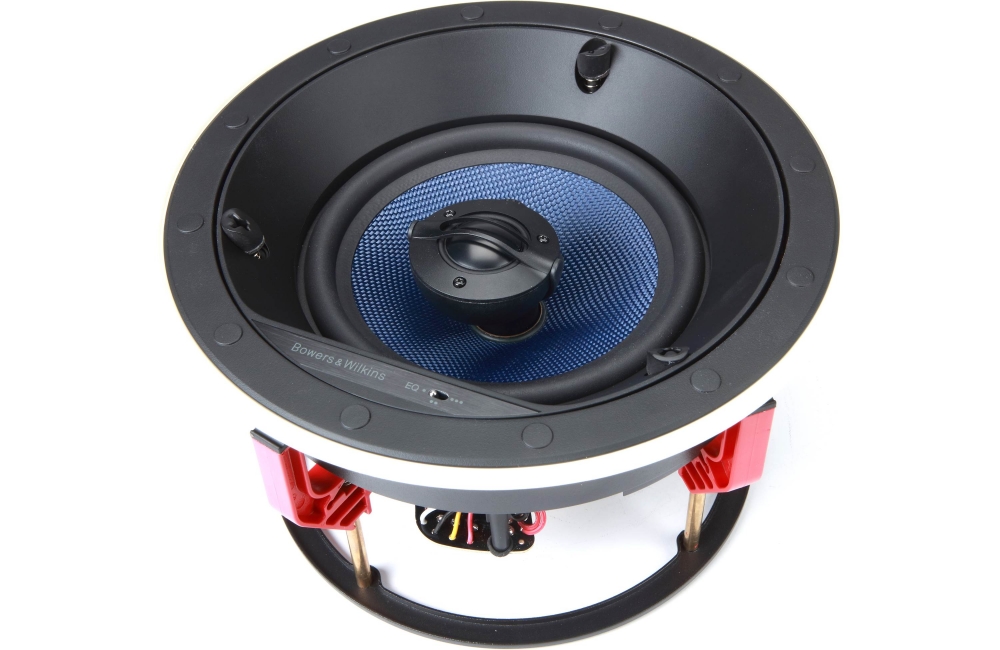

CCM663

The CCM663 is a true high performance ceiling-mount speaker. The tweeter has a 25mm (1in) aluminium dome and its housing pivots for adjustable off-axis treble response. The bass/midrange driver’s die-cast chassis provides extra rigidity which results in a cleaner, faster bass, and a three-position EQ switch for a better off-axis response. The Aramid fiber cone means that the unit is well hidden behind the grille but still produces a remarkably clear and dynamic sound. Incorporating QuickDogs™ and plug-and-play functionality it is quick and easy to install.

Description : 2-way in-ceiling system
Drive Units : 1x ø25mm (1in) Nautilus™ swirl loaded aluminium
dome tweeter
1x ø150mm (6in) blue Aramid Fibre cone bass/midrange
Frequency Range (-6dB) : 45Hz – 50kHz
Recommended Amp Power : 25 – 130w
Sensitivity SPL (2.83V, 1m) : 88dB
Impedance Nominal (min) : 8Ω (4.5Ω)
Frame diameter : 240mm (9.5in)
Cut-out diameter : 202mm (8in)
Depth behind surface : 133mm (5.2in)
Protrusion : 4mm (0.2 in)
Pre-mount Kit : C6
Back Box : 6C
