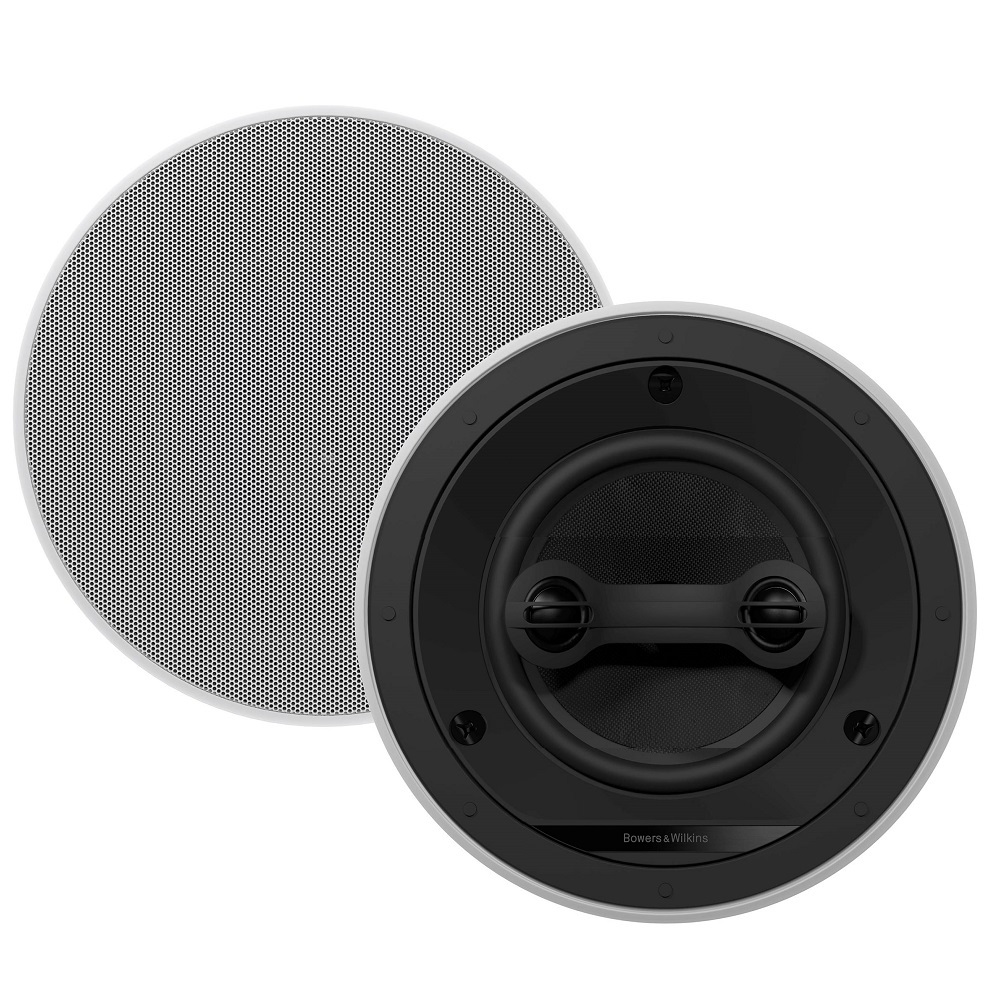

CCM664SR

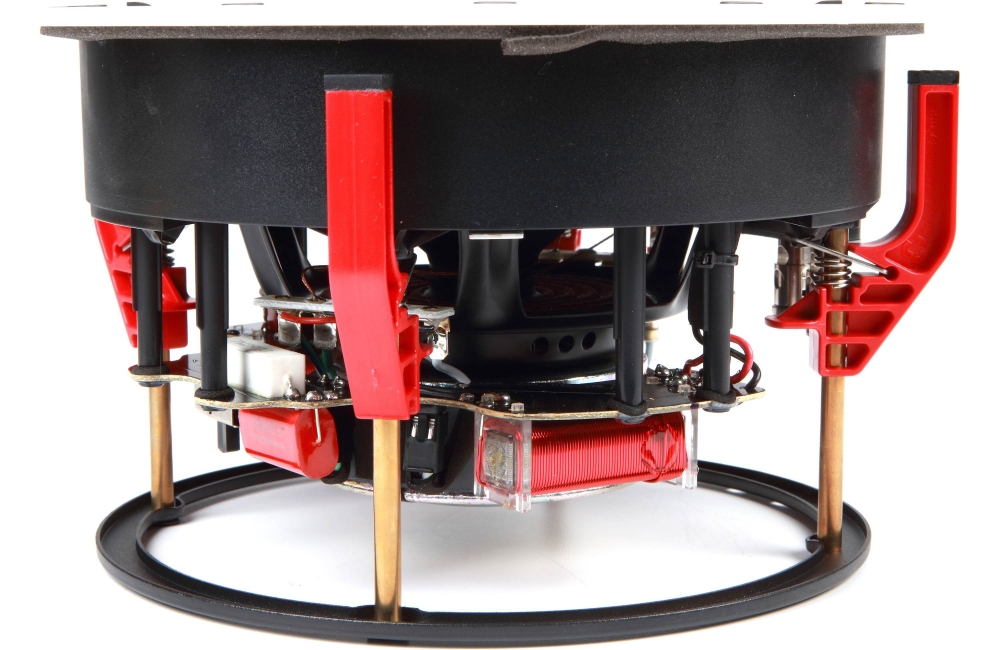

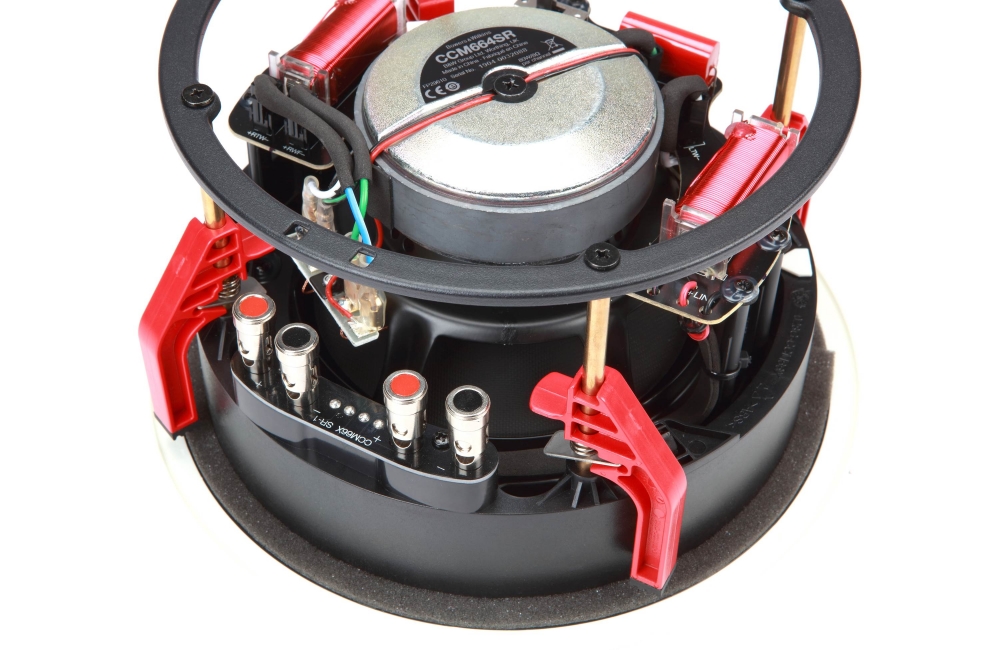

The CCM664SR is a dual, two-way ceiling speaker featuring a 150mm (6in) woven glass fibre cone bass/midrange driver and two offset soft dome tweeters. The twin voice coil bass/midrange driver and tweeters allow a stereo signal to be combined to facilitate the use of just one ceiling speaker in a single installation area without the loss of one audio channel. The CCM664SR also includes a two-position stereo/surround switch to instantly make the speaker very suitable to be used as a surround channel. Incorporating QuickDogs™ and plug-and-play functionality it is quick and easy to install.

Description : 2-way dual channel in-ceiling system
Drive Units : 2x ø20mm (1in) soft dome tweeter
                     1x ø150mm (6in) black glassfibre cone bass/midrange
Frequency Range (-6dB) : 48Hz – 30kHz
Recommended Amp Power : 25 – 80w (per channel)
Sensitivity SPL (2.83V, 1m) : 82dB (per channel) ,88dB (both channels driven)
Impedance Nominal (min) : 8Ω (4Ω) (per channel)
Frame diameter : 240mm (9.5in)
Cut-out diameter : 202mm (8in)
Depth behind surface : 133mm (5.2in)
Protrusion : 4mm (0.2in)
Pre-mount Kit : PMK C6
Back Box : BB C6
