CCM665

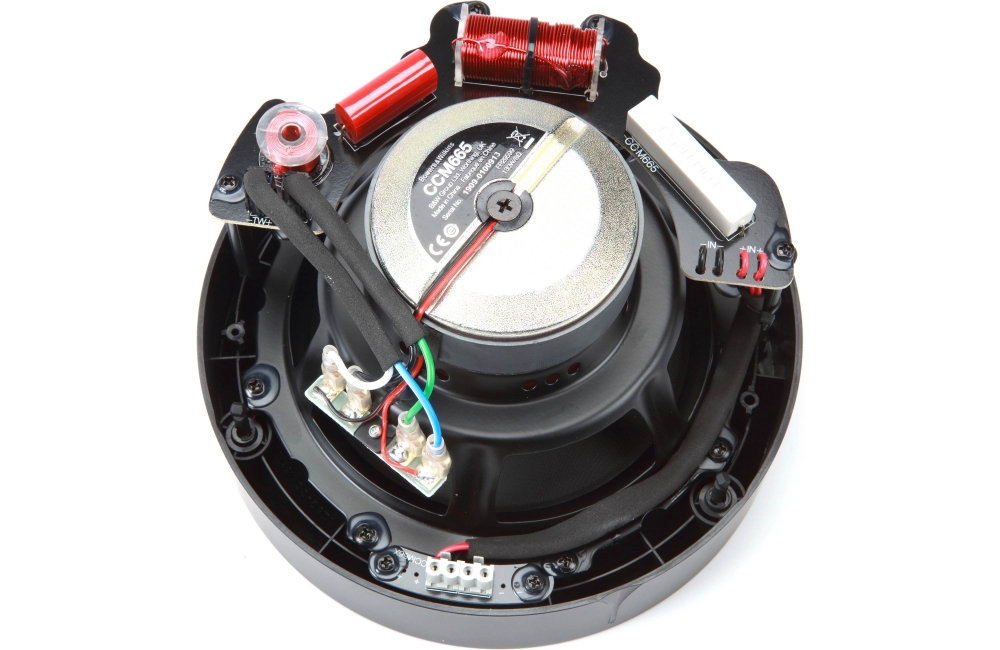

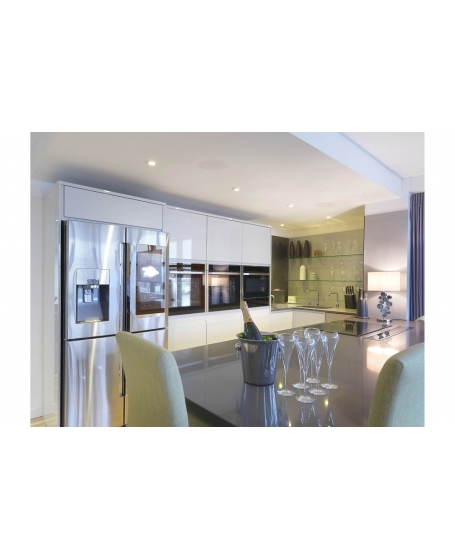

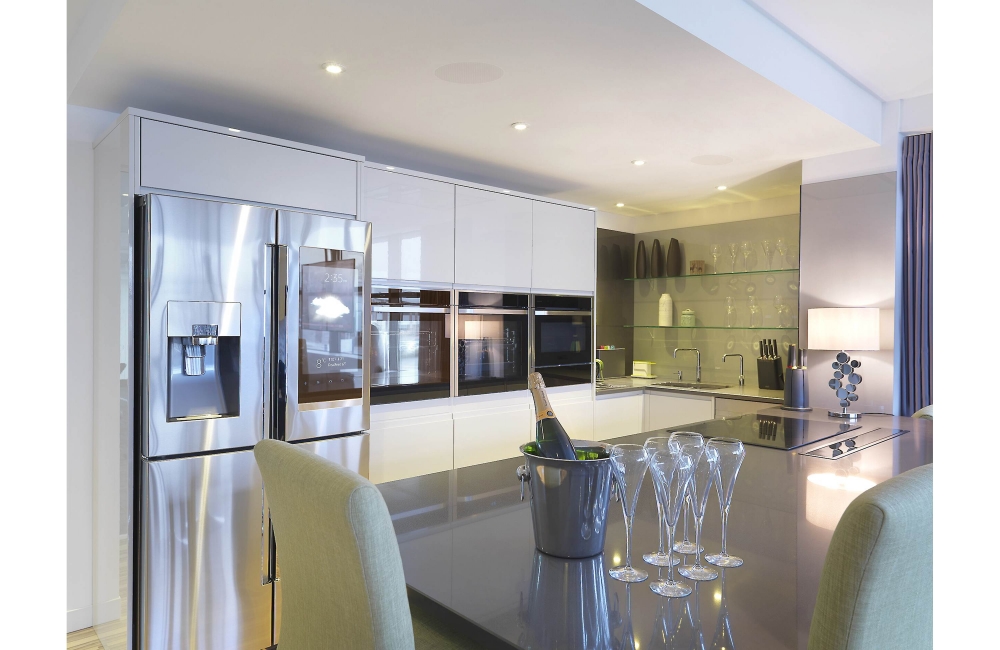

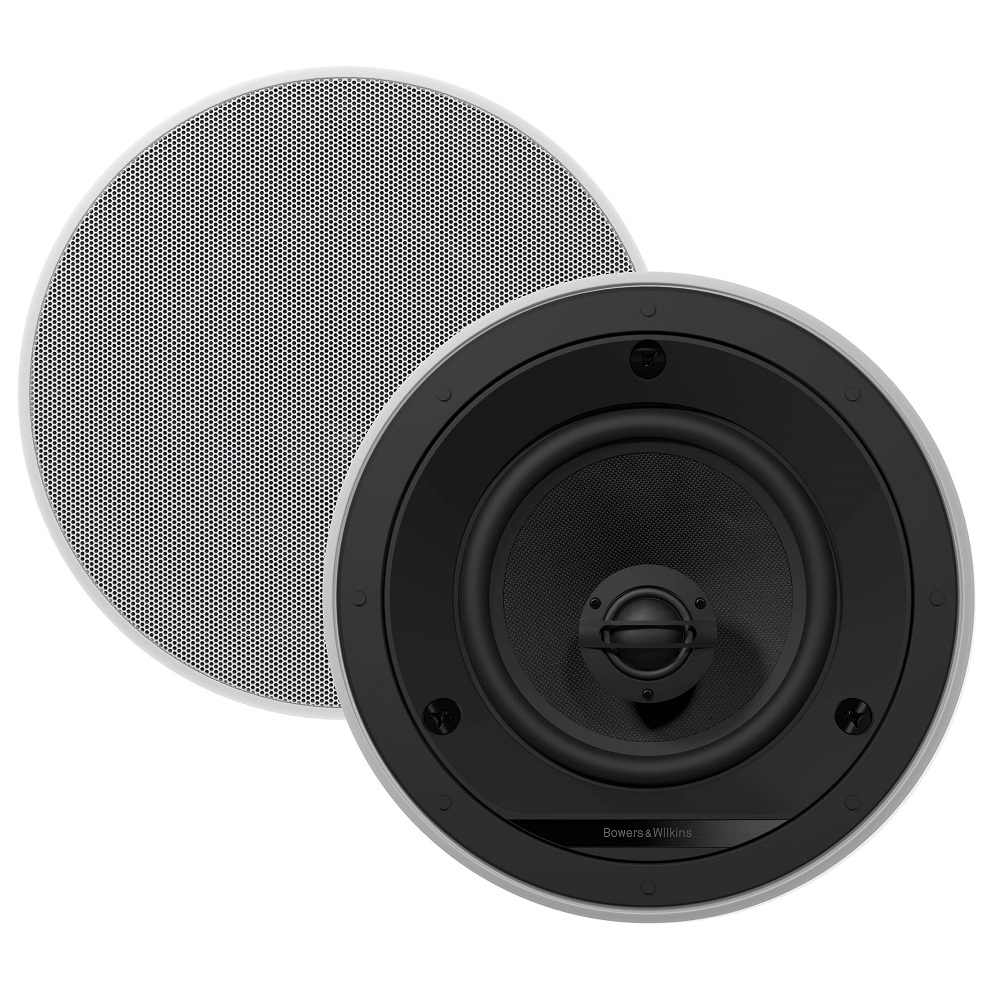

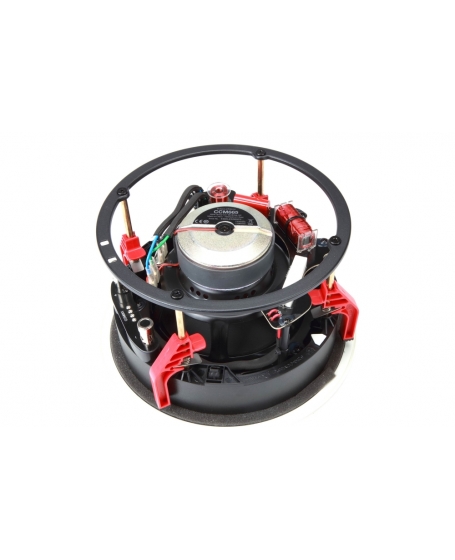

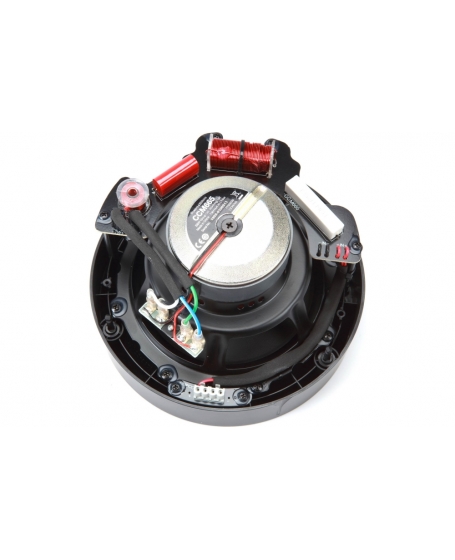

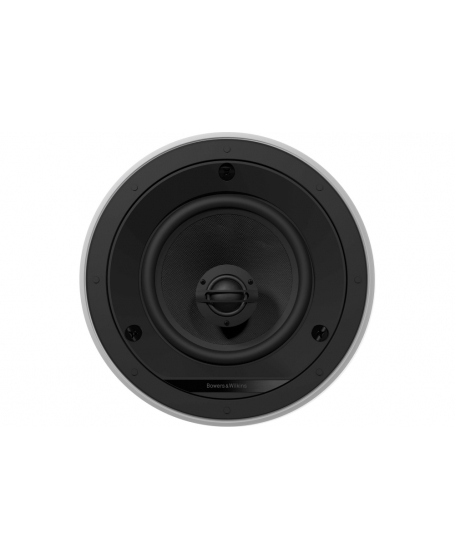

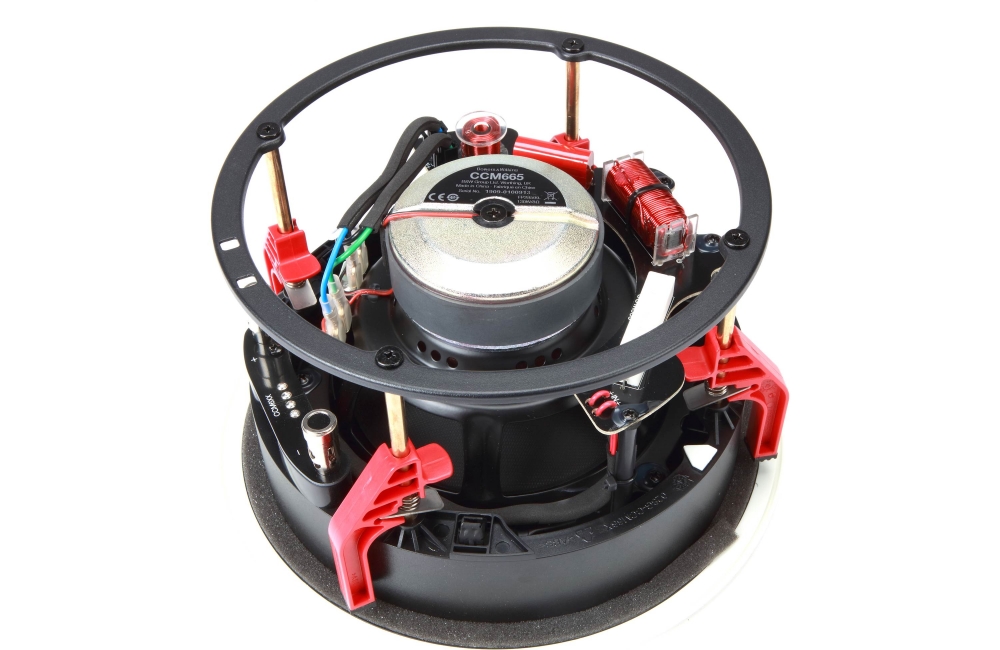

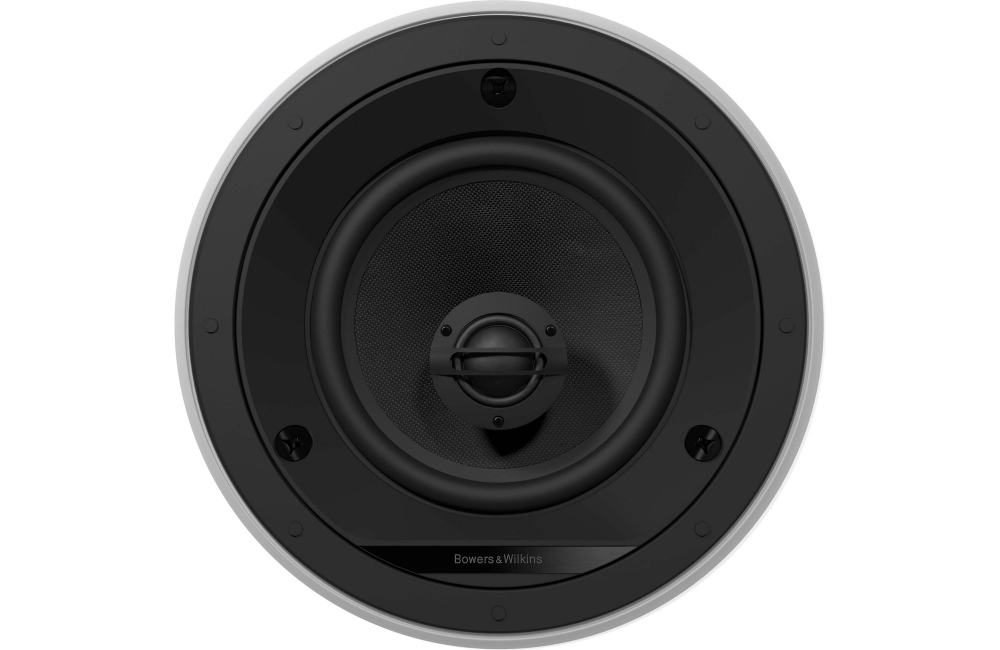

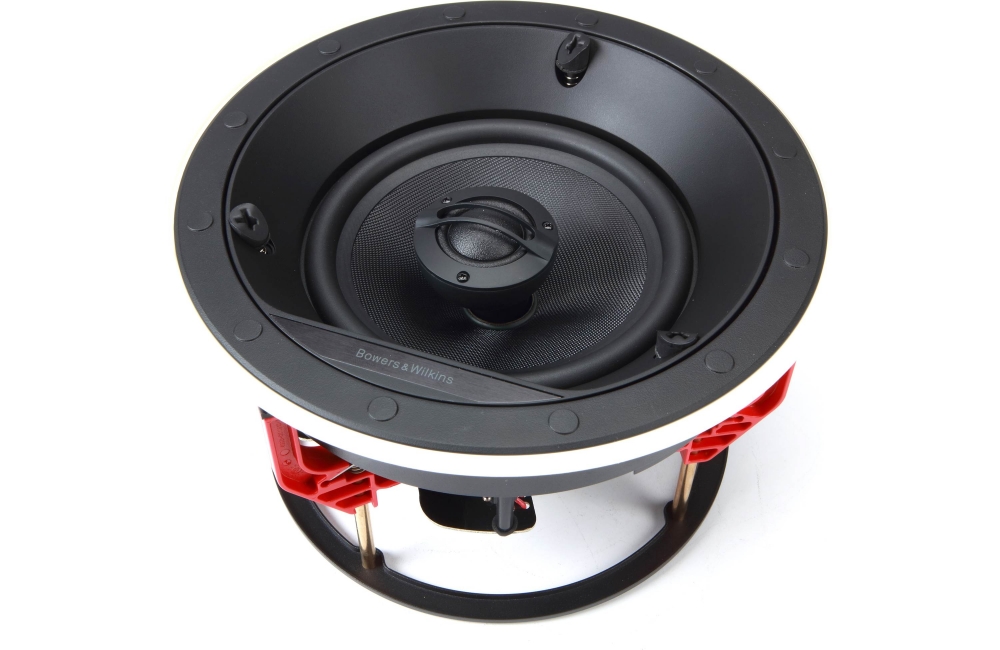

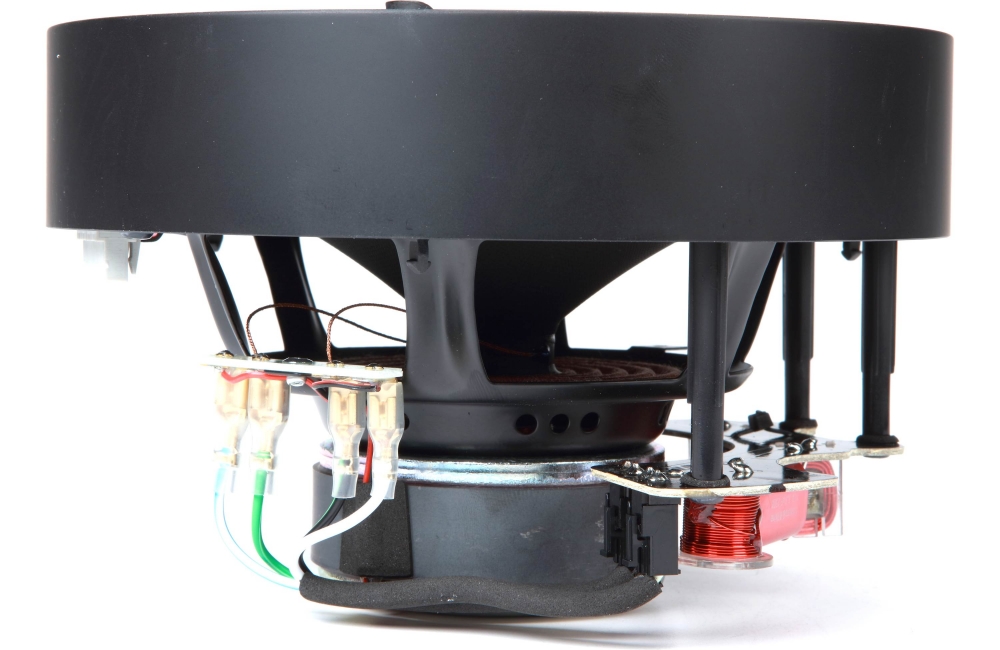

CCM665 is a high performance ceiling speaker that’s simplicity itself to install and use. A 2-way design, featuring a 150mm (6in) woven glass fibre cone bass/midrange driver and a soft dome tweeter in a neat circular ceiling mount chassis. Incorporating QuickDogs™ and plug and play functionality it is quick and easy to install. A perfect speaker for those indulgent extra locations – the bathroom, the kitchen – that define the real luxury of custom installed audio.

Description : 2-way in-ceiling system

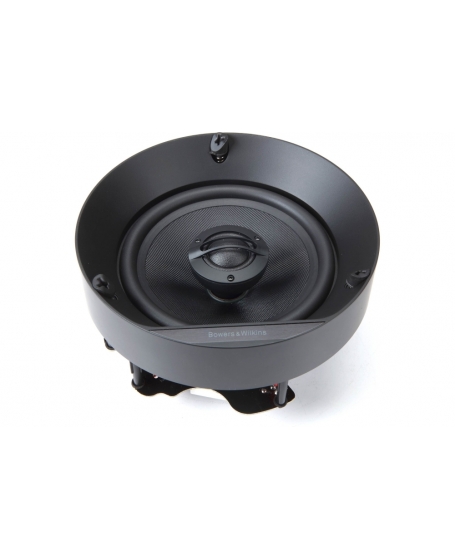

Drive Units : 1x ø25mm (1in) soft dome tweeter
                     1x ø150mm (6in) black glassfibre cone bass/midrange
Frequency Range (-6dB) : 45Hz – 35kHz
Recommended Amp Power : 25 – 130w
Sensitivity SPL (2.83V, 1m) : 87dB
Impedance Nominal (min) : 8Ω (4.5Ω)
Frame diameter : 240mm (9.5in
Cut-out diameter : 202mm (8in)

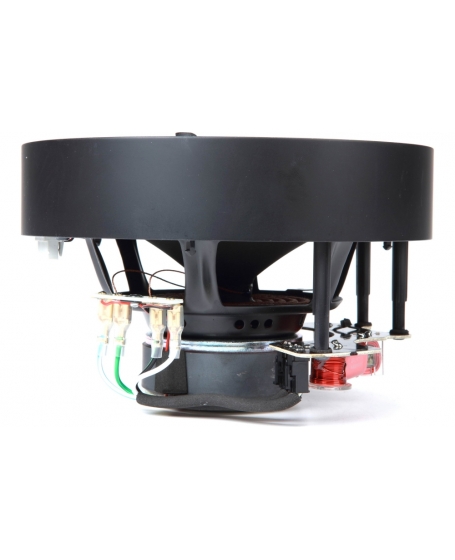

Depth behind surface : 133mm (5.2in)
Protrusion : 4mm (0.2in)
Pre-mount Kit : PMK C6
Back Box : BB C6
