CCM682

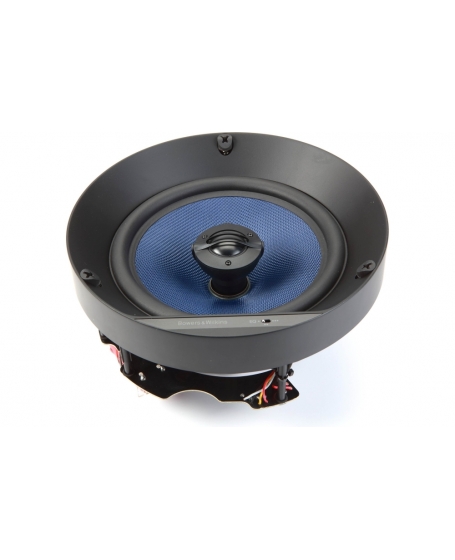

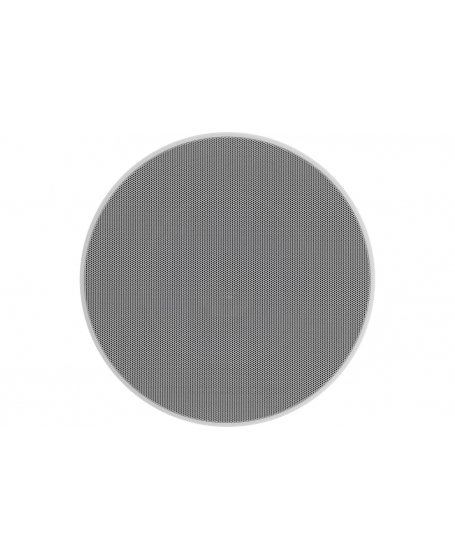

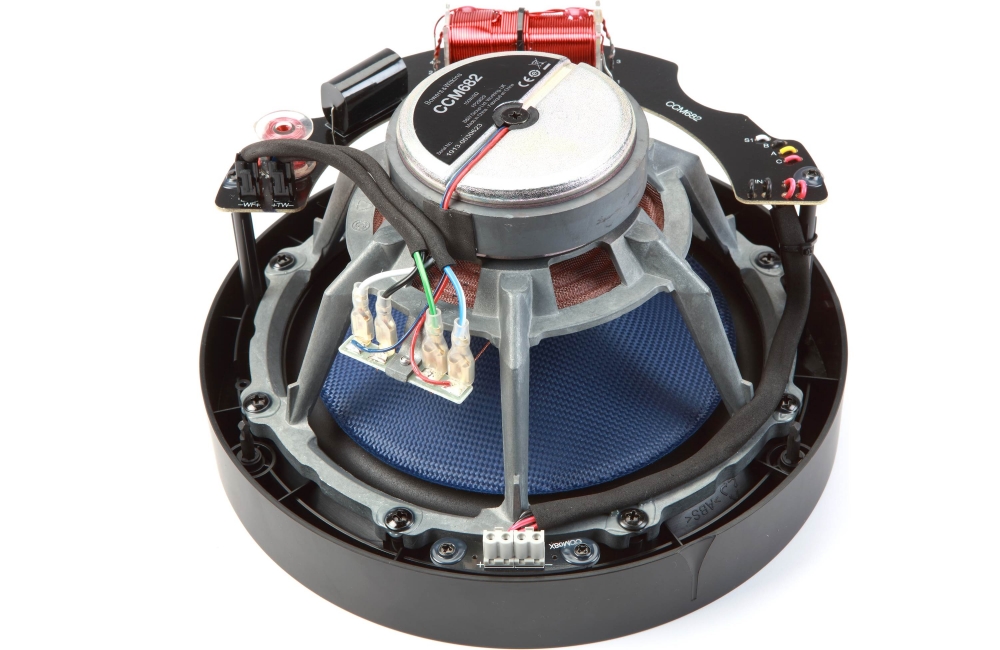

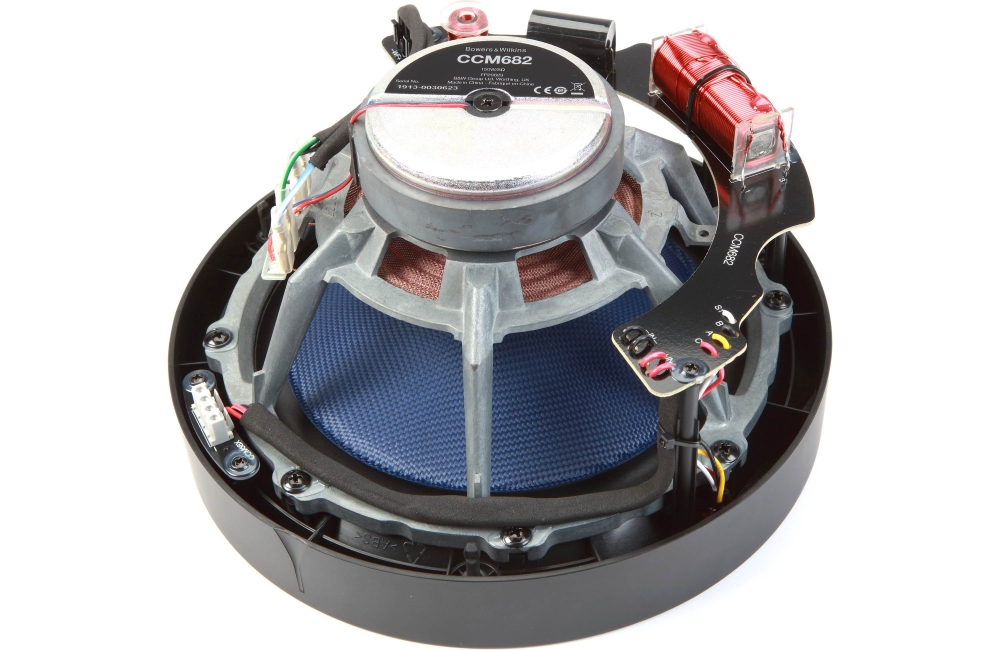

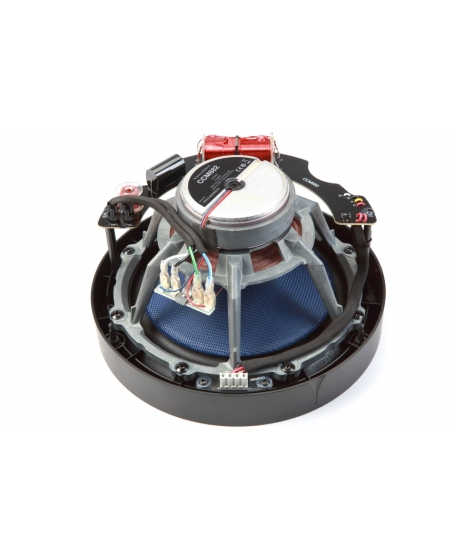

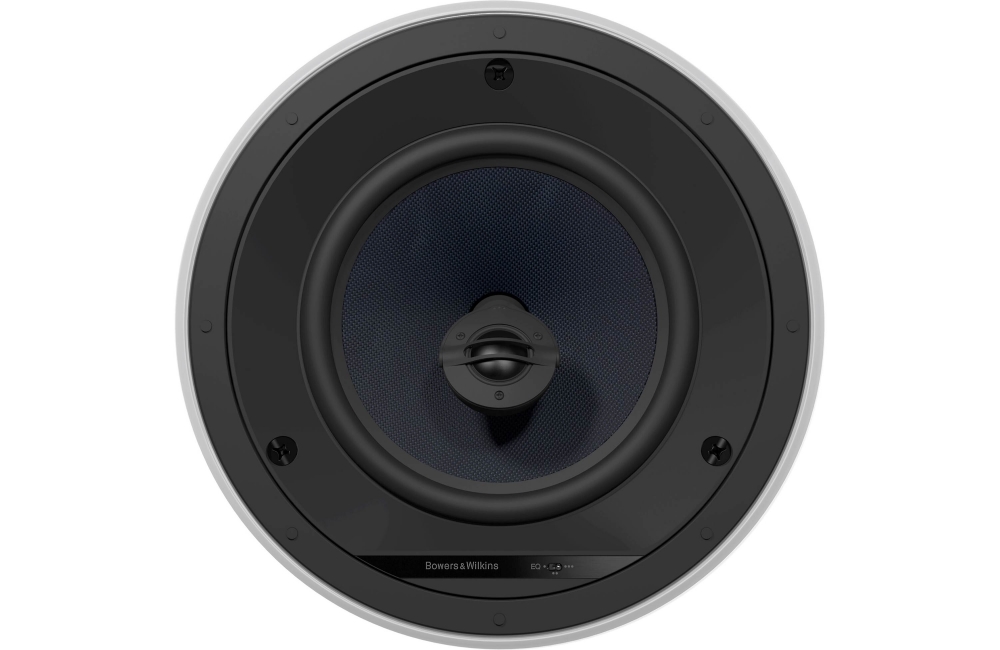

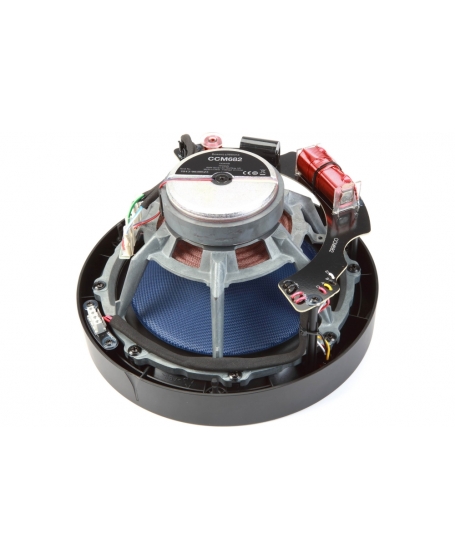

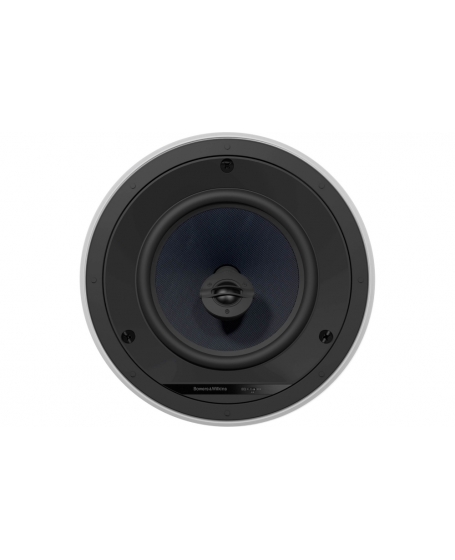

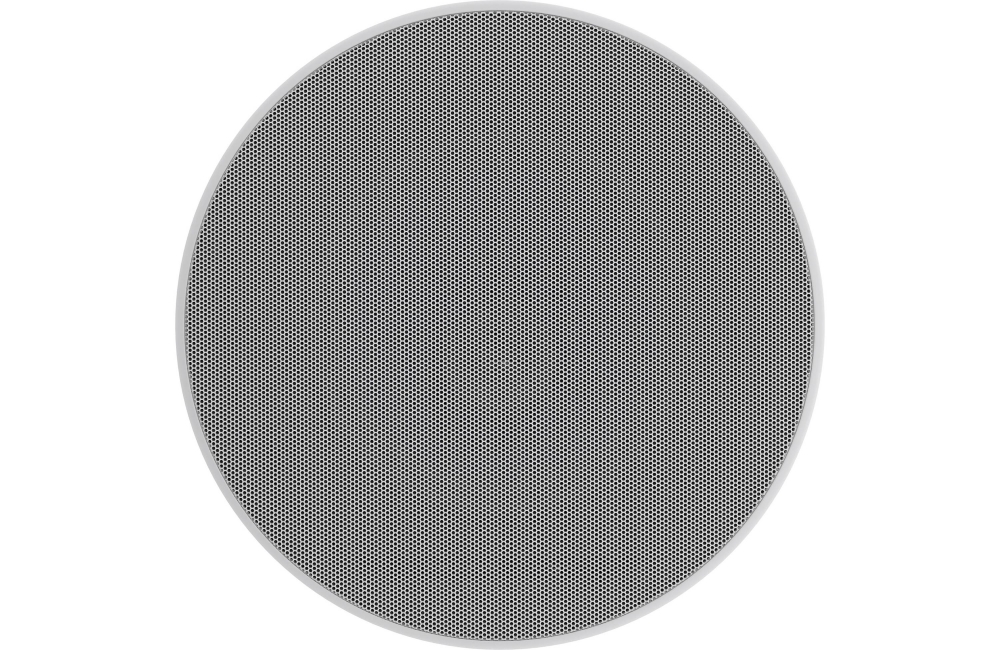

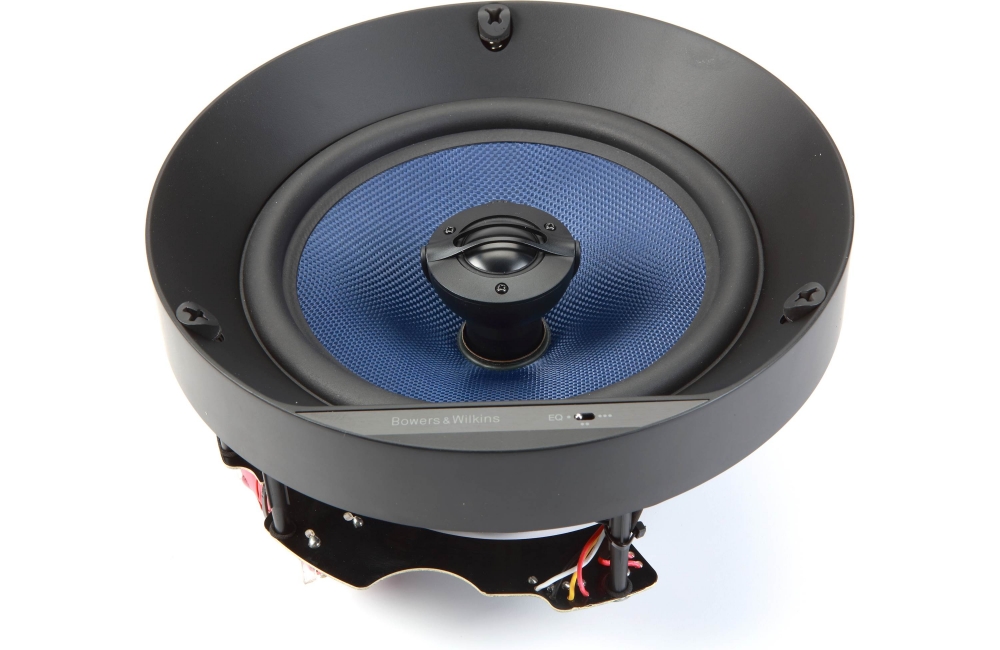

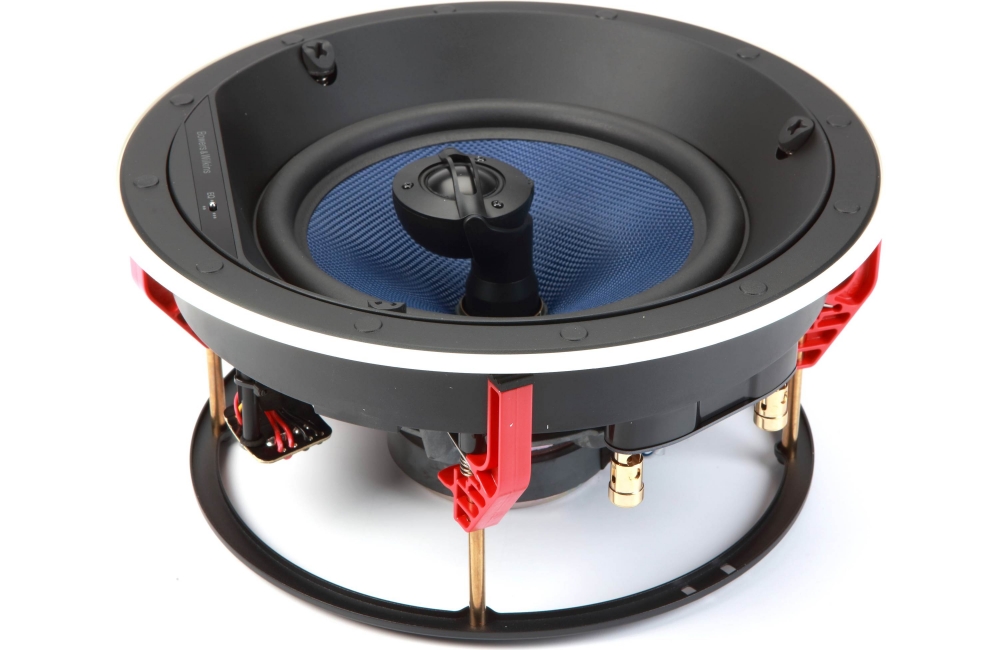

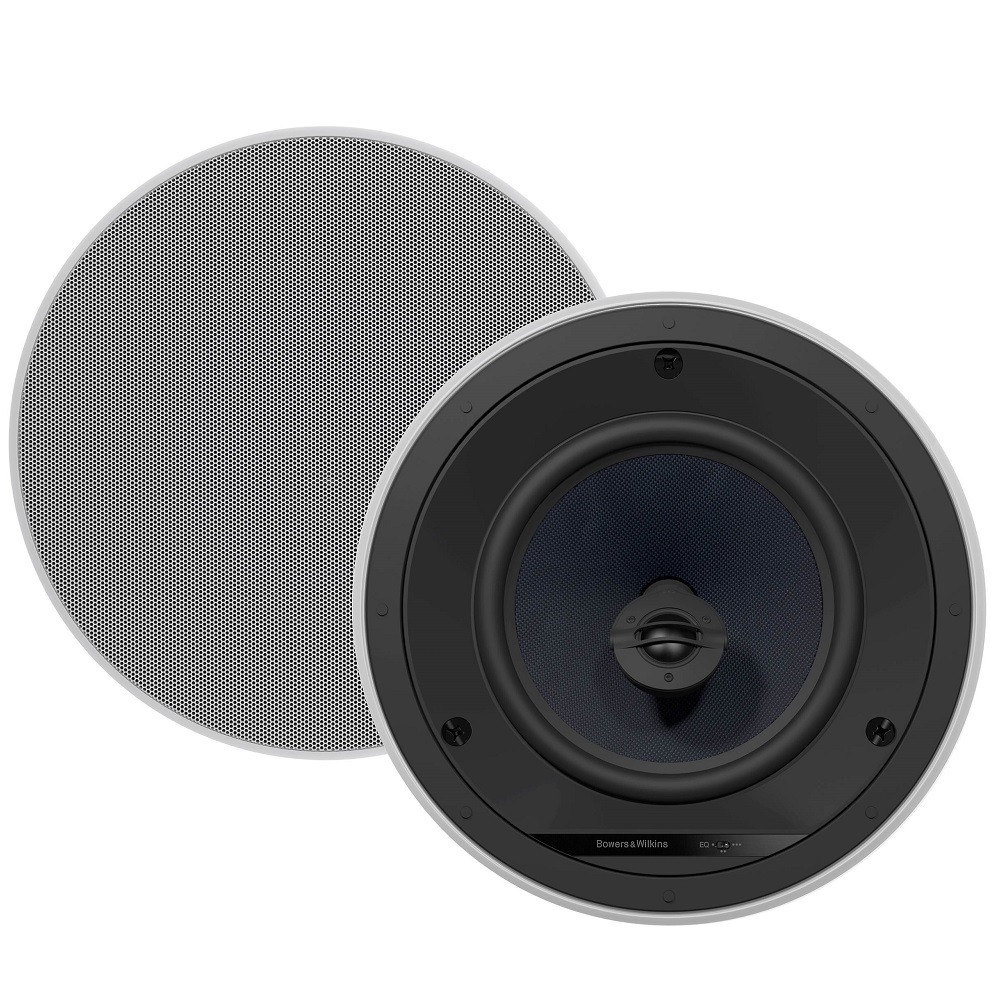

The CCM682 is a high performance ceiling-mount speaker that features a 200mm (8in) Aramid fiber cone bass/midrange driver and an aluminium dome tweeter in a neat circular die-cast chassis. Its 30mm coil and 100mm magnet ensure an incredibly efficient and reliable speaker with outstanding sound quality. The aluminium tweeter’s housing pivots for adjustable off-axis treble response. The speaker also has a three-position EQ switch for a better off-axis response. The bass/midrange driver’s die-cast chassis provides extra rigidity which results in a cleaner, faster bass. The blue Aramid fiber cone means that the unit is well hidden behind the grille but still produces a remarkably clear and dynamic sound. Incorporating QuickDogs™ and plug-and-play functionality it is quick and easy to install.

Description : 2-way in-ceiling system

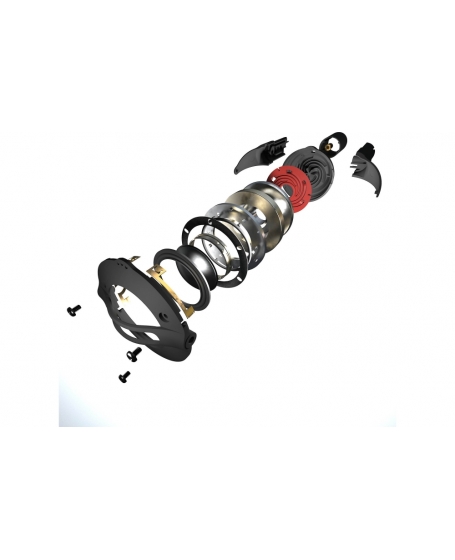

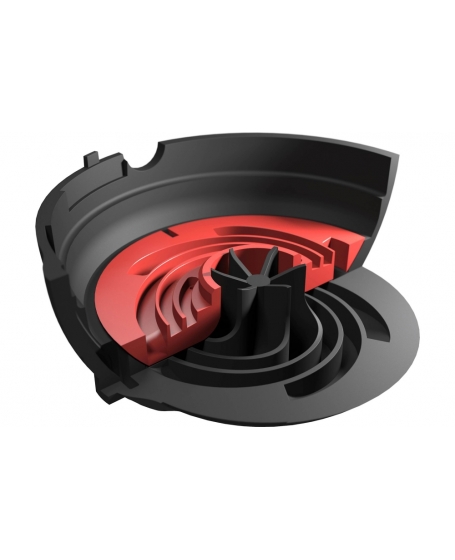

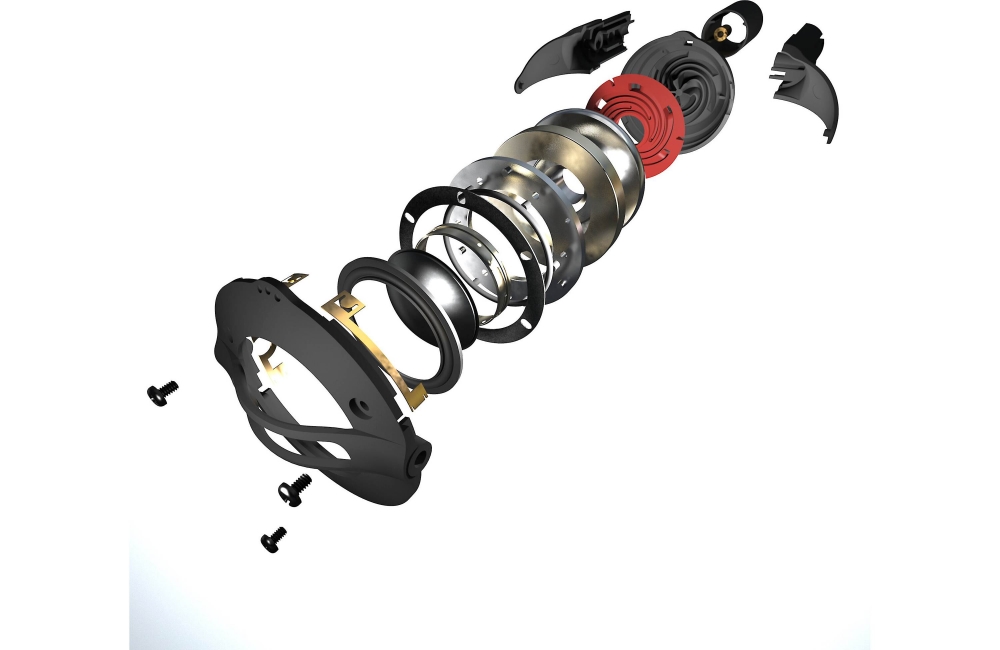

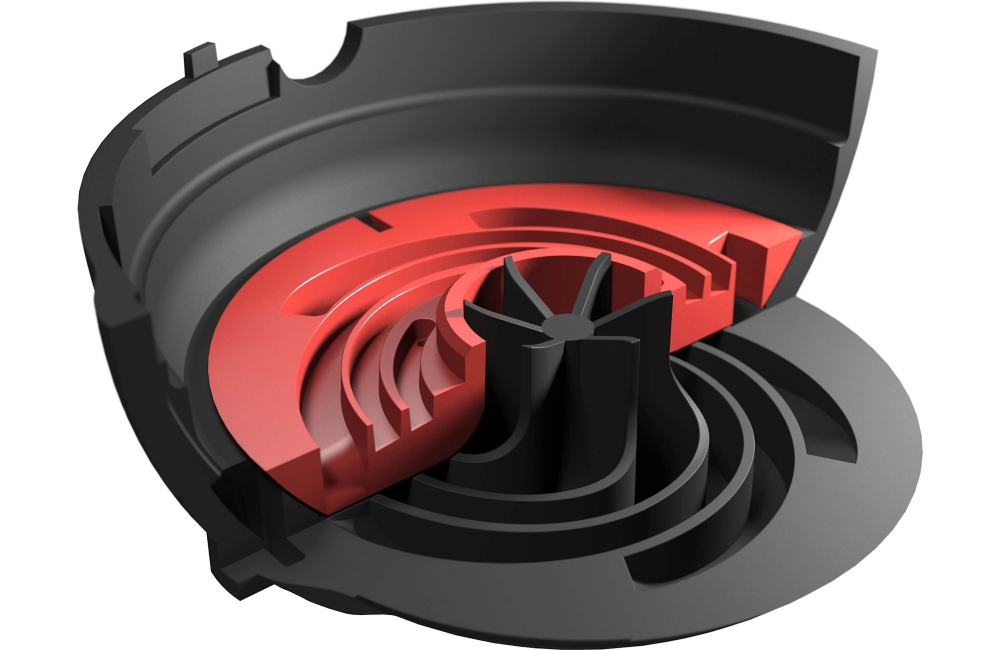

Drive Units : 1x ø25mm (1in) Nautilus™ swirl loaded aluminium dome tweeter
                     1x ø200mm (8in) blue Aramid Fibre cone bass/midrange
Frequency Range (-6dB) : 35Hz – 50kHz
Recommended Amp Power : 25 – 150w
Sensitivity SPL (2.83V, 1m) : 89dB
Impedance Nominal (min) : 8Ω (4.5Ω)
Frame diameter : 290mm (11.4in)
Cut-out diameter : 250mm (9.8in)
Depth behind surface : 133mm (5.2in)
Protrusion : 4mm (0.2in

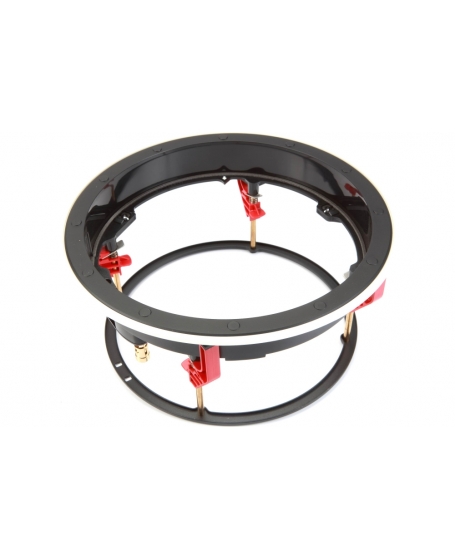

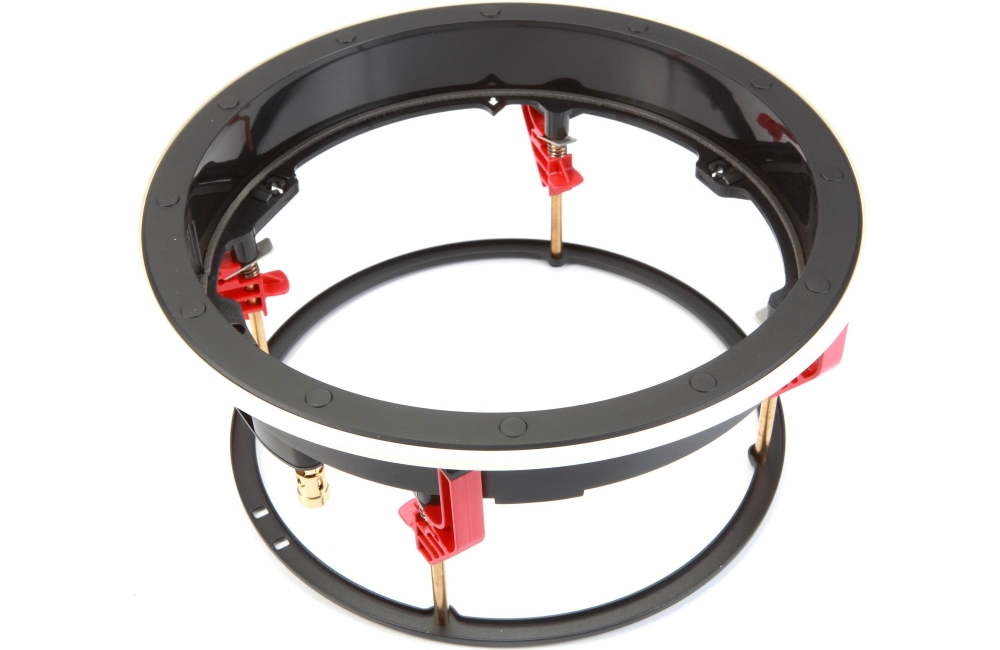

Pre-mount Kit : C8
Back Box : 6C
