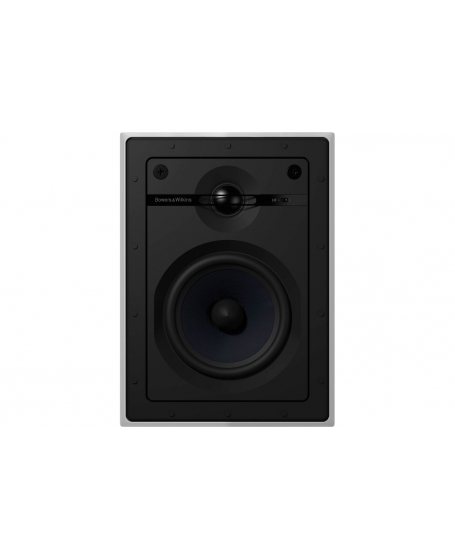

CWM652

The CWM652 features a 130mm (5in) blue Aramid fiber bass/midrange driver housed in a die-cast chassis which provides the extra rigidity to provide a cleaner, faster bass. Its aluminium tweeter incorporates a Nautilus™ tube to absorb unwanted sonic radiation. The CWM652 also utilises a three-position high frequency switch to fine tune the sound. The incredibly easy to install frame includes QuickDogs™ and plug-and-play functionality.

Description : 2-way in-wall system
Drive units : 1x ø25mm (1in) Nautilus™ tube loaded aluminium dome tweeter
                    1x ø130mm (5in) blue Aramid Fibre cone bass/midrange
Frequency Range (-6dB) : 54Hz – 50kHz
Maximum Amp Power : 25 – 100w
Sensitivity SPL (2.83V, 1m) : 86dB
Impedance Nominal (min) : 8Ω (4.5Ω)
Frame height : 264mm (10.9in)
Frame width : 191mm (7.5in)
Cut-out height : 228mm (9in)
Cut-out width : 153mm (6in)
Depth behind surface : 95mm (3.7in)
Protrusion : 4mm (0.2in)
Pre-mount Kit : PMK W5
Back Box : BB 6W
