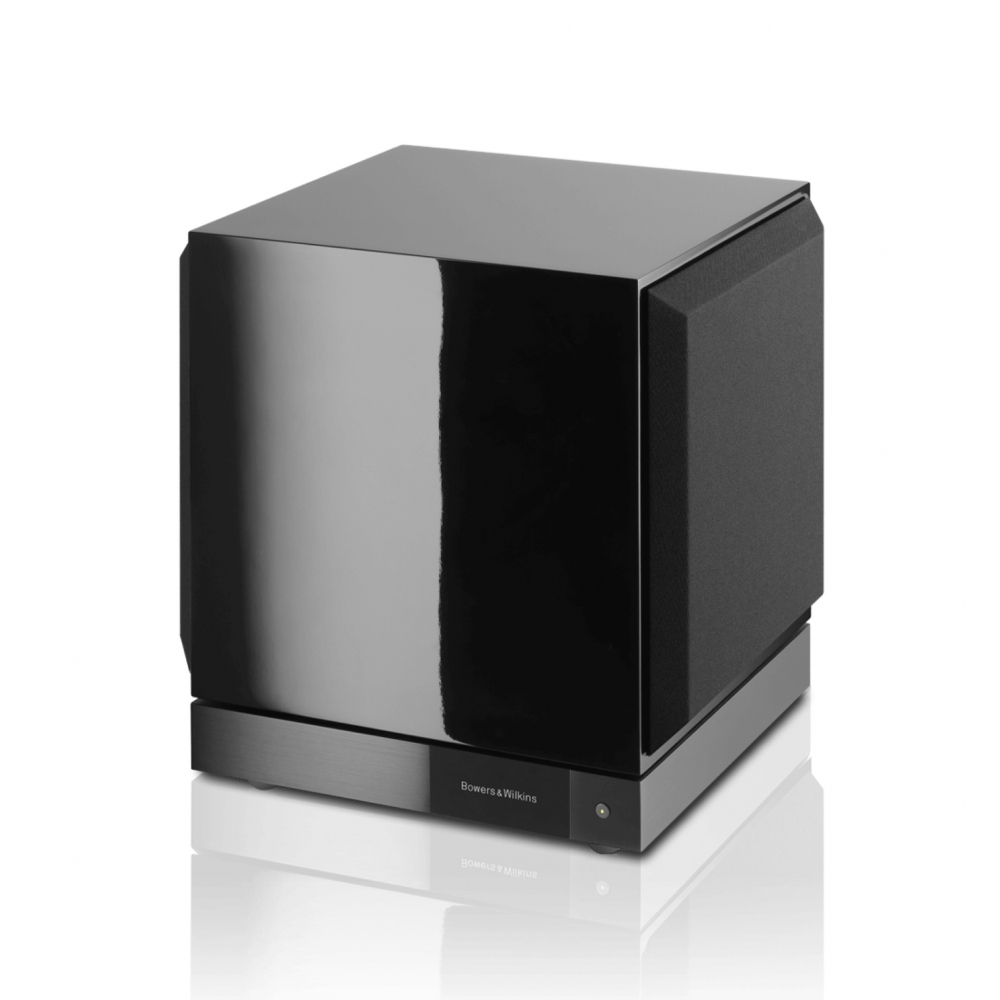

DB3D

8-in Subwoofer

Despite its compact dimensions, DB3D delivers astonishingly powerful, controlled bass thanks to its twin 8-in Aerofoil™ drivers, 1000 watt amplifier and digital signal processing.

More bass, less space

Compact model packs a mighty punch. Controllable, dramatic bass from a subwoofer so small it fits almost anywhere: DB3D is a space-saving high-performance design.

Nimble and powerful

Solid, dramatic bass is delivered through the rigidity and lightness of the uniquely-shaped, variable thickness Aerofoil™ cone.

A question of balance

The back-to-back (opposed) drivers cancel out cabinet resonances, ensuring all that power is used to create room-shaking bass, not wasted vibrations.

The digital advantage

Digital amplification is cool-running and energy efficient, even when working hard, while Dynamic EQ and Room EQ ensure a precise sound for music and movies.

Take control

By placing control in the palm of your hand, our subwoofer app not only makes our DB Series subwoofers a snap to set up, it also helps maximize your sound quality.

Technical Specifications
Description DB Series Subwoofer
Technical features 1000w Class D Hypex amplifier
2 x 200mm (8in) Aerofoil-cone drive
units in a balanced configuration
Digital preamplifier with Dynamic EQ,
App-based set-up and BT-LE control
Drive units 2 x 200mm (8in) Aerofoil-cone drive
units in a balanced configuration
Frequency range (-6dB) 8.5Hz - 500Hz
Frequency Response -3dB
(centred on level at 100Hz) 10Hz - 350Hz
Max power output 1000W
Inputs 2 x XLR
2 x RCA
2 x 3.5mm 12V trigger
RS-232 – 9-pin D connector
Dimensions Height: 360mm (14.1in)
Width: 320mm (12.6in)
Depth: 300mm (11.8in)
Net weight 25kg
