1013

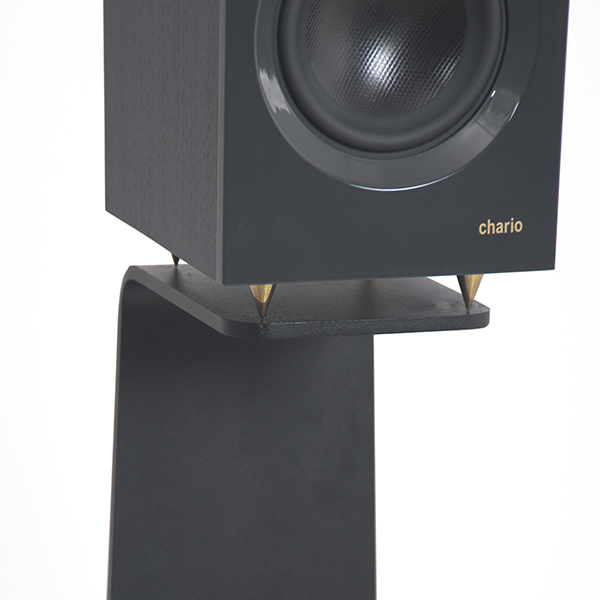

Born to thrill. Despite the size, you will be impressed by its ability to make sound appear much larger than its actual physical size.
Equipped with a 130 mm woofer Poly Graph Compound, it uses the NRS principle.
The image is clear and well defined, the stage is balanced and engaging,and the pitch reproduction is accurate and complete.
What is unexpected, is the powerful, controlled bass that manages to convince even small size speakers skeptics.

On Focus

Suitable for acoustic environments below 15 mq / 50 sq ft.

Passion Path

Emotion and reason, passion and calculation, infinity and psychology, are all enclosed within a speaker system. Science is crucial to be able to walk a path of development to reproduce a true and natural result; the human component that brings a scientific concept alive uses it as a tool to reach the hearts and the minds of people

Configuration

2-way Bookshelf  Vented NRS

Drivers

T38 Wave Guide
130 mm Poly Graph Full Apex

Sensitivity

87 dBSPL/normalized to 1 m/2.83 Vrms
de-correlated L/R Pink Noise
ITU-R BS 1116-1 compliant room

Low Frequency Cut Off

63 Hz @ -3dB / 4 ग referred to C4 WETS

Crossover Frequency

1180 Hz @ -6dB ( 4^th Order )

Rated Impedance

Modulus 4 Ω (minimum 3.16 Ω @ 150Hz)
Argument ± 36∞ ( 20Hz – 20kHz )

Low Frequency Load

Vented Subwoofer NRS 2π sr

Cabinet

High Density Fiberboard

Listening Layout

A carpeted floor in front of the
speakers is recommended

Cabinet Finishing

Walnut – Tay Black

Size

423 x 180 x 233 mm  (h x w x d)

Weight

7,5 Kg

Suggested Amplifier

Up to 100 W/4 Ω Average Power

Note

Sizes and Weight referred to one speaker
Specs subject to change without notice
Average power calculated as V^2 rms/R
All quantities in SI Units
