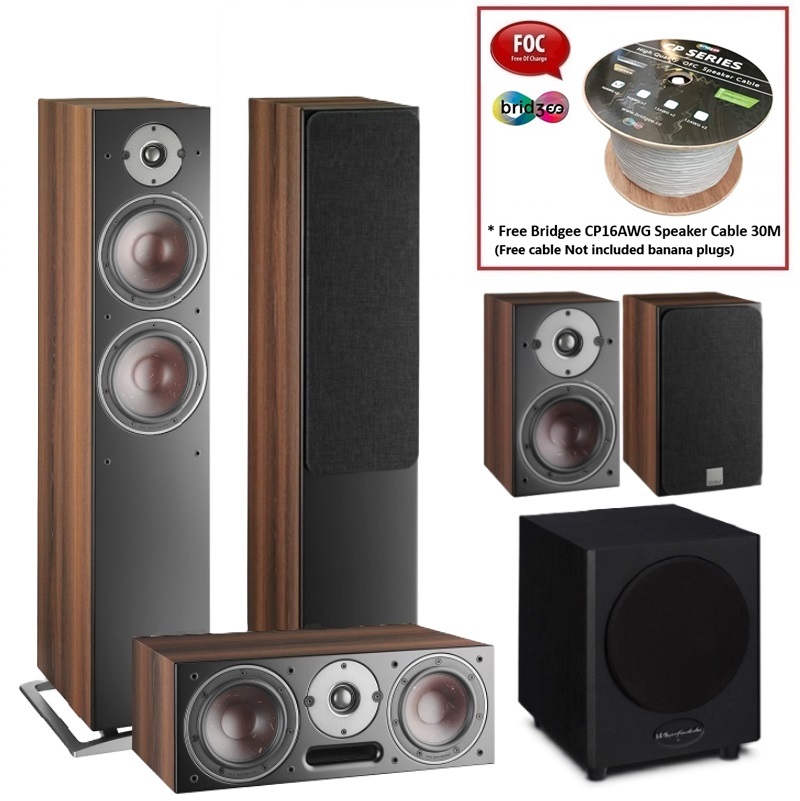

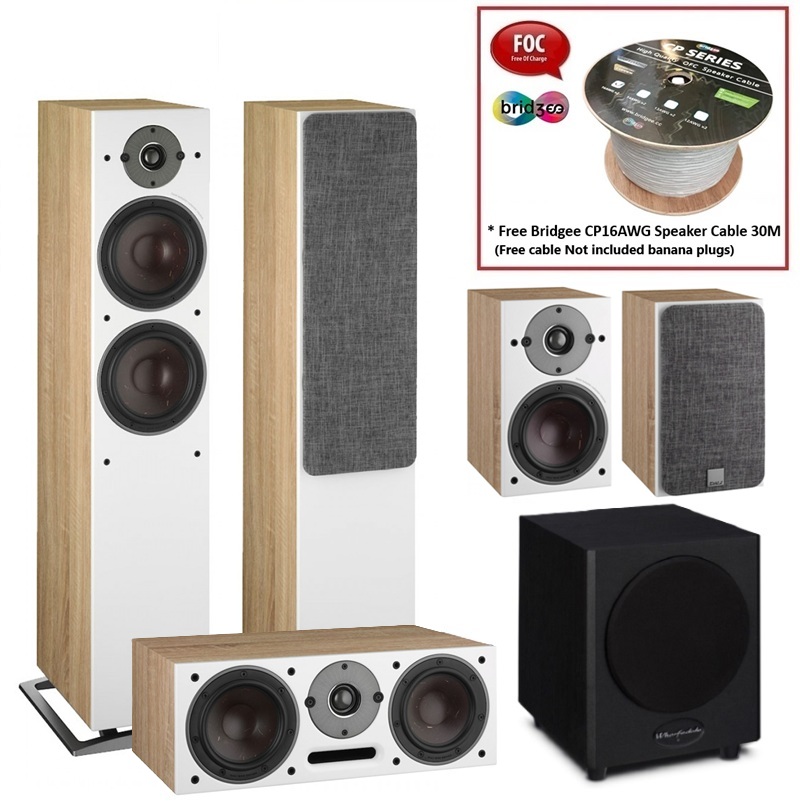

Dali Oberon 7+Oberon Vokal+Oberon 1+Wharfedale WH-S10E Speaker Package

DALI OBERON 7

The floor-standing DALI OBERON 7 speaker is a true showcase of DALI ideas, traditions and inventions - all wrapped in an elegant and modern design. It redefines what is possible, both in audio quality and visual design, in its price range. The two 7" woofers and one oversized 29 mm ultra-lightweight soft dome tweeter delivers the very best in deep bass and large room performance. Despite its size, this speaker is surprisingly delicate and will impress with its ability to render any music style naturally and lifelike.

CONTEMPORARY DESIGN

The rounded edges and rustic fabric of these new DALI front grilles add a lighter and more contemporary visual look to the OBERON series. This look is enhanced by the elegantly shaped aluminium base mounted on the two floor-standing models.

PATENTED SMC

The iron pole piece of the OBERON woofer magnet is crowned by a patented SMC disk - minimizing the negative effects of the iron. The use of the SMC disk greatly reduces mechanical distortion, which lowers third order distortion. This allows for a longer listening pleasure, a relaxed midrange and a surprising amount of detail for its price class.

WOOD FIBRE CONE

The OBERON woofer features a wood fibre cone with a blend of fine grain paper pulp, reinforced with wood fibres, which creates a stiff, light-weight and well-behaving structure. In combination with a low-loss surround and spider suspension, this cone reproduces the micro details in the signal - unfiltered and with high accuracy.

EASY TO POSITION

The driver materials, crossover design and geometry applied in the OBERON series has been selected to achieve a wide dispersion pattern. This ensures a well-integrated sound, even when listening at a significant off-axis angle. An added benefit is seriously reduced harmonic distortion and diffractions causing frequency distortion. This is why all DALI speakers are not designed to be toed-in.

PRODUCT DETAILS

With the launch of the DALI OBERON loudspeaker series, we have picked the best elements from our current speakers and brought them together in a series that delivers on audio quality, looks and versatility.

This large floor-standing OBERON 7 speaker features 2 x 7” wood fibre SMC based woofers and an oversized 29 mm ultra-lightweight soft dome tweeter.

This, combined with the large but elegant cabinet, delivers the very best in deep bass and large room performance. Despite its size, this speaker is surprisingly delicate and will impress with its ability to render any music style naturally and lifelike even at lower volumes. This makes the OBERON 7 perfect for almost any audio setup and any music or movie style.

With the OBERON 7, we have made it easy to integrate your loudspeakers into any room. Both the driver materials and geometry applied in the OBERON 7 has been selected to achieve a wide dispersion pattern in the listening area. The same principles have been applied in the design of the crossover.

As result, you will experience a well-integrated sound, even when listening at a significant off-axis angle. This is important as you are rarely seated directly in front of your loudspeakers when listening to music. An added benefit is seriously reduced harmonic distortion and diffractions causing frequency distortion, as these will always be stronger in an on-axis response. This is also the reason why all DALI speakers are not designed to be toed-in.

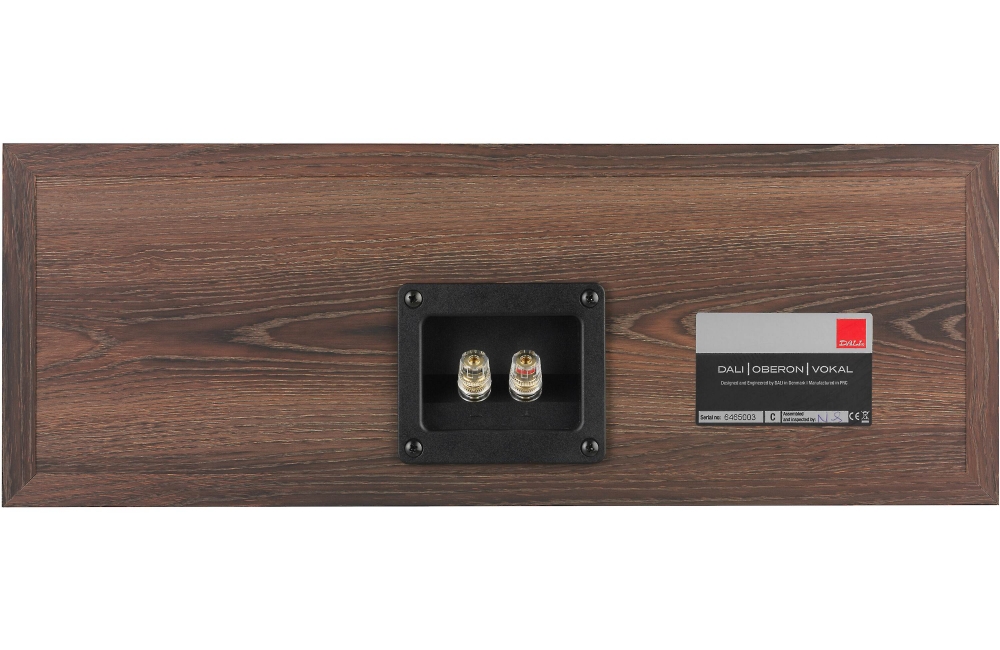

DALI OBERON VOKAL

The DALI OBERON VOKAL delivers a precise, clear and detailed sound performance for both your movie as well concert sound track. It is designed to be the perfect match with any of the speakers in the OBERON series for a complete surround system. It houses an 29 mm ultra-lightweight soft dome tweeter and 2 x 5.25" SMC based wood fibre woofers - combining technologies which make it possible to create a speaker that will render audio like a much larger model.

EASY TO POSITION

The driver materials, crossover design and geometry applied in the OBERON series has been selected to achieve a wide dispersion pattern. This ensures a well-integrated sound, even when listening at a significant off-axis angle. An added benefit is seriously reduced harmonic distortion and diffractions causing frequency distortion. This is why all DALI speakers are not designed to be toed-in.

CONTEMPORARY DESIGN

The rounded edges and rustic fabric of these new DALI front grilles add a lighter and more contemporary visual look to the OBERON series. This look is enhanced by the elegantly shaped aluminium base mounted on the two floor-standing models.

WOOD FIBRE CONE

The OBERON woofer features a wood fibre cone with a blend of fine grain paper pulp, reinforced with wood fibres, which creates a stiff, light-weight and well-behaving structure. In combination with a low-loss surround and spider suspension, this cone reproduces the micro details in the signal - unfiltered and with high accuracy.

PATENTED SMC

The iron pole piece of the OBERON woofer magnet is crowned by a patented SMC disk - minimizing the negative effects of the iron. The use of the SMC disk greatly reduces mechanical distortion, which lowers third order distortion. This allows for a longer listening pleasure, a relaxed midrange and a surprising amount of detail for its price class.

PRODUCT DETAILS

The DALI OBERON VOKAL is designed to be the perfect match with any of the speakers in the OBERON series to form a complete surround system. Delivering a precise, clear and detailed sound performance for both your movie as well concert sound track. The placement of the front-facing bass port on the front baffle supports different placement options in your TV furniture.

We have united the best elements from our current speakers and brought them together in the OBERON VOKAL to deliver on audio quality, looks and versatility. The OBERON VOKAL houses an oversized 29 mm soft dome tweeter together with 2 x 5.25" SMC based wood fibre woofers - supported by the front-facing bass port, which makes the center speaker easy to place. For these reasons, it's the perfect choice for surround setups.

To achieve a wide dispersion pattern in the listening area, the driver materials and geometry applied have been carefully selected. The same principles have been applied in the design of the crossover. As result, you will experience a well-integrated sound, even when listening at a significant off-axis angle. This is important as you are rarely seated directly in front of your loudspeakers when listening to music. An added benefit is seriously reduced harmonic distortion and diffractions causing frequency distortion, as these will always be stronger in an on-axis response. This is also the reason why all DALI loudspeakers are not designed to be toed-in.

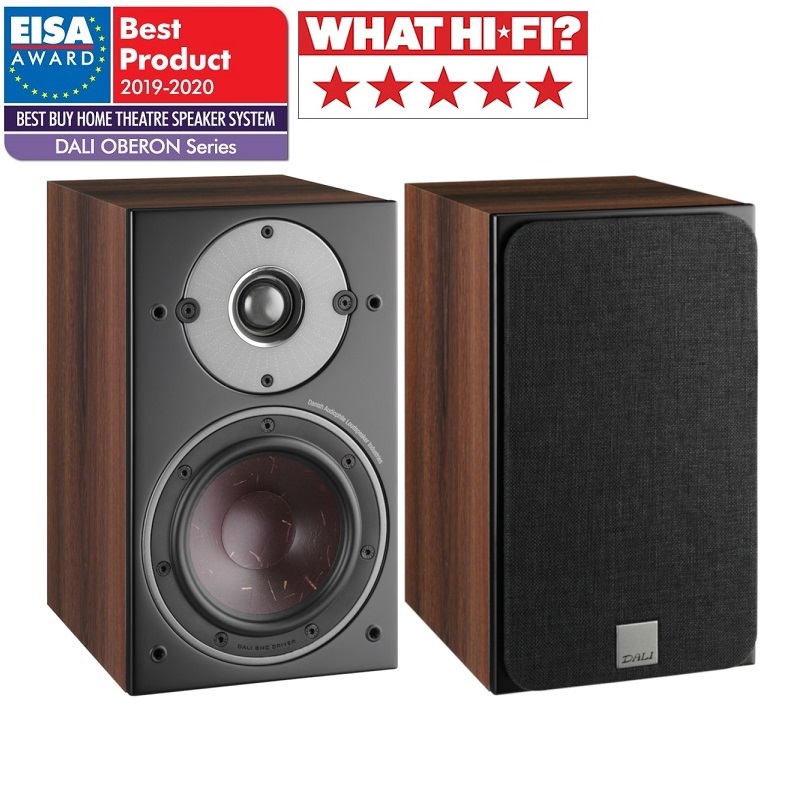

DALI OBERON 1

The DALI OBERON 1 is a ultra compact bookshelf speaker. The cabinet size enables an optimal balance between inner volume for bass performance and a compact appearance for easy integration - suited for smaller rooms, discreet audio setups or wall mounting. It features the same oversized 29 mm ultra-lightweight soft dome tweeter as its floor-standing siblings, and a SMC based 5.25" wood fibre woofer to handle lower midrange and bass. The OBERON 1 is based on the most innovative DALI ideas, traditions and inventions - united in a sleek compact design.

EASY TO POSITION

The driver materials, crossover design and geometry applied in the OBERON series has been selected to achieve a wide dispersion pattern. This ensures a well-integrated sound, even when listening at a significant off-axis angle. An added benefit is seriously reduced harmonic distortion and diffractions causing frequency distortion. This is why all DALI speakers are not designed to be toed-in.

CONTEMPORARY DESIGN

The rounded edges and rustic fabric of these new DALI front grilles add a lighter and more contemporary visual look to the OBERON series. This look is enhanced by the elegantly shaped aluminium base mounted on the two floor-standing models.

WOOD FIBRE CONE

The OBERON woofer features a wood fibre cone with a blend of fine grain paper pulp, reinforced with wood fibres, which creates a stiff, light-weight and well-behaving structure. In combination with a low-loss surround and spider suspension, this cone reproduces the micro details in the signal - unfiltered and with high accuracy.

PATENTED SMC

The iron pole piece of the OBERON woofer magnet is crowned by a patented SMC disk - minimizing the negative effects of the iron. The use of the SMC disk greatly reduces mechanical distortion, which lowers third order distortion. This allows for a longer listening pleasure, a relaxed midrange and a surprising amount of detail for its price class.

PRODUCT DETAILS

Given its ultra-compact size, the OBERON 1 is the smallest addition to the OBERON line-up. The cabinet size enables an optimal balance between inner volume optimised for bass performance, and a compact cabinet design suited for smaller rooms, discreet audio setups or wall mounting.

Like its larger siblings, the OBERON 1 makes use of the oversized 29 mm ultra light-weight soft dome tweeter to handle the highs and detailed mids, while the SMC based 5.25" wood fibre woofer renders the lower midrange and well-timed bass. With the launch of the DALI OBERON loudspeaker series, we have picked the best elements from our current speakers and brought them together in a series that delivers on audio quality, looks and versatility.

The compactness of the OBERON 1 makes it easy to integrate into any room. To achieve a wide dispersion pattern in the listening area, the driver materials and geometry applied in the OBERON 1 have been carefully selected. The same principles have been applied in the design of the crossover.

As result, you will experience a well-integrated sound, even when listening at a significant off-axis angle. This is important as you are rarely seated directly in front of your loudspeakers when listening to music. An added benefit is seriously reduced harmonic distortion and diffractions causing frequency distortion, as these will always be stronger in an on-axis response. This is also the reason why all DALI speakers are not designed to be toed-in.

WH-S10E

The WH-S10E Subwoofer is an excellent choice to add to your home cinema surround sound system. Whether its an upgrade of an existing subwoofer or a new addition to your home cinema system, you can be sure of a stunning, fully featured system. This super powerful  WH-S10E subwoofer is specifically designed to provide an immersive listening experience from both music and movies.

When used In conjunction with your existing speakers you will experience all the natural, surround sound action that 5.1 channel soundtracks feature. The result is a breathtaking natural sound performance; irrespective of the components you choose. Compactly sized, it can be placed at the front, the rear or at the sides of your listening room and can be discreetly hidden away beside a sofa if desired.

DALI OBERON 7 SPECS
Product series    OBERON
Frequency Range (+/-3 dB) [Hz]    36 - 26,000
Sensitivity (2,83 V/1 m) [dB]    88.5
Nominal Impedance [ohms]    6
Maximum SPL [dB]    110
Recommended Amplifier Power [W]    30 - 180
Crossover Frequency [Hz]    2,300
Crossover Principle    2-way
High frequency driver, Quantity    1 x 29 mm
High frequency driver, Diaphragm type    Soft Textile Dome
Low frequency driver, Quantity    2 X 7"
Low frequency driver, Diaphragm type    Wood Fibre Cone
Enclosure type    Bass Reflex
Bass Reflex Tuning Frequency [Hz]    39.5
Connection Input    Single Wire
Recommended Placement    Floor
Recommended Distance From Wall [cm]    20 - 80
Dimensions With Base (HxWxD) [mm]    1015 x 200 x 340
Accessories Included    Manual
Rubber Feet
Spikes
Front Grille
Weight [kg]    14.8

DALI OBERON VOKAL SPECS
Product series    OBERON
Frequency Range (+/-3 dB) [Hz]    47 - 26,000
Sensitivity (2,83 V/1 m) [dB]    89.5
Nominal Impedance [ohms]    4
Maximum SPL [dB]    109
Recommended Amplifier Power [W]    25 - 150
Crossover Frequency [Hz]    2,600
Crossover Principle    2-way
High frequency driver, Quantity    1 x 29 mm
High frequency driver, Diaphragm type    Soft Textile Dome
Low frequency driver, Quantity    2 X 5.25"
Low frequency driver, Diaphragm type    Wood Fibre Cone
Enclosure type    Bass Reflex
Bass Reflex Tuning Frequency [Hz]    46
Connection Input    Single Wire
Recommended Placement    Shelf or stand
Recommended Distance From Wall [cm]    0 - 50
Dimensions With Base (HxWxD) [mm]    161 x 441 x 295
Accessories Included    Manual
Rubber Feet
Front Grille
Weight [kg]    7.45

DALI OBERON 1 SPECS
Product series    OBERON
Frequency Range (+/-3 dB) [Hz]    51 - 26,000
Sensitivity (2,83 V/1 m) [dB]    86
Nominal Impedance [ohms]    6
Maximum SPL [dB]    106
Recommended Amplifier Power [W]    25 - 100
Crossover Frequency [Hz]    2,800
Crossover Principle    2-way
High frequency driver, Quantity    1 x 29 mm
High frequency driver, Diaphragm type    Soft Textile Dome
Low frequency driver, Quantity    1 X 5.25"
Low frequency driver, Diaphragm type    Wood Fibre Cone
Enclosure type    Bass Reflex
Bass Reflex Tuning Frequency [Hz]    50
Connection Input    Single Wire
Recommended Placement    Shelf or stand
Recommended Distance From Wall [cm]    1 - 50
Dimensions With Base (HxWxD) [mm]    274 x 162 x 234
Accessories Included    Manual
Rubber Feet
Front Grille
Weight [kg]    4.2

Wharfedale WH-S10E
Description/Format    Active Dynamic-Drive IB subwoofer system
Drive Units    1 x 10" (250mm) cone long-throw
Frequency Response (+/-3dB)    35Hz - 150Hz
Amplifier Power Output    150W
Peak Power Output    300W
Line Input Sensitivity    100mV for maximum output
Crossover Range    30Hz - 150Hz
Inputs
Stereo Line In (2 x RCA Phono)
Mono (LFE) Line In (RCA Phono)
Input Impedance
Line In 10kOhms
LFE 5kOhms
Signal-to-noise ratio    >85dB
Avg. Max Output @1m    110dB
Features
Low pass filter slope adjustment
Phase inversion
Auto on/off
High pass output
Dimensions    363 (+30) x 333 x 372 (+22)
Net Weight    14kg
Gross Weight    16.5kg
Accessories    IEC power cord, spikes as standard
