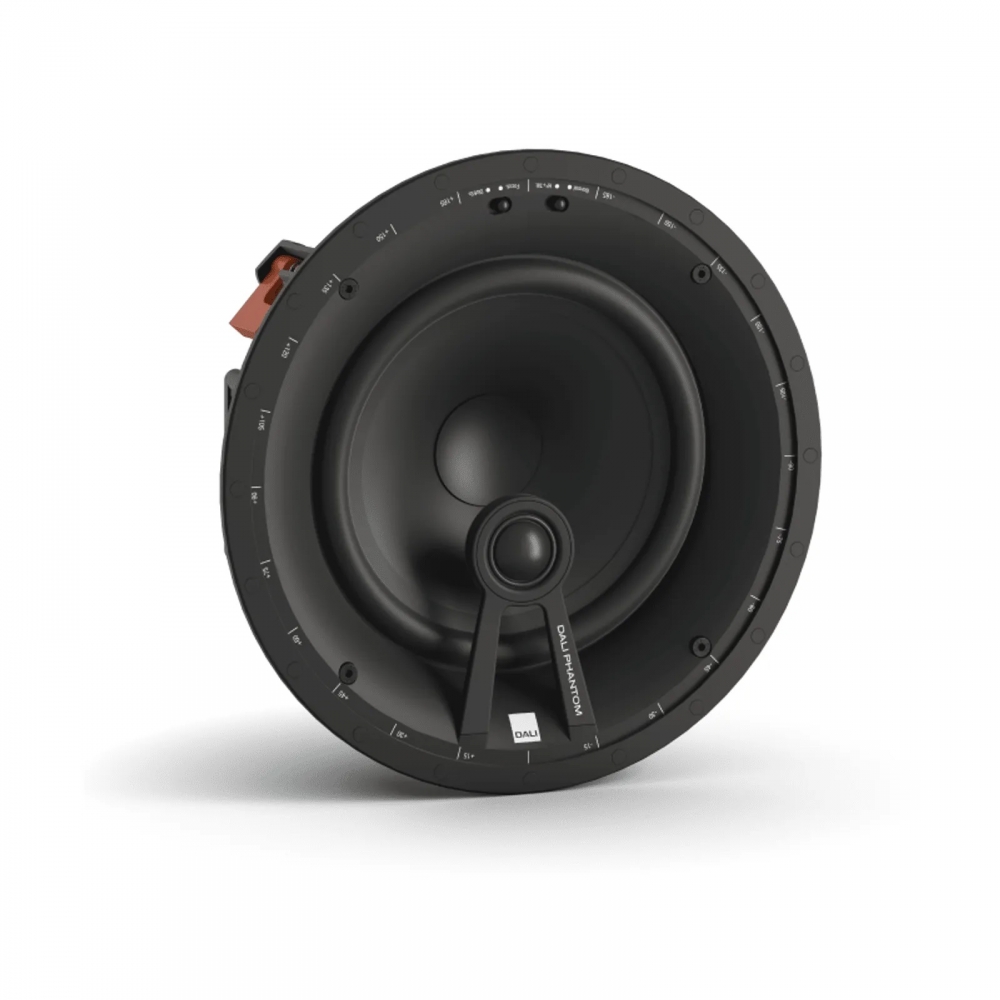

PHANTOM E-80

The DALI PHANTOM E-80 is about big sound. Featuring an 8" woofer, it fills even large rooms with dynamic sound and controlled bass. The PHANTOM E-80 is designed for in-ceiling applications but perform equally as well as an in-wall speaker.

Easy Installation

The dogleg mounting system makes for quick installation: simply turn the screws to rotate the brackets and fasten them into place.

Discreet Design

The thin magnetic front grilles integrate seamlessly into any home environment.

Functional Flexibility

The PHANTOM E speaker can be adjusted to deliver room-filling off-axis audio to almost any listening space.

Wide Dispersion

Wide dispersion DALI speakers ensure a larger sweet spot to enjoy the best sound experience. Especially for in-wall and in-ceiling speakers.

BIG IN-CEILING SOUND

Designed for optimum in-ceiling use

The PHANTOM E-80 is all about big sound. Drawing on every part of its 8” woofer to fill even very large rooms with high quality sound, these in-ceiling speakers can function as the main loudspeakers in a living room stereo setup or as part of a home cinema surround system. The compact construction and the easy-to-use compass positioning system makes placing the speaker simple and accurate, while two slide switches let you fine-tune the off-axis performance, even in acoustically challenging rooms.

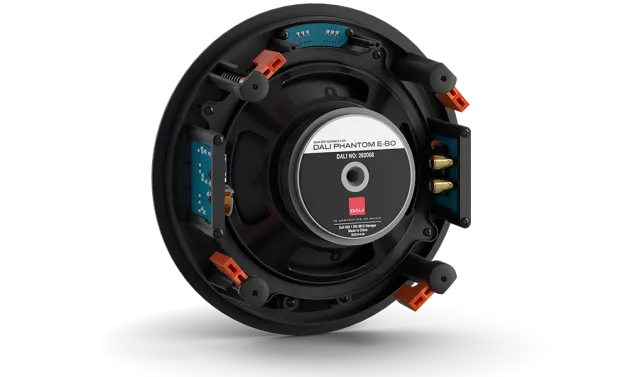

DESIGN DETAILS

Every detail thought through

Thick edges around the PHANTOM E-80 baffle offers tight and secure mounting and improves the overall strength and rigidity of the speaker, while the dogleg mounting system makes installation a simple one-step action. At the front, the stylish and discreet grille design helps the PHANTOM E-80 integrate perfectly into any room.

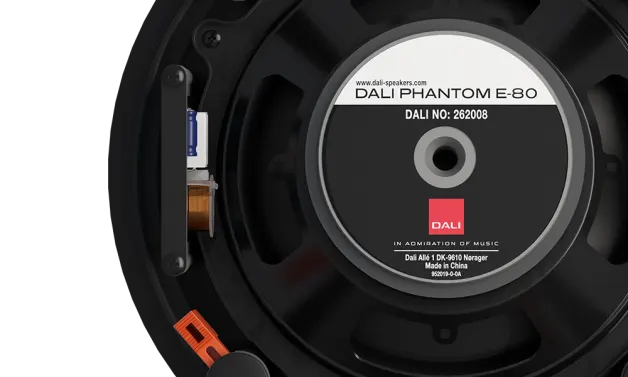

HIGH QUALITY CROSSOVER

Protecting against overheating with PPTC

The PHANTOM E-80 crossover includes a PPTC (Polymeric Positive Temperature Coefficient device) safety function. Also called a resettable fuse, the PPTC safeguards the driver components from overheating if played at very loud volumes over a long period. The speaker terminals are also located on the crossover for the shortest possible signal path, while spring-loaded grips ensure a solid and long-lasting connection to the speaker cable.

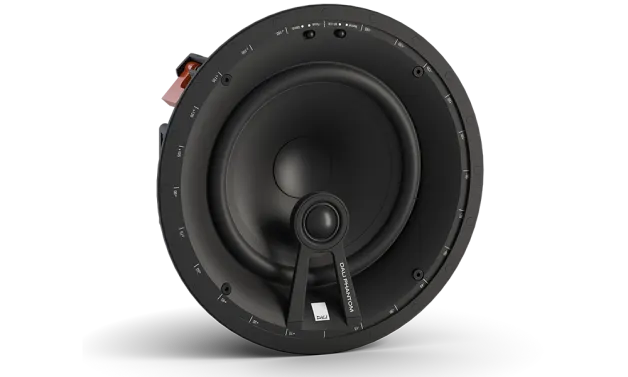

TWEETER PLACEMENT

Creating natural high frequencies

The 25 mm soft dome tweeter module in the PHANTOM E-80 is fixed over the woofer in a composite housing mounted on an aeroplane-wing profile wishbone bracket. As well as reducing the size of the speaker, the wing design and off-centre placement of the tweeter help eliminate sound colouration normally associated with coaxial drivers. The tweeter's positioning also helps the midrange and low frequencies blend gracefully with the high frequencies for a precise and natural overall performance, even at higher volumes.

POLYPROPYLENE WOOFER

Designed with low loss principles

To ensure the best balance between durability and great audio reproduction, the 8" woofer features a polypropylene cone that's tilted and angled to improve directionality and soundstaging. Every part of the woofer has been designed according to our low loss principles, so even smaller amplifiers can combine with the PHANTOM E-80 to deliver a high-quality audio experience.

WIDE DISPERSION

Easy integration in any room

All DALI speakers are designed around the principle of wide dispersion, which optimises off-axis listening to give a larger sweet spot and a better audio experience throughout a room. This principle is the perfect solution for PHANTOM series speakers, which are mounted flush with the surface of a wall or ceiling. The PHANTOM E-80 also has two slide switches for fine-tuning off-axis performance.

Specifications
Frequency Range [+/- 3] dB [Hz] 49 - 25,000
Sensitivity [2.83V/1m] [dB] 89.5
Nominal Impedance [ohms] 6
Maximum SPL [dB] 107
Crossover Frequencies [Hz] 3,200
Recommended Amp. Power [Watts] 30 - 150
Low Frequency/Midrange Driver(s) 1 x 8"
High Frequency Driver 1 x 25 mm soft dome
Connection Input Single wire
