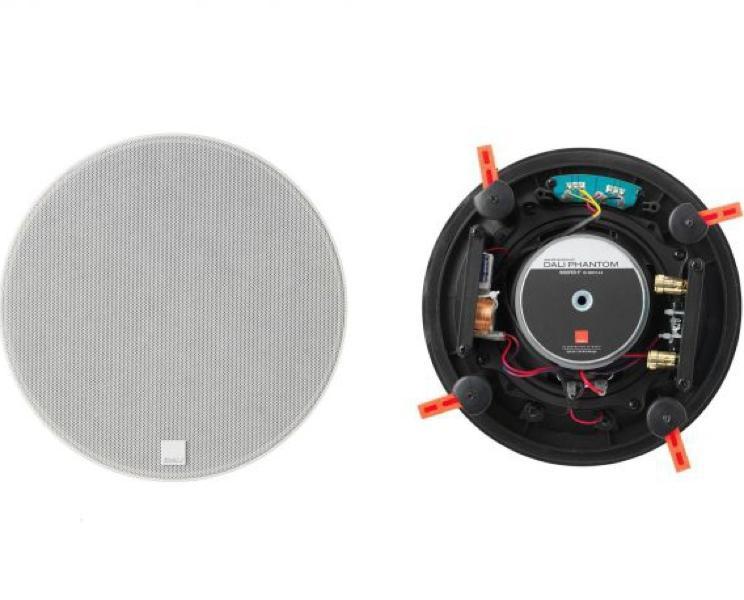

Dali Phantom E-50 Atmos Ceiling Speaker (Pair)

DALI PHANTOM E-50

The DALI PHANTOM E-50 in-ceiling speaker delivers an incredible clear and well-defined audio experience, and impresses with the level of bass it can produce, despite its size. The E-50 is equipped with a 5.25" woofer and designed for optimum in-ceiling use, but can also be mounted in-wall.

EASY INSTALLATION

The dogleg mounting system makes the install process an easy one-step action simply by tightning the dedicated screws to swing out the dogleg brackets.

INVISIBLE DESIGN

The very thin magnetic front grilles integrates almost seamlessly into any home environment.

FLEXIBILITY IN FUNCTION

The PHANTOM E-series are easy to place anywhere in any room, and will even work perfectly off-axis in challenging situations and environments due to two audio settings used for adjusting the performance of the speaker.

WIDE DISPERSION

All speakers by DALI are designed around the principle of wide dispersion. This entails an off-axis optimisation of the audio reproduction. The technology is perfect for use in install speakers, since they are always mounted flush against either a wall or ceiling.

PRODUCT DETAILS

This compact in-ceiling loudspeaker delivers an incredible clear and well-defined audio experience, and impresses with the level of bass it can produce, despite its size. The size makes it perfect for a stereo setup in a small room, or as rear speakers in a larger home cinema.

The PHANTOM E series
The DALI PHANTOM E-50 is designed for optimum in-ceiling use, but will also work if mounted in-wall. It is all about true hi-fi sound, versatility, and flexibility. The compact sized construction and the easy-to-use compass positioning system makes placing the speaker for the optimum sound experience very straight forward. Two discreet switches offer audio adjustment options to ensure that the listener gets the most from the speakers, even in rooms that traditionally are difficult.

The tilted woofer and the slightly of centre soft dome tweeter, blends gracefully and produces a richly detailed and crisp soundstage. The polypropylene cone is more resilient towards humidity than the traditional DALI cone material – wood fibre, making the PHANTOM E-50 flexible in regards to placements in covered outdoor areas and bathrooms.

Optionally, the PHANTOM E-50 can be fitted with a square front grill.

DALI PHANTOM E-50 SPECS
Product series    PHANTOM
Frequency Range (+/-3 dB) [Hz]    58 - 25,000
Sensitivity (2,83 V/1 m) [dB]    87.0
Nominal Impedance [ohms]    8
Maximum SPL [dB]    104
Recommended Amplifier Power [W]    40 - 120
Crossover Frequency [Hz]    3,600
High frequency driver, Quantity    1 x 28 mm
High frequency driver, Diaphragm type    Soft Textile Dome
Low frequency driver, Quantity    1 x 5,25"
Low frequency driver, Diaphragm type    Polypropylene Cone
Enclosure type    Open back
Recommended Working Volume    5 - 35 L
Connection Input    Single Wire
Recommended Placement    In-Wall
In-Ceiling
Functions    Focus / Distributed
Normal / HF + Tilt
Dimensions (ØxD) [mm]    230 x 99
Cut-Out Dimensions (ØxD) [mm]    Ø197
Accessories Included    Cut-Out Template
Logo Badge
Manual
Optional Accessories    Square Grille
Weight [kg]    1.58
Recommended Volume [litre]    5 - 35
