DALI RUBICON VOKAL

The RUBICON VOKAL is the centre speaker to complete a RUBICON surround setup. With two 6½” woofers and a hybrid tweeter the RUBICON VOKAL has the size and punch to match any speaker in the RUBICON line-up. Whether you are watching a movie or listening to music, the RUBICON VOKAL will bring clarity and detail.

WOOD FIBRE CONES

Using a wood fibre cone gives the in-house build woofer a light, rigid and randomly uneven membrane. Making it easy to move ensures even piston like movements and reduces the possibility of surface resonance greatly.

CABINET CONSTRUCTION

Dividing the mid-range and basse drivers into separated chambers enables us to individually tune every driver to its specific frequency range to maximise the woofer output.

HYBRID TWEETER MODULE

The hybrid tweeter module is a DALI trademark and for the RUBICON series, it is build in Denmark. The hybrid tweeter module, combines the dome tweeter with the ribbon tweeter for an amazing rendering of the high frequencies.

SMC MAGNET SYSTEM

With a pole piece constructed entirely from SMC, surrounded by a slitted copper cap, and enclosed within a large ferrite magnet, the effect of the SMC is focused and maximised, and reduces distortion as never heard before.

PRODUCT DETAILS

RUBICON VOKAL is the ultimate centre loudspeaker. Striking an elegant balance between size and performance, the RUBICON VOKAL is powerful enough to match the RUBICON 8, and still compact enough to fit in most living rooms. The two 6½” low-loss wood fibre woofers deliver a clear and well defined mid-range together with the hybrid tweeter module. It also uses the same soft dome diaphragm and many of the same SMC technologies as used in the EPICON series. The cabinet size helps the RUBICON VOKAL reproduce even the lowest bass frequencies from the gripping action on the screen or stunning musical performances.

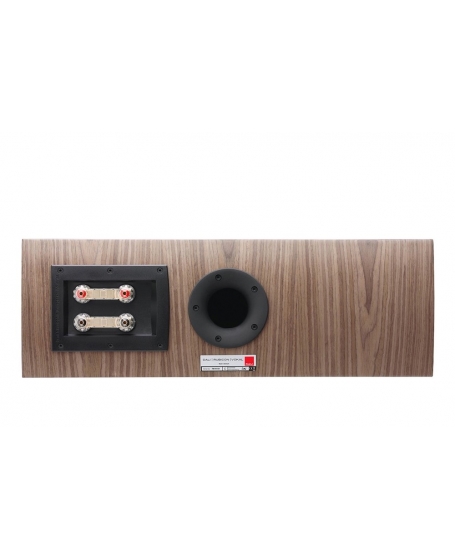

And like the rest of the RUBICON range, it features gold-plated bi-wiring terminals.

The RUBICON VOKAL fits into every RUBICON surround system and can be combined with e.g. a pair of RUBICON 5, a pair of RUBICON 2 and a SUB or a pair of RUBICON 6, a pair of RUBICON LCR and a DALI SUB. In general, we recommend the SUB M-10 D for a RUBICON surround setup.

DALI RUBICON VOKAL SPECS
Product series    RUBICON
Frequency Range (+/-3 dB) [Hz]    49 - 34.000
Sensitivity (2,83 V/1 m) [dB]    89.5
Nominal Impedance [ohms]    4
Maximum SPL [dB]    111
Recommended Amplifier Power [W]    40 - 200
Crossover Frequency [Hz]    2,700 / 14,000
Crossover Principle    2 + ½-way
Hybrid tweeter module, Super high freq. driver, Quantity    1 x 17 x 45 mm
Hybrid tweeter module, Super high freq. driver, Diaphragm type    Ribbon
Hybrid tweeter module, High frequency driver, Quantity    1 x 29 mm
Hybrid tweeter module, High frequency driver Diaphragm type    Soft Textile Dome
Low frequency driver, Quantity    2 x 6½"
Low frequency driver, Diaphragm type    Wood Fibre Cone
Enclosure type    Bass Reflex
Bass Reflex Tuning Frequency [Hz]    36.5
Connection Input    Bi-Wiring
Bi-Amping (INT)
Magnetic Shielding    No
Recommended Placement    Centre / Soundbar
Shelf or stand
Recommended Distance From Wall [cm]    5 - 100
Dimensions With Base (HxWxD) [mm]    197 x 581 x 400
Accessories Included    Manual
Micro Fibre Cloth
Rubber Bumpers
Weight [kg]    13.8
