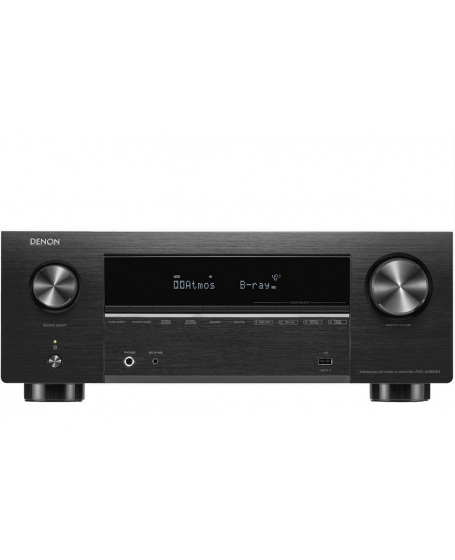

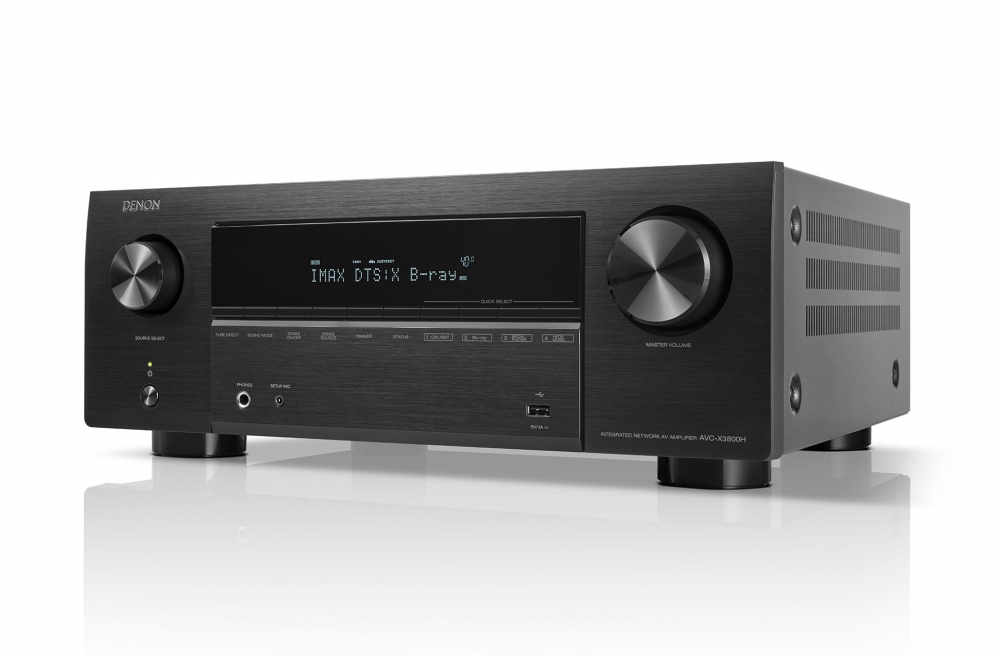

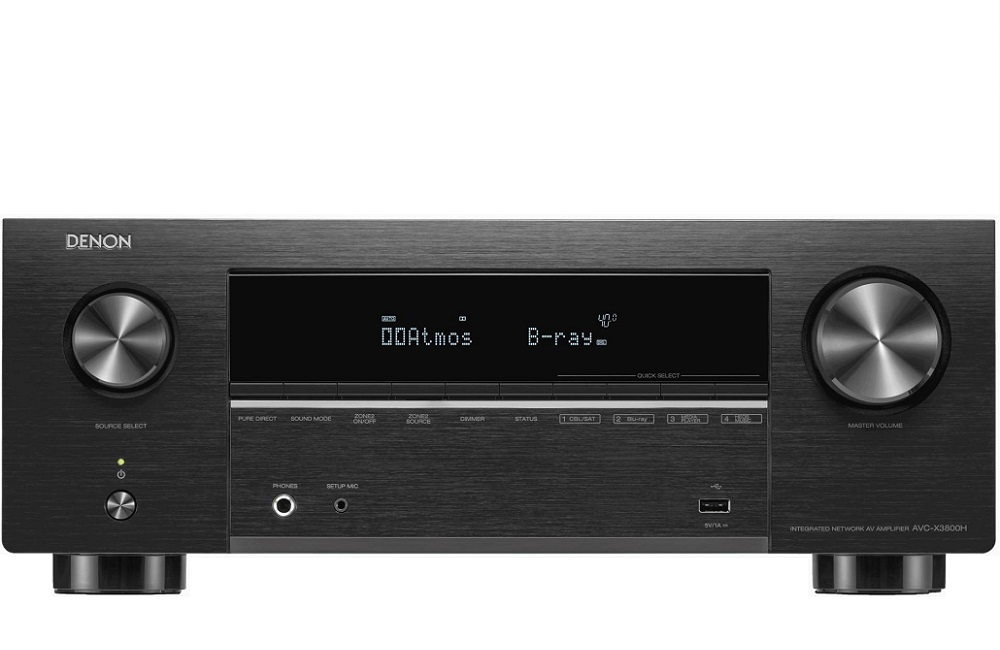

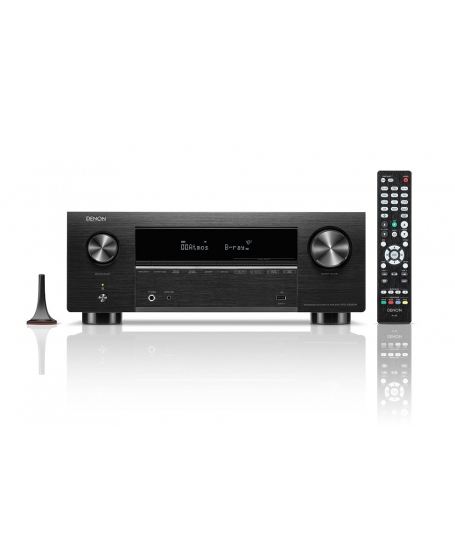

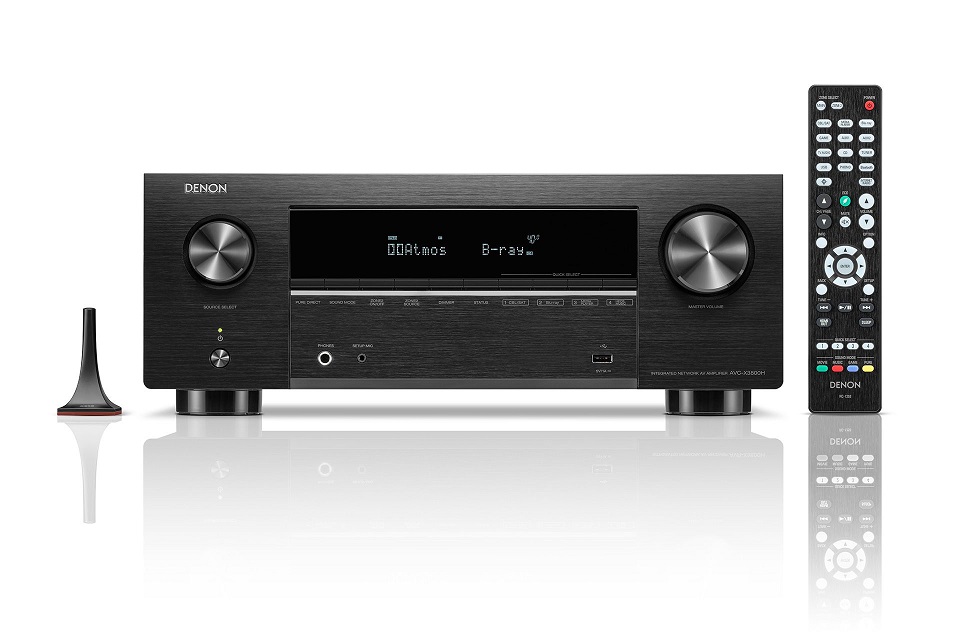

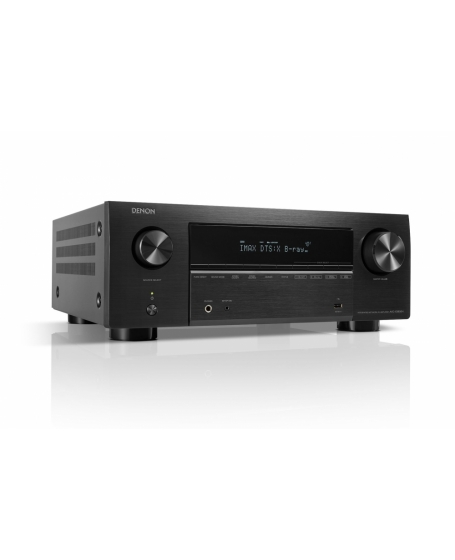

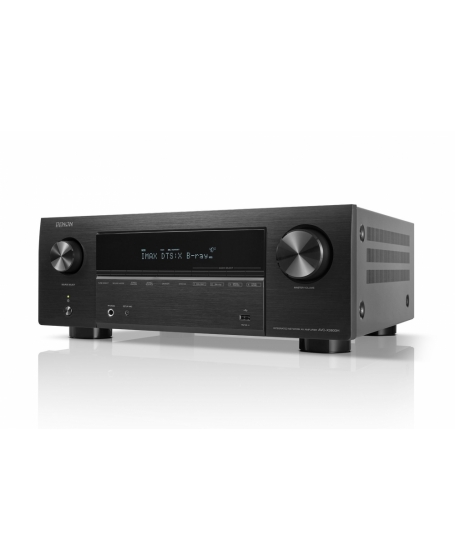

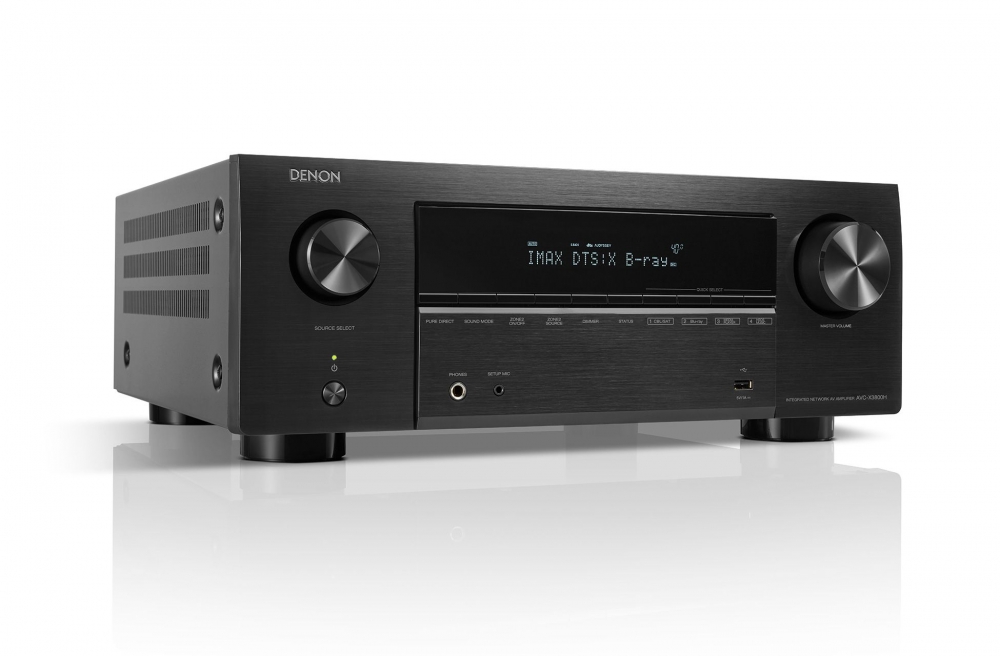

AVC-X3800H

8K video and 3D audio experience from a 9.4 channel amplifier

With 9 channels of amplification, up to 4 independent subwoofers, Dolby Atmos and DTS:X, plus IMAX Enhanced and Auro-3D, the AVC-X3800H envelops larger living spaces in theatre-quality sound. Enjoy amazing 8K video quality and with HEOS® Built-in, wirelessly stream and share online music between rooms.

High performance 9-channel amplifier

Discrete high-current amplifiers deliver up to 180W per channel - enough power to drive any speaker.

3D audio experience

Get enveloped in sound with Dolby Atmos®, DTS:X®, IMAX Enhanced and Auro-3D, along with Dolby Surround, DTS Neural:X and Auro-Matic upmixer to optimize legacy content.

Configuration flexibility

AVC-X3800H offers many setup options and flexibility to adjust your home theatre to meet your needs. Supports

Advanced 8K home theatre

8K video is supported on all six HDMI inputs and two of the three outputs. Enjoy easy video compatibility and great picture quality with HLG, HDR, Dolby Vision, HDR10+, and Dynamic HDR passthrough.

Model Number
AVC-X3800H
Specs
Number of Power Amps: 9
Power Output (8 ohm, 20 Hz - 20 kHz, 0.08% 2ch Drive): 105W
Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive): 135W
Power Output (6 ohm, 1 kHz, 10% 1ch Drive): 180W

Multichannel Surround
DTS HD Master, DTS:X, DTS:X Pro: Yes, Yes, No
DTS Neo:X, DTS Neural:X: No, Yes
DTS Virtual:X: Yes
IMAX Enhanced: Yes
Dolby TrueHD, Dolby Atmos, Dolby Atmos Height Virtualization, Dolby Atmos Music: Yes, Yes, Yes, Yes
Dolby ProLogic Ilz, Dolby Surround: No, Yes
Auro 3D: Yes
360 Reality Audio / MPEG H: Yes, Yes
Multichannel Stereo: Yes
Max. Number of Processing (Pre-Amp) Channels: 11.4

Sound Enhancements
Discrete Power Amplifier: Yes
Pure Direct: Yes
Audyssey: MultEQ XT32
Audyssey Dynamic EQ, Dynamic Volume: Yes, Yes
Audyssey LFC: Yes
Dirac Live Upgradability: Yes
Compressed Audio Restorer: Yes

Network
Media Server: Yes
HEOS Wireless Multi-Room Technology: Yes
Alexa / Google Voice Assistant / Apple HomePod: Yes, Yes, Yes
Lossy Formats: MP3, WMA, AAC: Yes, Yes, Yes
Lossless Formats: FLAC, ALAC, WAV: Yes, Yes, Yes
Lossless Formats: FLAC HD, WAV, ALAC (all 192kHz/24 bit): Yes, Yes, Yes
DSD Audio Streaming: Yes (2.8/5.6MHz)
AirPlay 2: Yes
TuneIn: Yes
Spotify Connect: Yes
Roon Tested: Yes
HEOS App Control: Yes
Compatible with Remote APP for Smart Phones: Denon 2016 AVR Remote
Ethernet Ports: Yes
Wi-Fi: Yes
Bluetooth: Yes

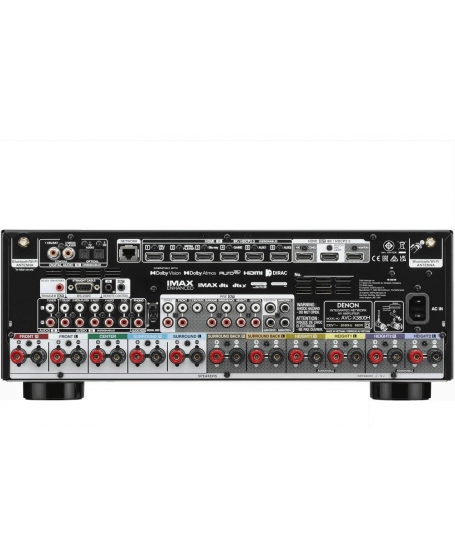

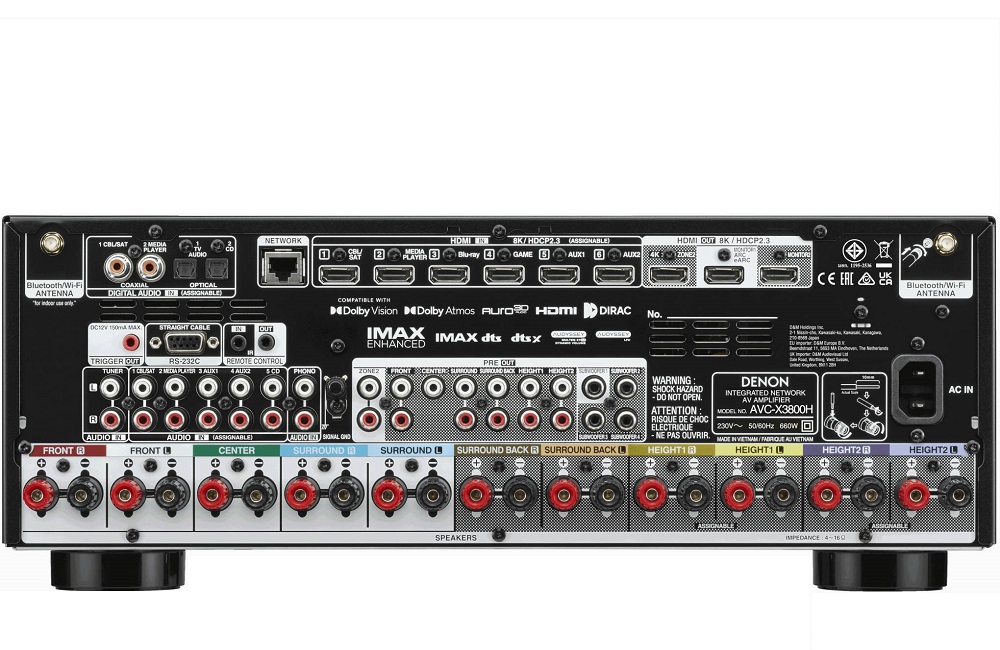

Inputs Outputs
HDMI In, Out: 6, 3
Multi-Room Video Out: Video, HDMI: No, Yes
Analog In, Out: 6 / No
Phono (MM) In: Yes
Digital In: Optical, Coaxial: 2 / 2
Multi-Room Out: Analog, Digital: 1 / No
Multichannel Preout: Yes (11.4)
Subwoofer Out: 4 (independent)
Speaker Terminal: Gold-Plated Screw, Regular Screw: No, Yes
Number of Speaker Terminals: 11
Speaker A / B: Assignable
Bi-amp Drive: Assignable
Multi-Room Speaker Terminal: Assignable
Front Inputs: Audio, Composite, Digital (Opt), HDMI, USB: No, No, No, No, Yes
USB Audio, Made for iPod, Made for iPhone: Yes, No, No
AM/FM Tuner: No

HDMI
HDMI Inputs: Back, Front: 6, No
HDCP2.3 support: Yes
HDMI Outputs: Main, Zone: 2, 1
HDMI 2.1: 8K/60Hz AB, 4K/120Hz AB: Yes, Yes
HDR, HLG, Dolby Vision, HDR10+, Dynamic HDR: Yes, Yes, Yes, Yes, Yes
ALLM (Auto Low Latency Mode) Pass-through for gaming: Yes
Variable Refresh Rate, Quick Flame Transport, Quick Media Switching: Yes, Yes, No
3D Signal Pass-through: Yes
8K Signal Pass-Through, Scaling, GUI Overlay: Yes, Yes, Yes
DSD Audio Capability: Yes
Audio Return Channel (ARC), Enhanced ARC: Yes, Yes
Auto LipSync: Yes

Multi-room CI
Multi-Room Zones: 2
Zone Audio Source: HDMI; Optical, Coax, Network, USB; Analog: Yes (2ch), Yes (2ch), Yes, Yes
Zone Audio Output: Speaker, Pre-Out: Yes, Yes
Zone HDMI Output from HDMI Source: Yes
IP Control, RS232 Control, Web Control, App Control: Yes, Yes /Yes, Yes
Remote In / Out: Yes, Yes
DC Trigger Output: 1
HDMI Diagnostics: Yes

Others
Auto Speaker Setup by Microphone: Audyssey MultEQ XT32, Dirac Live (upgrade)
Front Display: 1-Line FLD
GUI Languages: 3
Setup Assistant: Yes
Quick Select Plus, Quick Select: Yes, No
Variable Crossover: Yes
Optimized Bass Redirection: Yes
Bass Sync: Yes
ECO Mode: Yes
Auto Power Off: Yes
Sleep Timer: Yes

General
System Remote Control: RC-1253
Pre-Programmed, Learnable, LCD Display: No, No, No
Power Consumption: 660W
Power Consumption No-Sound (ECO On / Off): 60W/100W
Standby Consumption: 0.1W
CEC Standby Consumption: 0.5W
Network Standby Consumption: Less than 2.0W

Maximum Dimensions
Antenna:Horizontal:(W x D x H): 434 x 389 x 167 mm
Antenna:Vertical :(W x D x H): 434 x 389 x 236 mm
w/o Antenna :(W x D x H): 434 x 379x 167 mm

Weight: 12.5kg
Carton Weight (inc. product): 15.1kg
