AVR-X8500HA

13.2 Ch. 150W 8K AV Receiver with HEOS® Built-in

Upgrade your expectations in home theater and audio entertainment with the AVR-X8500HA – the world’s first 13.2Ch 8K AV receiver.

• 13.2 channels
• 150 watts per channel
• 8K Ultra HD
• 3D Audio
• HEOS Built-in
• 8 HDMI inputs

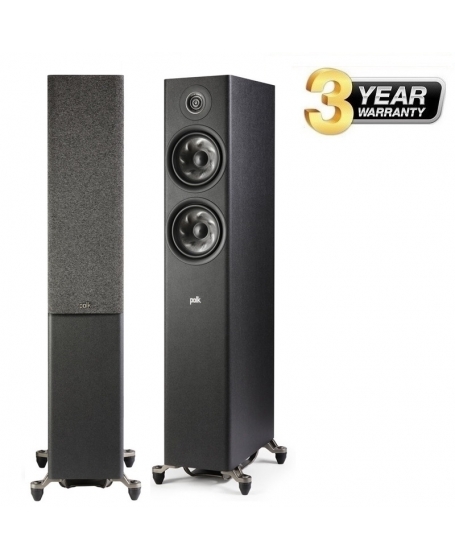

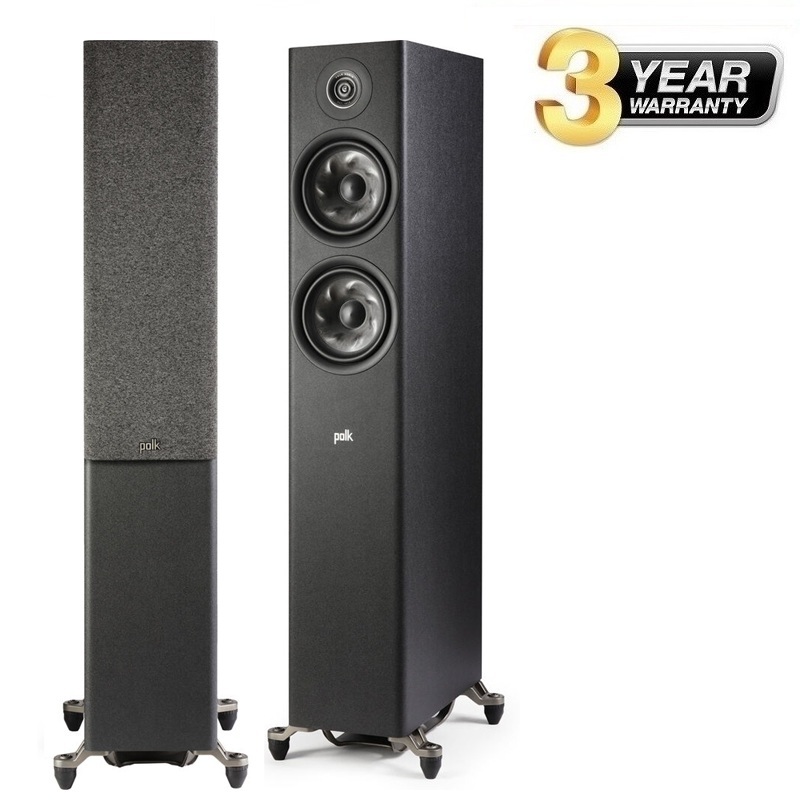

Reserve R600

Premium Floor-Standing Tower Speaker

The R600 represents the ultimate in performance and value, delivering killer flagship sound at an unbeatable price. With the addition of two 6.5” turbine cone woofers and Power Port® 2.0, the R600 perfectly balances sonic impact with rich and detailed audio.

• Dual 6.5" Turbine Cone woofers
• 1" Pinnacle Ring Radiator tweeter
• Power Port® 2.0 with X-Port for ultimate bass
• Exceptional & sleek cabinetry
• Hi-Res Audio certified
• Dolby Atmos & DTS:X compatible

Reserve R350

Premium slim Center Channel Speaker

The Polk Reserve R350 slim center channel speaker is the perfect discrete speaker for your home theater. This compact 5” unit can fit almost anywhere. With a 1” Pinnacle tweeter and four 4” Turbine woofers, you get clear, crisp vocals for your favorite movies and shows. With exceptional versatility, the R350 is also a left/center/right speaker, so you can use up to three units as your front stage.

• Four 4" Turbine Cone woofers
• 1" Pinnacle Ring Radiator tweeter
• X-Port for deep bass
• Low profile design with L/C/R option
• Hi-Res Audio certified
• Dolby Atmos & DTS:X compatible

Reserve R200

Premium Bookshelf Speakers

As the larger bookshelf speaker in the series, the R200 excels in delivering extra bass power thanks to its 6.5” turbine cone woofer and larger cabinetry. Perfect for listening in a stereo pair, as part of a front stage, or as surround components in a larger system. Named “Bookshelf Loudspeaker of The Year” by The Absolute Sound.

• Exceptionally impactful bass
• Smooth midrange and detail
• Beautiful stereo reproduction
• Excellent home cinema detail

Signature Elite ES15

High-Quality Compact Bookshelf Speakers

Enjoy movies, music and gaming with high-resolution cinematic sound. Polk’s full-range ES15 wall-mountable, compact bookshelf loudspeaker is Hi-Res Audio Certified, Dolby Atmos and DTS:X compatible, and features a Dynamically Balanced acoustic array, precision crossovers and Power Port bass-enhancing technology.

• Flexible placement: stand, shelf or wall mount
• Engineered and designed in USA
• Great sound for every room

Signature Elite ES12 Subwoofer

12" Signature Elite subwoofer

The 12" Signature Elite ES12 subwoofer enhances the largest home-theater and music systems. Equipped with a robust Class D amplifier, Power Port™ technology, and Time-Smart Phase Control, the ES12 delivers impactful bass with unparalleled precision. Its sleek cabinet complements Signature Elite systems and fits anywhere.

• Forward-firing long-throw 12" woofer
• Acoustically optimized cabinet
• Two internal Power Ports
• Advanced DSP
• Time-Smart Phase Control

RC80I

High-Quality In-Ceiling Speakers with 8" Drivers (Pair)

Enjoy seamless audio quality and excellent sound reproduction with overhead speakers that elevate sound quality.

• 8" Dynamic Balance® composite cone woofer
• 1" Swivel-Mount soft dome tweeter
• Paintable white matte grille
• Perfect for Dolby Atmos & DTS:X
• Pairs well with Signature Elite, Signature, Monitor XT & T Series

Denon AVC-X8500HA 13.2 Ch. 8K Atmos Network AV Receiver
Multichannel Surround
IMAX Enhanced    Yes
DTS HD Master / DTS:X    Yes / Yes
DTS Neo:X / DTS Neural:X    No / Yes
DTS Virtual:X    Yes (update)
Dolby TrueHD / Dolby Atmos    Yes / Yes
Dolby ProLogic II / Dolby Surround    No / Yes
Auro 3D    Yes
Multichannel Stereo    Yes
Max Number of Processing (Preamp) Channels    13.2
Sound Enhancements
Mono Block Power Amp Construction    Yes (L/R separated)
Discrete Power Amplifier    13
D.D.S.C. HD Digital    Yes (32 bit)
Pure Direct    Yes
High Grade Audio Components    Yes
Gold Plated RCA Terminals    Yes
Clock Jitter Reducer    Yes
Alpha Processing    AL32 Processing Multichannel
Denon Link HD    Yes
Audyssey    MultEQ XT32
Audyssey Dynamic EQ / Dynamic Volume    Yes / Yes
Audyssey LFC    Yes
Audyssey APP Support    Yes
Compressed Audio Restorer    Yes
Network
HEOS Multiroom and Streaming    Yes
Lossy Formats: MP3 / WMA / AAC    Yes / Yes / Yes
Lossless Formats: FLAC / ALAC / WAV    Yes / Yes / Yes
DSD Audio Streaming    up to DSD5.6
FLAC HD 192/24    Yes
WAV 192/24    Yes
ALAC 192/24    Yes
Gapless playback    Yes (FLAC, WAV, ALAC, DSD)
AirPlay Audio Streaming    Yes
Internet Radio    TuneIn
Spotify Connect* / Tidal* / Deezer* / others *    Yes / Yes / Yes / Yes
Compatible with Remote APP for Smart Phones    Android / iOS
Compatible with Remote APP for Tablets    Android / iOS/Amazon Kindle
Ethernet Ports    Yes
Wi-Fi    Yes
Bluetooth    Yes
AirPlay 2    Yes (update)
HDMI
HDMI Inputs: Back / Front    7 / 1
HDCP2.3 support    Yes
HDMI Outputs: Main / Zone    2 / 1
HDMI max Resolution (8k / 4k)    8k/60 - 4k/120**
Video Conversion Analog -> HDMI    Yes
HDMI to HDMI Scaling    up to 8K 60/50
HDMI: 8K / 4K / CEC / eARC    Yes / Yes / Yes / Yes
HDMI: Dolby Vision / HDR 10+ / Dynamic HDR / HLG    Yes / Yes / Yes / Yes
HDMI: ALLM / QMS / QFT / VRR    Yes / Yes / Yes / Yes
HDMI pass-though in standby mode    Yes
DSD Audio Capability    Yes
Multi-room CI
HEOS Multiroom integrated    Yes
TV Sound grouping    Yes
Multi-Room Zones    3
Zone Audio Source: HDMI / Opt, Coax / Network, USB / Analog    Yes (2ch) / Yes (2ch) / Yes / Yes
Zone Audio Output: Speaker / Preout    Yes / Yes
Zone HDMI Output from HDMI Source    Yes
IP Control / RS232 Control / Web Control / App Control    Yes / Yes / No / Yes
Remote In / Out    Yes / Yes
DC Trigger Output    2
Others
Auto Speaker Setup by Microphone    Audyssey MultEQ XT32
FL Display    2 lines
Graphic User Interface - GUI    Advanced
ISF Certification    Yes
GUI Languages    9
Setup Assistant    Yes
Quick Select Plus / Quick Select    Yes / No
Firmware Update by: Network / USB    Yes / Yes
Variable Cross Over    Yes
Optimized Bass Redirection    Yes
Bass Sync    Yes
ECO Mode    Yes
Auto Power Off    Yes
Sleep Timer    Yes
Inputs Outputs
Composite In / Out    4 / 2
Component In / Out    3 / 1
HDMI In / Out    7+1 / 3
Multi-room Video Out: Video / HDMI    Yes / Yes
Analogue In/out    6+1 / No
Phono (MM) In    Yes
Digital In: Optical / Coaxial    2 / 2
Multi-room Out: Analog / Digital    2 / No
Multichannel Preout    Yes (15.2)
Subwoofer Out    2 (independent)
7.1 Multichannel Input    Yes
Speaker Terminal: Gold Plated Screw / Regular Screw    Yes / No
Number of Speaker Terminals    15
Speaker A/B / Bi-amp Drive / Multi-Room Speaker    assignable
Speaker A / B    assignable
Bi-amp Drive    assignable
Multi-Room Speaker Terminal    assignable
Front Inputs: Audio / Composite / Digital (Opt) / HDMI / USB    No / No / No / Yes / Yes
USB Audio / Made for iPod / Made for iPhone    Yes / AirPlay / AirPlay
Specifications
Number of Power Amps    13
Power Output (8 ohm, 20 Hz - 20 kHz, 0.05% 2ch Drive)    150 W
Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive)    190 W
Power Output (6 ohm, 1 kHz, 1% 1ch Drive)    210 W
General
vailable colors: Black / Premium Silver    Yes / Yes
Metal Front Panel    Yes
System Remote Control    RC-1221
Pre-programmed / Learnable / LCD Display    Yes / Yes / Yes
Power Consumption in W    900
Power Consumption No-Sound (ECO On / Off) in W    70 W / 125 W
Standby Consumption in W    0.1
CEC Standby Consumption in W    0.5
Network Control On Consumption in W    3.7
Maximum Dimensions
Antenna: Horizontal: (W x D x H) in mm  434 x 482 X 195
Antenna: Vertical: (W x D x H) in mm 434 x 482 X 259
W/O Antenna: (W x D x H) in mm    434 x 472 x 195

Polk Audio Reserve R600 Floorstanding Speaker
TRANSDUCER
Tweeter    1" Pinnacle Ring Radiator
Mid-range/Mid-bass    -
Woofers    Two 6 ½” Turbine Cone
Overall Frequency Response    35Hz - 50kHz
Frequency Response (-3dB limits)    43Hz - 38kHz
Recommended Amplifier Power    25 - 200W
Amplifier Output Compatibility    8Ω / 6Ω / 4Ω
Minimum Impedance (ohms)    4.0Ω
Sensitivity (2.83V/1m)    87.5dB
CROSSOVER
Tweeter/Mid-range Crossover Frequency    2700
Mid-range/Mid-bass Crossover Frequency    -
MEASUREMENTS
Product Dims W x H x D (Includes width of feet)    280.7 x 1063.8 x 381.6mm
11 x 41.9 x 15 in
Product Weights (each)    47.3 lbs/21.5
Shipping Weight    58.2 lbs/26.4 kg
CABINETRY
New CRC (Mid-Range Enclosure Type)    -
Mid-Bass / Woofer Enclosure Type    Floor Firing Power Port with X-Port
Available Finishes    Black / Walnut / White
Feet    Spike and Pad
Wall-Mountable (keyhole slots)    No
Binding Posts: Nickel-plated 5-Way    Single
Certifications (Non-Safety and Regulatory)
Hi-Res Certified    Yes
IMAX Certified    Yes
Shipping Dims (WxHxD)    494 x 374 x 1152mm
(19.4 x 14.7 x 45.35) in

Polk Audio Reserve R350 Slim Center Speaker
TRANSDUCER
Tweeter    1" Pinnacle Ring Radiator
Mid-range/Mid-bass    -
Woofers    Four 4” Turbine Cone
Overall Frequency Response    50Hz - 50kHz
Frequency Response (-3dB limits)    75Hz - 35kHz
Recommended Amplifier Power    25 - 200W
Amplifier Output Compatibility    8Ω / 6Ω / 4Ω
Minimum Impedance (ohms)    3.9Ω
Sensitivity (2.83V/1m)    87dB
CROSSOVER
Tweeter/Mid-range Crossover Frequency    2700
Mid-range/Mid-bass Crossover Frequency    1400
MEASUREMENTS
Product Dims W x H x D (Includes width of feet)    762 x 141 x 187.5mm
30 x 5.5 x 7.4 in
Product Weights (each)    20 lbs/9 kg
Shipping Weight    23.7 lbs/10.8 kg
CABINETRY
New CRC (Mid-Range Enclosure Type)    -
Mid-Bass / Woofer Enclosure Type    Sealed
Available Finishes    Black / Walnut / White
Feet    Rubber pads
Wall-Mountable (keyhole slots)    Yes
Binding Posts: Nickel-plated 5-Way    Single
Certifications (Non-Safety and Regulatory)
Hi-Res Certified    Yes
IMAX Certified    No
Shipping Dims (WxHxD)    867 x 264 x 230mm
(34.1 x 10.4 x 9) in

Polk Audio Reserve R200 Bookshelf Speaker
TRANSDUCER
Tweeter    1" Pinnacle Ring Radiator
Mid-range/Mid-bass    -
Woofers    6 ½” Turbine Cone
Overall Frequency Response    39Hz - 50kHz
Frequency Response (-3dB limits)    51Hz - 38kHz
Recommended Amplifier Power    30 - 200W
Amplifier Output Compatibility    8Ω / 6Ω / 4Ω
Minimum Impedance (ohms)    3.8Ω
Sensitivity (2.83V/1m)    86dB
CROSSOVER
Tweeter/Mid-range Crossover Frequency    3000
Mid-range/Mid-bass Crossover Frequency    -
MEASUREMENTS
Product Dims W x H x D (Includes width of feet)    190 x 359 x 353.8mm
7.5 x 14.1 x 13.9 in
Product Weights (each)    19.1 lbs/8.7 kg
Shipping Weight    43.4 lbs/19.7 kg
CABINETRY
New CRC (Mid-Range Enclosure Type)    -
Mid-Bass / Woofer Enclosure Type    Rear X-Port
Available Finishes    Black / Walnut / White
Feet    Rubber pads
Wall-Mountable (keyhole slots)    No
Binding Posts: Nickel-plated 5-Way    Single
Certifications (Non-Safety and Regulatory)
Hi-Res Certified    Yes
IMAX Certified    No
Shipping Dims (WxHxD)    533 x 448 x 452mm
(21 x 17.6 x 17.8) in

Polk Audio Signature Elite ES15
Qty Included    Pair
Width    7.5" (19.1 cm)
Height    12" (30.48 cm)
Weight    13 lbs (5.9 kg)
Depth    10.2" (25.9 cm)
Orientation    Horizontal
Front Array Driver Complement
• (1) 1" (2.54 cm) d (Round) Terylene High-Res Dome Tweeter
• (1) 5.25" (13.34 cm) d (Round) Dynamic Balance Mica Reinforced Polypropylene Driver
Impedance    Compatible with 8 ohm outputs
Mounting Type    Key hole slot
Max Sensitivity (1 watt @ 1 meter)    88dB
Recommended Amplifier Power Per Channel    20 watts → 100 watts
Crossover Frequency    2500 Hz
Total Frequency Response    48 Hz → 40,000 Hz
Inputs    Single gold-plated 5-way binding posts

Polk Audio Signature Elite ES12 12" Subwoofer
Technical features 12" mineral-filled polypropylene cone woofer
Dual Power Port®
Audio inputs LFE (RCA)
Stereo line level (2 RCA)
Frequency response (-3dB) 22 Hz–250 Hz
Frequency response (-10dB) 18 Hz–350 Hz
Lowpass filter adjustment range 50–160 Hz
Phase adjustment range -135° to 180° in 45° increments
Available colors Black
Item Dimensions (H × W × D)
19.0 × 14.3 × 19.0 in.
483 × 362 × 483mm
Product weight 47.6 lbs/21.6 kg

Polk Audio RC80i In-ceiling speakers
Frequency Response
35 Hz - 20 kHz
Recommended Power
20-100 Watts RMS
Impedance
Compatible with 8 Ohm Amplifiers
Efficiency
90 db (dB per 1 W / 1 m)
Drive Unit
Mid-Bass: 8" / 20 cm Mineral Filled Polypropylene Cone, Rubber Suspension
Tweeter: 1" / 25 mm Soft Dome in Ball and Socket
Dimensions
Cutout: 9.38" / 23.81 cm Diameter
Depth with 0.5" / 1.3 cm Drywall: 3.25" / 8.26 cm
Weight    4.5 lbs. each
