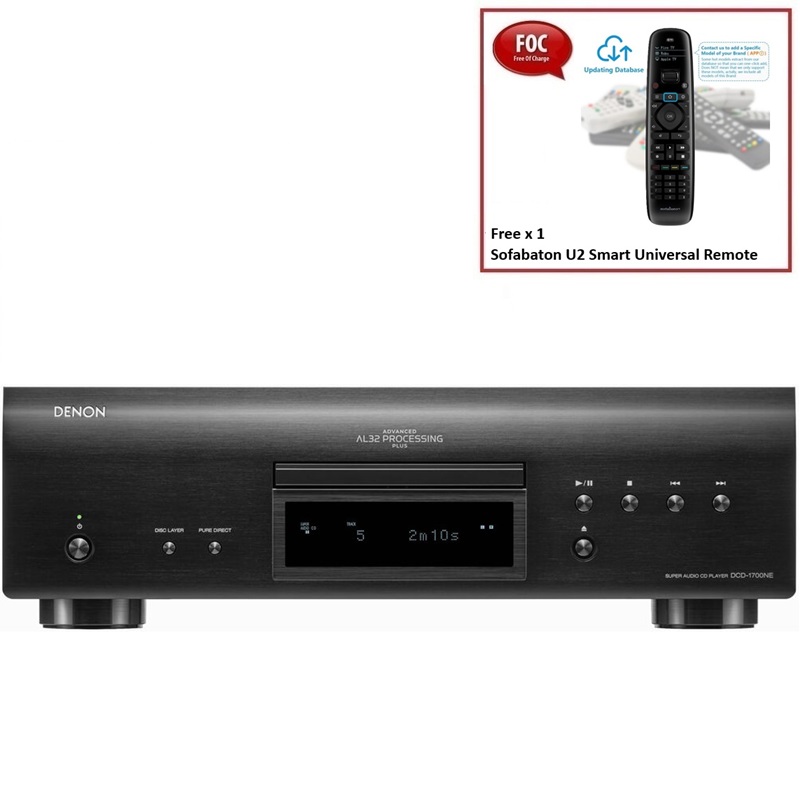

DCD-1700NE

CD/SACD player with Advanced AL32 Processing Plus

Enjoy accurate audio reproduction that’s faithful to the original recording. Thanks to technologies like Advanced AL32 Processing Plus and an ultra-precision D/A Converter, you’ll hear your favorite songs like never before. The Denon original drive mechanism with S.V.H lets you play back CDs, SACDs, and your own compilations on DVD R/RW with signal purity.

• AL32 Processing
• Proprietary disc drive
• Pure Direct Mode
• DAC Master Clock design
• SACD support

Faithfully accurate CD player that'll never let you down

Innovative engineering and proprietary technologies like Advanced AL32 Processing Plus ensure the highest quality audio reproduction.

Pristine as intended.

Extended format capability

Supports CD, Super Audio CD, and your own high-res compilations on CD or DVD R/RW

Pristine audio

Unique Denon technologies come together to deliver outstanding sound clarity.

Faithful, detailed playback

Advanced AL32 data interpolation algorithms and digital filtering reveal more detail from the original recording.

Engineered for elevated listening experiences

Advanced AL32 Processing Plus

Experience audio beautifully faithful to the original sound. Advanced AL32 Processing Plus algorithms restore information that was lost during the digital recording.

Extended disc format support

Enjoy extended disc support for your high-resolution audio collection, including CD's, Super Audio CDs, as well as DSD and high-res files up to 192 kHz/24 bits recorded on DVD-R/RW and DVD+R/RW discs.

Proprietary disc drive

The Denon original disc drive is built with a high-class S.V.H (Suppress Vibration Hybrid) mechanism. All elements of the design are focused on delivering optimal accuracy.

Sound Master tuned

Carefully tuned with selected audio components and evaluated by the Denon Sound Master to meet Denon’s high standards and distinctive sound for an amazing experience.

Denon Signature Sound

Sonic Innovation
For the Past 110 Years

For more than a century, we've crafted cutting-edge audio products that deliver the ultimate detail. Our Japanese heritage inspires us, and each product is hand-tuned by our sound master. Prepare to hear sound differently.

General
Unit (W x H x D) 434 x 135 x 384mm 17.09 x 5.31x 15.12
Cabinet Size 434 x 135 x 374
Net weight 9.0kg (19.84 lbs)
Packaging Dimensions (W x H x D mm) 543 x 250 x 515
Packaging gross weight 11.7kg (25.79 lbs)
Power Consumption 24W
at Standby 0.1W
Front (Center) Panel Aluminum
Function button Aluminum
Open / Close button Aluminum
Power button Aluminum

Specifications
Frequency Response
SACD:2Hz - 50kHz (-3dB)
CD:2Hz - 20kHz (-0.5dB)
Harmonic distortion
SACD: 0.0010%
CD: 0.0016%
Signal-to-Noise Ratio
SACD: 119dB
CD: 117dB
Dynamic Range
SACD: 112dB
CD: 101dB
Line Output Level
2.0Vrms (10kohm)

Digital Audio
DAC Circuit TI　Advanced Current Segment
PCM1795(192k/32bit) ×1
Digital Filter Fixed
Digital Processing Advanced AL32 Processing Plus
DAC Master Clock Design (Not Support Network Playback) Yes

Disc
Mechanism TD-505 FOR DM
Disc Type SACD/CD/CD-R/CD-RW
DVD-R/+R/-RW/+RW
SACD Yes (Stereo Layer/Multi-D/M)
Super Audio CD Text Yes
Playability of files recorded on CD-R/RW :
MP3 / WMA / AAC Yes / Yes / Yes
WAV Yes (~48kHz/24bit)
FLAC Yes (~48kHz/24bit)
ALAC Yes (~48kHz/24bit)
AIFF Yes (~48kHz/24bit)
Playability of files recorded on DVD R/RW :
MP3 / WMA / AAC Yes / Yes / Yes
WAV Yes (~192kHz/24bit)
FLAC Yes (~192kHz/24bit)
ALAC Yes (~96kHz/24bit)
AIFF Yes (~196kHz/24bit)
DSD (DIFF / DSF Yes (~5.6MHz)
Firmware Update Yes (FE/BE, MCU)

Inputs Outputs
Fixed Analog Output (RCA) Cinch x 1 (Gold Plated)
Optical input / output (Maximum Support) 0 / 1
Coaxial input / output (Maximum Support) 0 / 1

Controls
Remote Controller System Remote (Amp and CD Player Control)
On-Product Buttons
Power
Disc Layer
Pure Direct
Play/Pause
Stop
Fwd/Rev
Open/Close
LED POWER: 1 Green
Front Panel Display Single Line
Dimmer for Front Display Bright / Dim / Dark / Off
Control with App via Network Player (Use Remote Control Bus) Yes

Other
Pure Direct Mode Yes
Last Function Memory Yes
Remote Control Bus Terminal Yes
Remote Control Yes (controllable PMA-1700NE)
Battery Yes (AAA x2)
Power Cord Yes
Other Stereo RCA Cable x1
Timer Play (Need external audio timer) Yes
Auto Standby Mode Yes
