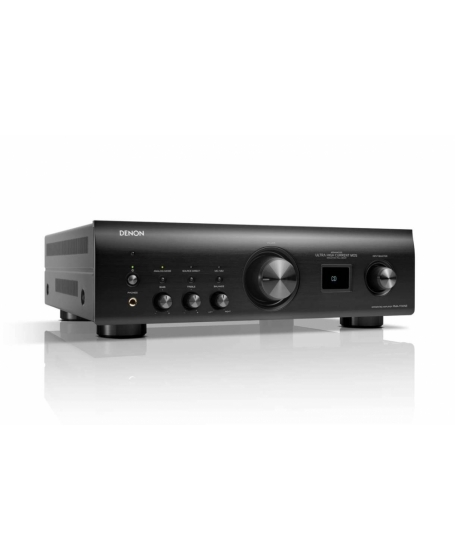

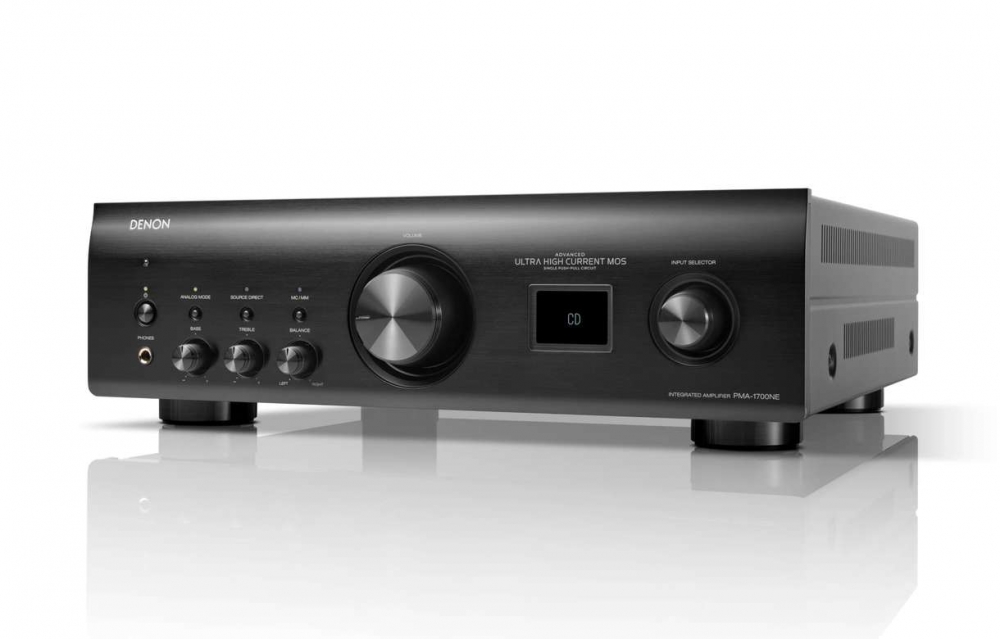

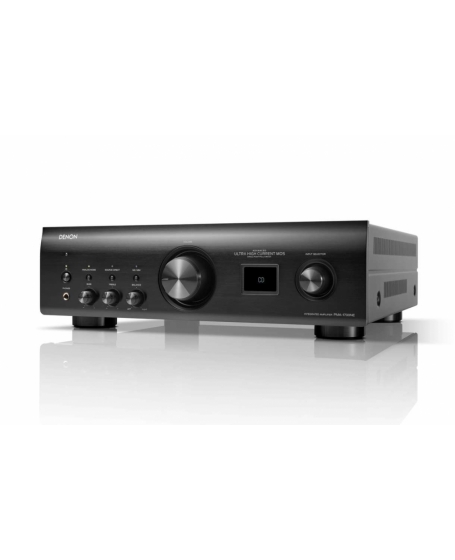

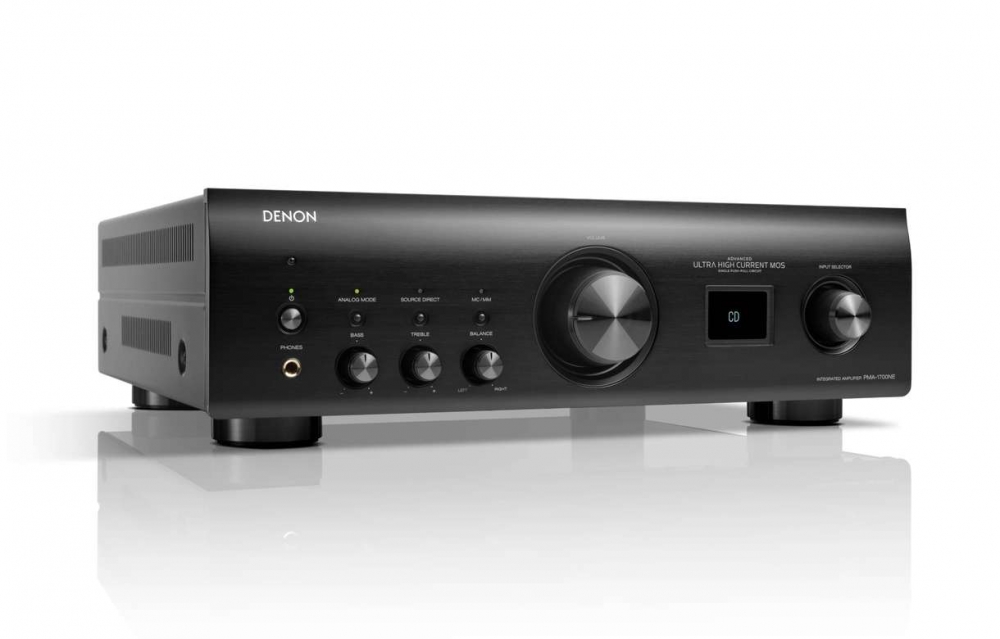

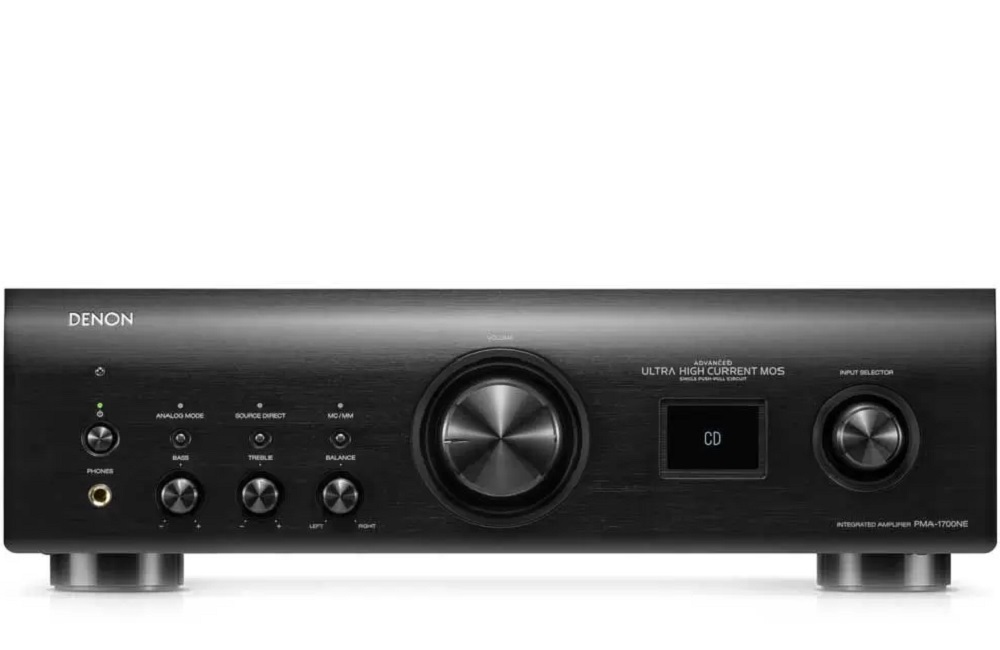

PMA-1700NE

Integrated Network Amplifier

Featuring advanced ultra-high current single push-pull circuit power, Advanced AL32 Processing, and MM/MC phono equalizer, the Denon PMA-1700NE integrated amplifier delivers extraordinary sound quality with precise detail.

High-power 140W integrated amplifier

Drive your loudspeakers with 140 Watts of power- per-channel into 4 Ohms. This integrated amplifier offers compatibility with the widest range of 6 speaker types and impedances for operational stability.

Advanced AL32 Processing Plus

Advanced AL32 Processing Plus supports high-resolution 384 kHz/32-bit audio sources. The algorithms restore information that was lost during the digital recording to ensure detailed playback.

USB-DAC

To accurately synchronize digital circuits, the PMA- 1700NE provides USB-DAC functions that support high resolution up to 11.2-MHz DSD and 384- kHz/32-bit PCM input signals. Crafted with exceptional quality, the DAC suppresses jitter and ensures optimal precision in D/A conversion.

High-precision electrical controls

The PMA-1700NE embraces electrical volume, balance, and tone controls while preserving the analog feeling of operation. The unique mechanism offers smooth, linear control.

TECHNICAL SPECIFICATIONS
General
Unit (W x D x H)    434 x 410 x 135mm
17.1 x 16.1 x 5.3in
Cabinet Size (W x D x H)    434 x 374 x 135mm
17.1 x 14.7 x 5.3in
Net weight    17.6kg 38.8lb
Packaging Dimensions (W x D x H)    548 x 520 x 249mm
21.6 x 20.5 x 9.8in
Packaging gross weight    20.4kg 45lb
Carton Color    2 Color
Cushion / Packing    4 Separate / Sheet
Panel Color    SP / BK
Front (Center) Panel    Aluminum
Side cover    SECC with 4 straight emboss
Side screw    SP: Nickel / BK: Black
Rear Panel    SECC t1.0mm
Chassis Material    SECC t1.2mm
Bottom Layer    Single
Volume Knob    Aluminum
Input Selector    Aluminum
Bass/Treble/Balance/ Phono Sel knobs    Aluminum
Power button    Aluminum
Other knob/button (LOUDNESS, SOURCE DIRECT etc)    Mold (Source Direct,Analog Mode,MM/MC)
Foot    ABS resin with rigid rib
w/Hot stamp
(H : 20mm)
Heatsink for Power Amplifier    Extruded Aluminum

Specifications
Rated Output Power    70W + 70W
(8ohm,20Hz-20kHz,THD0.07%)
140W + 140W
(4ohm, 1kHz, THD0.7%)
Speaker Impedance    A or B : 4 ~ 16ohm
A + B : 8 ~ 16ohm
Frequency Response    5Hz - 100kHz (0~ -3dB)
Total Harmonic Distortion    0.01 % (Rated output: –3 dB),
8 ohm/ohms, 1 kHz
Dumping Factor    100 and over
Input Sensitivity: Phono input    MM: 2.5 mV / 47 kohm
MC: 200
RIAA Deviation    20 Hz - 20 kHz ±0.5 dB (MM/MC)
Phono Maximum Input    MM : 130mV / 1kHz
MC : 10mV / 1kHz
Input Sensitivity: CD/LINE/RECORDER    125 mV / 19 kohm
Input Sensitivity: Power Amp input    0.85V / 47kohm (EXT. PRE)
Signal to Noise Ratio    PHONO (MM): (89dB)
PHONO (MC): (74dB)
CD: (107dB)
Tone Control    BASS : 100Hz ±8dB
TREBLE : 10kHz ±8dB
Power Consumption    295W
at Standby    0.2W TV autoplay off
0.4W TV autoplay on

Audio Feature

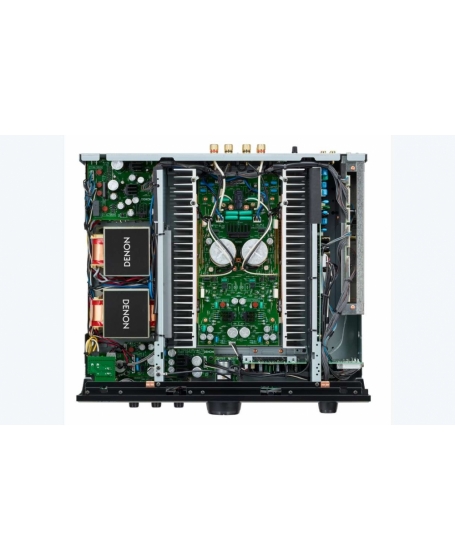

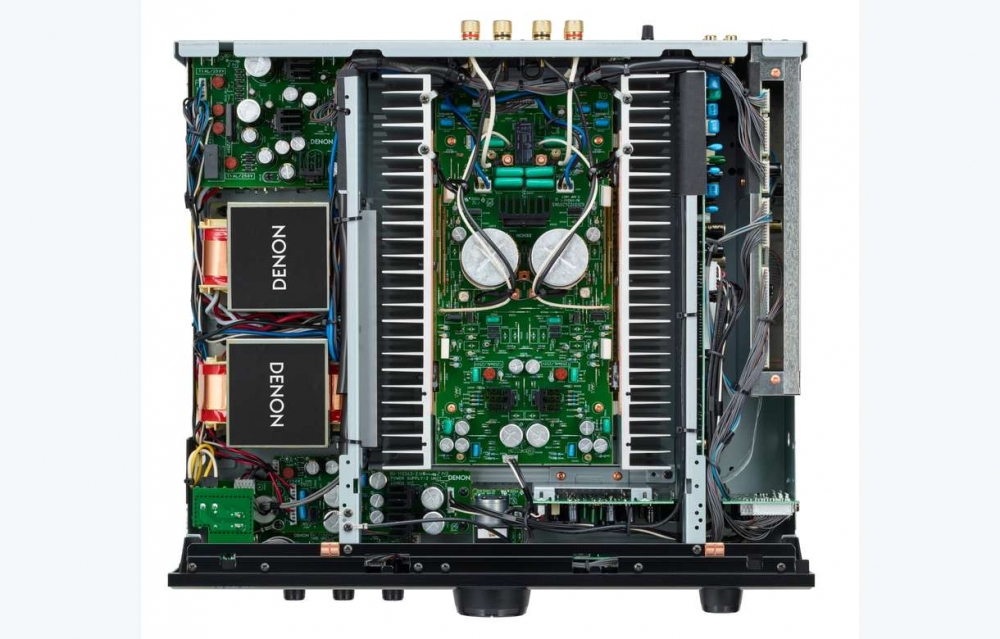

Power Amplifier Circuit    New UHC-MOS
Single Push Pull (7)
Power Trans    Dual El Core
Pre Amplifier Circuit    Variable Gain Preamplifier
(OP AMP)
Volume    Electric
(MUSES 72323)
Bass / Treble / Mid / Balance Control    Yes / Yes / No / Yes
Type of Tone Control    Electric
Controlled by Potentiometer
Headphone Circuit    Use Poweramplifier
Source Direct    Yes
Analog Amp Mode    Yes (button on front panel)
Other    70
DAC Circuit    PCM1795
Digital Filter    Fixed
Digital Processing    Advanced AL32 Processing Plus
DAC Master Clock Design (Not Support Network Playback)    Yes
Asyncronous mode (for USB-B input)    yes
Isolator (for USB-B input)    Yes
Full Isolation

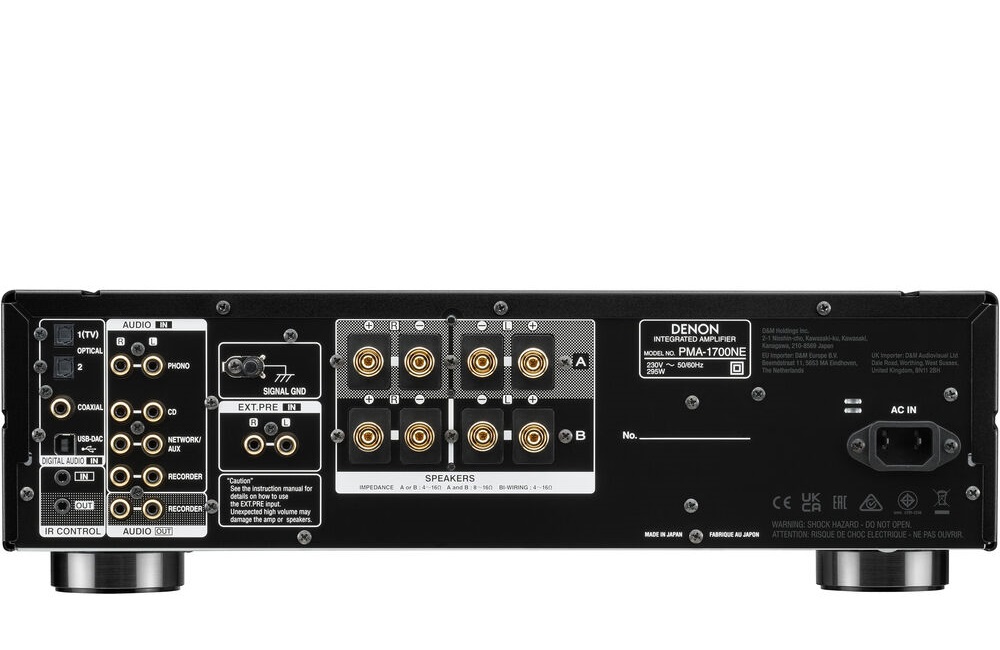

Connectivity
Phono Input    Yes (MM / MC)
*default=MM
Analog Input (include Phono) / REC Out (RCA)    4/1
(PHONO / CD / NETWORK ,AUX/ RECORDER)
Optical input / output (Maximum Support)    2 / 0 (192kHz/24bit)
Coaxial input / output (Maximum Support)    1 / 0 (192kHz/24bit)
Ext. Pre Input (Power Amp Direct)    Yes(Ext.Pre)
2 sets of Speaker Output    Yes (Bi-wiring)
Speaker Terminal    Gold Plated
Headphone Output    1
(Turn off the speaker when inserting headphone)
Remote Control Bus Terminal    Yes (mini)
AC Inlet    Yes
Wi-Fi    No
HEOS    No
USB B (USB DAC)    1 (Rear)
Module or Main Device    New XMOS
(XU210-256-TQ128 )
PCM Sample Rate    ~384kHz/32bit
DSD Audio Streaming (DoP)    ~11.2MHz
Roon Certificaton    Yes(Roon Tested)
TBD

Control

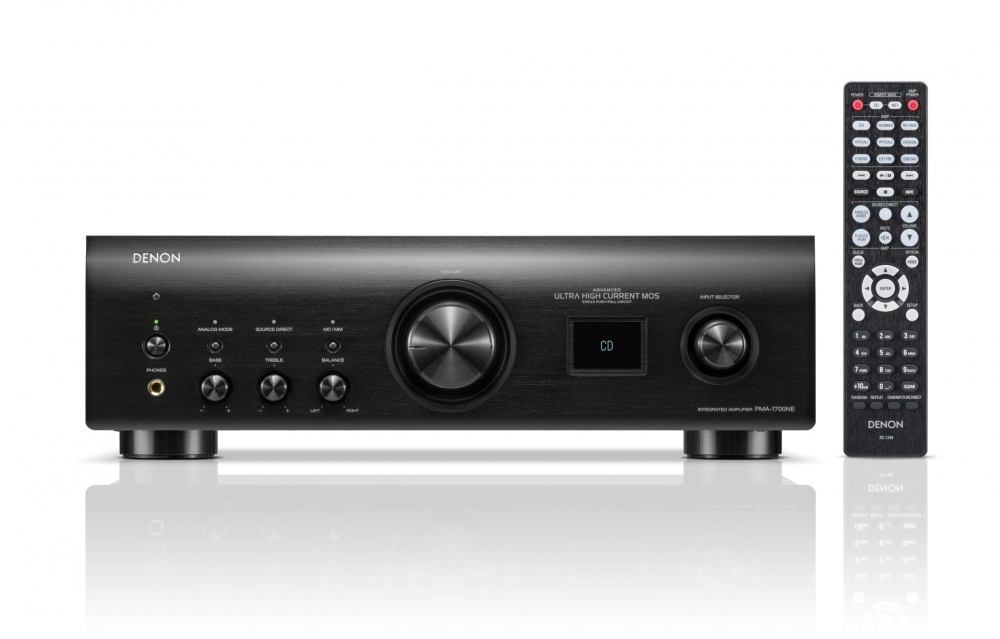

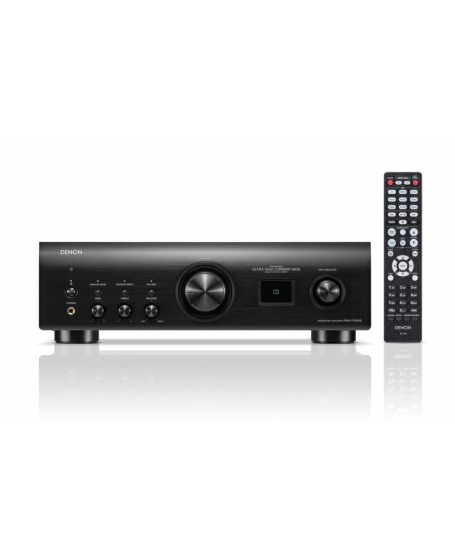

Remote Controller    System Remote
(w/CD Player Control)
Unit control (Button)    Push Switch: 1
POWER
Tact Switch : 3
ANALOG MODE, SOURCE DIRECT, MM / MC
Unit control (Knob)    5
VOLUME, INPUT SELECTOR, BASS, TREBLE, BALANCE
LED    POWER: 1 Red / Green
ANALOG MODE: 1 Green
SOURCE DIRECT: 1 Green
MM / MC :1 Green
Front Panel Display    Yes
(OLED 128 x 100 dot)
MXS4036-A
Display Language    Alphabetical
Dimmer for Front Display    Bright / Dim / Dark / Off
Control with App via Network Player (Use Remote Control Bus)    Yes
TV Auto-play (Opt/Coax digital-in detecter)    Yes
Last Function Memory    Yes
Auto Standby Mode    Yes
Owner's Manual    Web Manual
E2: (English, German, French, Italian, Dutch, Spanish,
Swedish, Polish, Russian)
E3: (English, French, Spanish)
E1C: (Simplified Chinese)
JP: (Japanese)
Paper
JP: (Japanese)
Quick Start Guide    Paper
E2: (English, German, French, Italian, Dutch, Spanish,
Swedish, Polish, Russian)
E3: (English, French, Spanish)
E1C: (Simplified Chinese)
JP: (Japanese)
Remote Controller    Yes
Battery    Yes (AAA x2)
Power Cord    Yes
