Denon PMA-2500NE Integrated Amplifier & Denon DCD-2500NE CD Player Made In Japan

PMA-2500NE

Overview

Integrated Amplifier with DAC mode

Integrated Amp with USB-DAC for High-res Audio and “Simple & Straight” Engineering Design from High-end Models

• 2 x 160 W (4 ohm) output
• Advanced Ultra High Current (UHC)-MOS Single Push-Pull Circuit Power Amplifier with new Schottky barrier diodes
• DAC Master Clock Design
• USB-B input for High Resolution Audio up to 384 kHz / 32 bit and 11.2 MHz DSD
• Digital isolator to eliminate high-frequency computer noise on the USB-B
• Low noise OLED display for source and sample rate indication
• Analog Mode for pure audio reproduction switching off digital audio circuitry and display
• Advanced AL32 Processing Plus
• Direct Mechanical Ground Construction to minimize unwanted vibration
• Chassis construction with 6 independent blocks to eliminate noises
• Leakage-cancelling-mounted twin transformers
• Main transformer with separate power supplies for analogue and digital circuits
• Wide dynamic range playback, supporting high-resolution audio sources
• High-grade volume control for precise adjustment
• 2 Digital Optical and 2 Digital Coaxial inputs
• High performance MM & MC Phono Equalizer Amp
• Available in Premium Silver

Denon is one of the rare audio brands that continue to actively develop Hi-Fi components and accumulate, refine, and pass down Hi-Fi audio technologies. The 2500NE series, designed for today’s age, has been developed by both veteran engineers and talented young engineers who have inherited the Denon technologies and expertise that have been cultivated over many years and decades. And the performance of the PMA-2500NE goes well beyond that of Denon’s previous PMA-2000 series. With its ultimate built-quality, unique Denon technologies and state-of-the-art connectivity, the PMA-2500NE truly is a masterpiece of sound technology. Thanks to the rear USB-B input and embedded high quality D/A converter, the PMA plays high resolution files up to 384kHz/32bit and DSD up to 11.2MHz from a computer in impeccable sonic quality. For the best performance from analogue inputs, the PMA features an Analog Mode which allows to switch off all unutilized sections like the digital input circuitry or the low noise display for an unaltered audio reproduction.

DCD-2500NE

Overview

Super Audio CD player
Premium Super Audio CD Player bringing disc playback performance to remarkable heights

• Advanced AL32 Processing + Ultra Precision 192kHz/32bit D/A Converter
• DAC Master Clock Circuit Design to suppress jitter and noise
• Direct Mechanical Ground Construction to minimize unwanted vibration
• Carefully designed construction, minimum signal paths and selected Hi-Fi parts to preserve audio signal purity
• Original drive mechanism, the heart of Denon’s digital disc playback technology, with Advanced S.V.H. loader
• Playback of CD, Super Audio CD, DSD (2.8 MHz / 5.6 MHz) files and PCM files up to 192 kHz / 24 bits recorded on DVD R/RW
• Twin Transformer for separated digital and analogue power supply
• Pure Direct Mode
• Digital optical, digital coaxial and analogue output

Denon is one of the rare audio brands that continue to actively develop Hi-Fi components and accumulate, refine, and pass down Hi-Fi audio technologies. The 2500NE series, designed for today’s age, has been developed by both veteran engineers and talented young engineers who have inherited the Denon technologies and expertise that have been cultivated over many years and decades. The DCD-2500NE focuses on achieving the essence of a disc player: ultra-high precision in reading discs and supplying high-quality audio signals to the amp. To achieve this, the signal paths are as short as possible and the whole circuitry is minimized. The engineers also redesigned the disc drive mechanism brackets and the chassis to eliminate vibration, the great enemy of disc players, and achieve ultra-vibration-resistant performance. The information on the disc is now read with impeccable accuracy and a clean, high-grade signal is supplied to the DCD-2500NE’s Advanced AL32 Processing Plus circuitry. Besides CD and Super Audio CD playback, the DCD features playback of audio recordings up to PCM192/24 or DSD5.6 recorded on a DVD R/RW for full flexibility and extended access to high resolution audio.

Denon PMA-2500NE
Measurements
Rated power:
2 x 80 W (on 8 ohms, from 20 Hz to 20 kHz, for a THD 0.07%)
2 x 160 W (on 4 ohms, at 1 kHz, for a THD of 0.7%)
Total harmonic distortion: 0.01% (on 8 ohms, at 1 kHz)
Input sensitivity / impedance: Power Amp Direct input: 0.9 V / 47 kohms

Design
Push-Pull Type Circuit, Advanced
UHC-MOS Type
Transistors and New Schottky Diodes Ultra-High Intensity MOS
Transistors Dual FET Transistors and Cascade Bootstrap Circuit, Enhancing Stability
High-End Large Volume Volume Potentiometer (27 mm)
High performance built-in Phono preamp, compatible with moving magnet and moving coils
Independent power
supplies for preamp and power circuits High-intensity power circuits, improving dynamics
Precision Direct Mechanical Ground construction
Chassis separation into 6 independent blocks
Transformers twins, arranged in flow canceling configuration
Signal paths shortened to a minimum, to protect the signal purity
Selected components
RCA connectors machined in the mass, gold-plated
Tone settings: + - 8 dB at 100 Hz and 10 kHz

Measurements
Rated power 2 x 80 W (on 8 Ohms, from 20 Hz to 20 kHz, for a THD 0.07%)
2 x 160 W (on 4 Ohms, at 1 kHz, for a THD of 0.7%)
Distortion total harmonic: 0.01% (on 8 ohms, at 1 kHz)
Input sensitivity / impedance: Power Amp Direct input: 0.9 V / 47 kohms

PHONO ™ phono section : 200 μV, 100 Ohms
PHONO MM: 2.5 mV, 47 kohms
Line output: 135 mV, 47 kohms (Direct Source: OFF)
S / N ratio:
MC 74 dB phono input (short-circuit inputs, 0.5 mV input signal)
MM 89 dB phono input (short-circuit inputs, 5 mV input signal)
Line input 108 dB (Source Direct ON)

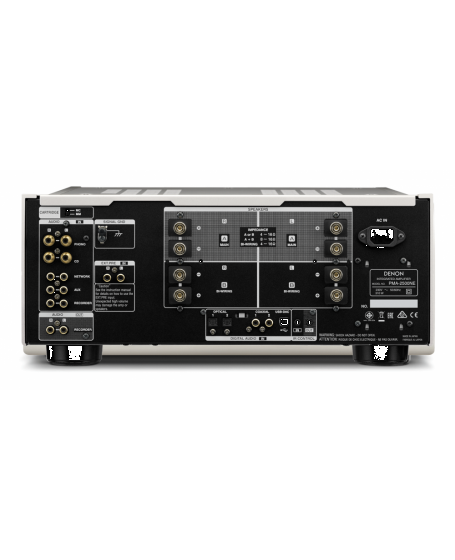

Connectivity
1x phono input MM / MC
6x RCA stereo inputs
1x Power Amp input Direct (Main IN)
1x recording output
Speaker terminals A and B (or bi-amplification)

General
Power consumption 310 Watts (in standby: less than 0.3 Watts)
Dimensions (W x H x D) 434 x 181 x 435 mm
Weight: 24.4 kg

Denon DCD-2500NE
MechanismSVH Loader
DAC ICPCM1795 (192kHz/32bit)
Frequency response (SACD, DVD-A)2 Hz  50 kHz (SACD)
Dynamic Range (SA)112 dB
Signal to Noise Ratio (SA)120 dB
Total Harmonic Distortion (SA)0.0008%
Frequency response CD (linear PCM)2 Hz  20 kHz
Dynamic Range: CD / DVD101 dB (CD)
Signal to Noise Ratio118 dB (CD)
Total Harmonic Distortion0,0015% (CD)
Available Colours: Premium Silver / Black /
Metal Front Panel
Remote ControlRC-1207
Power Consumption in W25
Standby Consumption in W0.1
Auto Power Off
Detachable Power Cable
Maximum Dimensions (W x D x H) in mm434 x 335 x 138
Weight in kg13.7
