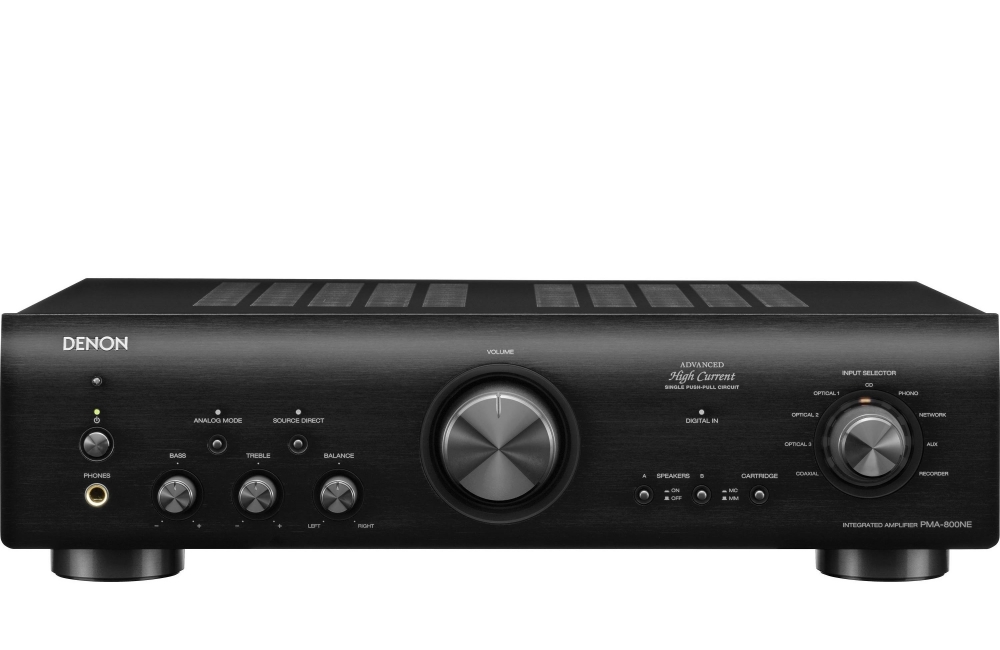

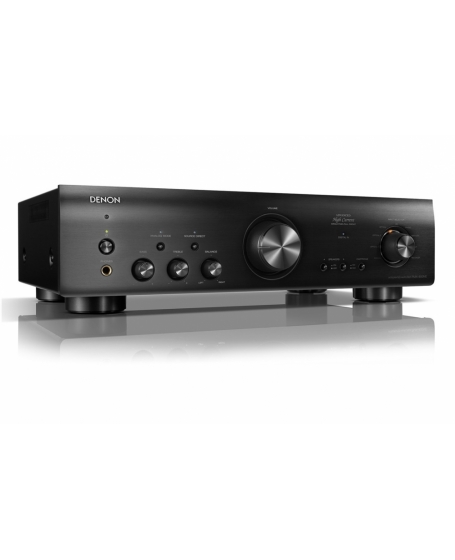

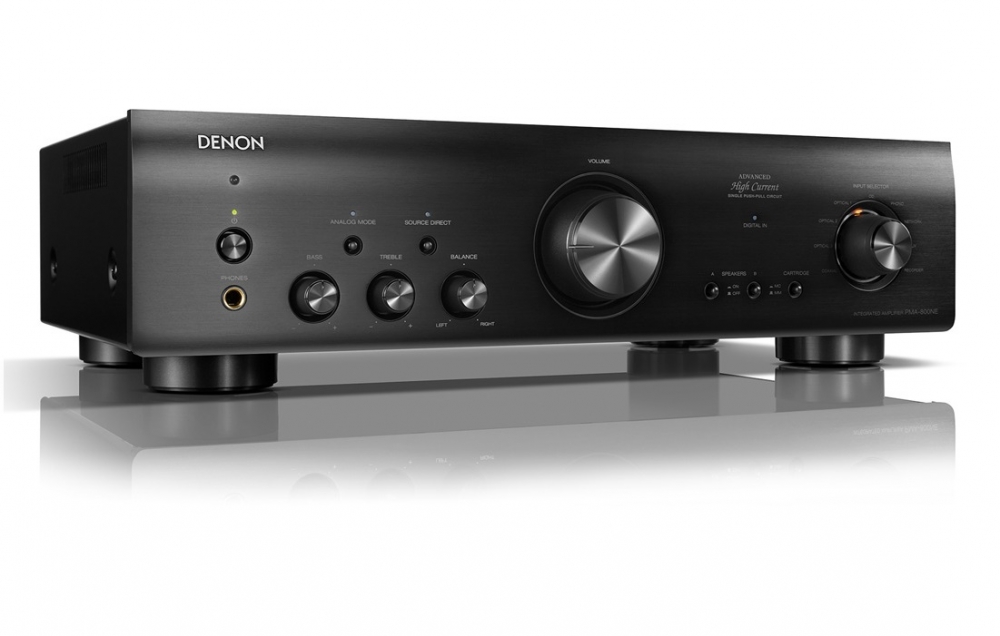

Denon PMA-800NE Integrated Amplifier Free Streamer

PMA-800NE

Featuring digital inputs and a built-in phono equalizer, the Denon PMA-800NE integrated amplifier sets new heights in premium audio performance.

具有數位輸入和內置的唱頭等化器，Denon PMA-800NE綜合擴大機在高級的音訊性能中建立新高度。

Overview

The Denon PMA-800NE integrated amplifier sets new heights in premium audio performance with digital inputs and a built-in phono equalizer. From deep bass to detailed highs, listen to your favorite high-resolution audio content with the 192kHz/24bit D/A converter. At 85W (4 Ohms) per channel, the PMA-800NE supplies enough power to drive your speakers for optimal sound. Connect the PMA-800NE to your favorite components with the three Optical and one Coaxial digital inputs. Powered by the Denon Advanced High Current (AHC) single push-pull circuit power amplifier, the PMA-800NE provides exceptional sound quality that balances high power with delicate, musical details.

概述

Denon PMA-800NE綜合擴大機具有數位輸入和內置唱頭等化器，在高級的音訊性能中建立新高度。使用192kHz/24bit D/A轉換器聆聽您最喜愛的高解析音訊內容。每聲道85W(4 Ohms)，PMA-800NE提供足夠功率驅動您的喇叭以達到最佳聲音。透過3個光纖和1個同軸數位輸入，將PMA-800NE連接到您喜愛的單機。由Denon高級大電流(AHC)單端推挽電路功率擴大機驅動，PMA-800NE提供出色的音質，使高功率與精巧的音樂細節達成平衡。

Features

• 2 x 85 W (4 ohm) power output: Get the maximum performance to drive your favorite loudspeakers
• Advanced High Current (AHC) Single Push-Pull circuit power amplifier: Wide bandwidth captures everything from deep bass to detailed highs
• 3 Optical, 1 Coaxial digital input: Supports all digital music sources
• Built-in 192kHz/24bit D/A converter: Experience high-resolution audio playback
• Impeccable sound engineering with carefully selected and rigorously tested Hi-Fi parts: Enjoy the exceptional sound that is the signature of Denon amplifiers
• Analog Mode for pure audio reproduction: Enjoy the richness of your treasured analog music sources
• High performance MM and MC phono equalizer amp: Connect any turntable and enjoy vinyl tracks
• Vibration-resistant design with Direct Mechanical Ground Construction: Listen to music with pristine detail and quality unaffected by the environment
• Main transformer with separate coiled wires for audio/control circuits: Eliminates interference to optimize sound quality
• Micro-processor with Stop Mode: Protects audio signal from external noise during playback
• Denon-proprietary Signal Level Divided Construction (SLDC) chassis: Amplify and transmit delicate musical signals to the speakers to capture the nuance of the music
• Engineered with a more than 100-year Denon legacy in audio excellence: Trust this high-quality and durable system to deliver the ultimate audio experience

• 2 x 85 W (4 ohm)功率輸出:以最大的性能驅動您最喜愛的喇叭
• 高級大電流(AHC)單端推挽電路功率擴大機:寬廣的頻寬捕捉所有從重低音到高音細節
• 3個光纖、1個同軸數位輸入:支援所有數位音樂來源
• 內置的192kHz/24bit D/A轉換器:體驗高解析音訊播放
• 無可挑剔的聲音工程和精心挑選並經過嚴格測試的Hi-Fi零件:享受Denon擴大機出色的聲音
• 類比模式提供純音訊重現:享受您珍貴的類比音樂的豐富來源
• 高性能MM和MC唱頭等化擴大器:連接任何的唱盤，享受黑膠唱片音軌
• 具有直接機械接地結構防震設計:聆聽音樂最原始的細節和不受環境影響的品質
• 音訊/控制電路的主變壓器，獨立繞線:消除干擾以優化音質
• 微處理器具有停止模式:播放時保護音訊信號免於外部噪音干擾
• Denon專屬的信號級分立式結構(SLDC)底盤:擴大和傳遞精緻的音樂信號到喇叭，捕捉音樂的細微差別
• 秉承Denon百年多來在音響領域的卓越傳奇:這款高品質耐用系統能帶來終極的音訊體驗

HIGH POWER 85W INTEGRATED AMPLIFIER

Power your loudspeakers with the Denon PMA-800NE integrated amplifier. Engineered with remarkable Denon amplifier technology, the PMA-800NE delivers 85 Watts of power-per-channel into 4 Ohms. This integrated amplifier offers compatibility with the widest range of speaker types and impedances for operational stability.

高功率85W綜合擴大機

用Denon PMA-800NE綜合擴大機驅動您的喇叭。設計中採用非凡的Denon擴大機技術，PMA-800NE為4 ohm阻抗負載提供每聲道85W的功率。綜合擴大機提供最廣範圍的喇叭種類相容性和阻抗的操作穩定性。

ADVANCED HIGH CURRENT (AHC) SINGLE-PUSH-PULL CIRCUIT

Enjoy powerful sound with detailed, musical accuracy. The PMA-800NE incorporates AHC transistors with two-to-three times the electrical current supply capacity of conventional audio power transistors.

高級大電流(AHC)單端推挽電路

享受具細節和音樂準確度的強大聲音。PMA-800NE合併AHC電晶體，其電流供給能力是傳統音訊功率電晶體供給的2至3倍。

HIGH-GRADE AUDIO COMPONENTS

Denon engineers carefully constructed the amplifier circuit within the PMA-800NE to secure a frequency response of up to 100 kHz during applied use. The volume circuit suppresses noise in the amplifier, achieving high sonic resolution. The PMA-800NE handles a wide, dynamic range of high-resolution audio sources with tone control and power throughout.

高級音訊組件

Denon工程師仔細在PMA-800NE內建造擴大機電路，為了在應用時獲得高達100kHz的頻率響應。在擴大機中音量電路抑制了噪音，達到高音速解析。PMA-800NE以音調控制和電源，處理一個廣泛、動態範圍的高解析音訊來源。

Build Integrity with Thoughtfully Selected Components

With more than a 100-year legacy of designing premium audio components, trust that your Denon product has undergone rigorous testing. The overall aesthetic, sound quality and design integrity of PMA-800NE and its Hi-Fi components are built to last.

以精心挑選的零件建造完整性

擁有百餘年來設計優質音響零件的傳承，Denon產品經過嚴格的測試。PMA-800NE整體的美學、音質和設計完整性，和它的Hi-Fi零件都歷久彌新。

Analog Mode

Analog Mode allows the PMA-800NE to operate as a purely analog amp, disabling coaxial, digital and optical digital inputs while you listen to an analog source. Turn on Analog Mode to close power to the dedicated digital power source and stop operation of the digital input circuity, avoiding any high frequency influence on the analog section of the PMA-800NE. Enjoy your favorite analog sources with uninhibited clarity and detailed reproduction.

類比模式

類比模式允許PMA-800NE以一個純粹的類比擴大機運作，當您聆聽類比來源時，停用同軸、數位和光纖數位輸入。開啟類比模式，關掉專用數位電源，停止數位輸入電路的運作，避免任何高頻率影響PMA-800NE的類比部分。享受您最喜愛的類比來源不受拘束的清晰度和細緻的重現。

MM and MC Phono Equalizer

The PMA-800NE includes a phono equalizer that supports input from both MM and MC cartridges. This phono equalizer has high gain, and unlike loops in other circuit board patterns which cause adverse effects on sound quality, the simple, straightforward design of the PMA-800NE phono equalizer significantly improves sound.

MM和MC唱頭等化器

PMA-800NE包含一個唱頭等化器，支援從MM和MC兩種唱頭輸入。此唱頭等化器擁有高增益，和其他電路板的迴路不同，不會造成音質的負面影響，PMA-800NE唱頭等化器簡單、直接的設計顯著的改善聲音。

Direct Mechanical Ground Construction for Pristine Sound

Vibration-resistant design reduces the adverse audio effects of heavy components within amplifiers so sound quality meets Denon standards. The power transformer — which is the largest vibration source among amplifier components — is outfitted with a 1.6mm thick steel plate to the mount, suppressing vibration created by the transformer as well as external vibration toward the transformer. By directly supporting the transformer with a steel plate, the vibration surrounding the chassis is reduced resulting in pristine sound.

為原始聲音的直接機械接地結構

防震設計減少在擴大機中沉重組件的負面音訊影響，以求音質達到Denon的標準。電源變壓器是在擴大機組件中最大的震動來源，在底座配備一個1.6mm厚的鋼板，抑制變壓器產生的震動和對變壓器的外部震動。直接使用鋼板支撐變壓器，可減少底盤周圍的震動，進而產生原始的聲音。

Optical and Coaxial Digital Inputs

The PMA-800NE features three Optical inputs and one Coaxial input and supports PCM signals up to 192 kHz/24 bit. These digital inputs help to improve sound and visual quality of your TV audio, Blu-Ray, media players and more. Also use it to input high-resolution sound from an audio source on your computer.

光纖和同軸數位輸入

PMA-800NE具有3個光纖輸入和1個同軸輸入，支援PCM信號高達192 kHz/24 bit。這些數位輸入幫助改善電視音訊、藍光、媒體播放器等的聽覺和視覺品質。另外可用於從電腦中的音訊來源輸入高解析聲音。

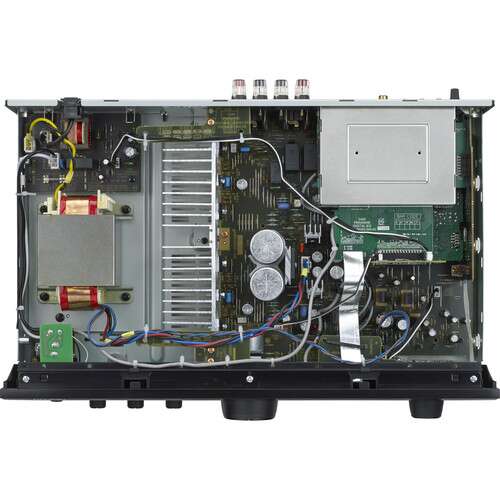

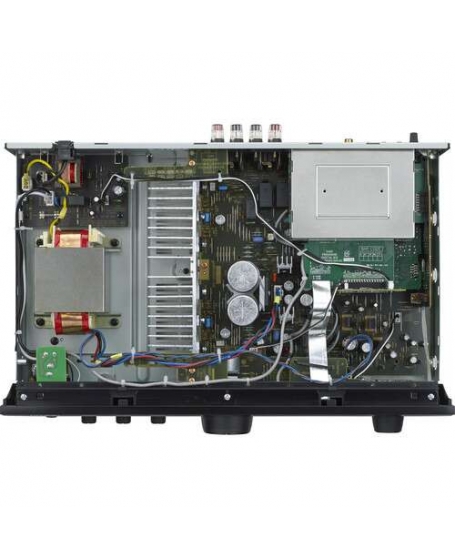

Main Transformer with Individual Wiring

To eliminate interference and maintain exceptional sound quality, the main power transformer of the PMA-800NE has separate coiled wires for the audio and control circuits. An integrated micro-processor features Stop Mode for even greater sound quality while you listen.

具獨立繞線的主變壓器

為了消除干擾和維持出色的音質，PMA-800NE的主電源變壓器具有獨立繞線，用於音訊和控制電路。綜合微處理器具有停止模式，當您在聆聽時有更好的音質。

Micro-processor Stop Mode

The micro-processor of the PMA-800NE features a Stop Mode that automatically ceases all operations of the micro-processor when it’s not needed for playback. By stopping the oscillation of the micro-processor clock during these listening moments, the audio signal is protected from external noise and enhances sound quality.

微處理器的停止模式

PMA-800NE的微處理器具有停止模式，當它不需要播放時，自動停止微處理器的所有運作。藉由在這些聆聽時刻，停止微處理器時鐘的震盪，保護音訊信號免於外部噪音干擾和增強音質。

Signal Level Divided Construction (S.L.D.C.)

The Signal Level Divided Construction (SLDC) chassis developed by Denon is used in the audio circuit to ensure that delicate musical signals are faithfully amplified and transmitted to the speakers. Listen with exemplary quality, every time.

信號級分立式結構 (S.L.D.C.)

Denon開發的信號級分立式結構(SLDC)底盤用於音訊電路，確保精巧的音樂信號準確的擴大和傳達到喇叭。讓您每次聆聽優異的品質。

100+ Years of Firsts in Audio Technology

Founded in 1910, Denon has a deep heritage of "firsts" in audio technology — from Japan's first audio electronics manufacturer, to producing the world's first commercial CDs. This focused investment in audio R&D ensures you get the latest technology and highest quality with every listening experience.

Denon百年第一傳奇音響技術

Denon 成立於1910年，在音響技術領域擁有深厚的傳統 — 從日本第一家音響電子製造商到生產世界上第一批商業CD。這種對音響研發的重點投資可確保您在每次聆聽體驗中獲得最新技術和最高級的品質。

Amplifier
Configuration    Stereo
Power Output    2 x 50 W @ 8 Ohms, 20 Hz to 20 kHz, 0.07% THD
2 x 85 W @ 4 Ohms, 1 kHz, 0.7% THD
Speaker Impedance    A or B: 4 to 16 Ohms
A + B: 8 to 16 Ohms
Total Harmonic Distortion    0.01% (rated output -3 dB, 8 Ohms, 1 kHz)
Tone Control    Treble: ±8 dB at 10 kHz
Bass: ±8 dB at 100 Hz
Frequency Response    5 Hz to 100 kHz (0, -3 dB)

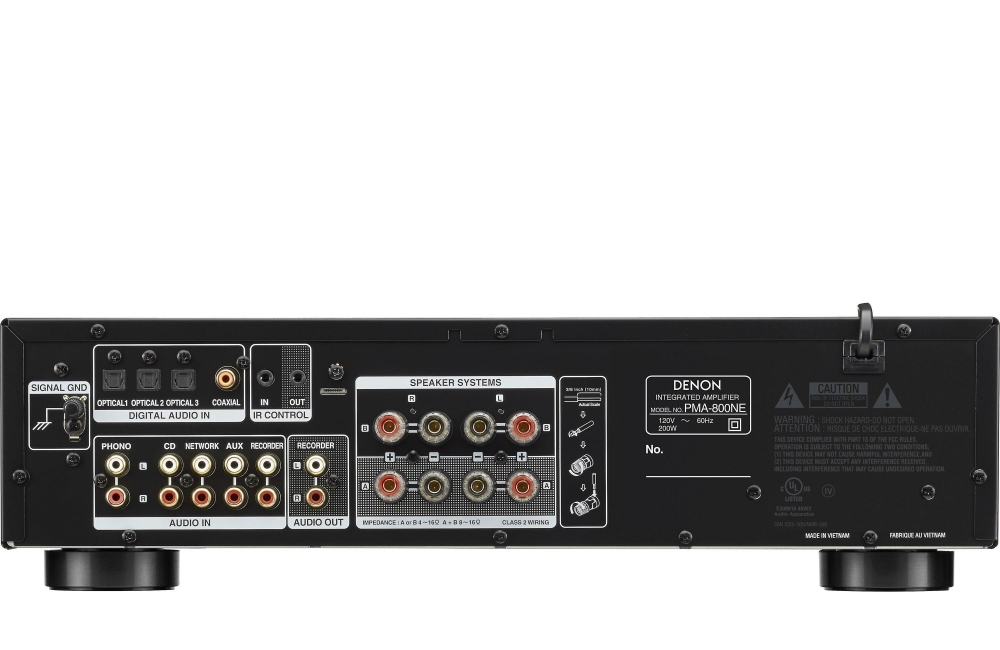

Connectivity
Analog Inputs    4 x gold-plated stereo RCA
1 x gold-plated stereo RCA phono (MM/MC) with ground screw
Digital Inputs    3 x optical TOSLINK (>-27 dBm, 660 nm)
1 x digital coaxial (0.5 Vp-p / 75 Ohms)
Outputs    1 x stereo RCA
1 x 1/4" / 6.35 mm headphone (front)
Speaker Connectors    4 x binding post pairs
Other Connections    1 x 1/8" / 3.5 mm IR in
1 x 1/8" / 3.5 mm IR out
Input Sensitivity and Impedance    Phono MC: 200 mV / 100 Ohms
Phono MM: 2.5 mV / 47 kOhms
Line, Source Direct Off: 105 mV / 40 kOhms
Line, Source Direct On: 105 mV / 17 kOhms
S/N Ratio    Phono MC: 71 dB (0.5 mV input)
Phono MM: 86 dB (5 mV input)
Line: 105 dB
RIAA Equalization Deviation    20 Hz to 20 kHz, ±0.5 dB
Maximum Input    Phono MC: 6 mV / 1 kHz
Phono MM: 70 mV / 1 kHz
A/B Speaker Selection    Yes: A and/or B
General
Operating Temperature    41 to 95° / 5 to 35°C
Power Requirements    240 VAC, 50/60 Hz
Power Consumption    Typical: 200 W
Standby: 0.3 W
Dimensions    17.13 x 4.88 x 12.13" / 434 x 122 x 307 mm
Weight    16.5 lb / 7.5 kg
