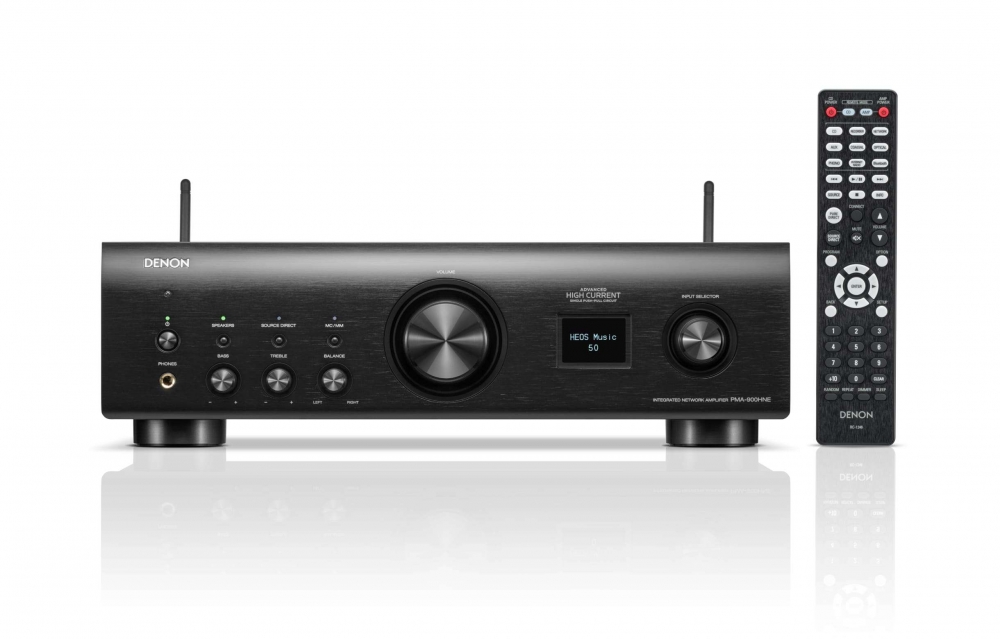

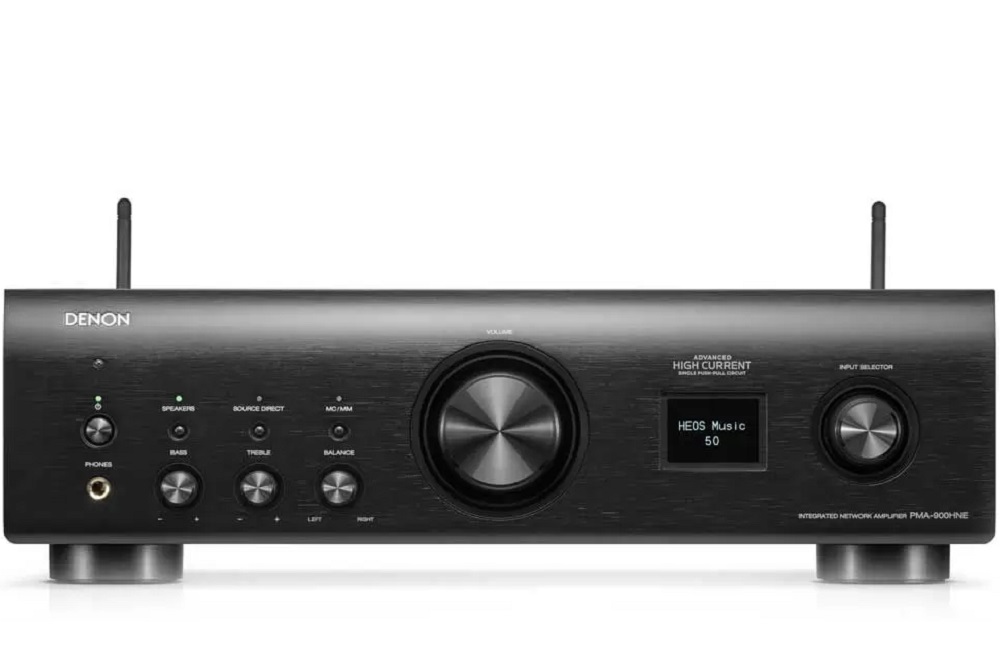

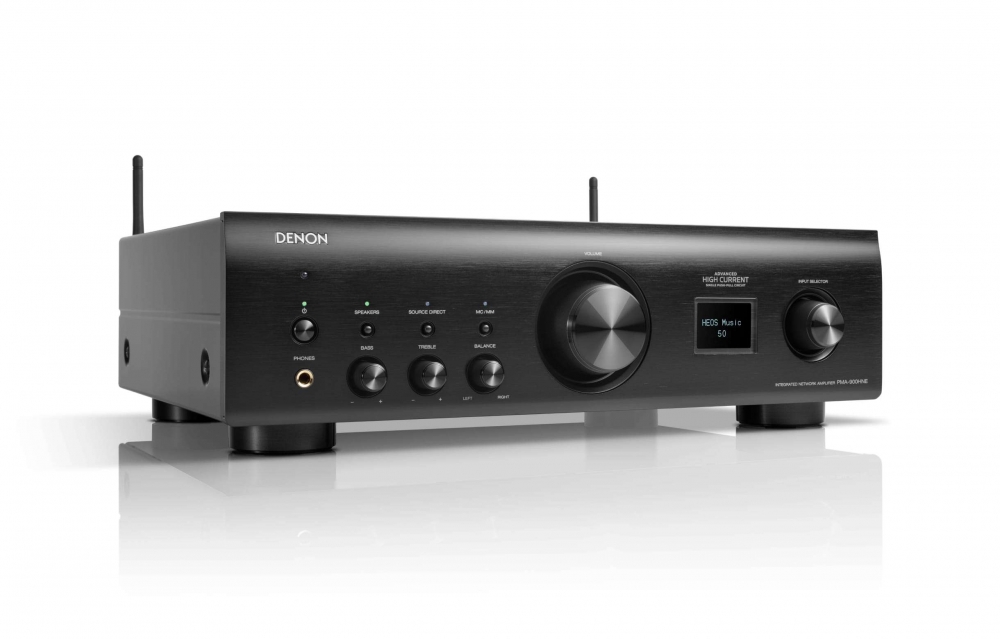

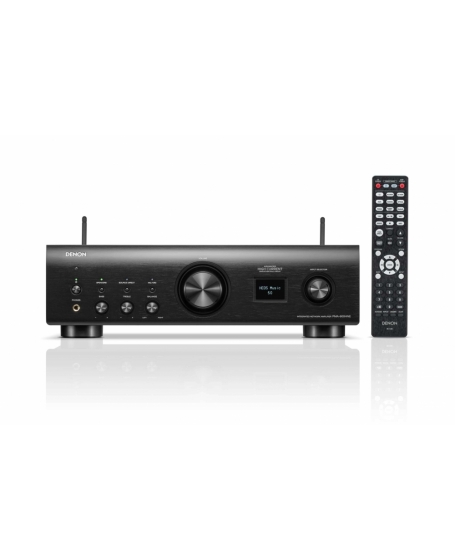

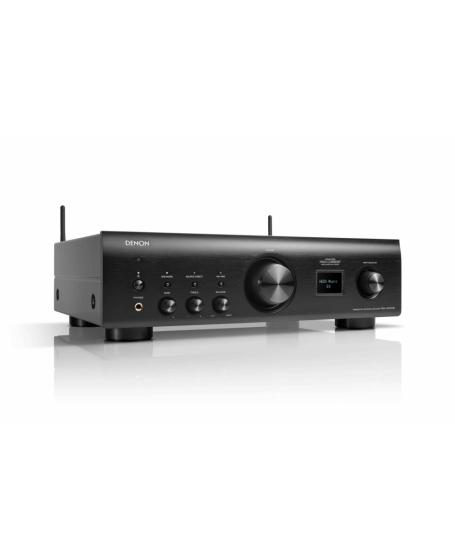

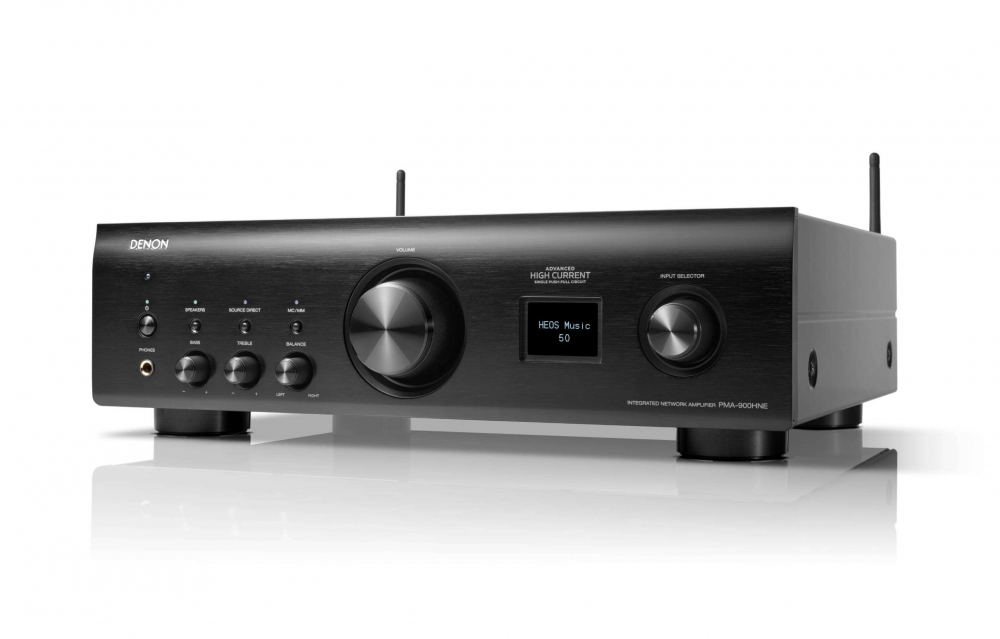

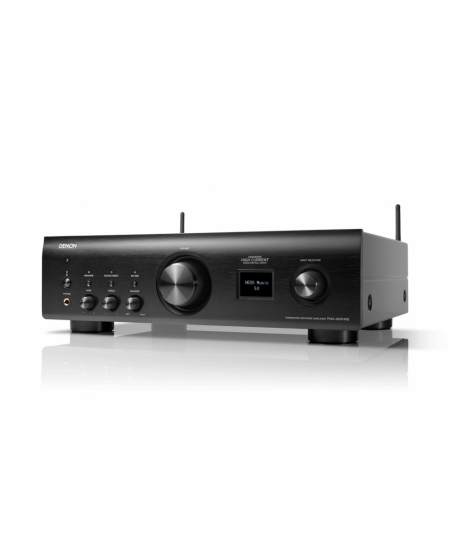

PMA-900HNE

Integrated Network Amplifier with HEOS® Built-in music streaming

The Denon PMA-900HNE Integrated Network Amplifier, featuring Advanced High Current amplifier design, delivers superior audio from analog and digital sources. With Phono input, digital inputs for TV sound, plus network audio streaming by HEOS® Built-in, Denon PMA-900HNE upgrades your listening experience from any source.

Streaming amplifier with analog and digital connectivity

Bring out the best from your analog, digital, and streaming sources with the Denon PMA-900HNE Integrated Network Amplifier featuring Advanced High Current amplifier design.

Advanced High Current integrated amplifier with 85W

Engineered with premium Denon amplifier technology and Advanced High Current capability, the PMA-900HNE integrated amplifier drives your loudspeakers with 85 watts of power-per-channel into 4 ohms.

Built-in music streaming via Wi-Fi, Bluetooth, and AirPlay 2 capability

The HEOS® Built-in Wi-Fi connects to your network to provide near-limitless streaming options. Listen to a wide array of online music services or connect to a smart device via AirPlay 2 or Bluetooth.

Optical and coaxial digital inputs

The PMA-900HNE features three optical inputs and one coaxial input and supports PCM signals up to 192 kHz/24-bit to improve sound quality of your TV audio and more.

Specifications
Output power 8 Ohm (20 Hz - 20 kHz, T.H.D. 0.07%)    50W + 50W
Output power 4 Ohm (1 kHz, T.H.D. 0.7%)    85W + 85W
Total Harmonic Distortion    0.01% (-3dB, 8ohm, 1kHz)
Power Amplifier Circuit    Advanced HC Single Push-Pull Circuit
Power Amp Output circuit Structure    Single Push-Pull with Darlington transistor
Pre Amplifier Circuit    Variable Gain Preamplifier
Volume    Electric - Controlled by Encoder
Bass Treble Mid Balance Control    Yes / Yes / No / Yes
Source Direct    Yes
Input Sensitivity: MM    2.5mV / 47 kohm
Input Sensitivity: MC    200
Signal to Noise Ratio: MM/MC    86 dB / 71 dB
Input Sensitivity: High level    105 mV / 40kohms (Source Direct Off)
Signal to Noise Ratio: High level    105dB
Treble Control    ± 8 dB at 10 kHz
Bass Control    ± 8 dB at 100 Hz

Features
Advanced HC-TR single push pull circuit    Yes
Wide range amplifier    Yes
High current dynamic power supply    Yes

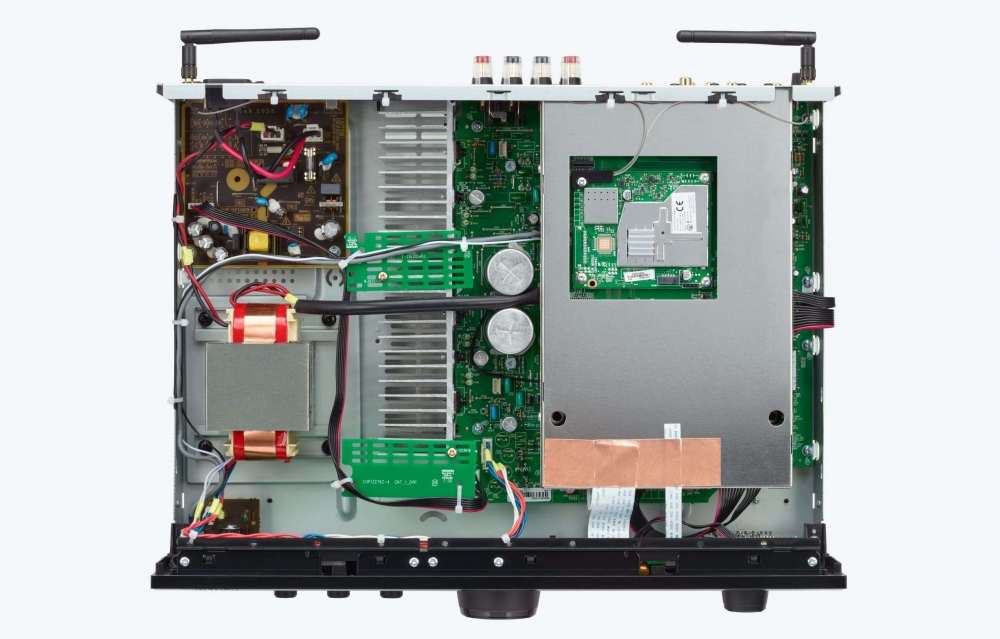

Power amp discrete construction    Yes
Micro processor auto off    Yes
Solid Heat Sinks    Yes
Wi-Fi / Wired LAN    Yes / Yes
Wi-Fi    2.4GHz (11b/g/n) 5GHz (11a/n/ac)
Wi-Fi Off Mode    Yes
Bluetooth / aptX / NFC    Yes / No / No
Internet Radio    Yes (TuneIn)
Pandora    Yes (NA)
Sirius XM Internet Radio    Yes (NA)
Spotify Connect    Yes
Deezer Premium+ / Deezer HiFi    Yes / No (NA / EU)
QQ MUSIC    Yes (China)
Sound Cloud    Yes
Tidal    Yes (NA / EU)
Amazon Music Unlimited / Amazon Music HD / Prime Music    Yes / Yes / Yes
Napster    Yes
iHeartRadio    Yes (NA)
Mood Mix    Yes (NA / EU)
AWA    Yes(Japan)
Other    Yes
Airplay    Yes (Airplay 2)
DSD-Audio network streaming    Yes (5.6Mhz)
Lossy Formats: MP3 / WMA / AAC    Yes / Yes / Yes
Lossless formats: DSD / FLAC HD 192/24 / ALAC 96/24 / WAV 192/24 / AIFF    Yes / Yes / Yes / Yes / No
Gapless Playback    Yes
Remote APP: iDevice / Android    Yes / Yes
Sample Rate digital In    192 kHz / 24-bit
USB-A: DSD / WAV / FLAC / AIFF / ALAC    <=5.6 / 192 / 192 / No / 96
Works with Amazon Alexa    Yes
Works with Google Assistant    Yes
Works with Apple AirPlay (Siri)    Yes

Others
Low Noise OELD display    Yes
Source Direct    Yes
Display: Dimmer / Off    Yes / Yes
IR Learning for TV    Yes

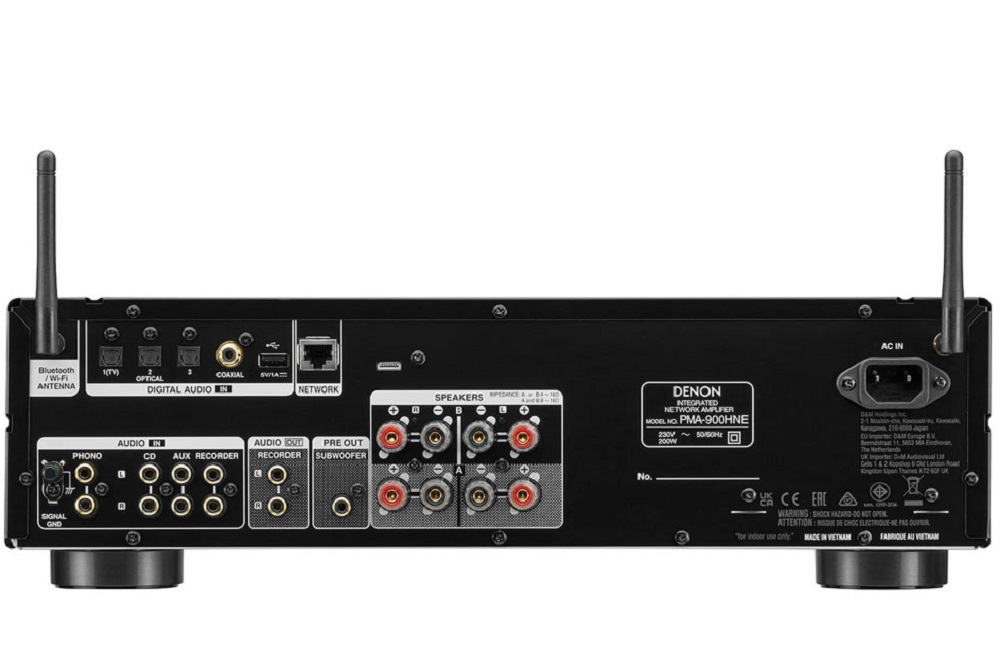

Inputs Outputs
Audio Inputs    RC-1246
Digital in: USB-B / optical / coaxial / USB-A    0 / 3 / 1 / 1
Phono Input: MM / MC    Yes / Yes
Audio Outputs
Pre-out / Main-in    Subwoofer / No
Power Amp Direct IN    No
Gold plated Cinch    Yes
Speaker A / B    Yes
Remote Control Bus in / out    Yes (Remote Out)
Headphone Out    Yes
Headphone Gain Control (low / mid / high)    No

General
Available colors: Premium Silver / Black    Yes / Yes
Metal Front Panel    Aluminum
Power Consumption in W    200W
Standby Consumption in W    0.2W
Auto Power Off    Yes
Detachable Power Cable    Yes
Remote Control    RC-1246
System Remote Function    Yes
Maximum Dimensions (W x D x H)    434 x 376 x 131mm
17.1 x 14.8 x 5.2in
Weight    8.3kg 18.3lb
Carton Maximum Dimensions (W x D x H)    518 x 385 x 209mm
20.4 x 15.2 x 8.2in
Carton Weight (inc. product)    10.3kg 22.7lb
