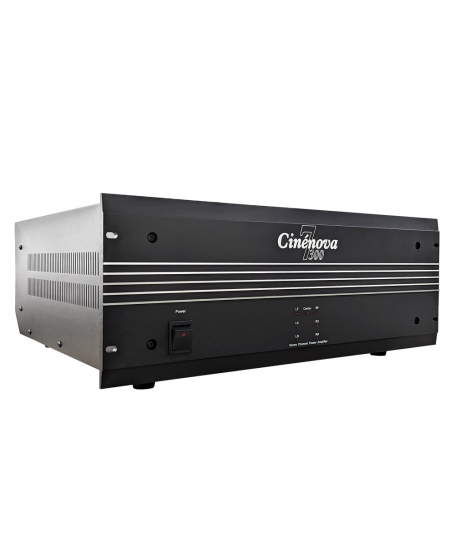

Cinénova 7300

For years, audiophiles have been asking for an amplifier rivaling the Cinénova Grande in audio excellence, but positioned in the 300 watt class. The Cinénova name represents the pinnacle of amplification regardless of price. Traditionally, listeners assume that a reduction in power and cost will influence the quality of sound. With a constant demand for this amplifier, Earthquake’s chief engineer Joseph Sahyoun descended into the Earthquake research laboratories determined to crack the code to the universe and design an amplifier with no compromise in sound quality and competitively priced.

Since its inception, the Cinénova design concept has been a tempered blend of traditional high-end virtues combined with innovative and novel circuitry design. Produced using in-house proprietary manufacturing techniques, his tradition lives on in the new Cinénova 7300 with a completely monaural design and enhanced class AB operation. The result is industry leading efficiency making the Cinénova 7300 a true green amplifier.

Several new technologies had to be created during the intense development process in order to miniaturize the Cinénova Grande reference design. Contrary to logical thinking you cannot scale down an amplifier and expect it to perform the same just at a lower power level. Since real world customers don't play gentle on small, easy driven loudspeakers, high performance amplifiers have to be built and tested to the most rigorous standards. When lesser amplifiers are tested on low impedance, highly reactive speakers, they quickly lose control of the speaker cone. This results in muddy and distorted sound.

Earthquake engineers put prototype after prototype through rigorous and exhaustive testing. The conclusion was that even at 300 watts, the industry standard of 2 to 4 output transistors per channel simply was not sufficient to retain the taunt, punchy, and distinctive woofer control that the Cinénova name has become synonymous with. The Cinénova 7300 employs 8 massive output transistors per channel ensuring that even the most demanding speakers are held in an iron grip and any soundtrack is reproduced with dynamic precision and articulation. During the research process for the Cinénova 7300, three core technologies were developed to optimize the amplifier and elevate its performance above its class.

MARS TECHNOLOGY

The MARS technology (Magnetically Actuated Reanimation System) is a new type of protection system that enables the use of all the amplifier’s power resources without compromising the survivability of the amplifier under catastrophic conditions. Typical protection systems rely on fuses or relays that complicate the signal path thus degrading audio quality. MARS is different as it is not in the signal path, but works by sensing the electro-magnetic signature of the speaker output wire then translating this input into amperes flowing through the wire. Using the principle discovered by Danish Scientist H.C. Oersted, this design has no impact on the sound quality of the amplifier as it is totally separate from the audio circuits.

The internal communication of MARS is handled via optics rather than electrical circuits. This means MARS does not create an electromagnetic field as no current is flowing through wires. The signal path remains free of artifacts that impact and taint the sound in other designs as no amount of light activity can influence an electrical system.

Normally a relatively large safety margin is necessary because of the antiquated nature of traditional protection systems. MARS operates at 500khz speed making it deadly accurate. This enables the amplifier to utilize the outputs SOA (safe operating area) to the limit. This gives a MARS enabled amplifier 20 percent more power than an identical non-MARS amplifier.

During testing, the MARS technology showed that the output of the amplifier could be short-circuited at full power more than a thousand times with no damage to the amplifier. MARS does not use any relays or other damping-factor reducing mechanical switches that can wear out or fail over time. Instead, a specially designed circuit instantly shuts off the output drive.

In the event a short-circuit activates the MARS protection system, it continuously re-scans the output every 10 seconds. Normal operation automatically resumes as soon as the short-circuit condition is removed.

ION TECHNOLOGY

The ION technology (In-Circuit Optimization Network) is an advanced network of connection points on the Cinénova 7300 circuit-boards. Traditionally, transistors and capacitors are paired, grouped and tested to ensure compatibility. However, it has been shown especially by exotic and esoteric audiophiles across the globe that even highly refined mass produced amplifiers have substantial room for improvement when individually tweaked and optimized. A lot happens when individual components are put together in a circuit. A certain margin of difference between two seemingly identical circuits exists. Some engineers refer to this as the “Ghost in the machine.” The option of being able to fine-tune and optimize a circuit even after it has been built would be the evolutionary solution - enter the ION technology. ION enables individual tweaking while remaining in a mass production environment.

When the circuit is completed, the ION network is connected to a specially designed diagnostics computer that automatically determines the optimal connections and ION then makes those connections permanent.

CONCURRENT

The ConCurrent power supply design ensures full power can be delivered at all times to all channels simultaneously. Earthquake engineers developed the parallel symmetric transformer with identical electromagnetic coupling for each secondary winding. Every channel has its own secondary winding, capacitor bank, rectifiers and output circuitry all mounted on massive, individually, vertically-ripped extruded aluminum heat-sinks. The individual channels remain sovereign and autonomous as sharing is not required. This guarantees that no matter how hard one channel is driven it will have no effect on surrounding channels.

Power supply efficiency, stiffness and strength are dependent on several factors. The ConCurrent design is the culmination of intense optimization of all known parameters. To stiffen the supply (lower regulation factor) the transformer cores are made of ferrite instead of a lower grade iron material. The windings are made with the same oxygen free copper that is used in high-end speaker cables. To ensure hum-free operation, the transformer is hard-wound and made with military grade high temperature lacquer. The ConCurrent power supply in the Cinénova 7300 has a combined transformer rating of 2400VA.

A high-end design using completely separate output blocks are largely unheard of in this class of amplifier, but with Earthquake’s enduring strive for quality and excellence there simply was no other way. From the loudest crescendo to the finest syllable, the Cinénova will remain composed and in control. We invite you to enjoy the unique ownership experience of this Cinénova amplifier that was designed by a brilliant mind and built with loving hands.

Number of Channels 7 Channels
Power Rating Per Channel
(All Channels Driven)
(8-Ohm load) Rated: 180 WRMS
(4-Ohm load) Rated: 300 WRMS
(2-Ohm load) Rated: 550 WRMS
Input Impedance RCA: 28 kΩ
XLR: 48 kΩ
Input Sensitivity 30 kΩ
Frequency Response Up to 30kHz ±0.1dB
Total Harmonic Distortion + Noise 0.003% at 1 watt
Signal to Noise Ratio (A-Weighted) Greater than -111dB
Cross Talk / Channel Separation Greater than -110dB from 17Hz to 40kHz
Slew Rate 60V/microsecond
Damping Factor 1600 at 8-Ohm
DC Output Offset 0.004
Power Requirement 120 VAC/240 VAC Factory Preset
Chassis Dimensions (H x W x D) 7ʺ x 17ʺ x 17.12ʺ (178mm x 432mm x 435mm)
Front Plate Dimensions (H x W) 7ʺ x 19ʺ (178mm x 483mm)
Mounting Dimensions (H x W) 4ʺ x 18.37ʺ (102mm x 467mm)
Net Weight 80 lbs (36 kgs)
Shipping Weight 93 lbs (42 kgs)
