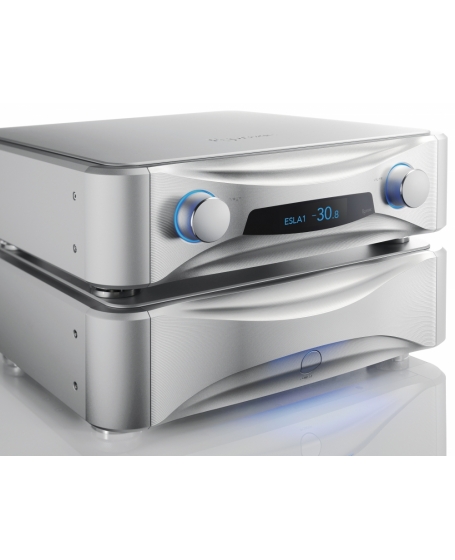

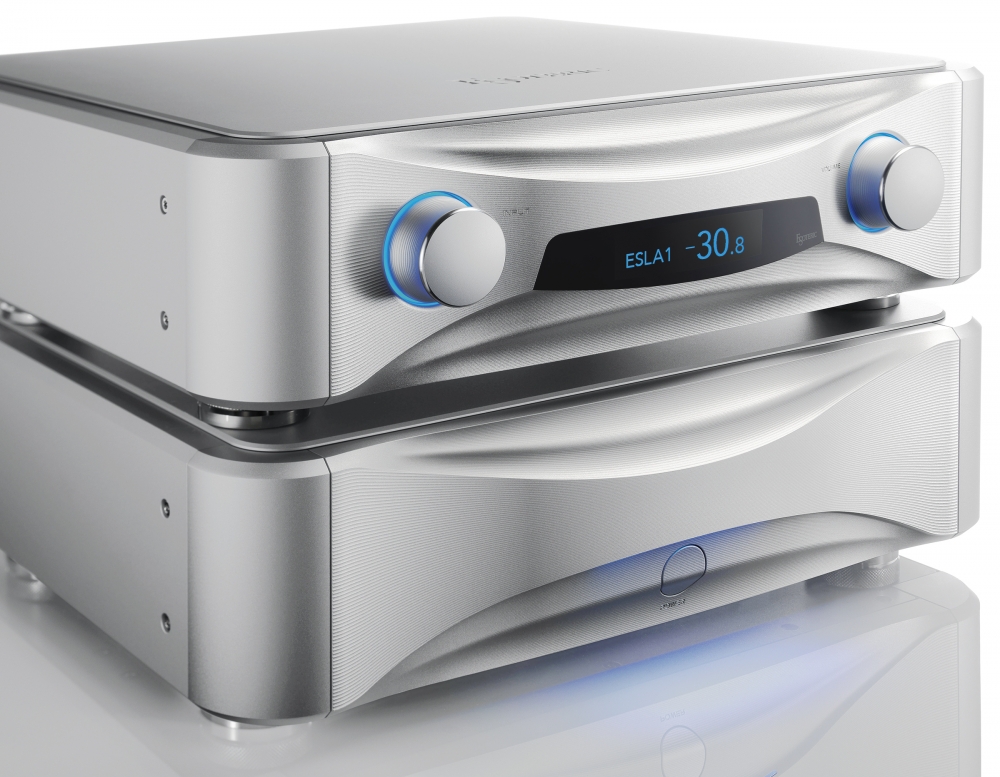

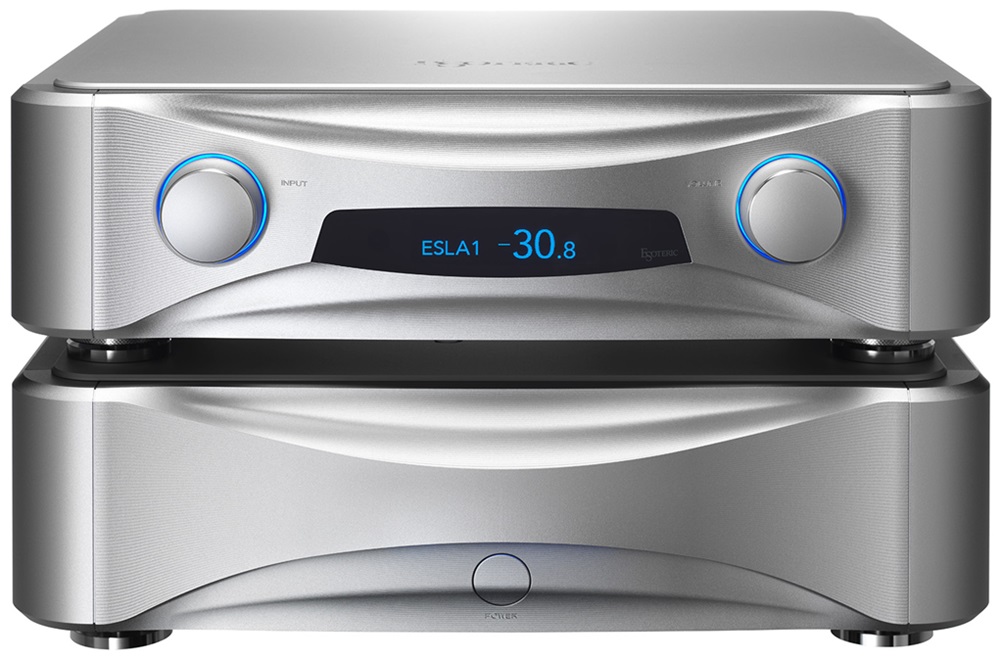

Esoteric Grandioso C1X Linestage Preamplifier Made In Japan

SKU: Esoteric Grandioso C1X
RM 228,999.00
Loading ...
Esoteric Grandioso C1X Linestage Preamplifier Made In Japan Brand New
The Grandioso C1 has two separate chassis, with each channel totally independent from the other. Ultra Fidelity Attenuator System provides 0.1dB/1,120steps super precision volume, Employs 2sets XLR output and 2sets ESLA outputs which each set has Quad Ouput Buffer Amplifier, 3sets XLR input can be switched to ESLA inputs.
Share:

Esoteric Grandioso C1X

Linestage Preamplifier

Esoteric establishes a new standard.
A flagship preamplifier packed with new technologies.

Grandioso C1X

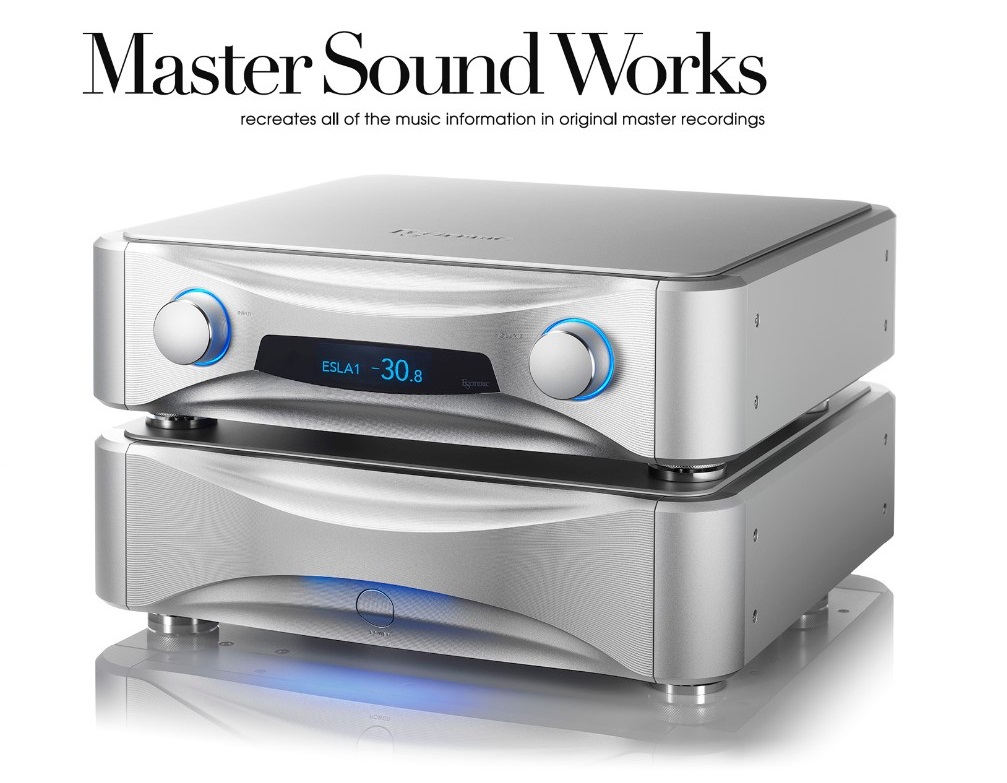

Audio expression, symphonic beauty, artistic passion, the feel of a spatial concert hall, the excitement of the audience; Esoteric’s Master Sound Works is an audio product concept that recreates all of the musical information found in original master recordings with the most state of the art technology available today.


Ultra Fidelity Attenuator System
— Esoteric’s Ultimate Attenuator System —

Grandioso C1X

When Fortissimo is written on the score.
When ambient music conceals the very existence of sound.
When sound reveals itself as a momentary glow in the silence.
And the roar of the audience shakes the halls of a live performance.
Grandioso stands out as a truly magnificent sound.
For the true audiophile, who meticulously adjusts the volume from track to track as the score was written, the question is: How does one get closer to the sound at the moment it was recorded?

A Preamplifier That Draws Music.

Original Sound Reproduction on a New Stage

In the world of preamplifiers there exists two fundamental types of volume control.
What are known as “fixed resistance switching attenuator circuits” are capable of bringing out some of the purest, most direct sound. This outstanding circuit delivers the best sound for preamplifiers designed to pursue the ultimate in sound quality. However, since volume is determined by switching resistors, in order to achieve a smoother, virtually stepless volume control, the size and scale of the circuit would have to become so large that it couldn’t realistically be installed in a stereo sound component.
On the other hand, so-called “variable resistance volume circuits” make possible smooth, stepless volume adjustments. However, wiring distances can be long, and inevitable crosstalk between channels and wear on the switching contacts tend to cause deterioration of sound quality over time.

Might it be possible to create a stepless attenuator circuit that can accurately set the desired volume, much like a variable resistance volume circuit, while still maintaining the excellent sound quality associated with the fixed resistance switching attenuator circuit?
Esoteric’s development team set out to challenge these two contradictory propositions.


The New Ultra Fidelity Attenuator System – Esoteric Arrives at the Ultimate Attenuator

To provide an ideal answer to these two propositions, Esoteric developed an entirely new attenuator circuit, the Ultra Fidelity Attenuator System.
Its proprietary UFA-1792 attenuator module realizes an attenuator circuit that achieves virtually stepless volume adjustment in incredible 0.1dB intervals.



Precision Volume Control at Your Fingertips

The C1X’s new Ultra Fidelity Attenuator System takes Esoteric’s signature Dual Mono Full Balance circuit to a whole new level, achieving an astoundingly precise 1,120 steps at 0.1dB intervals, which vastly exceeds the 100 steps at 0.5dB per step offered by the original Grandioso C1.
Our long-established Esoteric-QVCS quad circuit has undergone a complete renewal, providing an ultra high-fidelity attenuator system delivering remarkably fine accuracy volume control as well as excellent audio signal channel separation and polarity.
The new C1X brings the Grandioso series even closer to the ideal of Master Sound Works, accurately reproducing all the musical information recorded in the original master – an ideal that Esoteric amplifiers have advocated for since their inception.

Modulated Amplifier Circuitry

Grandioso C1X

The Heart of the System That Gives Life to Sound

Newly developed as a modular unit that can be used in both output and input amplifiers, Esoteric’s new IDM-01 Integrated Discrete Amplifier Module combines the advantages of a discrete configuration, which permits free selection of the individual parts that make up the circuit, and a modular form that can be assembled into a circuit having the smallest footprint possible. This new amplifier module will soon take its place as the heart of all future Esoteric amplifiers, delivering a dynamic yet delicate Esoteric sound.

Greatly Enhanced Drive Capability With ES-LINK Analog Output

The C1X’s two independent ES-LINK Analog outputs and two XLR outputs are powerfully driven by parallel Esoteric-HCLD buffer amplifiers that deliver up a remarkable slew rate of 2,000V/μs. This powerful drive can be connected to multiple power amplifiers, making it possible to confidently assemble a bi-amplified or multi-amplified system.
* Optional conversion from the ES-LINK Analog outputs to RCA outputs is available.

Additionally, the C1X’s regulated power supply features an EDLC Super Capacitor array installed in close proximity to the output buffer circuit to enable both instantaneous bursts of high power and unwavering low frequencies. Together, this conveys music’s full dynamism from the preamplifier to the power amplifier, and reproduces the source sound with breathtaking realism.

EDLC Super Capacitors
Compared to normal audio capacitors, Esoteric’s EDLC Super Capacitor features a total capacity of 250,000,000μF per channel, vastly increasing both the capacity and speed of the C1X’s power supply for remarkably enhanced sound quality, particularly as it applies to low-end resolution.

Grandioso C1X

Authentic Design
– Two-Chassis Configuration Features Separate Control Unit and Power Supply –

Grandioso C1X

A stirring sensation of dynamism rises from the Grandioso C1X’s clear and transparent sound field.
Esoteric’s new flagship model inherits a proven two-chassis configuration, with the main control unit and power supply created as totally separate components.
By effectively isolating the power supply unit, which can be a source of vibration and noise, the C1X gives music an unprecedented level of quiet dynamism.

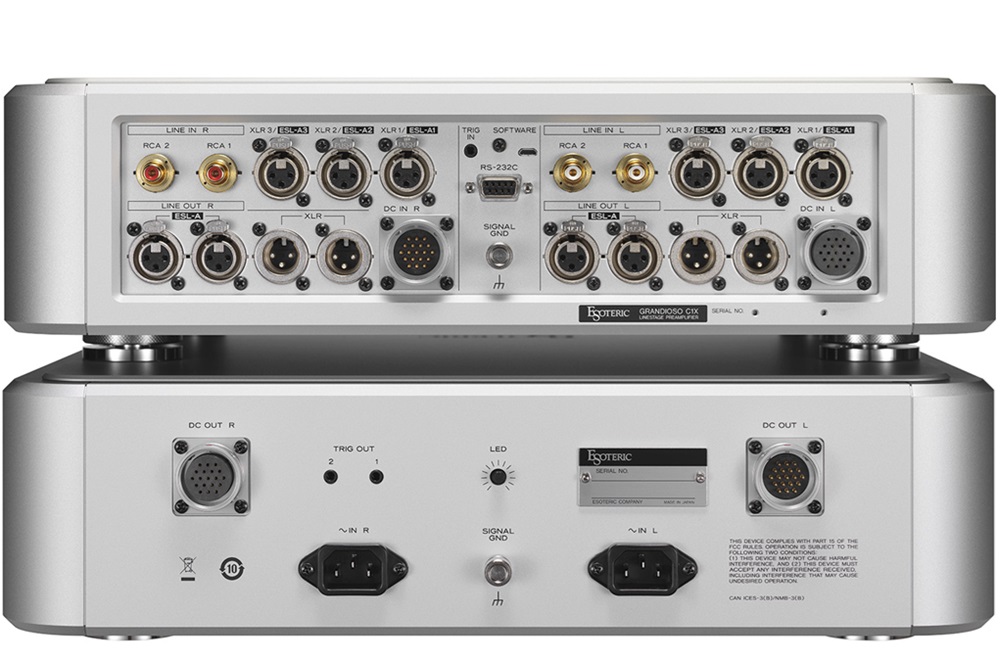

Two-Chassis Amplifier and Power Supply Configuration

To achieve both the Grandioso C1X’s transparent sound field and its overall sense of dynamism, a separate two-chassis structure was selected as a means of physically separating the amplifier section from its power supply. The linear power supply unit is installed in a separate housing that weighs fully 29kg. This enables astoundingly clean amplification as the C1X transmits the full energy and dynamism of music to the power amplifiers while providing effortless control over the entire system.

Grandioso C1X

FET Elements Provide Instantaneous Current of 12A

Instead of conventional mechanical relays, the Grandioso C1X features a switching system that incorporates FET elements to steadily deliver 3A of rated current output and a full 12A of instantaneous current output at musical peaks. To achieve the purity of sound required by Esoteric’s premier flagship preamplifier, current losses have been reduced to the lowest levels possible, and the effect of rare metals on contacts, including operating noise and the deterioration of sound quality over time – often associated with mechanical relays – have been totally eliminated.

The Shortest Path to a Fully Balanced Configuration

Esoteric takes special pride in its fully balanced dual circuit HOT and COLD configuration. Through the elimination of common mode noise and greatly reduced signal impedance, a pure signal, not easily affected by noise, is directed to the attenuator section along the shortest path possible.
Additionally, the input board uses a bus bar with a copper plate located at the intersection of the signal paths. It physically straddles the signal path and suppresses musical signal crosstalk across the board.
Unbalanced input signals are also balanced immediately after input, and transmitted to the attenuator circuit via the HCLD buffer amplifier for a fully balanced configuration.

ES-LINK Analog Current Transmission

Esoteric’s ES-Link Analog is a unique current transmission method that makes possible ideal analog connections by increasing current transmission to approximately 50 to 100 times that of conventional line-connected voltage transmission amplifiers. Support for Esoteric’s proprietary ES-LINK Analog current transmission input ensures minimized transmission noise and cable loss for an ideal analog connection.
A pure Grandioso X edition system can be assembled with the further addition of other components equipped with ES-Link Analog outputs, such as the Grandioso K1X SACD Player and the Grandioso D1X DA Converter. Of course, all inputs can be switched individually, and conventional voltage transmission components can also be connected.

Advanced Features
– Design Concepts Without Compromise –

Ultra Low-Noise Logic Control

The logic control unit, which controls all operations as well as the display, is located behind the front panel, where it is electronically shielded in complete isolation from the amplifier modules.
It is connected to the preamplifier section by way of a photocoupler that converts the control signal into light transmission that ensures complete physical and electronic isolation.
Furthermore, by completely shutting down the control circuit except during moments of actual operation, the Grandioso C1X is able to realize ultra-low-noise operation with no effect on audio signal circuits.

Monoblock Configuration with Advanced Vibration Control

The Grandioso C1X’s Monoblock configuration ensures that left and right audio channels maintain total independence by design. These totally separate audio channels extend from the preamplifier inputs through the amplification section, and even to its separate DC power supply unit with its dual AC power cables. In fact, the C1X’s Monoblock structure effectively integrates two separate monaural preamplifiers into a single set of components that can suitably be referred to an Esoteric’s flagship.

Grandioso C1X

Internal view of the Power unit

Grandioso C1X

Internal view of the Main unit

From its dual AC inputs to its dual DC outputs, the power supply unit’s DC power supply features totally independent two-channel construction. In addition to these separate left and right channel input/output amplifier sections, the control unit features a total of five large power transformers together with high-capacity block capacitors, Schottky barrier diodes, and other carefully selected parts in keeping with this flagship model. Moreover, to accentuate the Grandioso series’ spacious sound, all internal circuit boards and even the units’ top plates feature a semi-floating design, while input and output circuit boards are effectively surface-mounted directly to the chassis.

Grandioso C1X

The separate power supply features multi-layer chassis construction, with circuit boards and transformers mounted on separate chassis. By mounting these components on different chassis, transformer vibration is not only greatly reduced, it is also not transmitted to the circuit boards. Additionally, the bottom chassis features high-precision laser-cut slits for the transformer mounts. These slits effectively control vibration and direct it outward through Esoteric’s patented pinpoint feet.

Satisfying Operation with a Consummate Feeling of Quality

The C1X’s prominent volume control and input selector knobs are machined from high-grade billet aluminum, while their bearing systems, originally developed for the VRDS drive’s spindle shaft mechanism, ensure precise rotation with no core deviation. Fine-tuned adjustment ensures optimal rotational torque for a smooth, analog-like operating feel in keeping with Esoteric’s premier flagship preamplifier.

Grandioso C1X

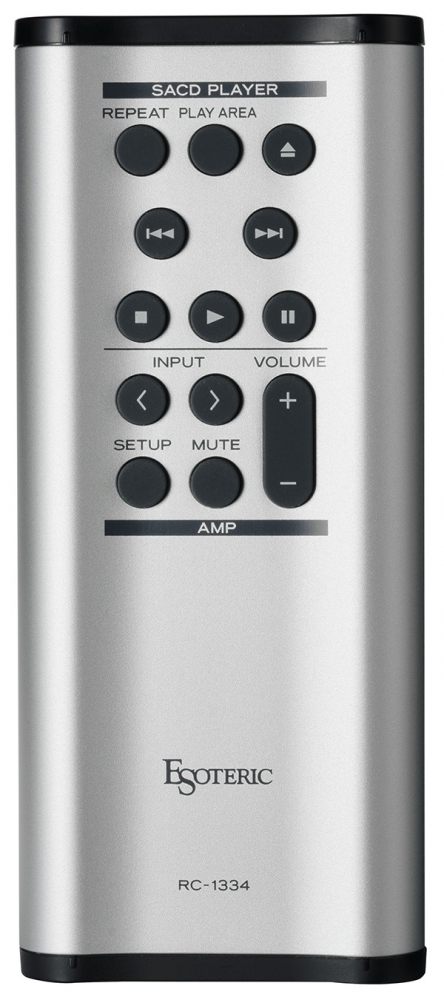

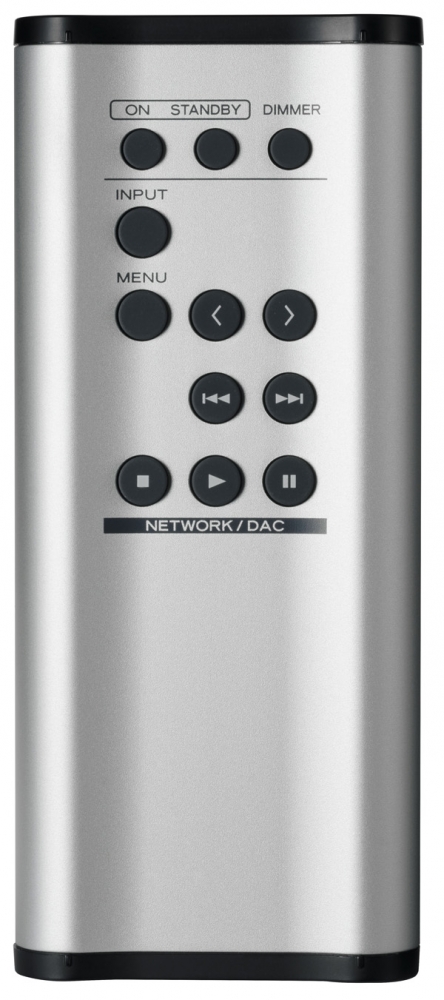

New Double-Faced Remote Controller Design

The Grandioso C1X’s compact new remote controller is also designed to operate other Esoteric digital source devices. Its simplified functional design features buttons positioned on both sides of the unit for easy use in all scenes of operation. Highly advanced metal processing ensures that the unit’s smartphone-sized aluminum case fits comfortably in your hand, while Esoteric’s innovative approach to design allows you to experience well-thought-out operability and exceptional craftsmanship every time you pick up the remote controller.

Grandioso C1X

Top view

Grandioso C1X

Bottom view

Other Superb Features

  • Independent input gain controls can be adjusted within a range of ±18dB. (in 0.1dB steps)
  • Adjustable L/R channel volume balance controls can be adjusted within a range of ±6dB. (in 0.1dB steps)
  • AV THRU allows simultaneous coexistence of both AV surround and pure two-channel audio.
  • Large letter font ensures easy viewing of volume display.
  • Display provides easy editing of source device names.
  • RS-232C control with 1 trigger input and 2 trigger outputs.
  • Other convenient functions include dimmer control, mute, and auto-display-off.

Grandioso C1X

Spec description
Analog audio inputs
XLR/ESL-A    3 pairs
Input impedance    50kΩ
Input sensitivity    500mV (at reted output)
Maximum input level    12V
RCA    2 pairs
Input impedance    68kΩ
Input sensitvity    500mV (at rate output)
Maximum input level    12V
Analog audio outputs
XLR    2 pairs
Output impedance    30Ω
Rate output    2V
Maximum output level    17V
ESL-A    2 pairs * Option: Changing the ESL-A terminals with RCA terminals.
Output impedance    30Ω
External Control
RS-232C
Terminal    D-sub 9-pin × 1
TRIGGER IN
Terminal    3.5mm Monaural Mini jack × 1
Input Level    12V, 2mA
TRIGGER OUT
Terminal    3.5mm Monaural Mini jack × 2
Output Level    12V, 100mA (total)
General
Power supply
     AC 120V, 60Hz
     AC 220-240V, 50/60Hz
Power consumption    15W (L), 15W (R)
External dimensions (W×H×D)
Main unit    445 × 132 × 449mm
17-⅝" × 5-¼" × 17-⅝" (including protrusions)
Power unit    445 × 132 × 452mm
17-⅝" × 5-¼" × 17-⅞" (including protrusions)
Weight
Main unit    20.2kg / 44.6 lb
Power unit    29.0kg / 64 lb
Included accessories    Power cords × 2
DC power connection cords × 2
Remote control (RC-1334) × 1
AA batteries × 2
Felt pads × 8
Owner's manual × 1
Warranty card × 1


Audio performance
Frequency response    1Hz to 150kHz (–3dB, XLR IN, XLR OUT)
S/N ratio    120dB (2V input, A weight, XLR IN, XLR OUT)
Total harmonic distortion    0.00035% (XLR IN, XLR OUT)
Gain    +12dB (XLR IN, XLR OUT)


This product is available in three different power supply variations, as shown in the chart above. Make sure that the voltage shown on the rear panel matches the AC line voltage in your area.
The shape of the AC inlet and plug of the supplied power cord depends on the voltage rating and destination country.
Design and specification are subject to change without notice.
Weight and dimensions are approximate.
