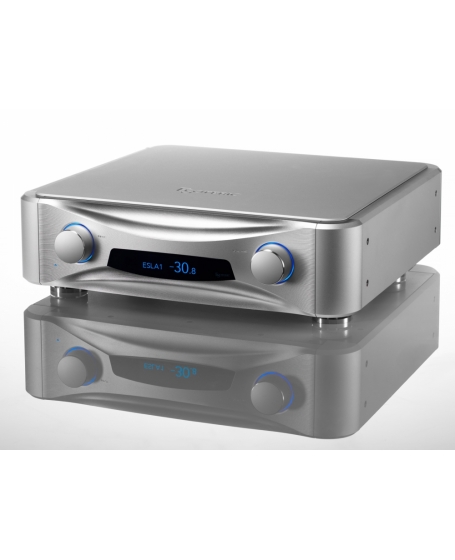

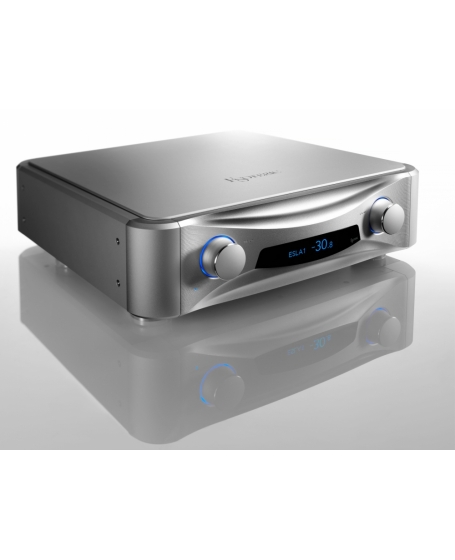

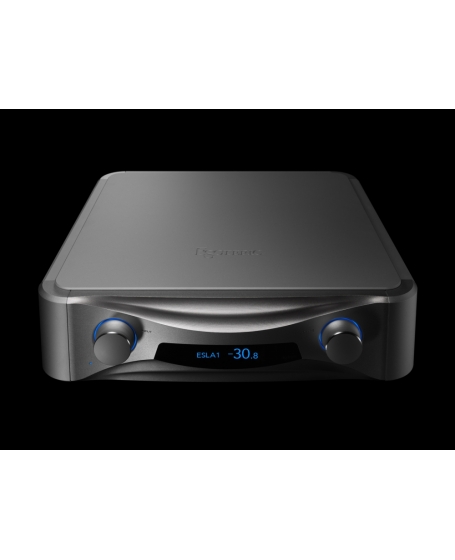

Esoteric Grandioso C1X Solo

Linestage Preamplifier

All instruments start to breathe naturally and dynamically on a inky black background of silence.
A gem of preamplifier created by the wisdom of Esoteric

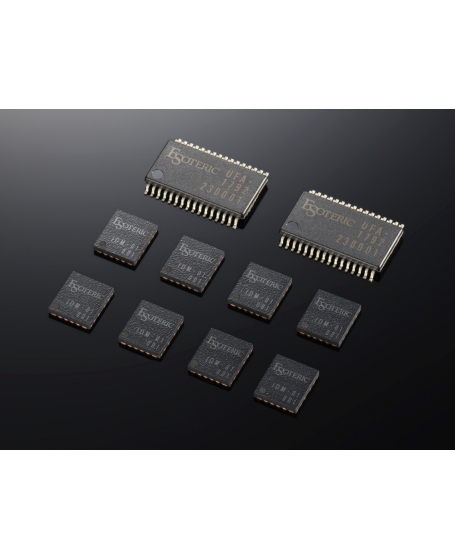

Ultra Fidelity Attenuator System

Ultimate Driving Power

Ultimate Driving Power
Powerful power amplifier drive capability

Parallel-drive Esoteric-HCLD for driving amplifier

Many audiophiles have experienced the speakers started to “sing” immediately after changing the preamplifier. Audibly, the preamplifier has a great influence on the drive power of the speakers, and a good preamplifier will drive and control the speakers to the maximum level.
The Grandioso C1X solo maximizes the driving of the power amplifiers by applying the largest possible amount of material to the output buffer amplifiers. The output buffer amplifier employs the Esoteric-HCLD (High Current Line Driver), which is renowned for its excellent drive capability and 180MHz wide range, and boasts an astonishingly high-speed slew rate of 2,000V/μs. This powerful buffer amplifier is installed in a parallel configuration for a single signal line, while the output buffer amplifier has an independent power supply section, – with two dedicated large toroidal power transformers in independent left and right configurations. The C1X solo’s output buffer amplifier, which boasts the powerful current output capability befitting a flagship, fully powers the amplifier and the speakers, conveying to the audience an unprecedented level of vibrancy.

Powerful power supply section

We believe that 70% of the sound quality of a preamplifier is determined by the design of the power supply section. The C1X solo consists of a total of five main components: left and right input/output amplifiers and a control section. All five of these are powerfully driven by five independent power transformers for each section (audio system: toroidal core, control system: R core).
By separating the power supply components for each section and investing far more amount of materials than intrinsically required, mutual interference between circuit blocks is fundamentally eliminated, resulting in extremely pure and dynamic sound quality. In addition, carefully selected parts appropriate for a flagship model, such as the high-capacitance Grandioso custom block capacitors and Schottky barrier diodes, are employed in pursuit of high sound quality.

Upper inside
(Power transformers for each L and R input section)

Lower inside
(Power transformers for each L and R output sections, and Control section)

Fidelity

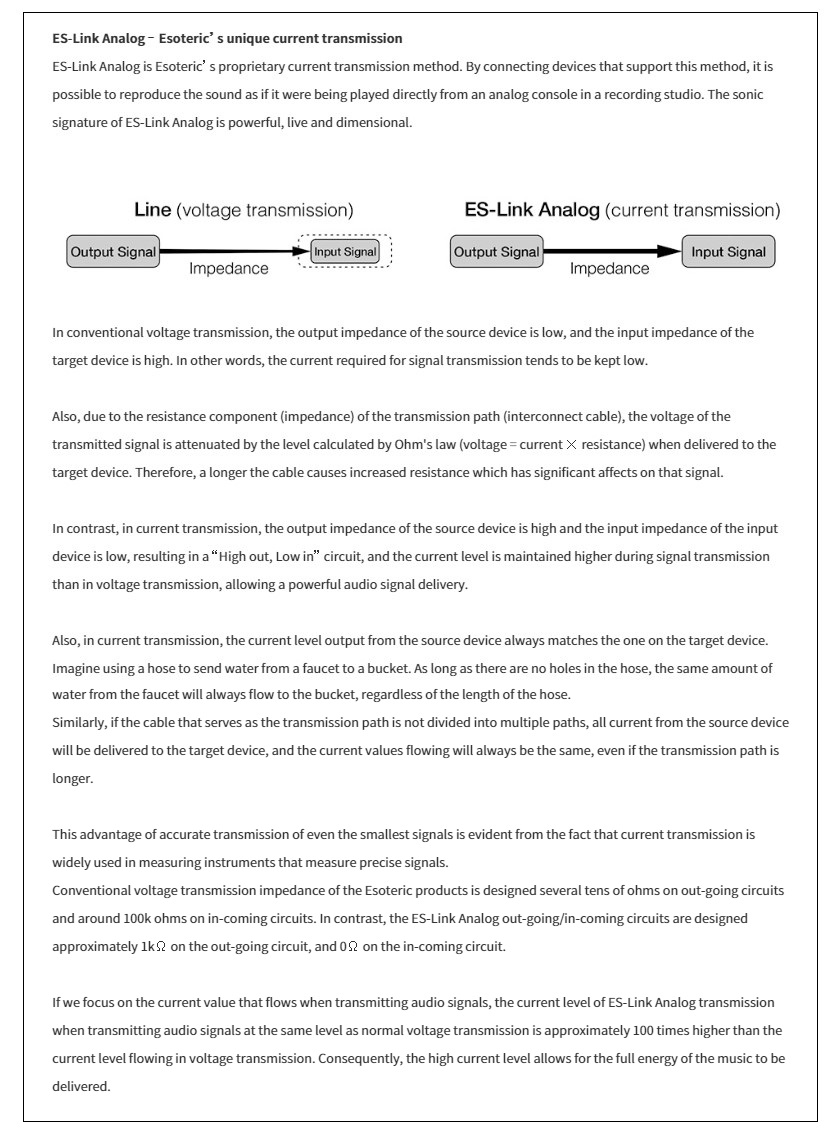

ES-Link Analog

With the flagship Grandioso amplifier models, Esoteric is breaking new ground by pushing the limits of fidelity in pre-preamp-to-amplifier signal transmission. Esoteric’s unique current transmission system “ES-Link Analog” is the ideal method for preamp to amplifier transmission where the signal level is extremely low. Compared to the conventional voltage transmission, it transmits approximately 100 times more current, making it less susceptible to noise and sending the full energy of the music to the amplifier.
Also, it is not affected by the impedance of the interconnects running between the preamp and amplifier, so it maintains a perfect integrity between the output signal of the preamp and the input signal to the amplifier.

Art of Silence

Input amplifier

The input amplifier section, as well as the output amplifier section, is configured with complete dual mono/dual balanced circuits with independent left and right power transformers and rectifier circuits. Input signals are transmitted without loss by using Esoteric-HCLD buffer amplifiers for signal transfer from the input amplifier to the output amplifier. For the input switching, a switch with an FET element is employed instead of the conventional mechanical relay system. The FET element allows 12A instantaneous current and 3A constant current,and minimizes current loss.
The conventional mechanical relays add sonic coloration by using rare earth materials at their contact points, emit operation noises, and wear over time – the FET elements are totally free from these negative factors, sound neutral and are reliable all the time.

Ultra-low noise logic control

The logic control section, which controls operation and display, is shielded and housed in the front panel, isolated from the audio circuits. A photo-coupler that converts the control signal to optical signal for transmission is employed for connection to the preamplifier section to ensure physical and electrical isolation.
Furthermore, by completely shutting down the control circuitry except during operation, low-noise operation is achieved without affecting the audio circuitry. We improved operability by having the built-in program automatically lower the volume level to zero when the preamplifier is turned off, and automatically restore the level when the power is turned back on. We also aimed for a high-end operability that is full of elegance and a pleasure to use, such as fading out/fading in the music signal when switching inputs.

Mechanical Perfection

Chassis construction

To achieve the unique design goal of “reproducing the master sound,” the C1X solo chassis optimally controls all vibrations that can affect sound quality. The sleek and clean form of this sports car-like mechanical engineering, to pushes the limits of its balance between rigidity and flexibility, and speaks to its high degree of perfection.
For example, the enclosure, which requires rigidity, makes extensive use of aluminum blocks and is thoroughly non-resonant, while the top panel, which needs to be free of vibration for an open sound, has a semi-floating structure. Esoteric’s unique patented isolation foot, which integrates a spike and a saucer, also has a special mounting structure that reduces mechanical stress and enhances sound quality.

High-quality feeling that satisfies the pleasure of operation

The volume control and input selector employ solid construction knobs machined from an aluminum block. By adopting a bearing mechanism developed in the design of VRDS drive mechanisms for the rotary axis, extremely precise rotation without core shake is achieved. By adjusting the rotational torque to the optimum level, a smooth, analog-feeling operation is achieved, befitting Esoteric’s flagship preamplifier.

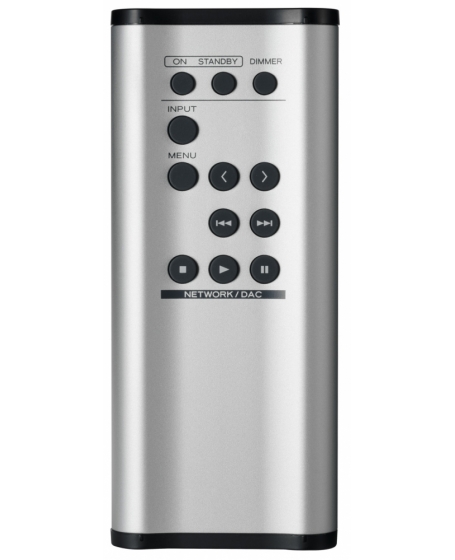

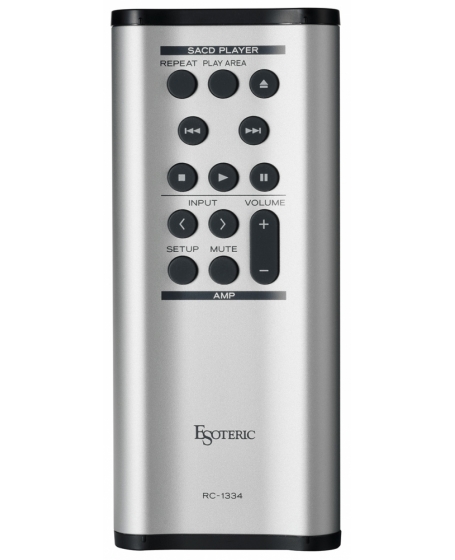

Double-face remote control

A compact and simple remote control is included that can also operate Esoteric digital source devices. The functional design features buttons used for each operation scenario on both sides of the remote control, and the smartphone-sized aluminum body, which fits comfortably in the hand, is achieved through advanced metal processing. Esoteric’s new approach is a design that allows you to experience thoughtful operability and craftsmanship every time you pick it up.

Top

Bottom

Spec description
Analog Audio Inputs
XLR/ES-Link Analog    × 3 pairs
Input Impedance    50kΩ
Input Sensitvity    500mV (at rated output)
Maximum Input Level    11.7V
RCA    × 2 pairs
Input Impedance    500kΩ
Input Sensitvity    500mV (at rated output)
Analog Audio Outputs
XLR    × 2 pairs
Output Inpedance    30Ω
Rated Output    2V
Maximum Output level    17V (1kHz, 0.003%)
ES-Link Analog    × 2 pairs
Output Impedance    30Ω
Extrenal Control
RS-232C
Connector    S-sub 9pin × 1
Trigger Input
Connector    3.5mm Monaural mini jack × 1
Input Level    12V, 2mA
Trigger Output
Connector    3.5mm Monaural mini jack × 2
Output Level    12V, Total 100mA maximum
General
Power
     AC 120V, 60Hz
     AC 220-240V, 50Hz
Power Consumption    22W
Standby Power    0.3W when RS-232C Remote control is disabled, 1.0W when enabled
Overall Dimensions (W×H×D)    445 × 132 × 449mm (including protrusions)
Weight    27.5kg
Included Accessories    Power cord × 1
Remote control (RC-1334) × 1
AA batteries × 2
Felt pads × 4
Owner's manual × 1
Warranty card × 1


Audio performance
Frequency Response    1Hz to 150kHz (–3dB, XLR)
S/N Ratio    120dB (2V input, IHF-A, XLR)
Total Harmonic Distortion    0.00035%
Gain    +12dB
* Design and specification are subject to change without notice.
