Focal Dimension

Product specification sheet
Focal now infuses its know-how and unique signature sound into an evolutive system: soundbar and subwoofer. A key innovation is the five patented high-bandwidth and ultra-thin speakers, which result in a very shallow depth of 65mm and a remarkable coherence across the audio spectrum, regardless of listening position. When combined with the Dimension Sub, the system incorporates 450 watts of power in six channels for a true 5.1
experience. The ultra-flat sub also acts as a support for the screen and employs an anti-vibration device. The soundbar can also be used alone, mounted to the wall.

Key points
• Natural and high-definition sound over a wide sweet spot
• High dialogues intelligibility
• Dynamic and coherent reproduction of the whole frequency spectrum thanks to 5 identical speaker drivers
• Optimal integration:
 - wall-mounted: almost as flat as the screen

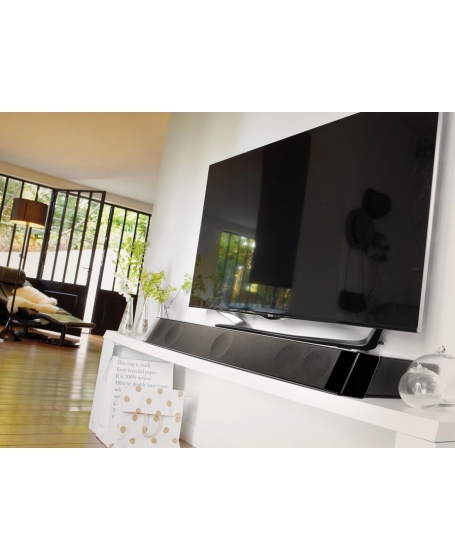

 - between a TV furniture and flat screen: associated with Dimension Sub, which becomes a support for the screen
• Sound with no constraints: automatic power-on, controlled with the same remote control as the flat screen
• 2xHDMI™ integrated

Type 5-channel sound bar
Speaker drivers 5 ultra-flat speaker-drivers made of paper cones - 315/16" (10cm)
Integrated amplification 6-channel 450 Watts
Frequency response (+/- 6 dB)
Soundbar alone 50 Hz - 25 kHz
Inputs
2 x HDMI™ (OUT/IN)
Digital Optical Toslink
Analogue 3.5 mm Jack
Subwoofer outputs Dimension Sub Out: Powered output dedicated to Dimension Sub
Sub Line Out: Low-Level output compatible with all amplified subwoofers
Modes
HDMI ARC™ (Audio Return Channel)
HDMI CEC™ (Consumer Electronics Control)
Auto Power on HDMI™ inputs
Adjustable bass
Adjustable Sound and Picture synchronisation
Night mode
Optimum acoustic integration through settings on the rear panel:
 - Soundbar positioning
 - Room acoustics
 - Sweet spot
Soundbar on furniture
(Width x Depth x Height)
451/4"x41/2"x41/2" (115.5 x11.5x11.5cm)
Wall mounted Soundbar
(Width x Depth x Height) 451/4"x29/16˝x515/16" (115.5 x6.5 x14.7cm)
Weight 12lbs (5,5kg)

Type Bass-reflex Subwoofer
Speaker drivers 2 elliptical woofers 8" x 3" (20cm x 8cm)
Frequency response (+/-6 dB) 30Hz - 110Hz
Mode Zero Vibration design
Support for screen of 50" and over
Subwoofer
(Width x Depth x Height) 451/4x1213/16x41/2" (115.5 x32.5x11.5cm)
Subwoofer + Soudbar
(Width x Depth x Height)
451/4x161/8x41/2" (115.5 x41x11.5cm)
Weight 31lbs (14kg)
