Furutech E-TP80s AC Power Filter Distributor USA Plug

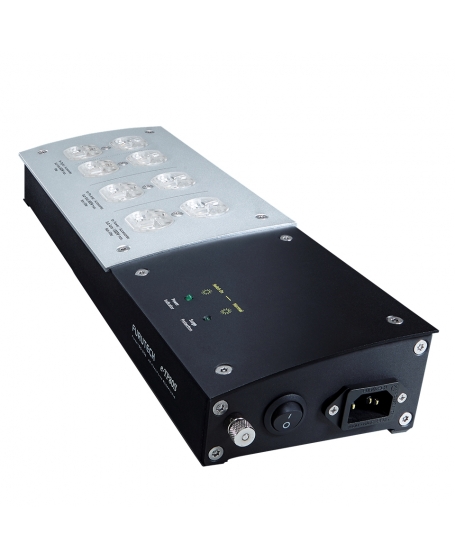

Furutech E-TP80S

The e-TP80S / e-TP80ES is a sophisticated, luxuriously made power filter/distributor that eliminates many common problems found with audio and video components caused by massively contaminated electrical power.

How can you tell you’re a victim of polluted AC power? Listen and look for these symptoms: Flat, hard, grainy high frequencies, a thick and bloated midrange, fat, uncontrolled bass, and loss of air and soundstage stability. On video displays the picture resolution is less than sharp, with “ghosting”, color shift, “snow”, or vertical and horizontal lines.

If this looks and sound familiar, you need Furutech!

Features:

The e-TP80S / e-TP80ES is a sophisticated, luxuriously made power filter/distributor that eliminates many common problems found with audio and video components caused by massively contaminated electrical power.

The AC waveform becomes severely distorted by ground noise, voltage spikes and sags, high frequency power supply noise from other components in your own system,plus radiated high frequency digital noise from processors and digital interconnects.

There are also distortion products at the top and bottom of the AC waveform created by switch-mode power supplies in electronic devices on the same circuit.

Additionally, you’re never alone; your residential AC mains supply is shared with other apartments, homes, and businesses on the same utility transformer. That’s why many audio and video enthusiasts notice their systems are more enjoyable late at night or on weekends!

How can you tell you’re a victim of polluted AC power? Listen and look for these symptoms: Flat, hard, grainy high frequencies, a thick and bloated midrange, fat, uncontrolled bass, and loss of air and soundstage stability. On video displays the picture resolution is less than sharp, with “ghosting”, color shift, “snow”, or vertical and horizontal lines. If this looks and sound familiar, you need Furutech!

The beautifully crafted special grade aluminum chassis effectively shields against another common problem, RFI (Radio Frequency Interference), and a layer of Formula GC-303 blocks EMI (Electro Magnetic Interference).Internal wiring is Furutech μ-14 wire (14 AWG) that guarantees low resistance. Furutech Hyper Quality Audio Grade Receptacles are wired to the IEC AC input of the e-TP80S / e-TP80ES. Receptacles feature 24K gold-plated phosphor bronze, non-magnetic conductors for stable, long lasting, optimized power transfer.

The upgraded units feature new MOV circuitry that will automatically cut power to the main circuit board EMI filter to prevent short circuit and protect your system. In addition, the audio grade MOV circuitry will damp any electrical and mechanical resonance caused by electrical resistance, heat and power flow. For convenience LEDs indicate normal function of the e-TP80S / e-TP80ES surge protection function and EMI filters. When the LEDs are “on” you are noise free and surge protected.

Specifications

— Body Material: Aluminium Alloy Plate (Painted)

— IEC Inlet: Furutech FI-06 (G)

— Outputs (e-TP80S): 4 filtered and 4 non-filtered hyper-quality US receptacles (FPX(G)) featuring 24K gold-plated phosphor bronze, non-magnetic conductors

— Outputs (e-TP80ES): 4 filtered and 4 non-filtered hyper-quality SCHUKO receptacles (FI-E30(G)) featuring 24K gold-plated Eutectic brass, non-magnetic conductors

— All metal parts are treated with Furutech’s Two Step Cryogenic and Demagnetizing Alpha Process

— A layer of Formula GC-303* bonded to the bottom plate effectively shields against EMI (Electro Magnetic Interference)

*Formula GC-303 is a special material that Furutech layers and bonds to the interior bottom-plate of the chassis. It actually absorbs EMI (Electromagnetic Interference) generated by the internal fittings of the unit. GC-303 absorbent filtering ensures that AC resistance is kept to a minimum, allowing a more resolving, powerful, dynamic, and colourful performance from your components

Rating (European version):
— Voltage: AC 250V 50/60Hz
— Current: 10A
— Loading: 2500 W
— Surge Voltage: 6000V max
— Surge Current: 8x20us, 4500A max

— Overload protective type: Automatic circuit (replacement of varistor required after surge protection event)
— Grounding: SCHUKO (or US) socket 8 Holes
— Insulation volt.: AC 1500V 1 MINUTE 5mA

— Noise Filter: -20db~92db (2~100Mhz)
— Power indicator: LED

— Surge protection indicator: LED

— Leakage Current: Under 1.0mA
— Insulation Resistance: 300MΩ Above DC 500V

— Dimensions: Size: 400mm (W) x 130mm (D) x 60 mm (H)

— Weight: 1.9Kg
