Furutech FP-314AG+FI-11(CU) Power Cord US Plug 2 Meter

FP-314Ag-II
POWER SUPPLY CABLE

RATING

15 AWG α-Conductor (1.82 Sq.mm)

FEATURES

※ α-Conductor ：Fine Silver Plated μ–OFC conductor & μ–OFC wire strands and treated with α(Alpha) process.

Engineer's listening notes: Elegant, open, vivid highs, tight bass

SPECIFICATIONS

•37 strands of silver-plated α Alpha μ-OFC Conductor • 0.25mm diameter × 2 Cores (≒14 AWG) / (1.82 sq.mm)
•37 strands of 0.25mm diameter α Alpha μ-OFC Conductor x 1 Core (≒14 AWG) / (1.82 sq.mm)
•Insulation: Polyethylene (Red/White/Green) 3.4mm diameter Red=L、White=N、Green=E
•Inner Sheath: RoHS Compliant Vibration suppression PVC (Black) 9.3mm diameter
•Shield: 9 x 24 strands of 0.12mm braided α Alpha conductor
•Sheath: RoHS Compliant Flexible PVC (Brown) approx. 12.9mm diameter

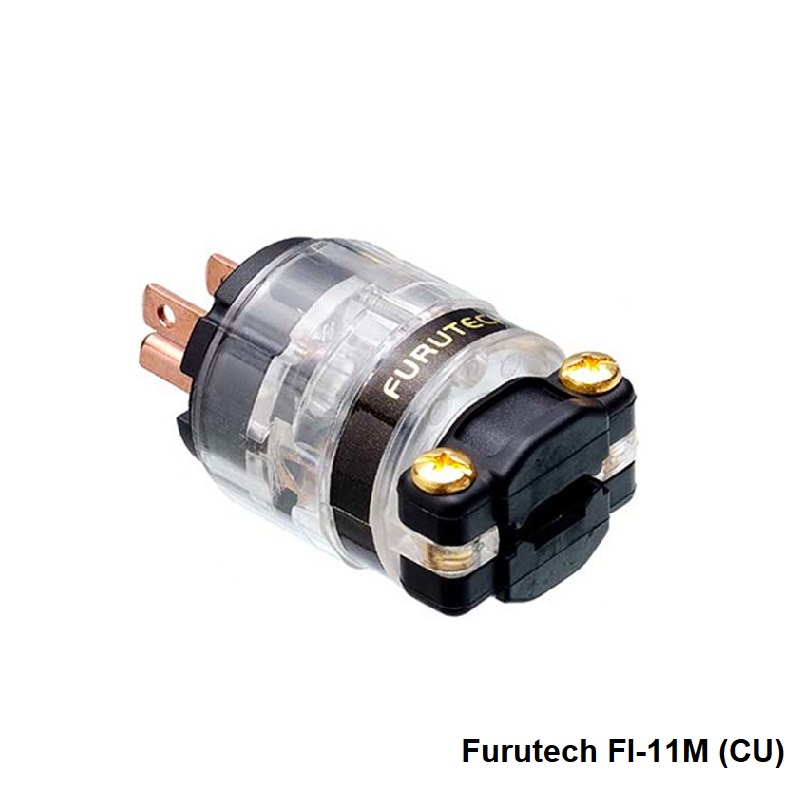

FI-11（Cu）
High Performance Power IEC Connectors Unplated

RATING

15A/125V 10A/250V
< PS >E JET:15PJET086
USL /CNL Listed:04CA26110

FEATURES

・Unplated Phosphor bronze α (Alpha) Conductor
・Earth (Ground) Jumper System
・Nylon/fiberglass front body, polycarbonate shell

SPECIFICATIONS

・Specified for cable diameters of 6.6mm to 16mm (With a longer screw up to 20mm)
・Wire accommodation: Max 5.5 Square mm 10AWG
・Dimensions: Body length 43.9mm x 39mm diameter x 76.8mm overall length
・Rated: 15A/125V 10A/250V
