Hifi ROSE RS201E HiFi Network Media Player Made In Korea

Professional

HiFi Media Player RS201E

RS201E is the HiFi Network Media Player that provides High Quality Sound,Ultra High Pixel Stream together with various type of Multi Media services based on HiFi Design Expertise and ROSE platform.

Create your own Another Class Station with RS201E.

Modernized Simplification

Premium Design

Harmonized Design by upper class frame consist of aluminum body with corner, volume knob,power button and wide view touch screen makes
its whole shape be exceptional .

HiFi Audio & UHD Video

Multimedia Playback

Network Connection among USB. Micro SD. SSD. PC and NAS supports latest Audio format. MPEG. H.264. H.265. VP9

Furthermore, Worldwide Internet Radio and Podcast with Time Shift function are served.

Music

Play List that Audio Video files in the local storage as USB. MSD. SSD makes its convenient use.


* Audio format Playback

MQA, WAV. FLAC. WMA. MP3. APE. DFF. DSF PCM 8kHz~384kHz (8/16/24/32bit per Sample) Native DSD : DSD64(1bit 2.8MHz) /DSD128(1bit 5.6MHz)/DSD256(1bit 11.2MHz)

Video

You can play movies in local storage (USB/Micro SD/SSD) and NAS / network shared drives If you connect ROSE and TV with HDMI cable,you can watch movies on the big screen.


* Support Video format

H.264/AVC Base/Main/High/High10 profile@level5.1; up to 4Kx2K@30fps MPEG-1, MPEG-2, MPEG-4 H.263, H.264, H.265, VC-1, VP9, VP8, MVC
H.265/HEVC, Main/Main10 profile@ level 5.1 High-tier; up to 4Kx2K@60fps

ROSE Podcast

Podcast channels provided by iTunes
To reflect popularity, ROSE server offer channels and it is organized by topic Create your own subscriptions, playlists and organize your favorite channels and content.

Radio

You can listen to the radio channel from USA to Germany around 800 channels
Provide favorite feature

RS201E Supports 4K with HDMI
– Ultra High Definition

High Quality Sound

Studio Mastering Quality Sound Playback

PCM32bit/384khz, Native DSD256- 32bit/11.2MHz

supporting Latest High Resolution PCM32bit-384kHz and Native DSD32bit-11.2MHz provide full and dynamic sound through Reference 32bit High Performance DAC.

High Speed Driver Variation Technique and Embedded Pure Path Ultra HD Power Amp. Provide Super Audio Quality of Ultra Low Distortion and
stable sound quality covering whole range.

Harmonization between vacuum amp. and reference grade amp amp. of PreAmp in 122dB SNR(-132dB THD+N)supports Studio Mastering Quality Sound.

RS201E includes MQA technology which enables you to play back MQA audio files and streams, delivering the sound of the original master recording.
Visit mqa.co.uk for more information.

All-in connectivity

Various Device Connection

support DLNA, Airplay Service in Network and A/V files stored Smartphone, Tablet, NAS etc

RS201E provides the most latest Interface and Device taking on market trend and customer needs as Line In PreAmp Out. Digital(optical) I/O. Speaker Out.
Headphone Out. HDMI compatible withHigh Quality DAC. AMP. Speaker. TV etc.

ROSE App.

ROSE Connect

RS201E is controlled by ROSE Connect Mobile App.

* Music. Video. Radio. ROSETube. ROSEPodcast. Power. Volume. Remocon

System Expansion for Audiophiles

Various Source Interface

Media Source as USB. Micro SD. SSD Input and Network Drive Connection through Network.

Line In as Line/Optical In and Connection CD. DVD. Blu ray Player. TV through Optical In.

Specifications
OS
Android 7.0 (Nougat)
Design
Size
278 x 202 x 76 mm
Weight
2.3kg
Finishing
High-quality anodized aluminum front-top with modern sense

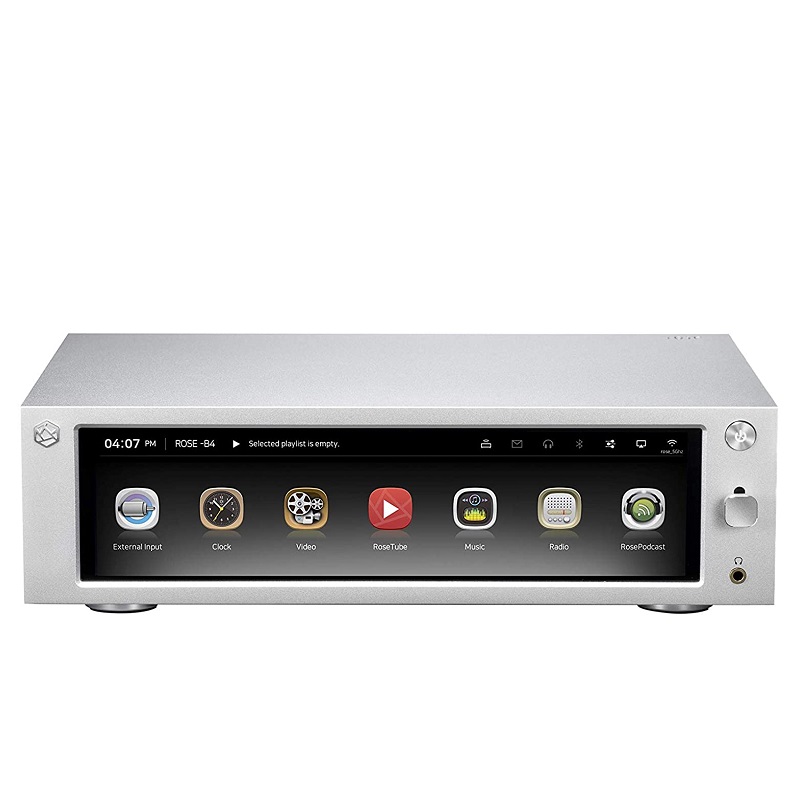

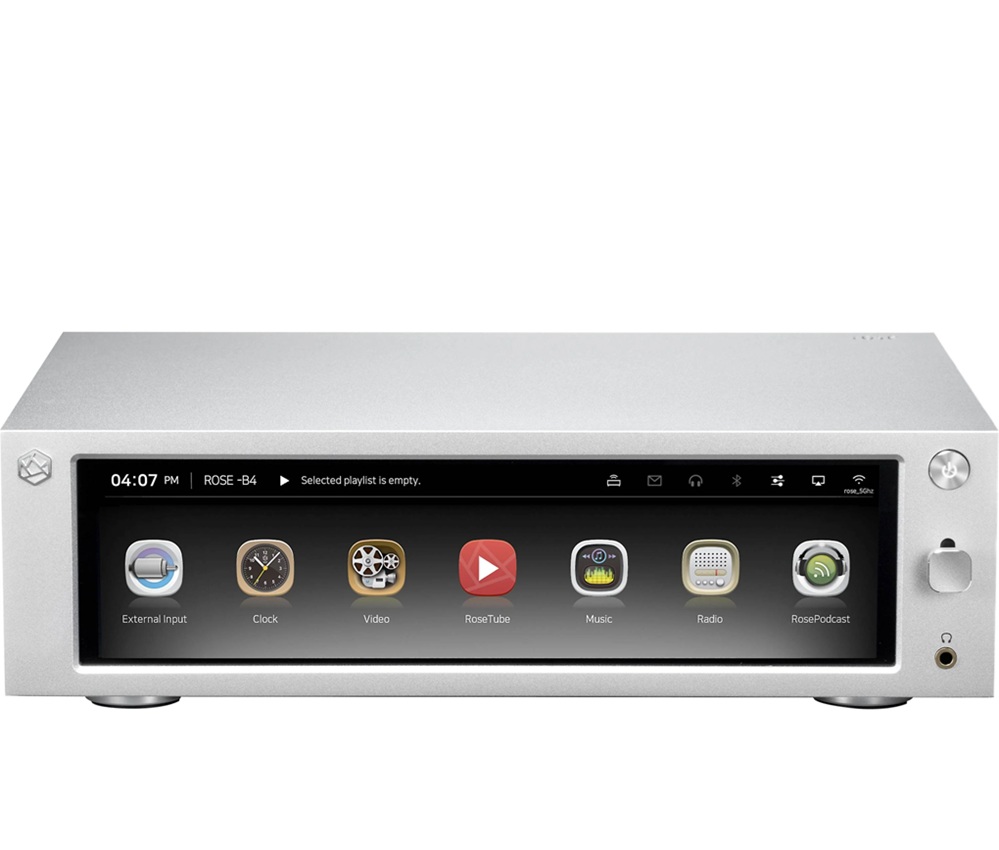

Display
Wide view 8.8" multi touch screen
Power
Maximum output
100W
Speaker impedance
4~16 Ω
Wireless
Network
Ethernet 10/100/1000 BASE-T
WiFi (802.11 b/g/n/a/ac) 2.4Ghz/5Ghz Dual Band
Bluetooth
Bluetooth 4.0 (AD2DP SINK, AVRCP)
Streaming
Airplay / DLNA Service

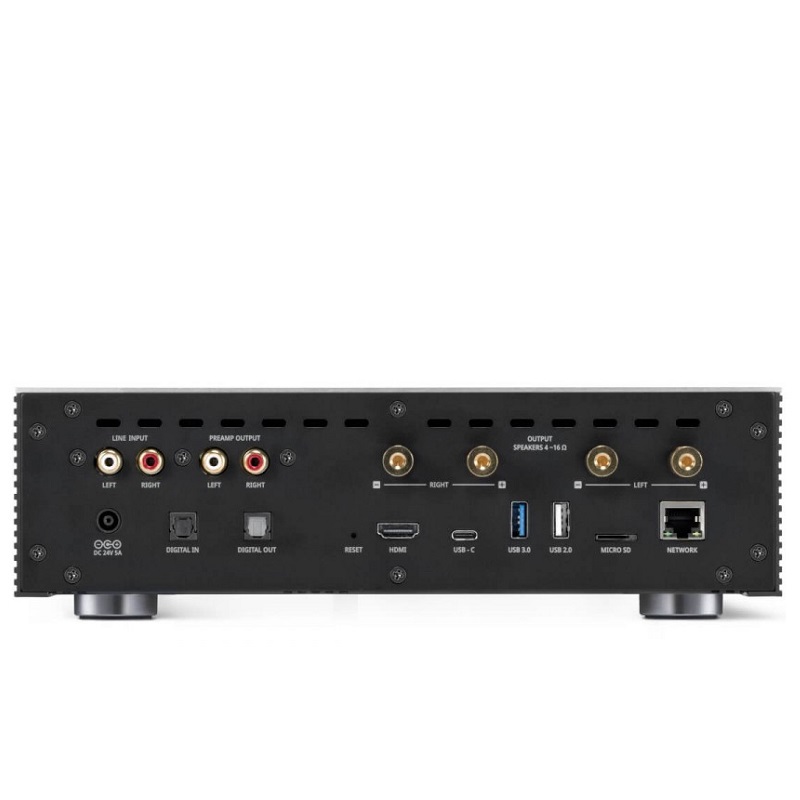

Input, Output
Audio input
Connections for source devices such as CD/ DVD /Blu-ray Player
S / PDIF connections for TV, Projector, CD / DVD / Blu-ray Player
Audio output
Headphone Out : Connection for 3.5mm headphone
PreAmp Out : Connection for vacuum tube amplifier, reference amplifier
Speaker Out : Connection for L+/L-, R+/R- speaker
Optical Out : S / PDIF connections for sound bar
video output
HDMI connections for TV, Projector
Media connection
USB 2.0 x 1, USB3.0 x 1 (File system - NTFS/FAT32, Supported capacity - 512GB, External HDD by 4TB)
MicroSD x 1 (File system -NTFS/FAT32, Supported capacity - 512GB) SATA3.0 SSD x 1 (File system - NTFS, Supported protocol - FTP/WebDav, 4TB)
USB C type x 1 (Only for service)
Supported codec
Audio
MQA, WAV, FLAC, WMA, MP3, APE, DFF, DSF, AAC, CDA, AMR, APE, EC3, E-EC3, MID, MPL, MP2, MPC, MPGA, M4A
PCM : 8KHz~384KHz(8/16/24/32bit per Sample)
Native DSD: DSD64(2.8MHz)/DSD128(5.6MHz)/DSD256(11.2MHz)
Video
ASF, AVI, MKV, MP4, WMV, MPEG-1, MPEG-2, MPEG-4 H.263, H.264, H.265, VC-1, VP9, VP8, MVC
H.264/AVC, Base/Main/High/High10 profile@level5.1 up to 4Kx2K@30fps
H.265/HEVC, Main/Main10 profile@ level 5.1 High-tier up to 4Kx2K@60fps
Power
Input power
AC100-240V, 50/60Hz
Output power
DC 24V, 5.0A
Standby power
Standby mode<0.5W
Update
SW update via internet, manual update via USB
Remote control
Remote controller
BT Remote controller
Remote App
ROSE Connect (Android, iOS)
Accessory
AC adpater x 1, Quick guide x 1, BT Remote controller x 1, Battery (AAA) x 2, Screw for SSD x4, Screw driver x 1
