Jamo S7-43C Center Speaker
SKU: Jamo S7-43CNominal Impedance 4 ohms
Continuous Power handling 100 W
Recommended Amp. Power 25-150 W

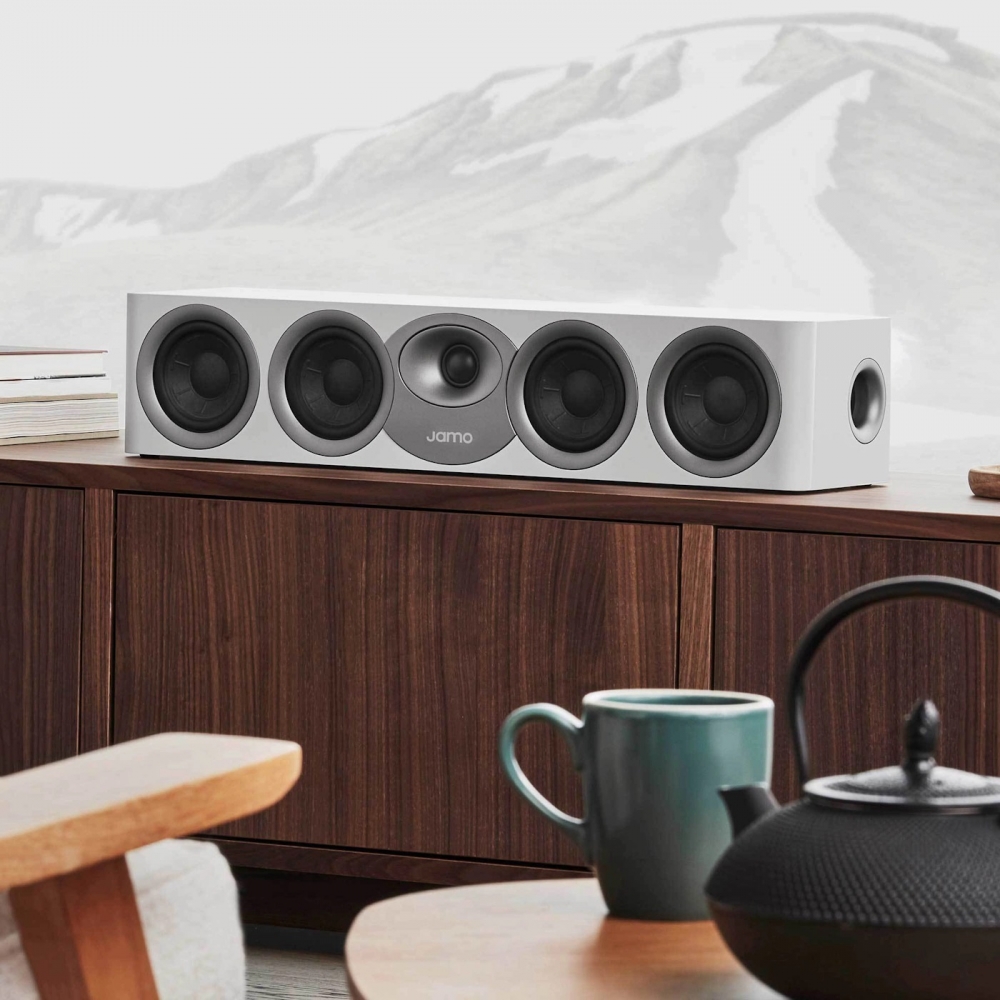

S7-43C CENTER CHANNEL SPEAKER
Hear every word
An essential element in the reproduction of dialogue and most of the front sound effects, the center channel is critical for catching every nuance of dialogue in your favorite movies, music and games. While other Studio7 speakers are tilted at a seven degree angle, the center channel is not tilted, allowing for better audio direction toward the listener. The grille does however, have a plinth to visually coordinate with the other Studio7 products. Thanks to its beautifully considered form, the S7-43C perfectly compliments today’s flat-screen TVs with an unobtrusive footprint.

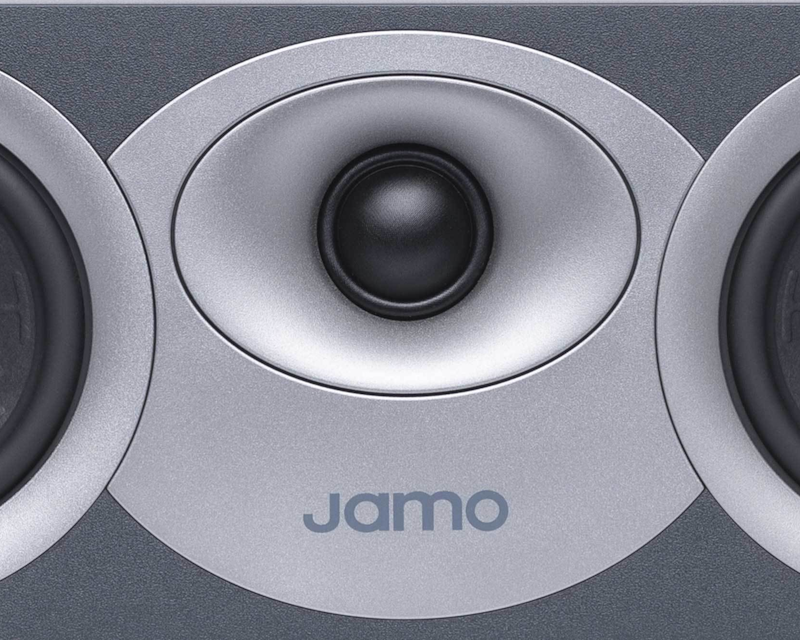

CRYSTAL-CLEAR HIGH FREQUENCIES
An all-new 1-inch tweeter featuring a copper faraday ring which increases sensitivity and reduces non-linear distortion carries out the high-frequency duties. The tweeter and surround are made from fabric and exhibit excellent distortion characteristics and wide bandwidth for a non-fatiguing yet detailed sound.

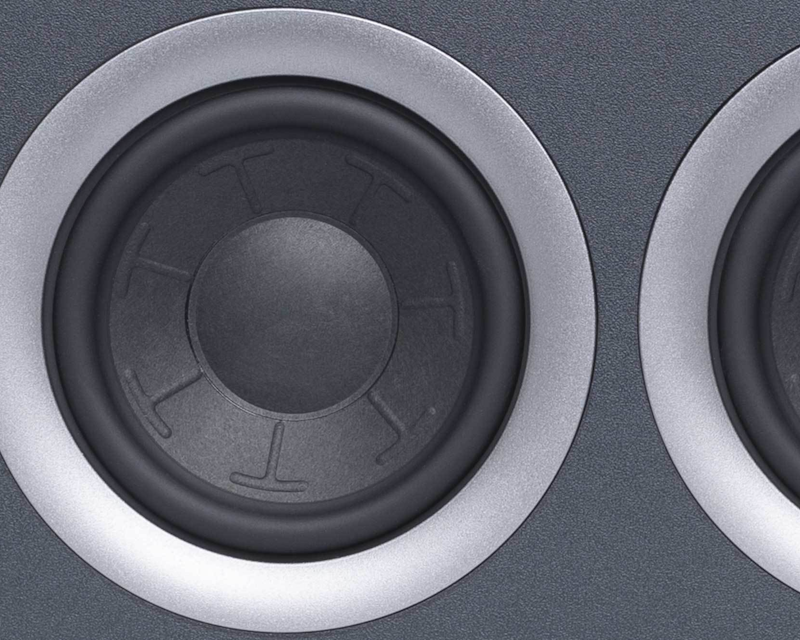

NATURAL BASS
The bass drivers feature embossed paper cones, high strength motor assemblies incorporating aluminum inductance shorting rings that enhance power handling and lower distortion. The aluminum shorting ring lowers distortion for clean, dynamic bass and increases power handling as the aluminum ring acts as a heat sink. The embossed paper cone with Thor's Hammer detailing increases the rigidity to improve the transient response for that snappy yet natural bass.
EASY CONNECTION
The porthole shape that houses the bollard was directly inspired by Jamo's birthplace and more specifically the fishing boats of the small village of Glyngore. Functional as well as aesthetically pleasing, the size of the porthole cavity also allows for easy cable connection.
TWO COLORS
INSPIRED BY NORDIC NATURE
Jamo chose the Studio7 range's colors from the chromatic palette of Scandinavian landscapes. Norwegian fjords inspire the dark blue, while the grey finish channels the hue of fog hanging over a Finnish forest. The Jamo Studio7 will enhance your living space no matter which color you choose.
50 YEAR LEGACY
Our story started in 1968 in Glyngøre, a tiny fishing village nestled on the north shore of Denmark. Jamo was founded by two brothers-in-law, Preben Jacobsen and Julius Mortensen.
Design | 2-Way bass reflex |
High Frequency: | 1’’/2.54 cm Vented tweeter with a fabric dome |
Low Frequency: | Quad 3.3’’ / 8.4 cm woofers Embossed paper cone with Thor’s Hammer |
Frequency response (±3 dB): | 123 Hz - 21 kHz |
Frequency range in bass section (-6 dB): | 99 Hz - 30 kHz |
Crossover frequency: | 1 770 Hz |
Maximum output (peak sound pressure level at 1 m): | 108.2 dB |
Impedance: | 4 ohms |
Enclosure Material: | Mdf |
Enclosure type: | Bass reflex |
Inputs: | Single binding posts |
Dimensions (unit) (H x W x D): | 12.5 x 60 x 17.1 cm |
Product weight (unit): | 6.32 kg |
Finish: | Grey Cloud vinyl |
