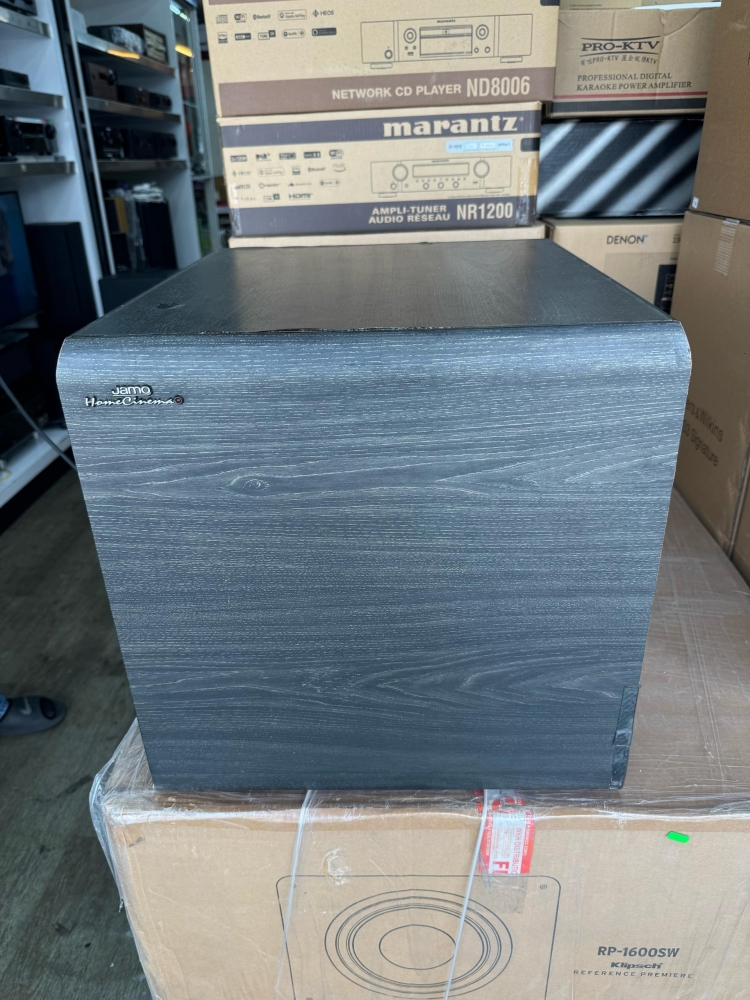

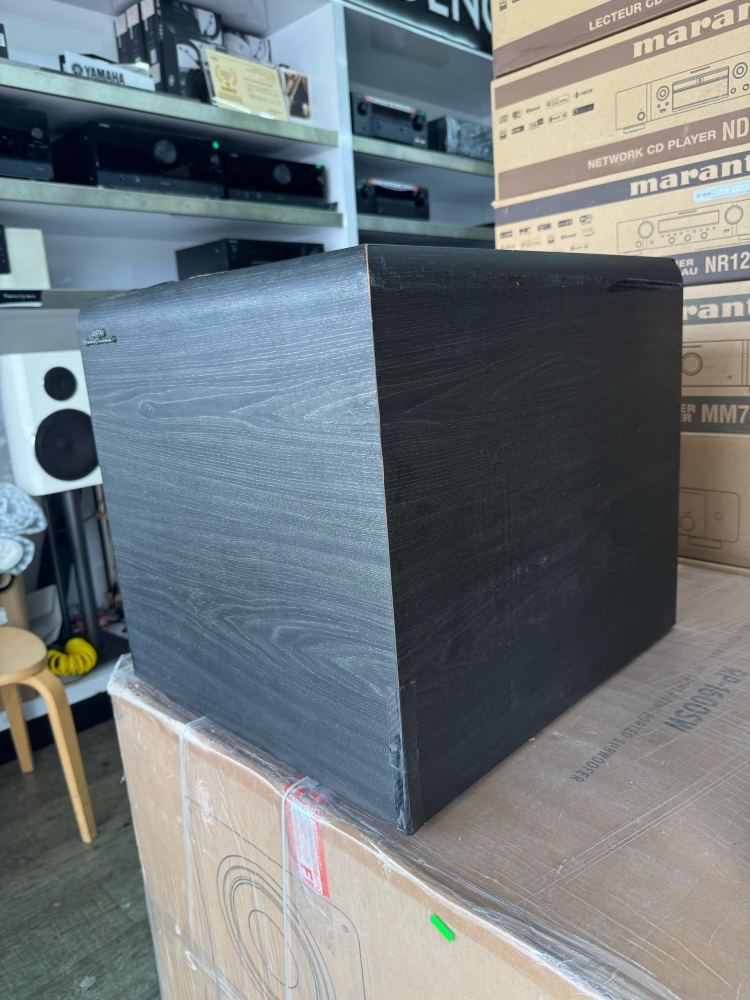

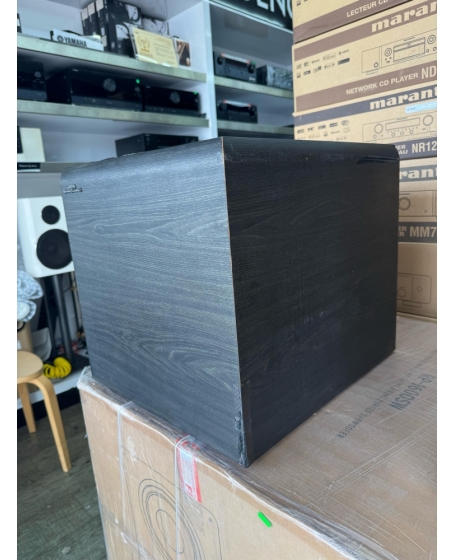

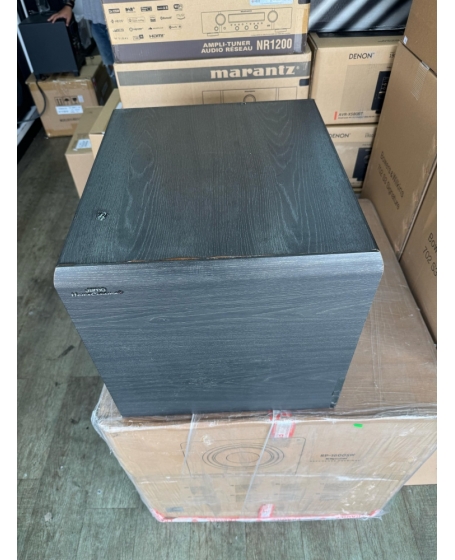

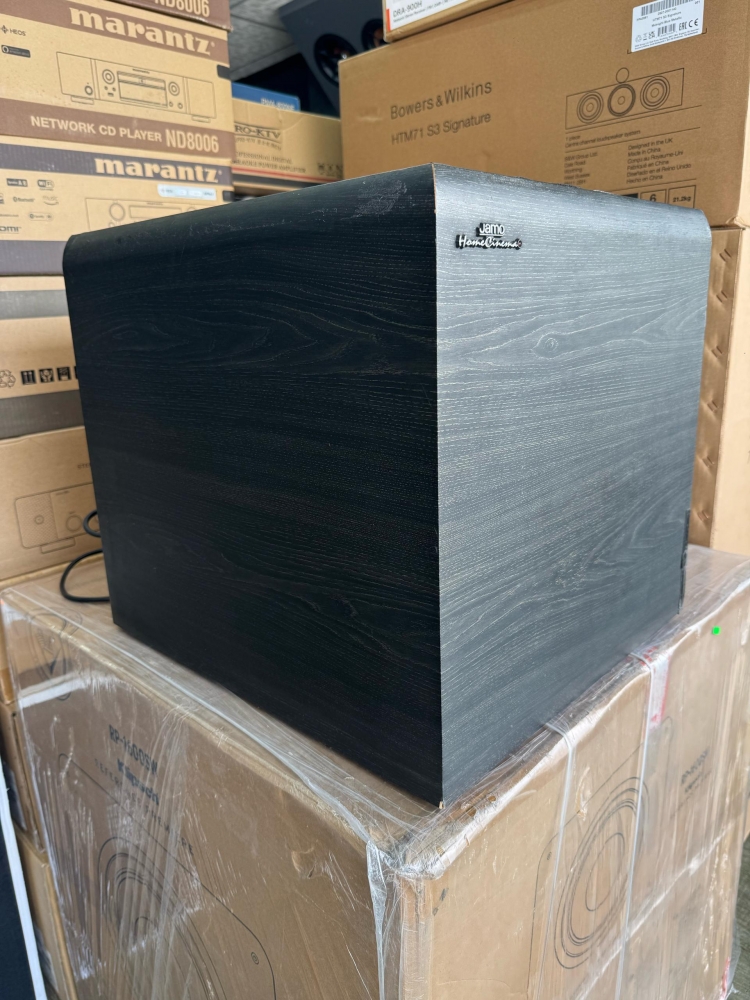

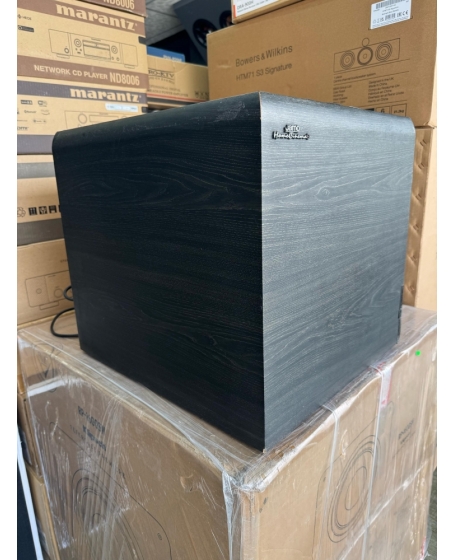

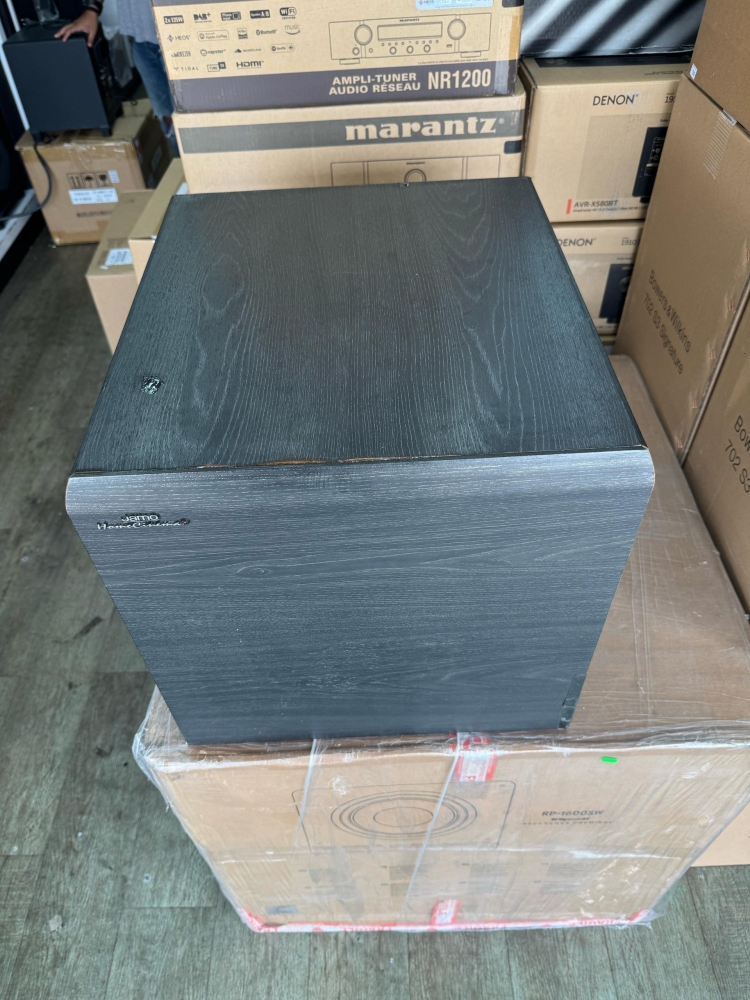

Jamo SW 505E

Powered Subwoofer

The Jamo SW 505E is an active subwoofer designed to enhance low-frequency audio in home theater and music systems.

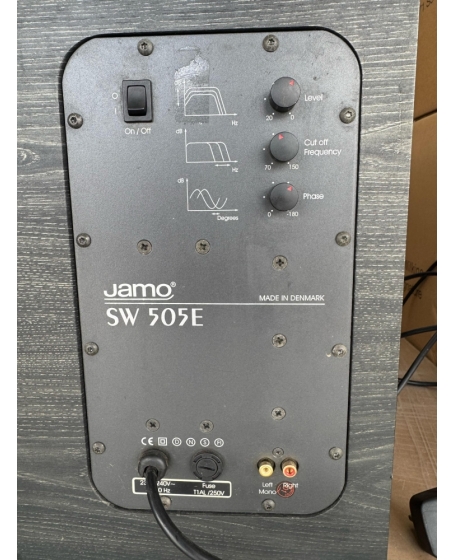

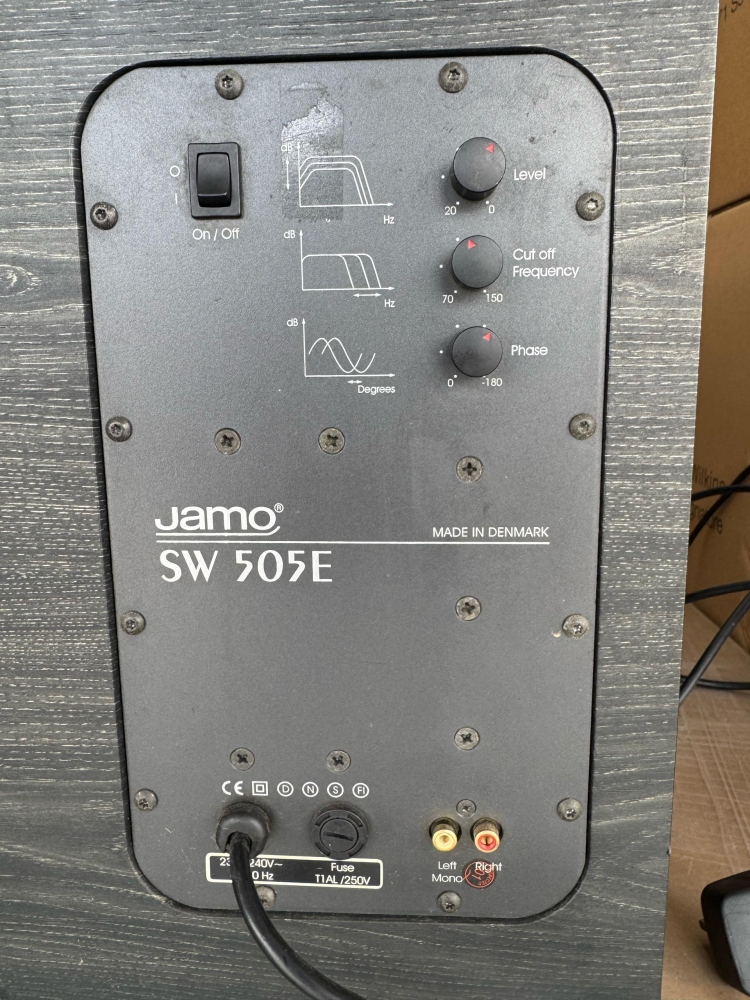

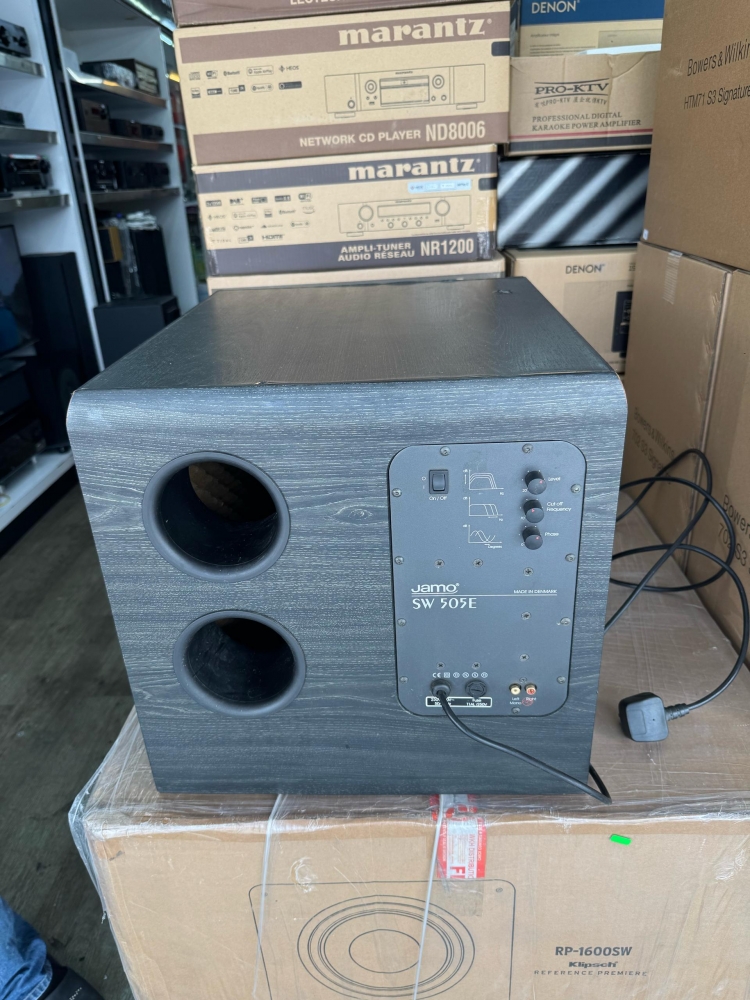

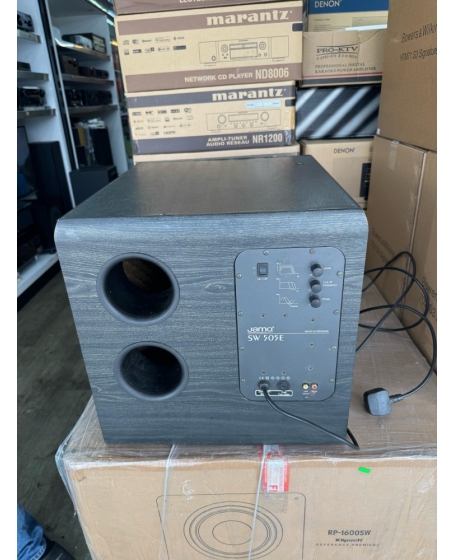

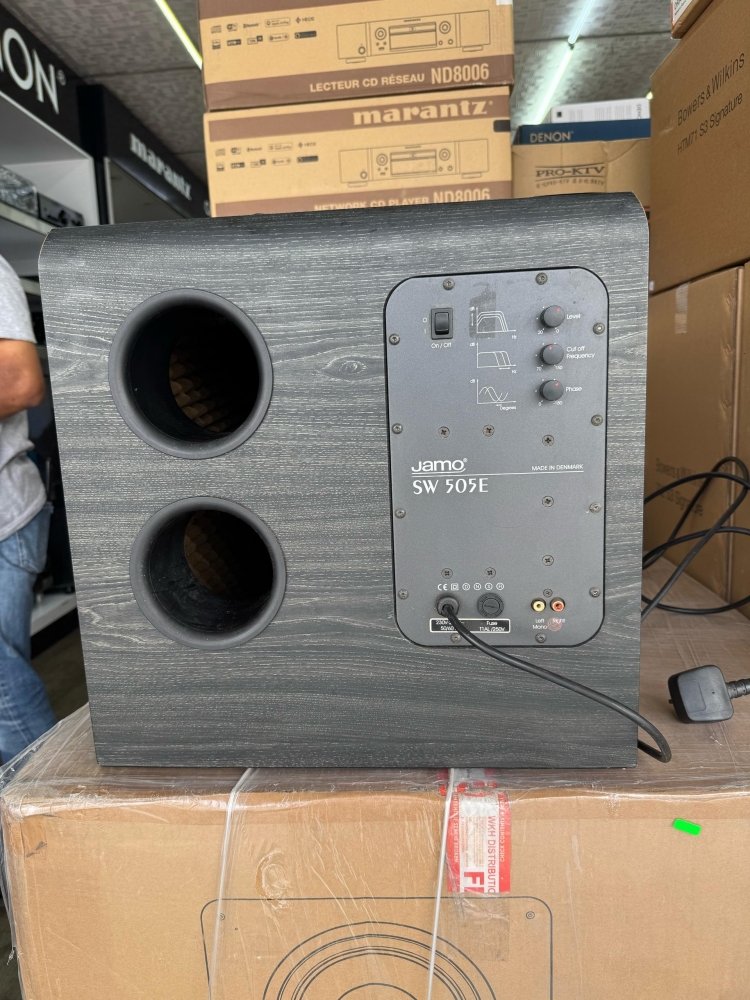

The SW 505E features a Coupled Cavity cabinet design, which extends the bass range and functions as an acoustic band-pass filter, delivering deep, powerful, and controlled bass reproduction. It also offers infinitely variable sensitivity, cut-off frequency, and phase settings to ensure optimal integration with existing equipment and flexible room placement.

- Type: Electronic Subwoofer with Coupled Cavity Bass Reflex System
- Woofer: 12" (305 mm) Long Throw Driver
- Amplifier Output: 100W RMS
- Frequency Response: 32 Hz – 150 Hz
- Adjustable Cut-Off Frequency: 70 Hz – 150 Hz
- Sensitivity: Adjustable ±12 dB
- Phase Control: 0° – 180° Adjustable
- Total Volume: 92 liters (3.2 cu.ft)
- Dimensions (H x W x D): 435 mm x 435 mm x 485 mm
- Weight: 21.5 kg
