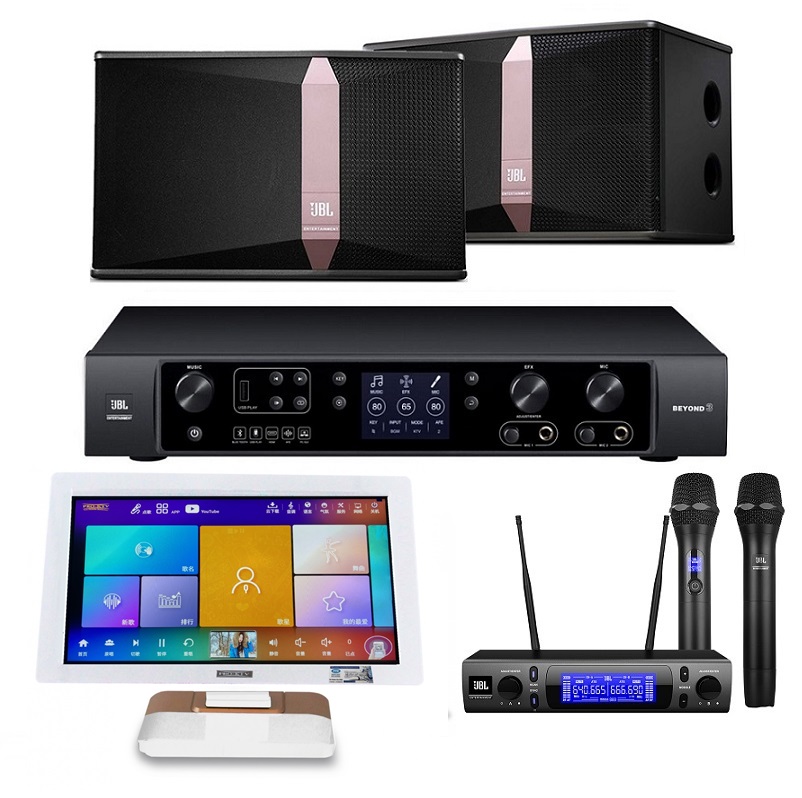

JBL Beyond3+JBL Ki510+Pro Ktv KOD+JBL VM300 Karaoke Package

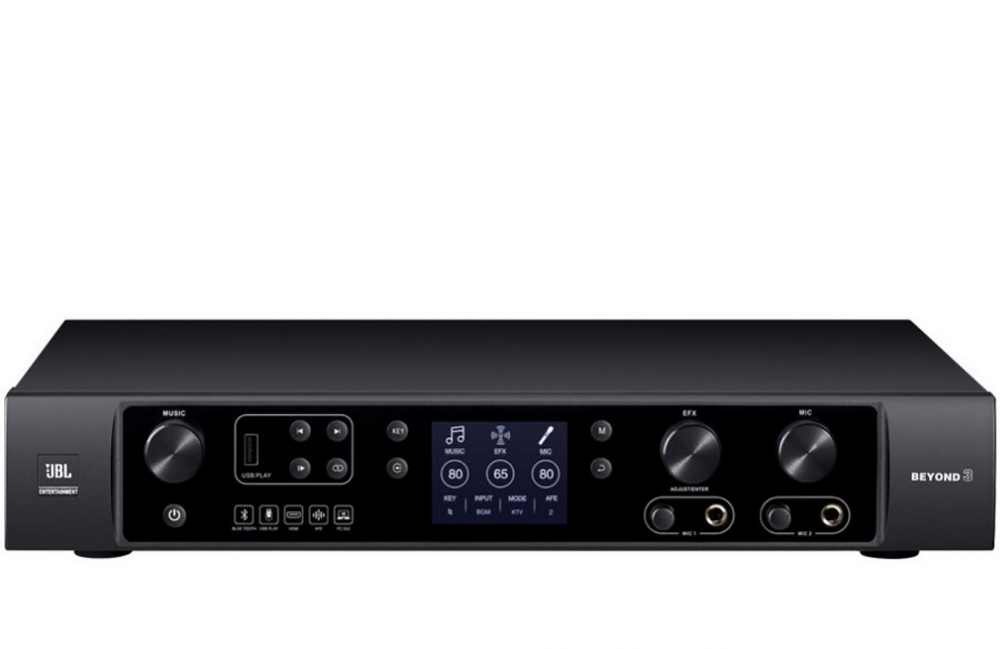

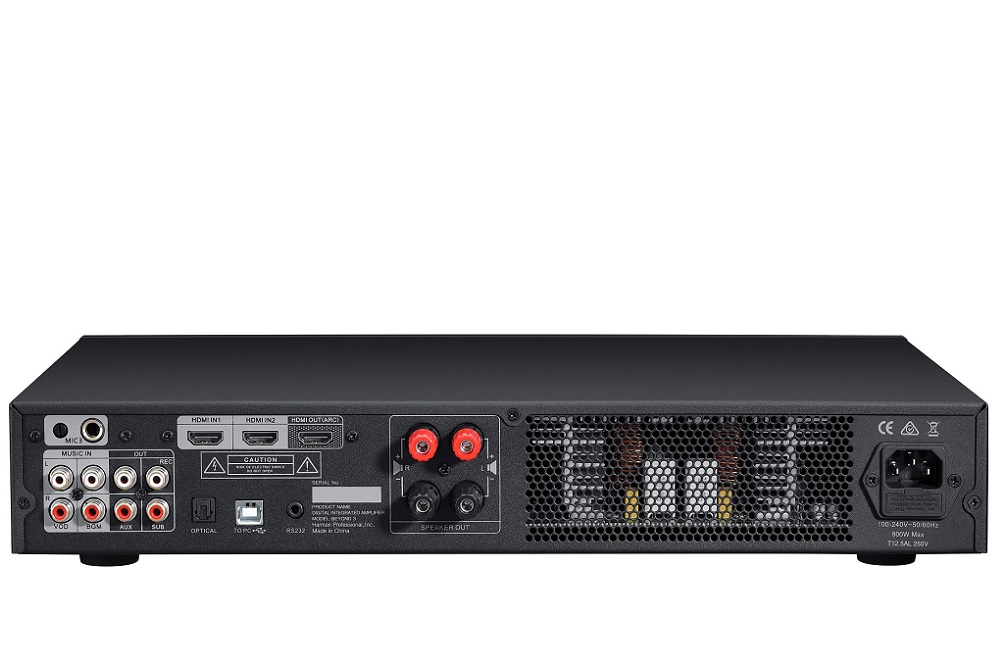

BEYOND3

360-watt, Two-channel Digital Integrated Amplifier

The JBL BEYOND3 is designed for small-club and smart-home karaoke applications that demand signature JBL sound quality and comprehensive processing features in an affordable, easy-to-use package.

BEYOND series amplifiers deliver unforgettable karaoke experiences, thanks to signature JBL Entertainment effects including pitch shift, echo, reverb and EQ, with feedback protection and customizable presets. The series continues the tradition of excellence that’s made JBL the leading brand in karaoke systems, featuring top-grade components and materials and robust, efficient 360-watt, two-channel Class D amplification.

Systems look as great as they sound, with a sleek, stylish design and an illuminated JBL Entertainment logo that lets customers and venue owners showcase superior JBL sound quality.

The BEYOND3 provides exceptional karaoke sound at an affordable price point and is built to JBL’s uncompromising performance standards. It seamlessly matches a range of karaoke systems.

Features

• High-efficiency 360-watt, two channels Class D amplifier
• Signature JBL karaoke sound digital processing enhances the singing experience in karaoke applications, with pitch change, echo and reverb
• 8 user-definable presets
• 15-band parametric EQ on microphone and music inputs
• Three-level Auto Shift Frequency Feedback Suppression provides clean, clear vocals
• Two RCA inputs and one optical input
• Two HDMI inputs and one HDMI output (ARC)
• Bluetooth and USB inputs offer flexible music connectivity

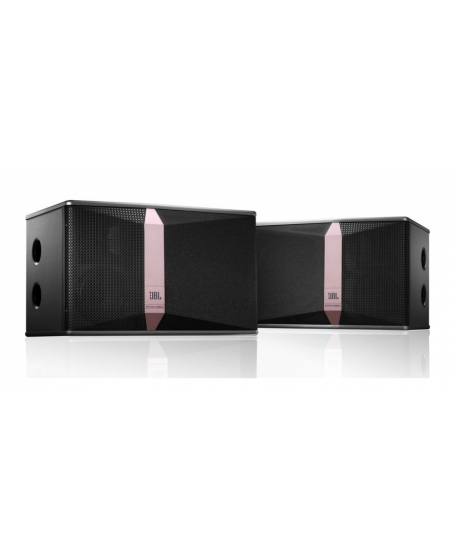

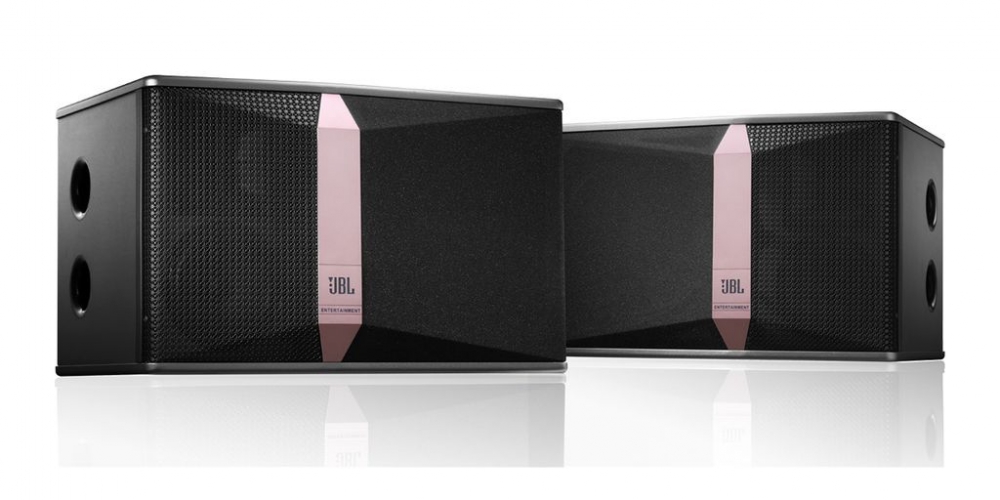

Ki510

10 Inch 3-Way Full Range Loudspeaker System

Ki510 is a full-range speaker designed specifically for KTV applications. The 3-way speaker combines a 10” woofer, a 5” squawker and a 1” aluminum dome tweeter and is able to handle continuous power of 350 Watts.

The high-power10” woofer features a long fiber pulp cone and pure nitrile butadiene rubber surround and provides necessary stiffness and capacity to withstand the tremendous accelerating force from the motor. The 5” paper cone squawker and the 1” aluminum dome tweeter optimizes middle and high range reproduction and guarantees non-compromised sound quality for the whole speaker system.

Ki510 takes on a bold and unique appearance. Its asymmetric cool brown enclosure echoes the deliberately-defined three-way system. The clear-cut outlines indicate the quality and performance the speaker possesses. The front panel comprises a paillette fabric and a snow-flake patterned grille and highlights a rose gold strip. The trendy enclosure creates an air of elegance and professionality.

As a showcase of JBL’s addiction to technology, JBL ENTERTAINMENT illuminate its logo through PSL (Passive Sound Lighting) Technology. Whether you are enjoying your time singing loud, or appreciating the music sitting still, you will see JBL sound with your naked eyes.

10英寸3路​​全頻揚聲器系統

Ki510是專為KTV應用而設計的全頻揚聲器。三路揚聲器結合了10“低音揚聲器，5”中頻揚聲器和1“鋁質圓頂高音揚聲器，能夠處理350瓦的連續功率。

高功率10“低音單元採用長纖維紙漿錐體和純丁腈橡膠環繞，並提供必要的剛度和承受來自電機的巨大加速力的能力。5“紙錐中頻器和1”鋁質圓頂高音揚聲器優化了中高頻範圍的再現，保證了整個揚聲器系統的無損音質。

Ki510呈現出大膽而獨特的外觀。它的不對稱的酷棕色外殼呼應了故意定義的三路系統。清晰的輪廓表示說話者擁有的質量和表現。前面板包括一個亮片織物和雪花圖案的格柵，並突出玫瑰金條。時尚的外殼營造出優雅和專業的氣氛。

作為JBL對技術上癮的展示，JBL ENTERTAINMENT通過PSL（被動聲音照明）技術照亮其標誌。無論你是享受時間大聲歌唱還是欣賞靜坐的音樂，你都會用肉眼看到JBL的聲音。

FEATURES

• A true 3-way full range loudspeaker designed for KTV applications
• Linear suspension and vented yoke design for 10” woofer effectively reduce distortion and power compression
• Optimized 5” paper cone squawker realizes better midrange vocal reproduction
• 1” aluminum dome tweeter delivers optimal high frequency response
• Precision engineered crossover for accurate and optimal frequency response
• Built-in protection circuit protects high frequency driver from excess power without interrupting performance
• Venting port is designed to the side for versatile installations
• PSL (Passive Sound-Lighting) Technology indicates JBL devotion to scientific advancement

特徵

• 為KTV應用設計的真正的3路全頻揚聲器
• 10“低音揚聲器的線性懸掛和通風支架設計有效減少了失真和功率壓縮
• 優化的5“紙錐中音器實現更好的中音聲樂再現
• 1“鋁球頂高音揚聲器提供最佳的高頻響應
• 精確設計的分頻器，實現精確和最佳的頻率響應
• 內置的保護電路可以保護高頻驅動器免受過量的電力衝擊而不中斷性能
• 通風口設計用於多功能安裝
• PSL（無源聲光）技術表明JBL致力於科學進步

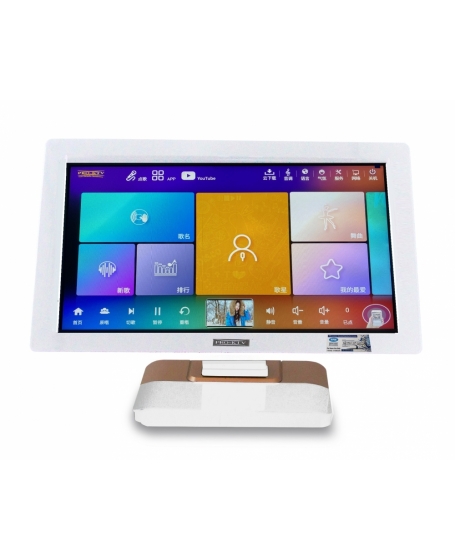

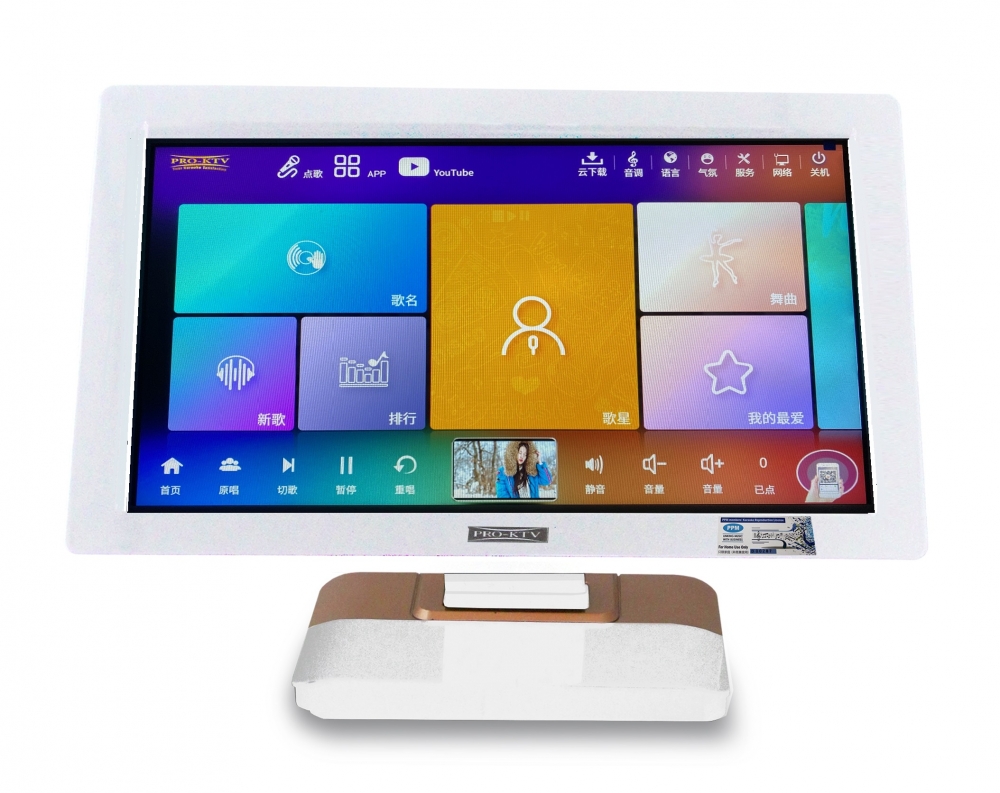

Pro Ktv KV1950

All In One KOD Player 4000GB
Ultimate Karaoke-On-Demand System

New Advance features:

With 19.5” Built In LED Touch Screen
Unlimited cloud songs library​
Song Reverse & Forward
Connect HP by QR code
Singer scoring
Huge Volume Song Storage (4000GB)
Select song Via Touch Screen Monitor Or Smart Devices
Convinient And Quicker
Song Order Function Up to 200 Songs On Queue
New Songs Update Via Free Cloud Download System
Voice Command
Key Control
Internet Browser
Youtube

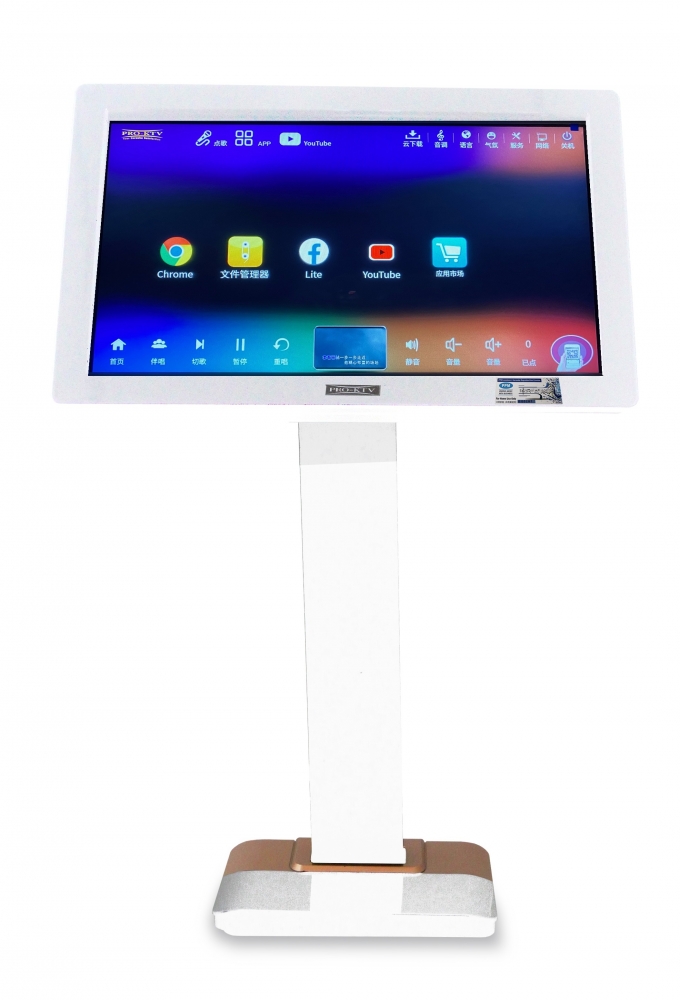

Floor Standing Or Desk Top Version
Preloaded 57000 Songs
400000++ Songs Using Wifi
88v Processor
One year Warranty

Pro Ktv KV1950正版一体机 4000GB 智能点歌机功能：
带19.5”电容触摸屏
云端歌库更加齐全
免费新歌下载
歌曲倒带，快进
云端加歌即唱
手机扫码点歌
歌曲评分
触摸屏或手机点歌
云端下载速度更快
语音点歌
音调升降功能
容易安装方便携带
Youtube
刷屏上网
可选择站立式或桌面式
4000GB硬盘 (57000 歌曲)
400000++ 歌曲，需有Wifi
88v主板
一年保用

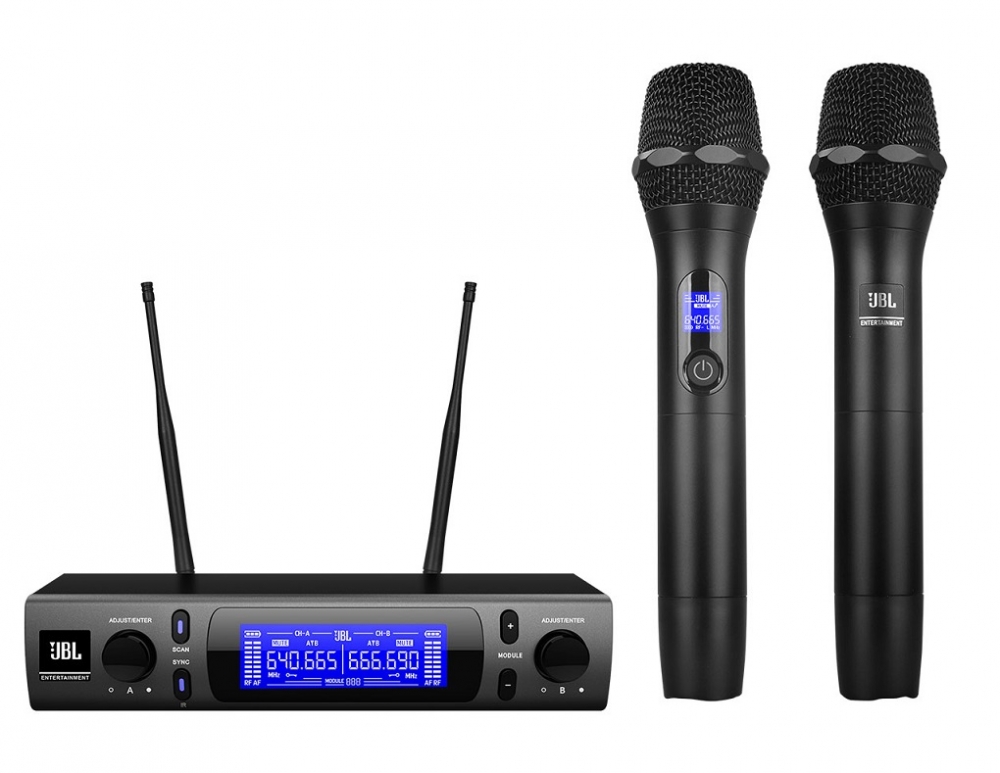

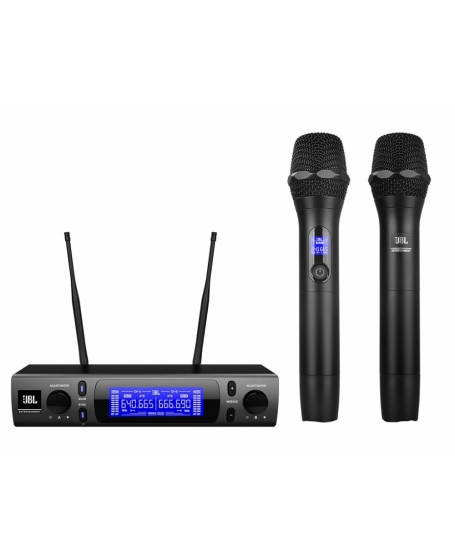

VM300

Wireless Microphone System

VM300 is the first dual channel UHF wireless microphone system designed to complement the acclaimed JBL karaoke sound. The system includes one SR300 receiver and two HT300 hand-held transmitters and provides the ultra-clarity, rich vocal and interference-free transmission needed in karaoke entertainment or professional sound applications.

Specially-tuned JBL KTV sound
Acoustically, the VM300 system is specially tuned to complement the proven JBL KTV sound, in particular the JBL Entertainment karaoke loudspeakers. When collaborating with these acclaimed speakers, VM300 is able to deliver easy and smooth singing experience and unexpected sound performance - rich vocal, transparent mid-range and subtle high notes – whether you croon or belt out.

Reliable Performance
Trouble-free performance is one of the aspects any karaoke operator may look into when selecting a wireless microphone system for their multi karaoke rooms. The VM300 system transmits signal in UHF band of 640 MHz – 690 MHz and offers 200 channel/frequency selection, as a result, interference is not a concern while multiple VM300 systems are operating simultaneously in different rooms.

Simplicity Beyond Expectation
The VM300 system offers a wide range of features and aims to make the setup and use quick and easy. Preset module selects a pair of frequencies or channels for both Ch-A and Ch-B. Auto Scan examines for unused frequencies/channels automatically without the need of manual search. Shake to Sync works in the brand of 2400 MHz – 2483.5 MHz and allows concurrent frequency synchronization of two HT300s. Auto Mute, Auto Wakeup, Auto Sleep ensure energy saving and reduce the noise impact to the system.

Features

• Preset module selects a pair of frequencies or channels for both Ch-A and Ch-
• Auto Scan searches for clean frequencies/channels automatically
• Shake to Sync allows frequency synchronization of two HT300s simultaneously
• Auto Mute mutes the HT300 automatically when it stays static for about 3 seconds.
• Auto Wakeup awakes the HT300 automatically when it is in motion.
• Auto Sleep powers off the HT300 automatically when it stays static for about 8 minutes.

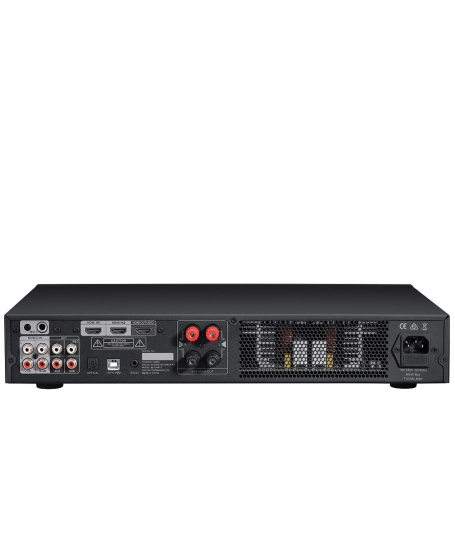

JBL BEYOND3 Karaoke Amplifier
Rated Power    2CH 360W at 8Ω
Amp Type    Class-D
Display    2.8-inch LCD
Frequency Response    20Hz - 20kHz, +1/-1dB (RCA Input)
50Hz - 14kHz, +1.5/-3dB (1/4" TRS Input)
Total Harmonic Distortion (THD)    <= 1%, 20Hz - 20kHz
Signal to Noise Ratio (below rated power 20 Hz to 20 kHz, A-Weighted)    >=85dB (RCA Input)
>=75dB (1/4" TRS Input)
Input Impedance    3.2kΩ
Music Input    VOD (RCA pair) x1
BGM (RCA pair) x1
HDMI x2
Optical x1
Bluetooth x1
USB Playback x1
Microphone Input    Front (TRS) x2
Rear (TRS) x1
Output Connectors    ARC (HDMI) x 1
AUX (RCA pair) x 1
Recording output (RCA) x1
Subwoofer output (RCA) x1
Speaker output (Binding Post) x2
Control Connectors    PC (USB Type B) x1
RS232 (3.5mm socket) x1
Dimensions (w x h x d)    16.85" x 2.99" x 12.4" (428mm x 76mm x 315mm)
Net Weight    12.79lb (5.8kg)
Shipping Weight    16.31lb (7.4kg)

JBL Ki510 Karaoke Speaker
System Type    10′′, 3-way, bass-reflex
Frequency Range (-10 dB) *1    58 Hz - 20 kHz
Frequency Response (-3 dB) *1    69 Hz - 16 kHz
Sensitivity (1w/1m) *1    92 dB
Nominal Impedance    8 Ohms
Maximum SPL    117 dB (123 dB peak)
Power Rating *2
(Continuous/Program/Peak)    350 W/700 W/1400 W
Coverage Pattern    80° × 60° (H × V)
Dimensions (H × W × D)    310 mm × 510 mm × 342 mm
12.2 inch × 20 inch × 13.4 inch
Net Weight    24.8 Kg (54.7 lbs)
LF Driver    1 × 10′′ woofer
MF Driver    1 × 5′′ squawker
HF Driver    1 × 1′′ aluminum dome tweeter
Input Connectors    Binding post
Enclosure Construction    Vinyl covered15 mm MDF

Pro Ktv KV1950
Size  ~  500mm(W) - 305mm(H)
Weight  ~  7 kg
Measure  ~  Dv 12v
Video Output  ~ NTSC,75Ω,1VP-P
Sound Output  ~  Setreo R/L,1KΩ, 20Hz - 20KHz
Static Noise  ~  -105dB
IR Reception  ~  INFR , 38KHz
PS/2 Device Input  ~  Mouse
VGA Output  ~  RGB ,75Ω, Monitor
Externally Connected IR Receiver  ~  INFR , 38KHz

JBL VM300
SYSTEM
FREQUENCY BAND: 640 MHz – 690 MHz
CHANNELS: 200
OPERATING RANGE: ≈ 50 meters
FREQUENCY INCREMENT: 250 kHz
FREQUENCY BANDWIDTH: 50 MHz
S/N RATIO: ≥ 50 dB (including pickup, according to China
GB standard)
SHIPPING WEIGHT: 2.5 kg
DIMENSIONS (L × W × D): 480 × 340 × 70 mm
SR300
FREQUENCY DEVIATION: ±10 kHz
FREQUENCY PREPARATION: PLL synthesized control
RECEIVING MODE: CPU controlled selection + Pilot tone detection
MUTE MODE: Mute & Lock Loop Circuit
DISPLAY: LCD
POWER REQUIREMENT: 12 VDC, 1.25 A
AUDIO OUTPUT CONNECTOR: 2 × balanced XLR
1 × 6.35mm unbalanced TS
HT300
FREQUENCY PREPARATION: PLL synthesized control
TRANSMISSION POWER: ≤ 30 mW
TRANSMISSION: CPU controlled selection + Pilot tone detection
FREQUENCY DEVIATION: ±10 kHz
DISPLAY: LCD
PICKUP CARTRIDGE: Dynamic
RF OUTPUT POWER: High, Low
