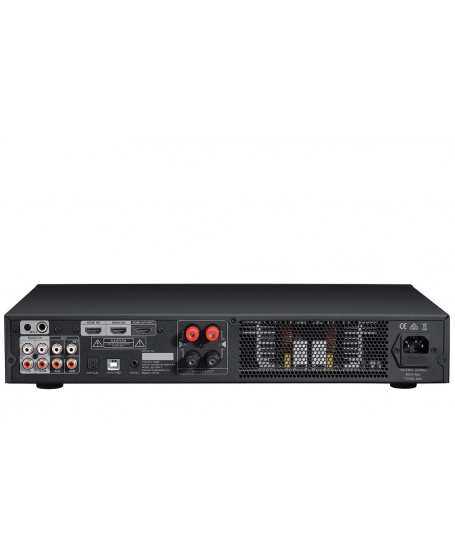

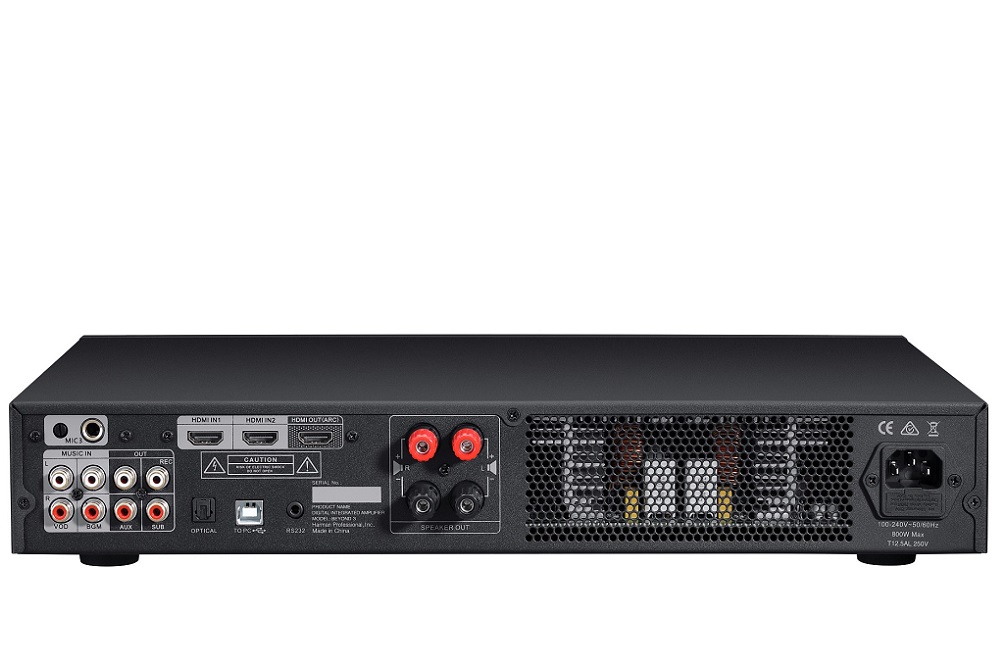

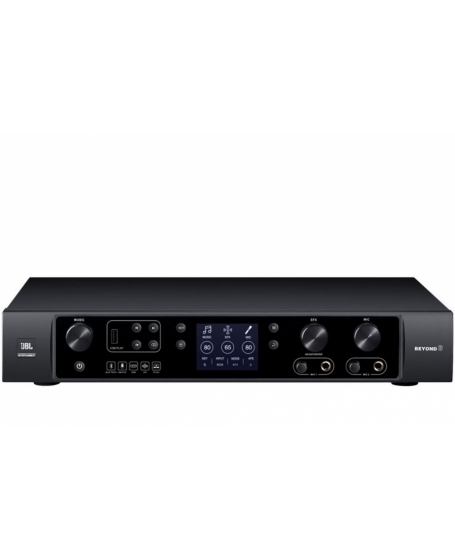

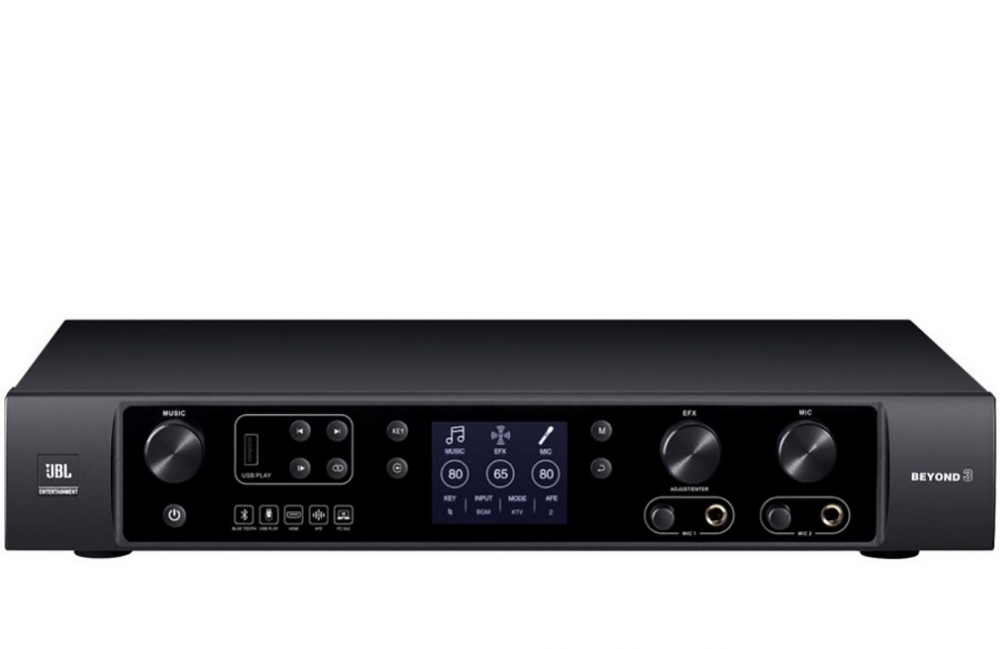

BEYOND3

360-watt, Two-channel Digital Integrated Amplifier

The JBL BEYOND3 is designed for small-club and smart-home karaoke applications that demand signature JBL sound quality and comprehensive processing features in an affordable, easy-to-use package.

BEYOND series amplifiers deliver unforgettable karaoke experiences, thanks to signature JBL Entertainment effects including pitch shift, echo, reverb and EQ, with feedback protection and customizable presets. The series continues the tradition of excellence that’s made JBL the leading brand in karaoke systems, featuring top-grade components and materials and robust, efficient 360-watt, two-channel Class D amplification.

Systems look as great as they sound, with a sleek, stylish design and an illuminated JBL Entertainment logo that lets customers and venue owners showcase superior JBL sound quality.

The BEYOND3 provides exceptional karaoke sound at an affordable price point and is built to JBL’s uncompromising performance standards. It seamlessly matches a range of karaoke systems.

Features

• High-efficiency 360-watt, two channels Class D amplifier
• Signature JBL karaoke sound digital processing enhances the singing experience in karaoke applications, with pitch change, echo and reverb
• 8 user-definable presets
• 15-band parametric EQ on microphone and music inputs
• Three-level Auto Shift Frequency Feedback Suppression provides clean, clear vocals
• Two RCA inputs and one optical input
• Two HDMI inputs and one HDMI output (ARC)
• Bluetooth and USB inputs offer flexible music connectivity

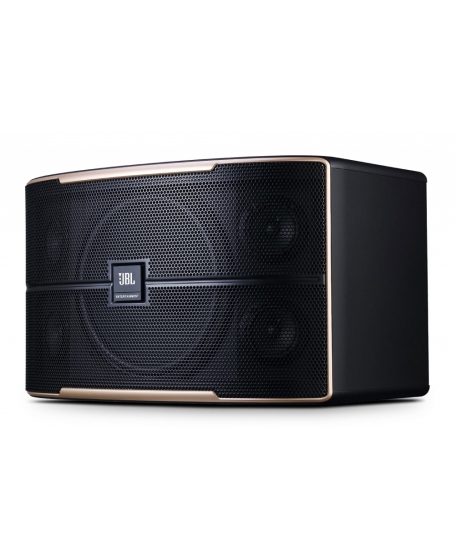

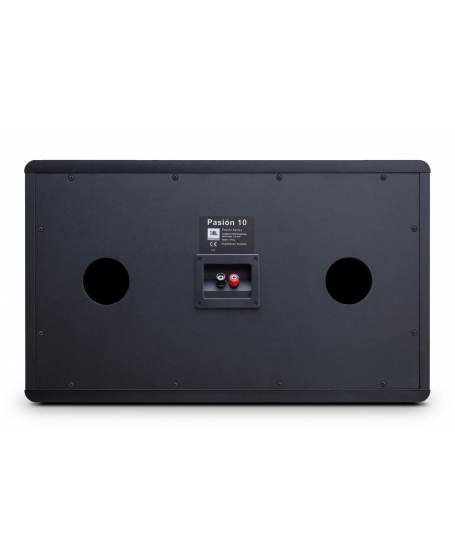

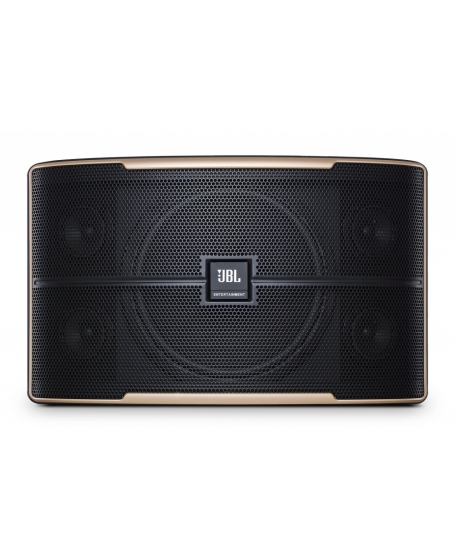

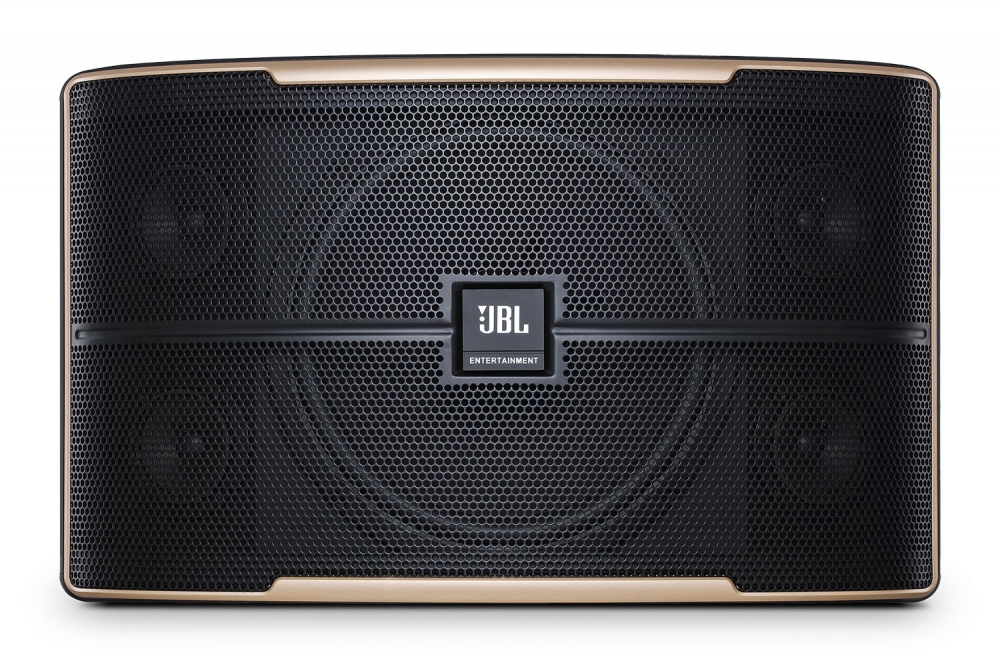

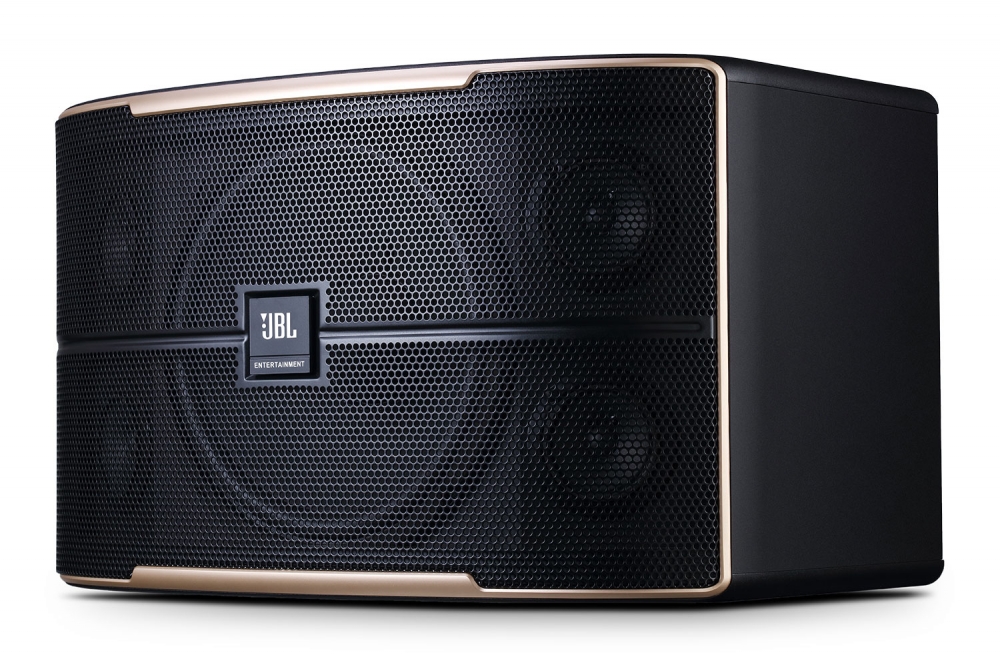

Pasion 10

Passive 10” Full-Range Karaoke Loudspeaker

The Pasión Series marks JBL’s next generation of karaoke speakers. Delivering JBL’s legendary performance, the Pasión 10 is a passive 10” full-range karaoke loudspeaker that is designed for sound reinforcement for commercial karaoke applications. As a premium KTV speaker, the Pasión 10 continues JBL’s pedigree as a leading karaoke-speaker brand.

With exceptional sonic clarity, the Pasión 10 is perfect for a wide array of karaoke venues and applications. The Pasión 10 features JBL’s signature karaoke tuning that offers outstanding vocal and bass performance for KTV environments. Plus, the speaker features four 3” high-efficiency tweeters that provide crystal-clear highs and mids, while the specially-designed 10” woofer offers high-power handling, low distortion and minimum power compression.

In addition to unmatched audio performance, the Pasión 10 features a premium, sleek design. Adding to the stylish look and feel, the loudspeaker features an illuminated JBL Entertainment logo, which allows venue owners to showcase the JBL brand and system quality. Altogether, with excellent audio performance and striking aesthetics, the JBL Pasión 10 enhances KTV venues and provides karaoke-goers a memorable karaoke experience.

• Passive 3-way, bass-reflex full-range karaoke loudspeaker
• 10” low-frequency woofer, dual 3” high-frequency tweeters and dual 3” mid-range tweeters
• Specially designed low-frequency woofer fitted with demodulating aluminum ring for high-power handling, low distortion and minimum power compression
• Rated power of 200W and sensitivity of 90db offer unmatched output and sound quality
• JBL signature karaoke tuning provides excellent vocal and bass performance
• Sleek, stylish and modern design that is well-suited for a wide array of interior room designs
• PSL (Passive Sound Lighting) Technology illuminates the JBL Entertainment logo

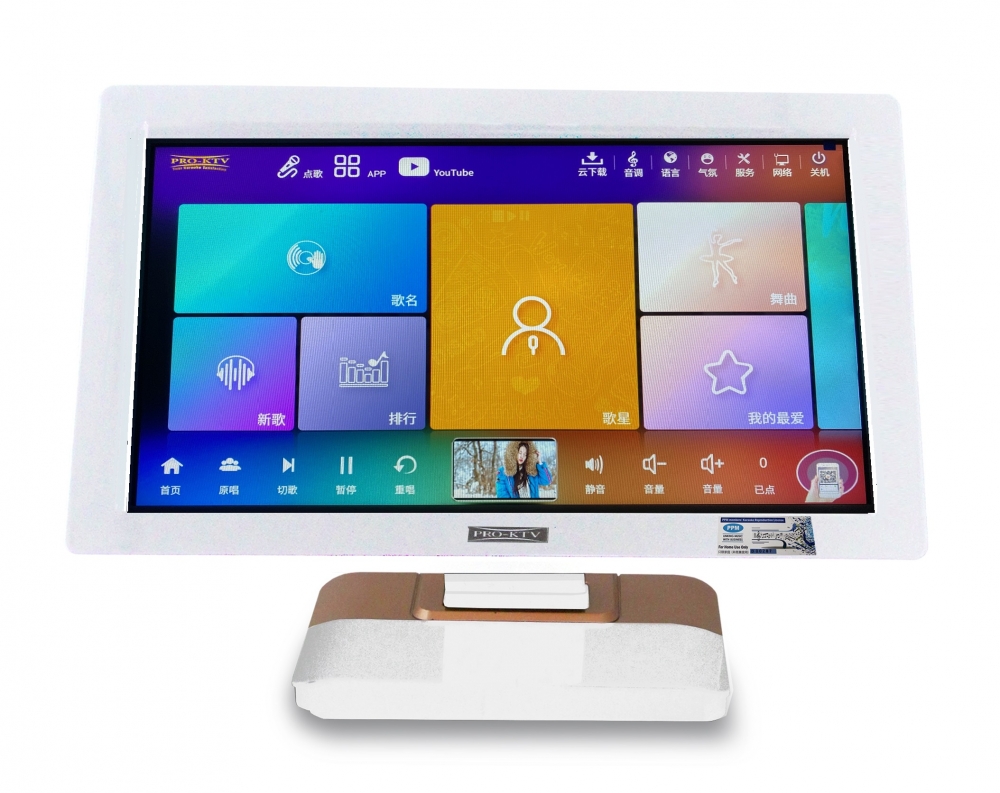

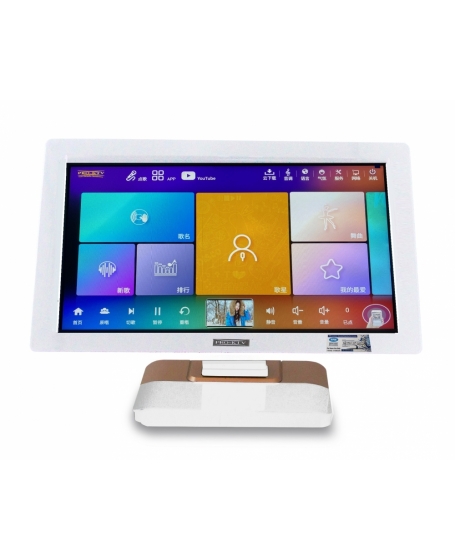

Pro Ktv KV1950

All In One KOD Player 4000GB
Ultimate Karaoke-On-Demand System

New Advance features:

With 19.5” Built In LED Touch Screen
Unlimited cloud songs library​
Song Reverse & Forward
Connect HP by QR code
Singer scoring
Huge Volume Song Storage (4000GB)
Select song Via Touch Screen Monitor Or Smart Devices
Convinient And Quicker
Song Order Function Up to 200 Songs On Queue
New Songs Update Via Free Cloud Download System
Voice Command
Key Control
Internet Browser
Youtube

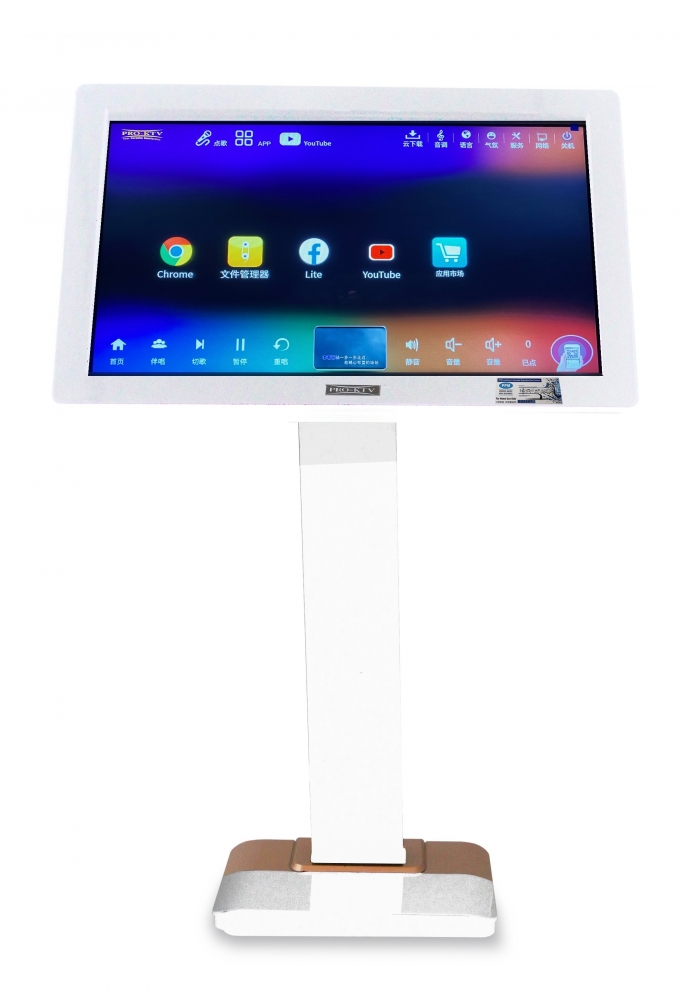

Floor Standing Or Desk Top Version
Preloaded 57000 Songs
400000++ Songs Using Wifi
88v Processor
One year Warranty

Pro Ktv KV1950正版一体机 4000GB 智能点歌机功能：
带19.5”电容触摸屏
云端歌库更加齐全
免费新歌下载
歌曲倒带，快进
云端加歌即唱
手机扫码点歌
歌曲评分
触摸屏或手机点歌
云端下载速度更快
语音点歌
音调升降功能
容易安装方便携带
Youtube
刷屏上网
可选择站立式或桌面式
4000GB硬盘 (57000 歌曲)
400000++ 歌曲，需有Wifi
88v主板
一年保用

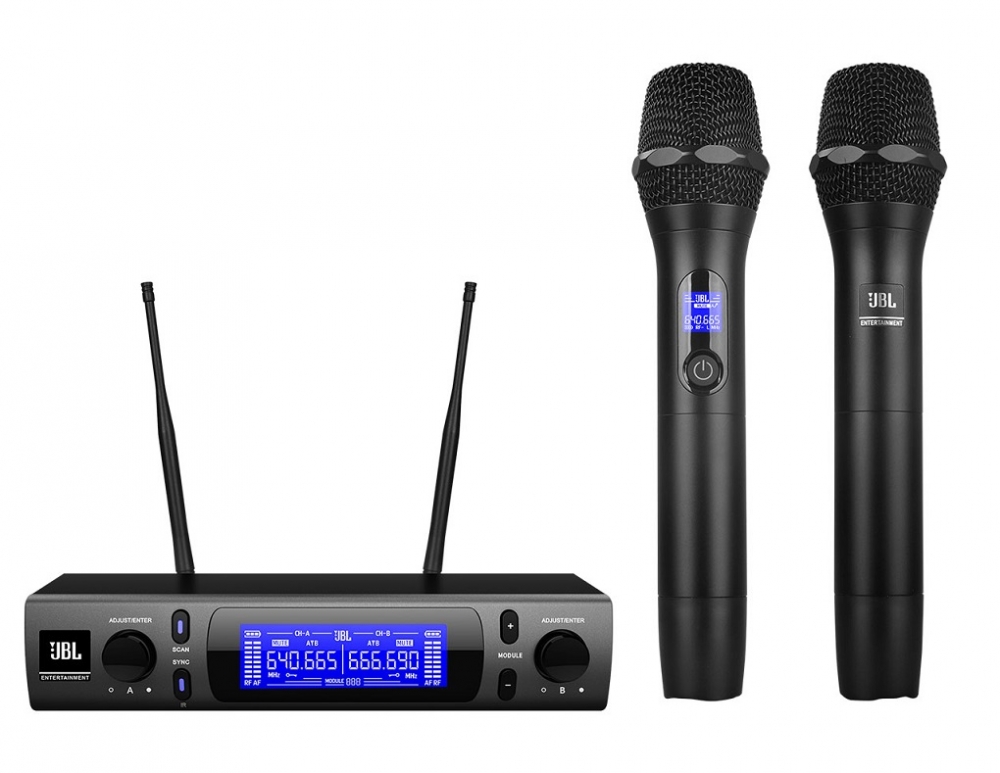

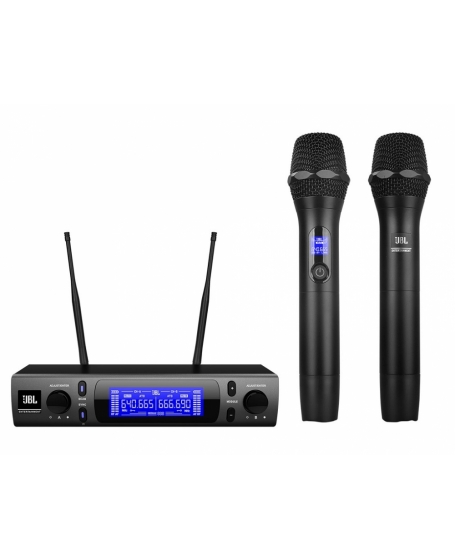

VM300

Wireless Microphone System

VM300 is the first dual channel UHF wireless microphone system designed to complement the acclaimed JBL karaoke sound. The system includes one SR300 receiver and two HT300 hand-held transmitters and provides the ultra-clarity, rich vocal and interference-free transmission needed in karaoke entertainment or professional sound applications.

Specially-tuned JBL KTV sound
Acoustically, the VM300 system is specially tuned to complement the proven JBL KTV sound, in particular the JBL Entertainment karaoke loudspeakers. When collaborating with these acclaimed speakers, VM300 is able to deliver easy and smooth singing experience and unexpected sound performance - rich vocal, transparent mid-range and subtle high notes – whether you croon or belt out.

Reliable Performance
Trouble-free performance is one of the aspects any karaoke operator may look into when selecting a wireless microphone system for their multi karaoke rooms. The VM300 system transmits signal in UHF band of 640 MHz – 690 MHz and offers 200 channel/frequency selection, as a result, interference is not a concern while multiple VM300 systems are operating simultaneously in different rooms.

Simplicity Beyond Expectation
The VM300 system offers a wide range of features and aims to make the setup and use quick and easy. Preset module selects a pair of frequencies or channels for both Ch-A and Ch-B. Auto Scan examines for unused frequencies/channels automatically without the need of manual search. Shake to Sync works in the brand of 2400 MHz – 2483.5 MHz and allows concurrent frequency synchronization of two HT300s. Auto Mute, Auto Wakeup, Auto Sleep ensure energy saving and reduce the noise impact to the system.

Features

• Preset module selects a pair of frequencies or channels for both Ch-A and Ch-
• Auto Scan searches for clean frequencies/channels automatically
• Shake to Sync allows frequency synchronization of two HT300s simultaneously
• Auto Mute mutes the HT300 automatically when it stays static for about 3 seconds.
• Auto Wakeup awakes the HT300 automatically when it is in motion.
• Auto Sleep powers off the HT300 automatically when it stays static for about 8 minutes.

JBL BEYOND3 Karaoke Amplifier
Rated Power    2CH 360W at 8Ω
Amp Type    Class-D
Display    2.8-inch LCD
Frequency Response    20Hz - 20kHz, +1/-1dB (RCA Input)
50Hz - 14kHz, +1.5/-3dB (1/4" TRS Input)
Total Harmonic Distortion (THD)    <= 1%, 20Hz - 20kHz
Signal to Noise Ratio (below rated power 20 Hz to 20 kHz, A-Weighted)    >=85dB (RCA Input)
>=75dB (1/4" TRS Input)
Input Impedance    3.2kΩ
Music Input    VOD (RCA pair) x1
BGM (RCA pair) x1
HDMI x2
Optical x1
Bluetooth x1
USB Playback x1
Microphone Input    Front (TRS) x2
Rear (TRS) x1
Output Connectors    ARC (HDMI) x 1
AUX (RCA pair) x 1
Recording output (RCA) x1
Subwoofer output (RCA) x1
Speaker output (Binding Post) x2
Control Connectors    PC (USB Type B) x1
RS232 (3.5mm socket) x1
Dimensions (w x h x d)    16.85" x 2.99" x 12.4" (428mm x 76mm x 315mm)
Net Weight    12.79lb (5.8kg)
Shipping Weight    16.31lb (7.4kg)

JBL Pasion 10
SYSTEM TYPE: 10", 3-way, bass-reflex
FREQUENCY RANGE (-10 dB)1: 50 Hz - 17 kHz
FREQUENCY RESPONSE (±3 dB)1: 65 Hz - 14 kHz
SENSITIVITY (1W@1M)1: 90 dB
NOMINAL IMPEDANCE: 8 Ohms
MAXIMUM SPL2: 113 dB (119 dB peak)
POWER RATING3: 200 W/400 W/800 W
(CONTINUOUS/PROGRAM/PEAK)
COVERAGE PATTERN: 120° × 90° (H × V)
DIMENSIONS (H × W × D): 292 mm × 521 mm × 320 mm
11.5 inch × 20.5 inch × 12.6 inch
NET WEIGHT: 11 Kg (24.3 lbs)
LF DRIVER: 1 × 10" Woofer
HF DRIVER: 4 × 3" Tweeter
INPUT CONNECTORS: Binding Post
ENCLOSURE CONSTRUCTION: Vinyl covered MDF

Pro Ktv KV1950
Size  ~  500mm(W) - 305mm(H)
Weight  ~  7 kg
Measure  ~  Dv 12v
Video Output  ~ NTSC,75Ω,1VP-P
Sound Output  ~  Setreo R/L,1KΩ, 20Hz - 20KHz
Static Noise  ~  -105dB
IR Reception  ~  INFR , 38KHz
PS/2 Device Input  ~  Mouse
VGA Output  ~  RGB ,75Ω, Monitor
Externally Connected IR Receiver  ~  INFR , 38KHz

JBL VM300
SYSTEM
FREQUENCY BAND: 640 MHz – 690 MHz
CHANNELS: 200
OPERATING RANGE: ≈ 50 meters
FREQUENCY INCREMENT: 250 kHz
FREQUENCY BANDWIDTH: 50 MHz
S/N RATIO: ≥ 50 dB (including pickup, according to China
GB standard)
SHIPPING WEIGHT: 2.5 kg
DIMENSIONS (L × W × D): 480 × 340 × 70 mm
SR300
FREQUENCY DEVIATION: ±10 kHz
FREQUENCY PREPARATION: PLL synthesized control
RECEIVING MODE: CPU controlled selection + Pilot tone detection
MUTE MODE: Mute & Lock Loop Circuit
DISPLAY: LCD
POWER REQUIREMENT: 12 VDC, 1.25 A
AUDIO OUTPUT CONNECTOR: 2 × balanced XLR
1 × 6.35mm unbalanced TS
HT300
FREQUENCY PREPARATION: PLL synthesized control
TRANSMISSION POWER: ≤ 30 mW
TRANSMISSION: CPU controlled selection + Pilot tone detection
FREQUENCY DEVIATION: ±10 kHz
DISPLAY: LCD
PICKUP CARTRIDGE: Dynamic
RF OUTPUT POWER: High, Low
