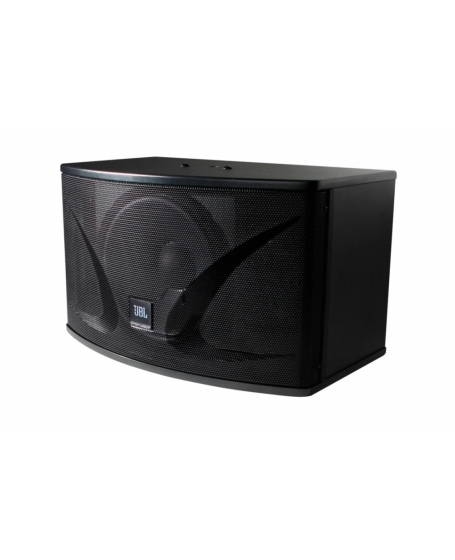

Ki112

12 Inch 3-Way Full Range Loudspeaker System

The Ki112 is a 3-way full-range speaker designed specially for karaoke market needs. The Ki112 utilizes a single 12” woofer, two 3” cone midrange drivers, and two 3” cone tweeters.12″ woofer with 2.5″ voice coil provides higher power handling.

Features

• 12″ woofer with 2.5″ voice coil provides higher power handling
• Linear suspension and vented yoke design for woofer effectively reduces the distortion and power compression
• Two 3″ cone midrange drivers and two 3″ cone tweeters for better vocal reproduction
• Precision engineered crossover divides accurately and optimizes the three-band frequency response
• Enclosure constructed of MDF (Medium Density Fiberboard) with vinyl laminated finish
• Built-in protection circuit engineered specifically to protect the tweeter without interrupting performance
• Two colors for multiple applications: Black and JBL ENTERTAINMENT 10th anniversary exclusive edition

Specifications
System Type    12″, 3-way, bass-reflex
Frequency Range (-10dB)    45 Hz - 18 KHz
Frequency Response (±3 dB)    60 Hz - 16 KHz
Sensitivity    90 dB
Nominal Impedance    8 Ohms
Maximum SPL (1m)    114 dB (120 dB peak) @ 1m
Power Rating(Continuous/Program/Peak)    250 W/500 W/1000 W
Recommended Amplifier Power    300 W - 400 W @ 8 Ohms
Coverage Pattern    150° x 100° (H x V)
Dimensions (H x W x D)    350 mm x 586 mm x 368 mm 13.8 in x 23.1 in x 14.5 in
Net Weight (each)    17.8 Kg (39.2 lbs)
LF Driver    1 x 12″ Woofer
MF Driver    2 x 3″ paper cone midrange drivers
HF Driver    2 x 3″ paper cone tweeters

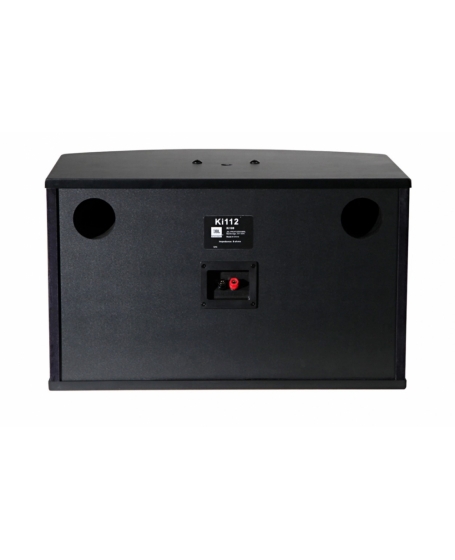

Input Connectors    Binding post
ENCLOSURE CONSTRUCTION    Vinyl covered 15 mm MDF
Suspension Attachment    2 x M10 threaded hardware
