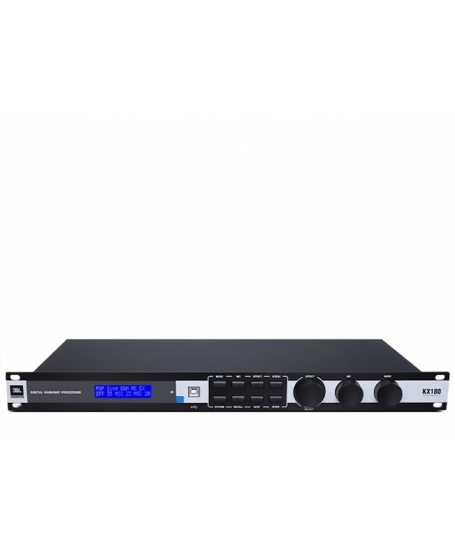

JBL KX180 Karaoke Processor

KX180

Professional-Grade Digital Processor

KX180 is a professional-grade digital processor designed for karaoke applications and provides a full set of audio processing for enhancing or fine-tuning music and voice. KX180 is equipped with three 6.5mm connectors for microphone input, two groups of RCA connectors and an optical connector for music input, and one pair of RCA connectors for recording out. It supports storage and recall of up to 10 presets and manual or auto control of Dance or Sing mode.

FEATURES

• Two groups of microphone inputs
• 15-band PEQ and compressor for each Mic Input
• Three levels of Feedback Inhibition for each Mic Input
• Independent control of Echo and Reverberation
• Two pairs of RCA connectors and an Optical connector for Music Input
• 15-band PEQ for Music Input
• Three levels of Excitement for Music Input
• Six output channels: Right, Left, Centre, Sub, Surround Right and Surround Left.
• 10-band PEQ for Right and Left Outputs
• 7-band PEQ for Surround and Centre Outputs
• 5-band PEQ for Subwoofer Output
• Compressor provided for each output channel
• Two independent REC channels can be paired into stereo
• Authority control for front panel controls
• Up to 10 presets can be saved
• Dance or Sing mode of each microphone input channel can be switched manually or automatically

APPLICATIONS

• Professional tool designed for karaoke applications.

SPECIFICATIONS
^
Mic Input Type    3 x 1/4” unbalanced
Impedance    7.5K Ohms
EIN    <-110dBu, 20KHz Bandwidth
Level Control    –∞ to +0.8dBu
Line Input Type    RCA unbalanced, left & right
Impedance    10K Ohms
XLR Output Type    Unbalanced
Level    0dBu Nominal, +14.2dBu Maximum
Impedance    50 Ohms
RCA Output Type    Unbalanced, left & right
Level    ﹢17.6dBu Maximum@Mic input,
+13.4dBu Maximum@Music input
Impedance    115 Ohms
Frequency Response    20Hz~20KHz ≤ ±1.0dB
THD+N    <0.06% 20Hz to 20KHz
Dynamic Range    >100dB
A/D Conversion    24bit, 48KHz
DSP Processor    High performance 32-bit/40-bit floating-point processor
Carrier Frequency    38KHz
Format    NEC
Distance    Device dependent
Angle    Device dependent
Computer Connection    USB 2.0
AC Power Supply    AC 220V/50Hz
Dimensions (W X D X H)    485 X 205 X 47mm
Net Weight    2.8Kg
Gross Weight    3.47Kg
