JBL Stage A180 5.0 Speaker Package

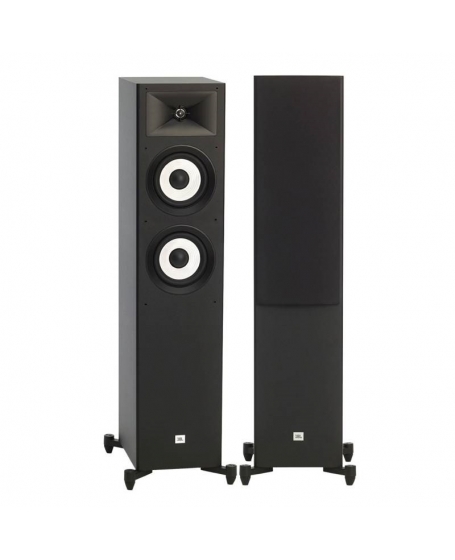

JBL Stage A180 Floor Standing Speakers

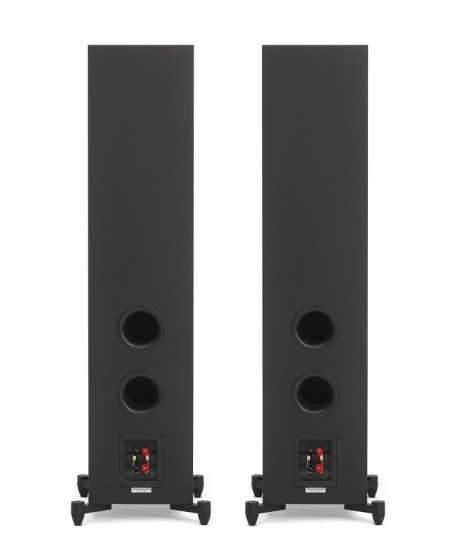

JBL's new Stage A180 floor standing speakers feature a triple driver, 2.5-way configuration with dual rear firing bass reflex ports and out-rigger style feet.

The A180 speakers are the mid-range floor standing speakers of JBL's Stage series, which strike a pleasing balance between big commanding sound, but in a slightly smaller footprint to it's larger brother the A190. Floor standing speakers let you enjoy a raised listening position, larger cabinets and bi-amping capability. All-in-all, a bigger, richer front sound stage.

Key Features
- 2.5 way, dual 6.5" woofers, 1" aluminium tweeter
- JBL engineered high definition imaging waveguide
- Polycellullose woofers deliver more uniform pistonic motion for deeper, tighter bass
- Recommended Power: 20 - 225 watts
- Frequency Response: 40Hz - 40kHz

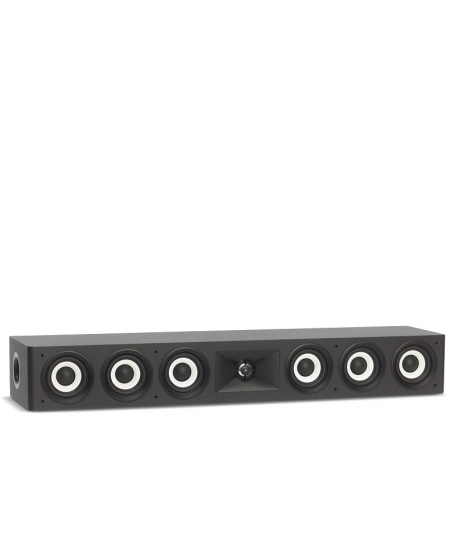

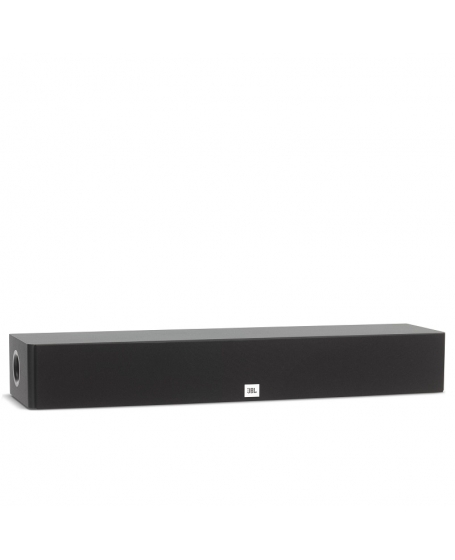

JBL Stage A135C Centre Speaker

The A135C centre speaker features a total of six 3" drivers, 2-way configuration with a 1" aluminium dome tweeter and a high-definition imaging waveguide design.

The slimline design of the A135C looks great under a TV or projector screen.

Key Features
- 2 way, six 3" woofers, 1" aluminium tweeter
- Polycellullose woofers deliver more uniform pistonic motion for deeper, tighter bass
- Recommended Power: 20 – 150 Watts
- Frequency Response: 75Hz – 40kHz

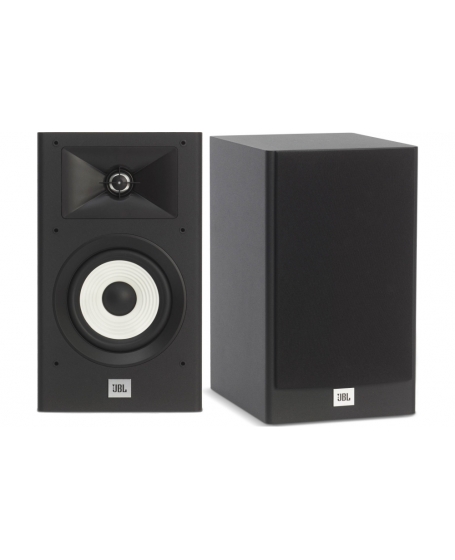

JBL Stage A130 Bookshelf Speakers

JBL's new Stage A130 bookshelf speakers are the big brothers to the A120s. Despite taking up very little space in a room, these speakers perform excellently thanks to JBL's technology and unique design.

Key Features
- 2 way, 5.25" woofer, 1" aluminium tweeter
- JBL engineered high definition imaging waveguide
- Polycellullose woofers deliver more uniform pistonic motion for deeper, tighter bass
- Recommended Power: 20 - 125 watts
- Frequency Response: 55Hz - 40kHz

A180 Floorstanding
2.5 way, dual 6.5", 1" aluminum tweeter floor standing loudspeakerYes
2 x 6.5" (165mm) Polycellulose Low-Frequency WooferYes
New High Definition Imaging (HDI) WaveguideYes
1” (25mm) Aluminum Dome TweeterYes
Recommended Amplifier Power20 – 225W
Frequency Response40Hz – 40kHz
Sensitivity90dB @ 1M, 2.83V
Nominal Impedance6 Ohms
Crossover Frequencies1.4kHz, 2.0kHz
Enclosure TypeBass-Reflex via Rear-Firing Tuned Port
Dimensions (W x D x H)230 x 295 x 1000mm
Weight38.03 lbs (17.25kg)

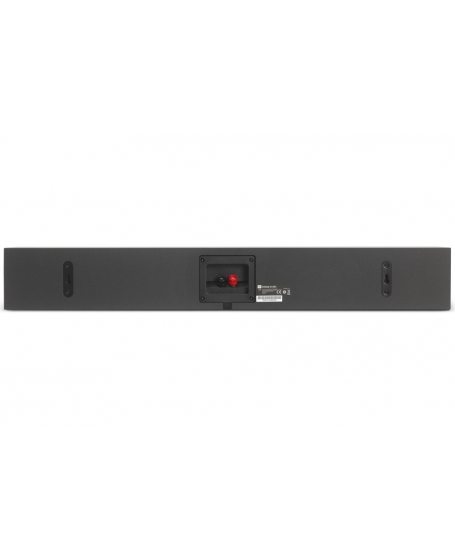

A135C Center
2 way, 6 x 3" woofer, 1" aluminum tweeter center loudspeakerYes
6 x 3" (76mm) Polycellulose Low-Frequency WooferYes
New High Definition Imaging (HDI) WaveguideYes
1” (25mm) Aluminum Dome TweeterYes
Recommended Amplifier Power20 – 150W
Frequency Response75Hz – 40kHz
Sensitivity90dB @ 1M, 2.83V
Nominal Impedance6 Ohms
Crossover Frequencies2.5kHz
Enclosure TypeBass-Reflex via Rear-Firing Tuned Port
Dimensions (W x D x H)745 x 166 x 104mm
Weight16.42 lbs (7.45kg)

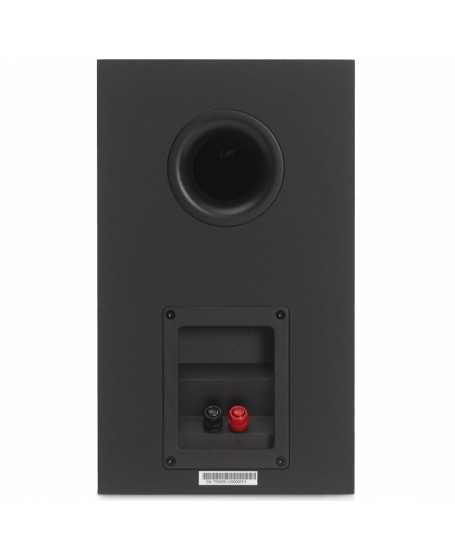

A130 Bookself Speaker
2 way, 5.25" woofer, 1" aluminum tweeter bookshelf loudspeakersYes
5.25" (133mm) Polycellulose Low-Frequency WooferYes
New High Definition Imaging (HDI) WaveguideYes
1” (25mm) Aluminum Dome TweeterYes
Recommended Amplifier Power20 – 125W
Frequency Response55Hz – 40kHz
Sensitivity86dB @ 1M, 2.83V
Nominal Impedance6 Ohms
Crossover Frequencies3.2kHz
Enclosure TypeBass-Reflex via Rear-Firing Tuned Port
Dimensions (W x D x H)190 x 230 x 321mm
Weight (each)12.02 lbs (5.45kg)
