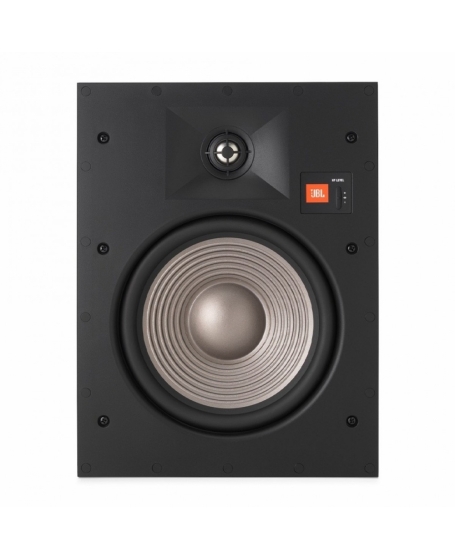

Studio 2 8IW

8-Inch In-Wall Loudspeaker

The JBL Studio 2 8IW fills your room with signature JBL sound without taking up valuable space. A 1-inch CMMD® Lite tweeter is mated with a High-Deifnition Imaging waveguide for wide coverage, low-distrotion, and accurate sound reproduction. An 8-inch PolyPlas cone woofer provides powerful bass response. Installtion is quick and easy with the XL-2 mounting mechanism and the zero-bezel grille allows the loudspeaker to blend into any environment.

Speaker Type    Stereo Single-Point
Speaker Configuration     2-Way
Recommended Amplifier Power    100 W
Impedance    8 Ohms
Drivers
HF Driver    1x 1" / 25 mm CMMD
LF Driver    1x 8" / 203 mm Polycellulose Woofer
Performance
Frequency Response    30 Hz to 20 kHz
Sensitivity    88 dB
Physical
Cutout Depth    3.8" / 97 mm
Cutout Size    11.9 x 8.9" / 30.3 x 22.7 cm
Mount Surface Thickness    0.5 to 2" / 12 to 51 mm
Dimensions    13 x 10" / 33 x 25.4 cm
