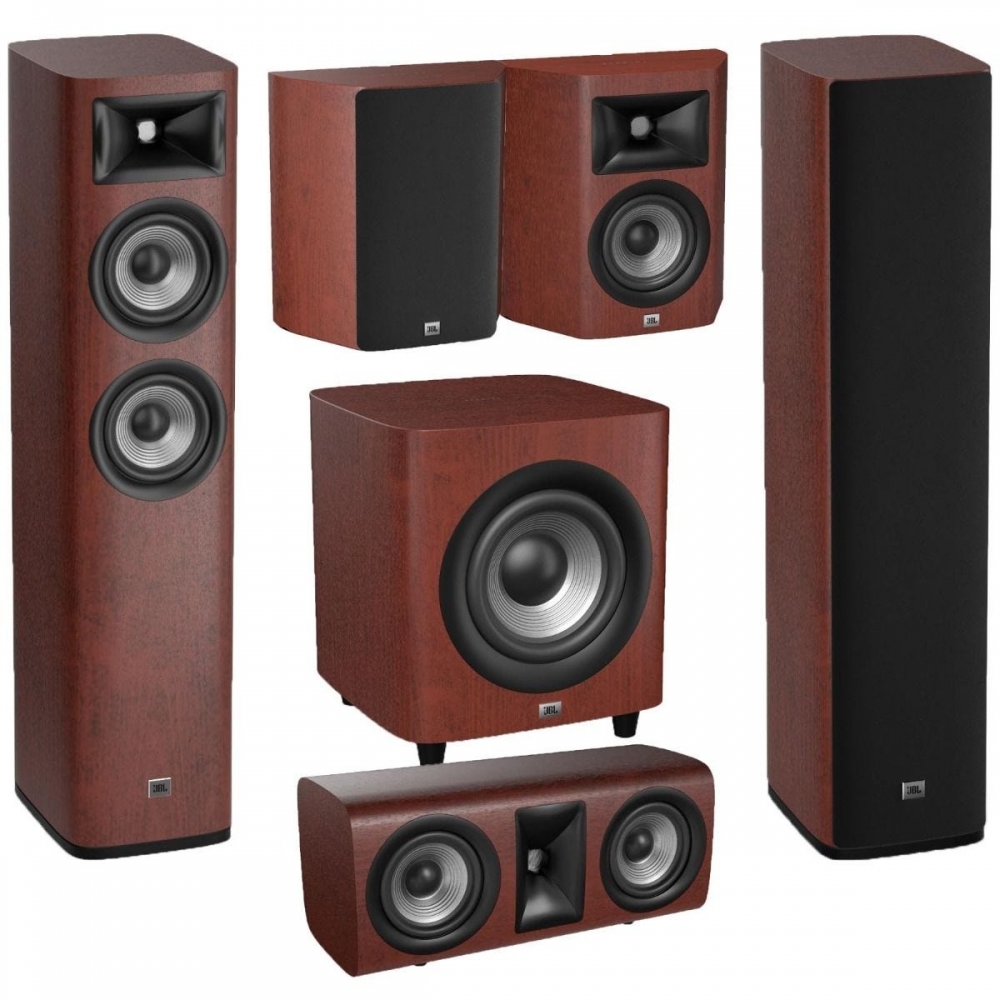

JBL Studio 6 Series 680 5.1 Speaker Package

JBL Studio 6 Series 680 5.1 Speaker Package

If you are looking for a home audio speaker system that goes above and beyond what you've ever heard, seek no further. The JBL Studio 680 package is a 5.1 speaker system that fulfils all the expectations of critical listeners. With the Studio 680 speakers at the core of this pack, you can enjoy the highest sound quality of PolyPlas cones and marvel at the power of speaker it's drivers that enhance concert-grade accuracy and sound effects. The combination of the HD imaging waveguide and compression driver creates a sound that will surely impress. The modern and clean design is equally stylish and easy to install. The JBL Studio 6 series takes the sound and excitement you enjoy at home, to another dimension.

JBL Studio 6 Series Studio 680 Floor Standing Speakers

Equipped with PolyPlas cone woofer and mid range that combines lightness and rigidity. The Studio 6 speakers employ a unique SFG magnetic circuit that combines a pole piece structure that forms a symmetric magnetic field with modulation distortion reduction technology. From low volume to high volume, it achieves clear mid-low range playback with little distortion, contributing to rhythmic low range playback and clear voice range playback unique to JBL.

Key Features
- 2.5 way, dual 6.5" PolyPlas woofers, 1" compression driver
- JBL engineered high definition imaging waveguide
- Bi-amp compatible
- Smaller sibling to the Studio 690
- Crossover Frequencies: 600 Hz, 1.8 kHz
- Frequency Response: 38Hz - 40kHz
- Max Power: 200 watts

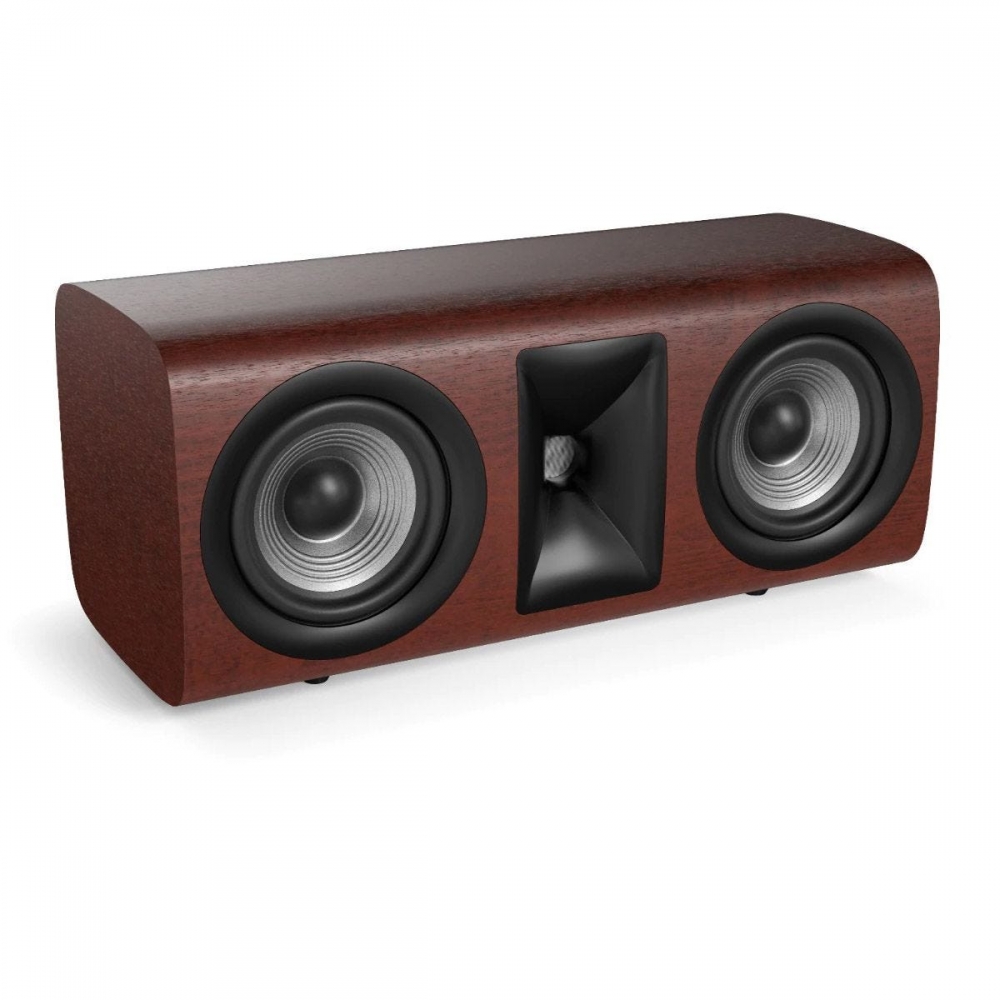

JBL Studio 6 Series Studio 625C Centre Speaker

Like the compression driver, the JBL Professional Division uses a constant directional horn that uses HDI (High Definition Imaging) horn technology developed for the latest professional monitors. Delivering sound with a flat frequency response and uniform sound pressure over a wide service area, the sound localisation and precise JBL tones are echoed in the listening room.

Key Features
- Smooth, crisp dialogue
- 2.5 way, dual 5.25" PolyPlas woofers, 1" compression driver
- JBL engineered high definition imaging waveguide
- Crossover Frequency: 1.7 kHz
- Frequency Response: 64Hz - 40kHz
- Max Power: 150 watts

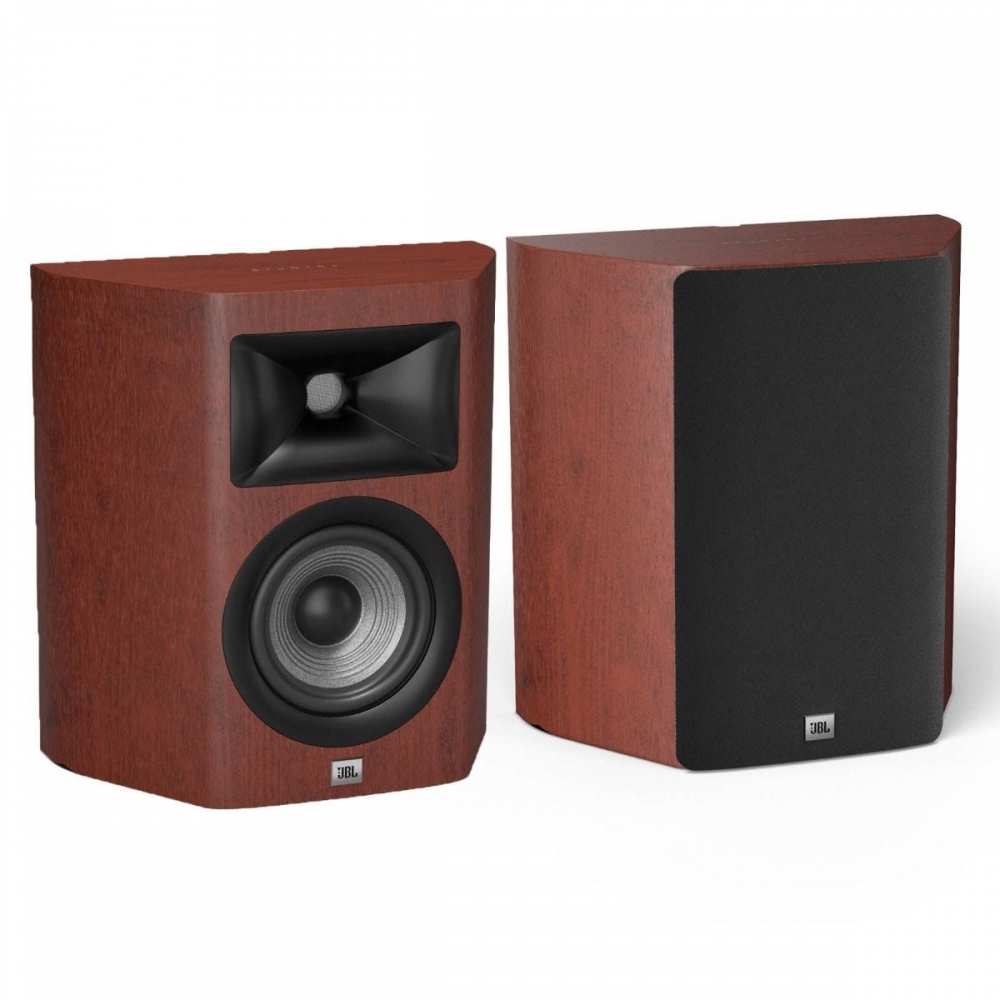

JBL Studio 6 Series Studio 610 Surround Speakers

The Studio 610 speakers, like the rest of the Studio 6 range, feature a compression driver that reproduces sound clearly and in superb detail at the highest level in its class.

The high-frequency range unit of all Studio 6 series models is equipped with a 1-inch diameter neodymium compression driver that uses a Teonex® diaphragm with high resolution and clarity developed by JBL Professional Division. Along with rich expressive power and energy, it has a supple and smooth tone.

Key Features
- 2 way, 5.25" PolyPlas woofer, 1" compression driver
- JBL engineered high definition imaging waveguide
- Made especially for wall-mounting
- Crossover Frequency: 2.4 kHz
- Frequency Response: 65Hz - 40kHz
- Max Power: 100 watts

JBL Studio 6 Series Studio 650P 10" 300W Subwoofer

Beautiful sound is matched by the Studio 650P's beautiful exterior design. Featuring solid build quality and an eye catching wood grain finish. The Studio 650P features a cabinet structure without corners that seamlessly connects the front and rear baffles to a side panel that draws a gentle curve and suppresses unwanted resonance achieving a rich sound field reproduction. In addition, a traditional bass reflex enclosure with flare bass reflex ducts that suppresses port noise on the back of the cabinet.

Key Features
- 10" driver
- Frequency Response: 30Hz - 150kHz
- Max Power: 500 watts (250W RMS)
- Enhances home theatre and music with deep bass
- Beautiful wooden finish
- Smaller alternative to the Studio 660P
- Low standby power consumption

General Specifications
Studio 680 Floorstanding
Dual 6.5", 2.5-way compression driver floor standing loudspeaker: Yes
Dual 6.5" (165mm) PolyPlas Low-Frequency Woofer: Yes
High Definition Imaging (HDI) Waveguide with 1” (25mm) High Frequency Compression Driver: Yes
Recommended Amplifier PowerMax: 200W
Frequency Response: 38Hz – 40kHz
Sensitivity: 88dB @ 1M, 2.83V
Nominal Impedance: 6 Ohms
Crossover Frequencies: 600 Hz, 1.8 kHz
Enclosure Type: Bass-Reflex via Rear-Firing Tuned Port
Dimensions (W x D x H): 230 x 300 x 1005mm
Weight:22.64 kg

Studio 625C Center
Dual 5.25″, 2-way compression driver center loudspeaker
Dual 5.25″ (133mm) PolyPlas Low-Frequency Woofer
High Defi nition Imaging (HDI) Waveguide with 1″ (25mm) High Frequency Compression Driver
Recommended Amplifi er Power: Max 150W
Frequency Response: 64Hz – 40kHz
Sensitivity: 85dB @ 1M, 2.83V
Nominal Impedance: 6 Ohms
Crossover Frequencies: 1.7 kHz
Enclosure Type: Sealed Enclosure
Dimensions (W x D x H): 440 x 190 x 190mm
Weight: 8.62 kg

Studio 610 Surround
Single 5.25″, 2-way compression driver wall mountable surround loudspeaker
5.25″ (133mm) PolyPlas Low-Frequency Woofer
High Definition Imaging (HDI) Waveguide with 1″ (25mm) High Frequency Compression Driver
Recommended Amplifier Power: Max 100W
Frequency Response: 65Hz – 40kHz
Sensitivity: 84dB @ 1M, 2.83V=
Nominal Impedance: 6 Ohms
Crossover Frequencies: 2.4 kHz
Enclosure Type: Sealed Enclosure
Dimensions (W x D x H): 285 x 150 x 300mm
Weight: 5.86 kg

Studio 650P Subwoofer
10" Powered sub-woofer system with 500W amplifierYes
10" (254mm) PolyPlas Low-Frequency WooferYes
Power250W RMS (500W Dynamic)
Frequency Response28 Hz - 150 Hz
Crossover Frequencies50Hz – 150Hz (variable) 24dB/octave
ControlsAuto Power, Crossover, Level, Phase
InputOne (1) Line-Level LFE Input
Enclosure TypeBass-Reflex via Bottom-Firing Tuned Port
Power Requirement120V, 60Hz (US) ; 220V-230V, 50/60Hz (EU)
Power Consumption (Idle/Full/Power)<0.5W (standby)/335W/2.1A (max – 230V)/335W/4A (max – 120V)
Dimensions (W x D x H)395 x 395 x 395mm
Weight 23 kg Each
