KEF KW1 Wireless Subwoofer Adapter Kit

KW1 Wireless Subwoofer Adapter Kit

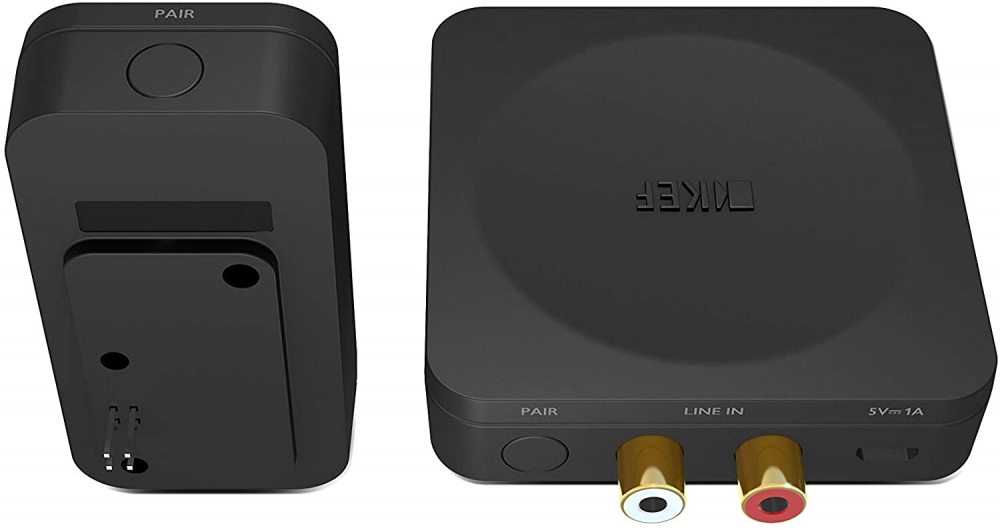

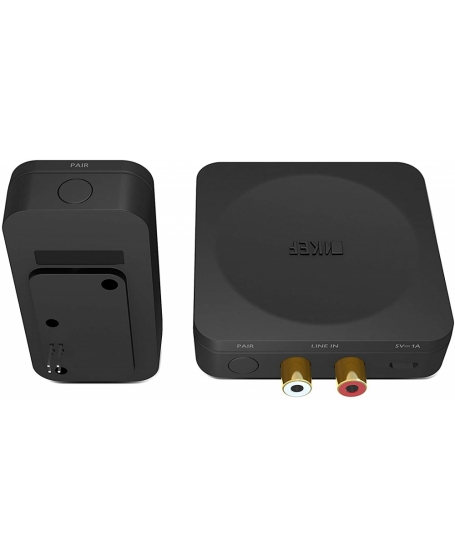

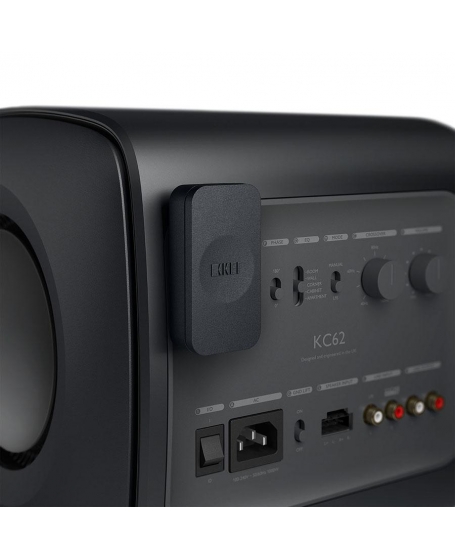

Comprising a discreet transmitter and receiver, KEF KW1 works with the KUBE 8b, 10b, 12b, KC62 and KF92 subwoofers. It allows KEF subs to be optimally placed, and not limited by cables. High-quality wireless transmission delivers every ounce of detail and impact from your favourite films and music. The receiver is also available separately, allowing two KEF subwoofers to receive the same signal wirelessly from the same transmitter.

Performance with convenience

KW1 operates in the high-bandwidth 5GHz band and delivers audio up to 24bit/48kHz. The transmitter is powered by USB, while the receiver is powered directly by the subs expansion port. Pairing is intuitive and highly stable, while a range of up to 30m (line of sight) makes placement easy. KW1 is also perfectly suited for use with KEF's LSX, LS50 Wireless and LS50 Wireless II.

FEATURES

Lossless Audio

5.2 & 5.8GHz selectable digital wireless link for near lossless audio

Advanced Algorithm

Advanced RF Selection Algorithm

Wide Range

Up to 15 metre (30M/ 100 ft line of sight) operational distance between transmitter and receiver

Low Latency

Designed with latency of <17ms

High Performance

24-bit 48KHz high resolution audio for pristine performance

Model
KW1
Radio Frequency
5.2GHz and 5.8GHz
Sampling Rate
24bit, 48KHz
Latency
<17ms
Link Distance
Max 100ft (Line of Sight)
Frequency Response
20Hz-22kHz
Signal-To-Noise-Ratio
>80dB
Transmitter Power Input
5V DC 1A
Audio Output Level
2V
Transmitter Input Level
2V
Total Harmonic Distortion
typ.-90dB
Dimension H x W x D
Transmitter
21.4 x 72 x 79.5mm

Receiver
27 x 37 x 72mm
Downloads
KW1 RX Receiver Manual
KW1 TX/RX System Manual
KW1 Info Sheet
