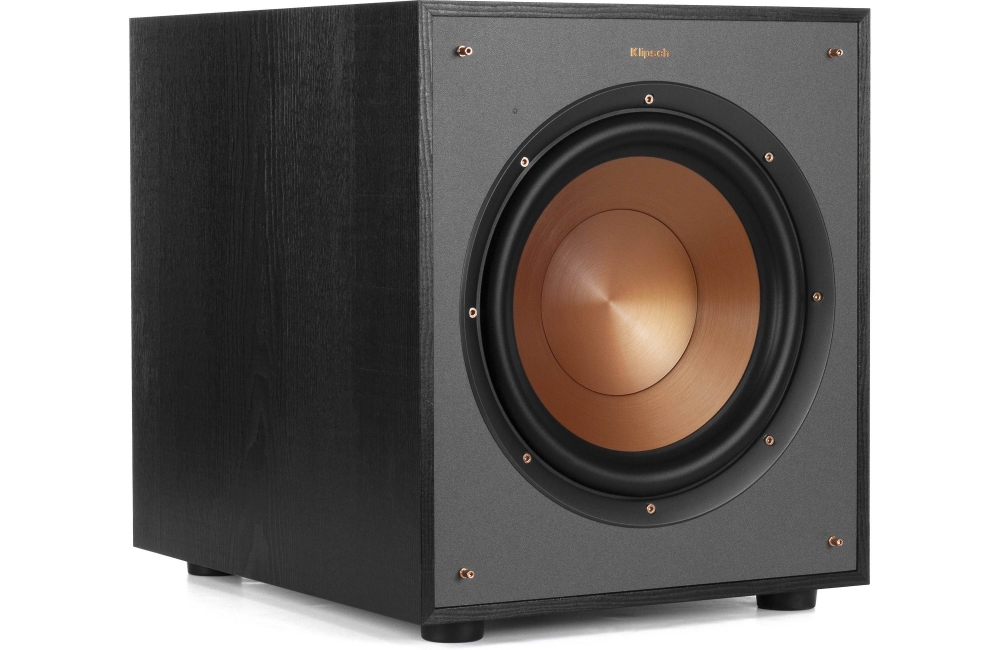

Klipsch R-100SW

The Klipsch R-100SW subwoofer delivers incredibly deep bass via a 10" front-firing driver featuring a spun-copper IMG woofer and all digital amplifier.

Features:

• 10" Front-Firing Spun-Copper IMG Woofer
• All-Digital Amplifier with 300 Watts Peak Power
• Volume, Low Pass Crossover and Phase Control
• Line Level/LFE RCA Inputs for Maximum Receiver Compatibility
• Dimensions: 14.5" x 12.5" x 16.4"
• Black Textured Wood Grain Vinyl

SPUN-COPPER IMG WOOFER

Injection Molded Graphite (IMG) woofer cones are exceptionally light while being extremely rigid – providing remarkable low frequency response, with minimal cone breakup and distortion to give you the deepest, cleanest bass possible.

ALL-DIGITAL AMPLIFIER

The built-in, all-digital amplifier of the R-100SW subwoofer delivers ample power with high efficiency and true-to-source accuracy reproduction - thus providing maximum output, detail, and power that fills your home.

CUSTOMIZED BASS

The R-100SW subwoofer gain, low pass crossover and phase controls ensure the low-frequency tones blend with other speakers and establish the ideal level of bass for your room.

Line level/LFE RCA inputs provide maximum compatibility with standard home theater receivers.

HIGH QUALITY CABINET DESIGN

Reinforced MDF construction reduces cabinet vibration for less audible coloration and improved sonic accuracy - giving you the ultimate listening experience that's built to last.

SLEEK DESIGN

Exposed fasteners, low profile magnetic grilles and a scratch-resistant, textured wood grain vinyl give the R-100SW subwoofer a polished, modern appearance that perfectly accents our entire Reference series speakers.

FREQUENCY RESPONSE 32Hz - 120Hz +/- 3dB
MAXIMUM ACOUSTIC OUTPUT 112 dB
AMPLIFIER All Digital
AMPLIFIER POWER (CONT/PEAK) 150W/300W
AMPLIFIER FEATURES Volume, Low-pass, 0/180 phase, Auto Power On
DRIVER COMPONENTS 10” high excursion spun-copper IMG woofer
ENCLOSURE MATERIAL MDF
ENCLOSURE TYPE Bass-Reflex via rear-firing port
INPUTS Line level/LFE RCA jacks
HEIGHT 14.5” (368 mm)
WIDTH 12.5” (318 mm)
DEPTH 16.4” (417 mm)
WEIGHT 24 lbs (10.9 kg)
FINISHES Black Textured Wood Grain Vinyl
BUILT FROM 2018
