REFERENCE THEATER PACK

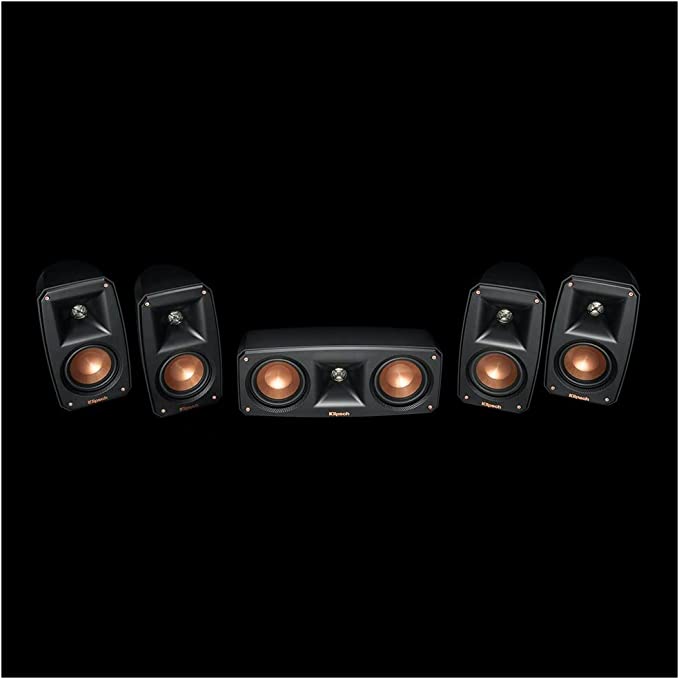

We've taken the premium materials and acoustic technology of our revered Reference series and designed a beautiful 5.0 surround sound system to pair with your favorite AV receiver and subwoofer. The Reference Theater Pack brings the Klipsch cinematic sound into your home with an incredibly minimal footprint.

Features:

• Flexible System Placement
• Cinematic Acoustics
• Spun Copper IMG Woofers
• Linear Travel Suspension Horn-Loaded Tweeters

CINEMATIC PERFORMANCE

The Reference Theater Pack delivers superior acoustic performance by leveraging Injection Molded Graphite (IMG) woofers. These exceptionally lightweight cones are extremely rigid – providing remarkable low frequency response, with minimal cone breakup and distortion.

A Linear Travel Suspension (LTS) tweeter minimizes distortion for enhanced, detailed performance. LTS tweeters have been a hallmark of our Reference series product lines, making it a core component of some of the best speakers in the world.

HORN-LOADED POWER

Our exclusive Tractrix Horn Technology and aluminum tweeters deliver the most impressive high-end response and greater extension, enhanced imaging and powerful dynamics. This creates the cleanest, most natural sound possible.

FLEXIBLE SYSTEM PLACEMENT

To complement the easy placement of the wireless subwoofer, each satellite speaker has a keyhole mount and a ¼” x 20 threaded insert (the center channel has dual keyhole / inserts) for maximum mounting flexibility.

SPECIFICATIONS
SATELLITE & CENTER CHANNEL
FREQUENCY RESPONSE 110Hz – 23kHz +/– 3dB
NOMINAL IMPEDANCE 8 ohms compatible
SENSITIVITY Satellite: 91dB @ 2.83 volts / 1 meter
Center: 94dB @ 2.83 volts / 1 meter
POWER HANDLING Satellite: 50 watts (200 watts peak)
Center: 75 watts (300 watts peak)
HIGH FREQUENCY DRIVER Satellite & Center: 3
/4” (1.9 cm) aluminum diaphragm
compression driver mated to 90° x 90° Tractrix® horn
LOW FREQUENCY DRIVER Satellite: 3.5” (8.9 cm) copper IMG woofer
Center: Dual 3.5” (8.9 cm) copper IMG woofer
DIMENSIONS Satellite: 7.75” H (19.7cm) x 4.38” W (11.1cm) x 5.37” D (13.7cm)
Center: 4.38” H (11.1cm) x 10.75” W (27.3cm) x 5.37”D (13.7cm)
WEIGHT Satellite: 3 Ibs (1.4kg)
Center: 5 Ibs (2.3kg)
MOUNTING Satellite: Keyhole and 1
/4” x 20 threaded insert
Center: Dual Keyhole with dual 1
/4” x 20 threaded insert
SPEAKER WIRE 14–18 gauge compatible
