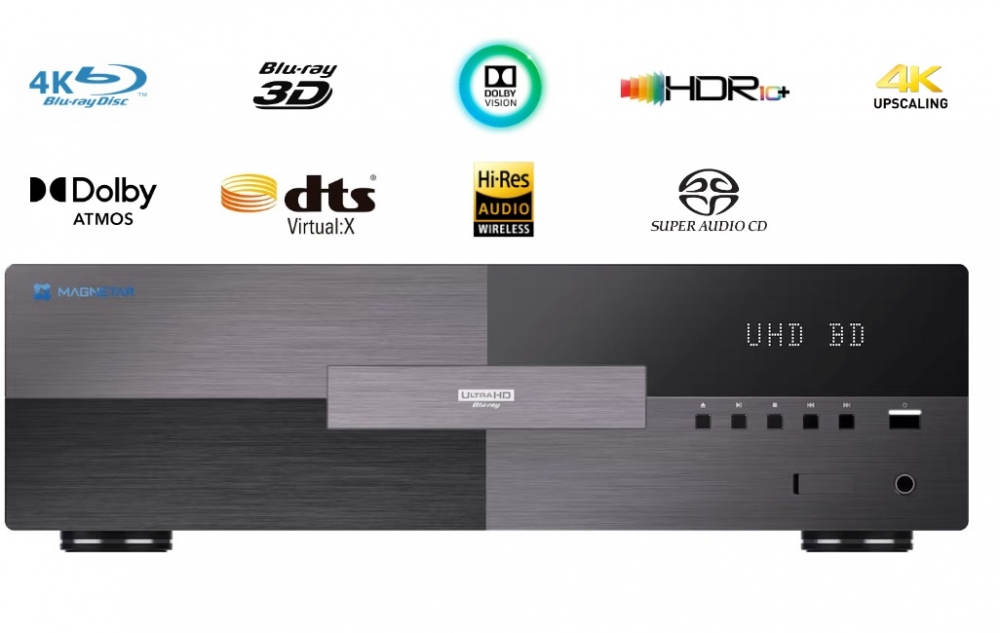

UDP900 4K ULTRA HD BLU-RAY PLAYER

Equipped with the latest designed 6-layer gold immersion main PCB circuit with a high precision power supply, the UDP-900 comes with Murata multilayer ceramic capacitor TDK magnetic devices and 30 NCC electrolytic capacitors which further improve audio and video quality. Both audio boards use 4-layer PCB circuit boards, each channel is designed with independent wiring and equipped with Hi-Fi XLR balanced terminals and gold plated RCA outputs providing better Audiophile sound quality.

Excellence in Picture and Sound Quality

Dolby Vision. HDR 10+. Sabre ES9038PRO DAC for 2-channel XLR balanced and RCA unbalanced outputs. Sabre ES9028PRO DAC for 7.1 RCA output. XMOS USB Audio support.

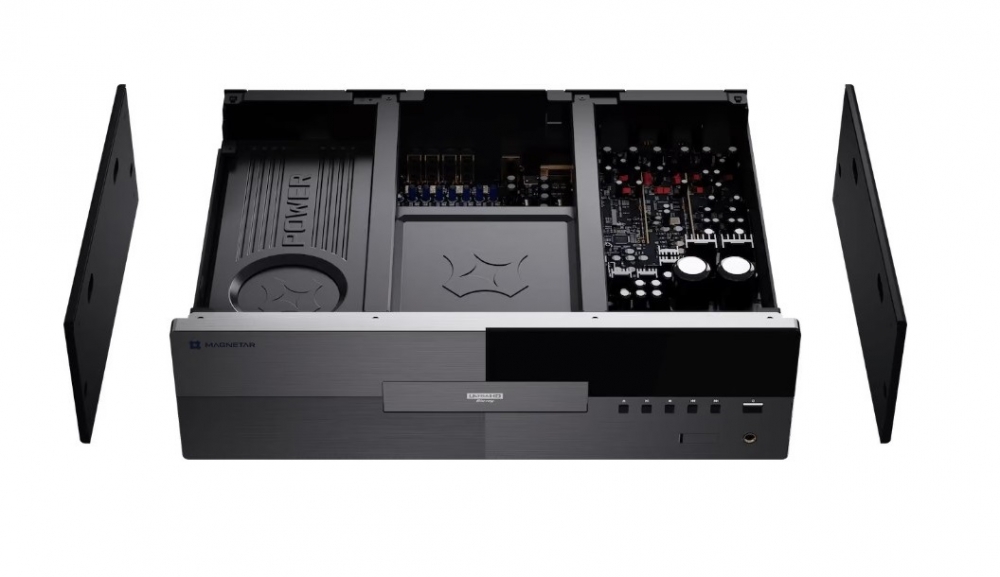

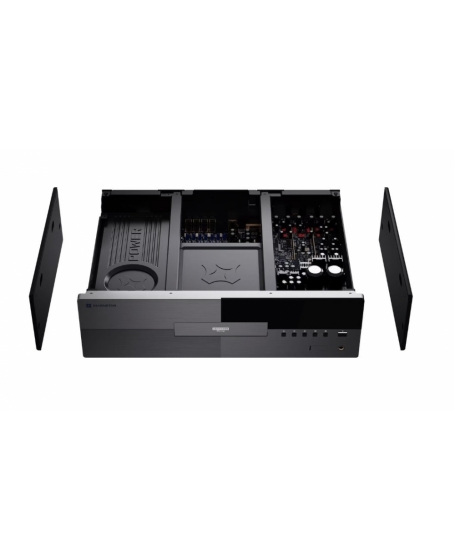

Elegant and Solid quality in Chassis Construction

With a weight of 15.5kg, the UDP900 adopts an all-aluminum alloy body with a reinforced double layer chassis structure. The internal main components are independently shielded by metal casing, greatly reducing vibration, noise and external magnetic field interference, bringing pure and high-resolution audio and video quality.

Dual Power Supply Design

MAGNETAR engineers have specially selected a dual power supply : one 60W toroidal transformer for analog audio, using high quality oxygen free copper wiring and metal shields to reduce vibration noise and generated heat; and one 60W high-power low noise transformer with high transient response required by surround sound and high-resolution audio for the digital main board section. A separate metal case reduces noise, providing stability and silence, improving audio and video quality.

HDR Technology

The UDP900 has eye-popping brightness, contrast and gorgeous colors. Picture is rich and full, with vivid colors, even in low light and backlight environment. UDP900 supports HDR10, HDR10+ and Dolby Vision with stunning HDR to SDR conversion, with BT.2020/BT.709/BT.601 color space support.

Magnetar UDP900 Specifications
Disc Support:
UHD Blu-ray, Blu-ray, Blu-ray 3D, DVD-Video, DVD-Audio, AVCHD-SACD, CD, Kodak Picture CD, CD-R/RW, DVD±R/RW, DVD±R DL, BD-R/RE
File Support:
MKV, AVI, MP4, WAV, FLAC, APE, DSD – (USB 3.0)

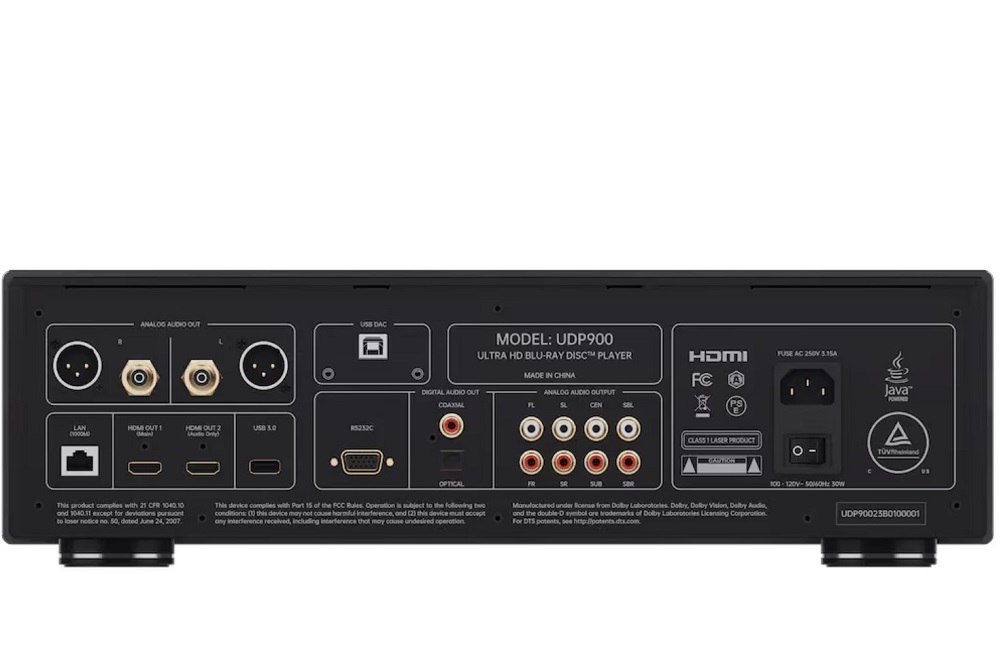

Outputs:
Stereo analog audio: XLR balanced (1) and RCA unbalanced output (1)
Multi-channel output: RCA unbalanced output (8)
Optical/coaxial audio: up to 2 channels /192kHz PCM, Dolby Digital, DTS
HDMI 2.0b audio: up to 7.1 channel /192kHz PCM, up to 5.1 channel DSD, Bitstream
HDMI 2.0b video: UHD/ 1080p24 / 1080p / 1080I / 720p / 576p / 576I / 480p / 480I
Analog Audio (TBC):
Frequency response: 20hz-20Khz (+-0.03dB)
Signal-to-noise ratio:
RCA: >120dB
XLR: >130dB
Total harmonic distortion + Noise: < 0.0005%
Output level:
RCA: 2.l ±0.2Vrms.
XLR: 4.2 ±0.4Vrms
Dynamic range: > 120dB
Channel separation (2ch):
RCA: >120dB
XLR: >140dB
Mechanical:
Weight: 34.17lbs, 15.5Kg
