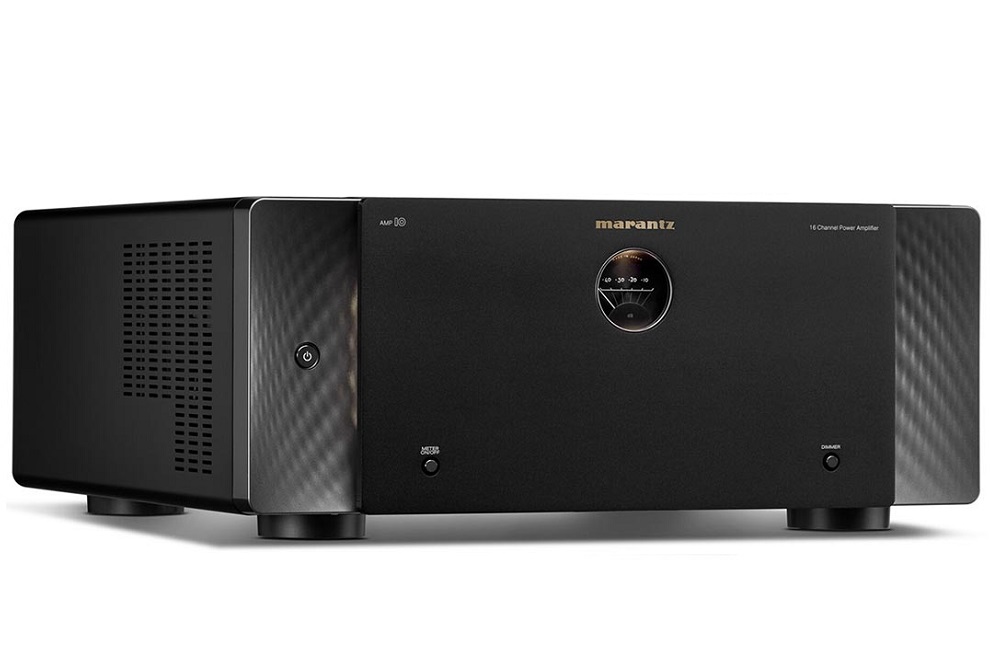

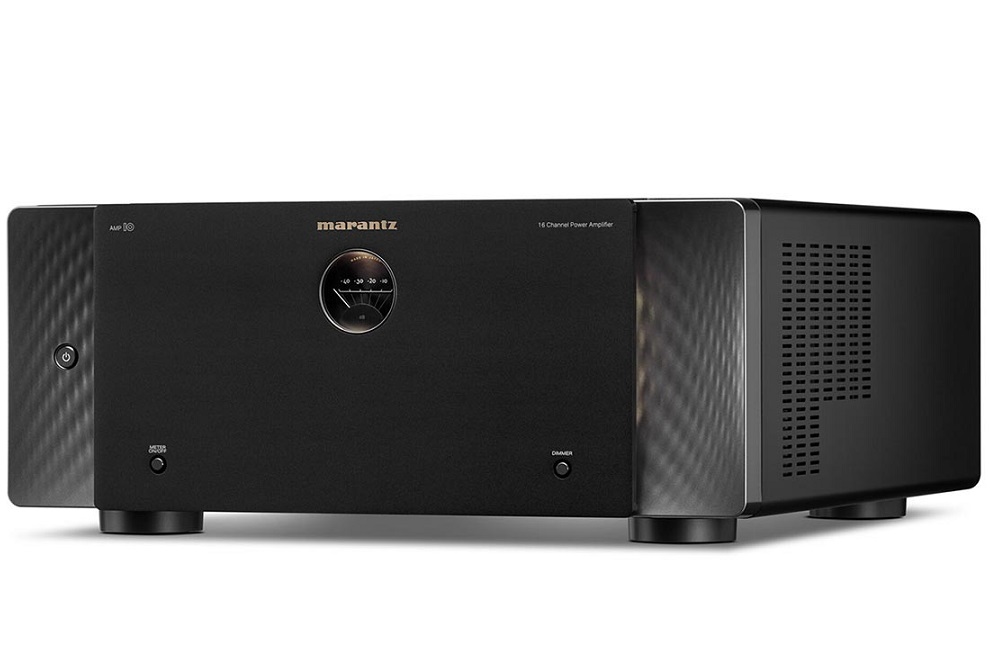

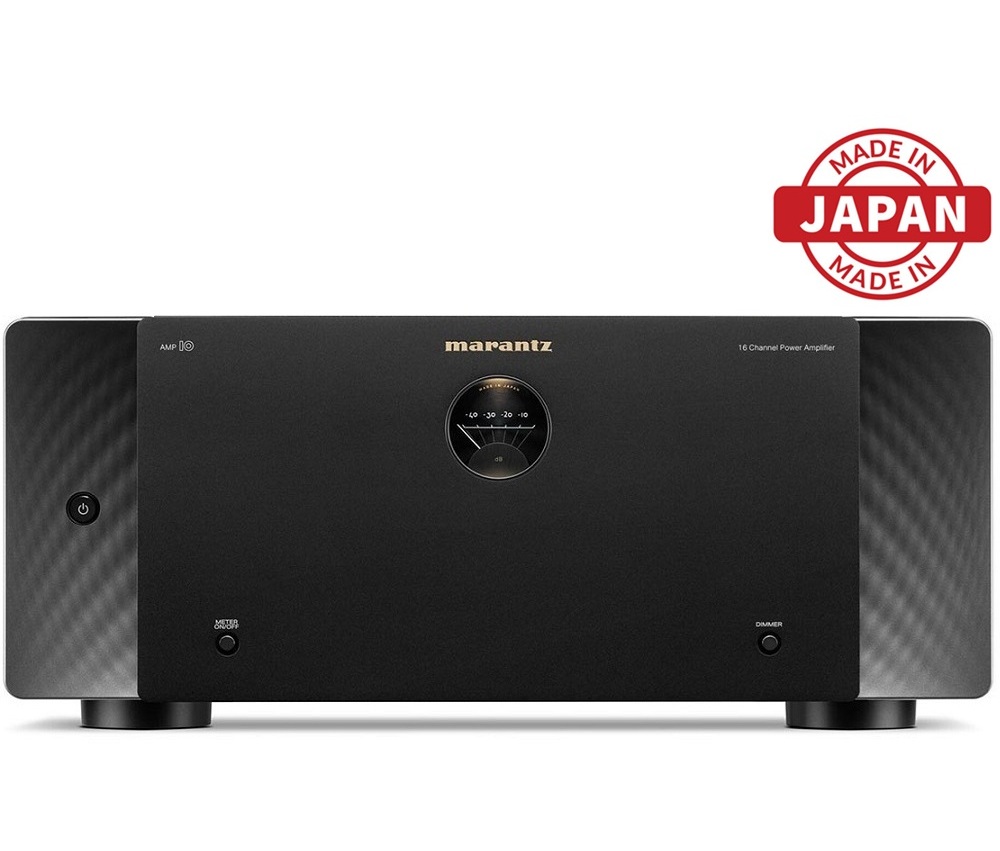

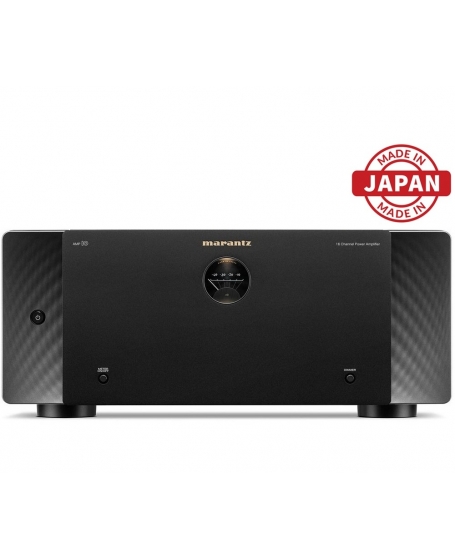

Marantz AMP 10 Power Amplifier Made in Japan
SKU: Marantz AMP 10Number of Power Amps 16
Power Output (8 Ohm): 200 W
Front Display Level Meter
Main Amplifier In Balanced & Unbalanced
18 Months Warranty
AMP 10
Engineered with best-in-class technologies, AMP 10 cleverly combines very high-power output and high channel count to create a master reference-level amplifier for ultimate home theater performance.
- Crafted in Shirakawa, Japan
- 16 Channels
- 200 Watts per Channel
- Custom HDAM
- Custom Switching Amplifiers
- Selectable Output Modes

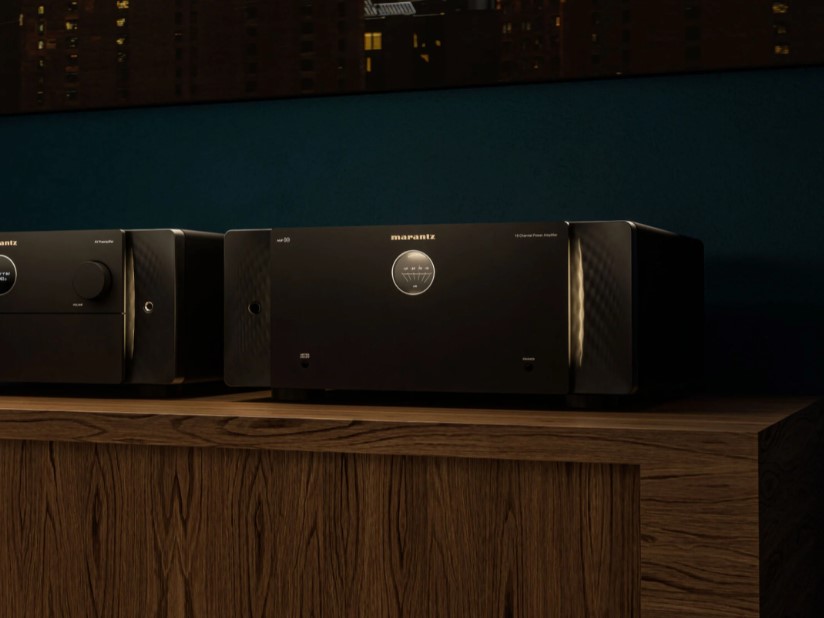

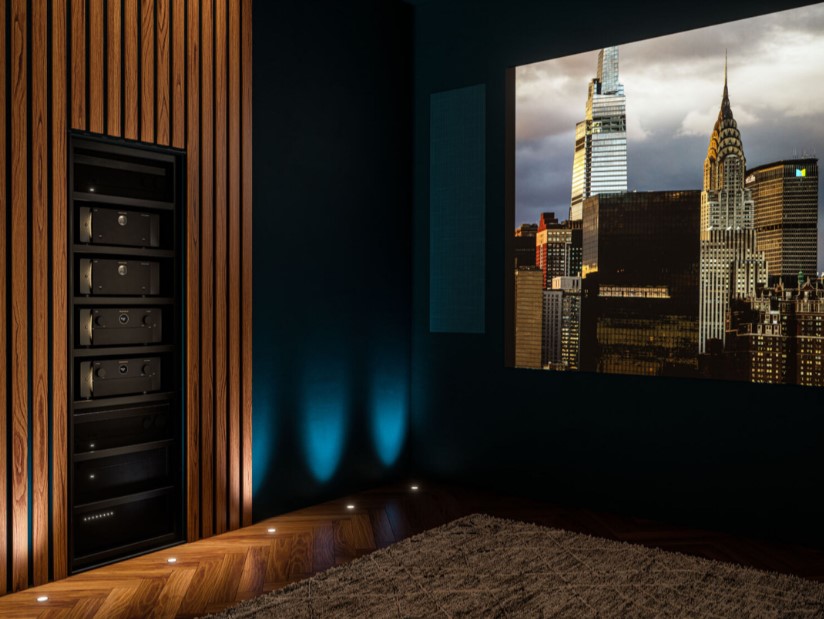

The Apex of Home Cinema
Built upon decades of rich heritage, designed with timeless style, and engineered for utmost performance, Marantz CINEMA Series are the foundation of the world's most demanding home theaters.
Exquisite Design

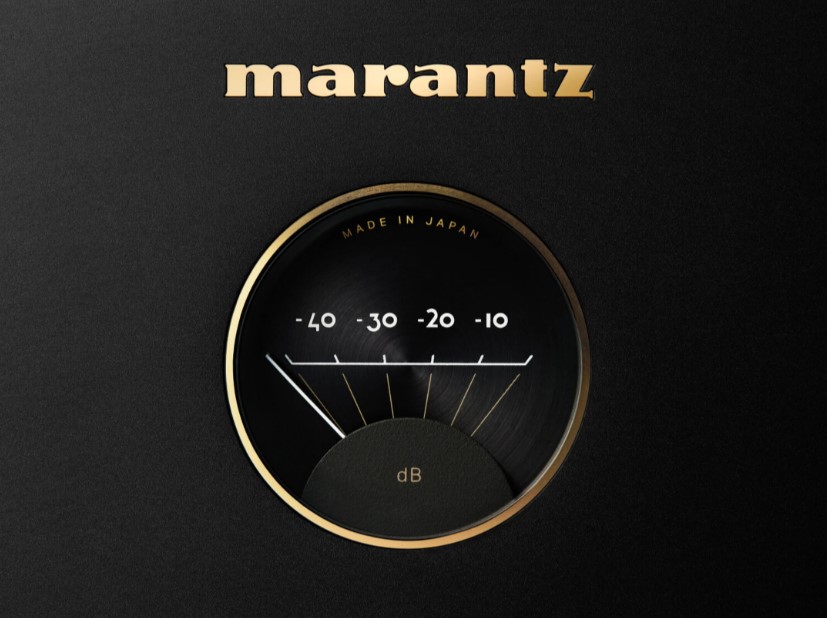

A modern expression of timeless design principles, AMP 10 features the iconic Marantz porthole level meter, premium materials, and subtle sidelights that illuminate the front panel.
Ultimate Performance
We developed custom Class D amplifiers and refined our own HDAM-SA2 technology to create the most incredible theatrical experience possible in your home.
Sound Master Tuned
The Marantz Sound Master meticulously tuned AMP 10 for amazing performance with our proprietary HDAM amplification circuitry to create the Most Musical Sound in your home.
Technology Leader
AMP 10 is engineered using best-in class technologies to enable extraordinary power output; high channel count; and the dynamic, rich, warm sound for which Marantz is highly renowned.
Multi-Room CI | |
IP Control / RS232 Control / Web Control / App Control | No / Yes / No / No |
IR Flasher In | Yes |
Marantz Remote Bus | Yes |
DC Trigger Input / Output | 1 / 1 |
Others | |
Front Display | Level Meter |
Firmware Update by Network / USB / RS232C | No / No / Yes |
Auto Power off | Yes |
Inputs / Outputs | |
Main Amplifier In | Balanced & Unbalanced: 16 Ch (Exclusive Use by a Selector Switch) |
Speaker Terminal: Gold Plated Screw / Regular Screw | Brass Type (Same as MODEL 40n) |
Number of Speaker Terminals | 16 |
Bi-Amp Drive / BTL Drive | Yes / Yes |
Level Meter | Yes |
Chasiss | Copper Plated |
Specifications | |
Number of Power Amps | 16 |
Power Output (8 Ohm, 1 kHz, 0.05% THD, 2 Ch Driven): Normal / BTL | 200 W / 400 W |
Power Output (4 Ohm, 1 kHz, 0.7% THD, 2 Ch Driven): Normal | 400 W |
Power Output (8 Ohm, 1 kHz, 0.7% THD, 5 Ch Driven): Normal | 200 W |
70% Guarantee: Normal / Bi-Amp / BTL | Yes / Yes / Yes |
100% Guarantee: Normal / Bi-Amp | Yes / Yes |
General | |
Metal Front Panel | Yes |
Pre-Programmed / Learnable / LCD Display | No / No / No |
Power Consumption | 500 W |
Power Consumption No-Sound (ECO On/Off) | 140 W |
Standby Consumption | 0.2 W |
Dimensions (W x D x H) | 440 x 503 x 188 mm |
Weight | 19.8 kg |
What's In The Box | Main Unit, Quick Start Guide, AC Cord, Amp Control Cable, Remote Control Cable, SP Terminal Wrench |
