Ready Stock

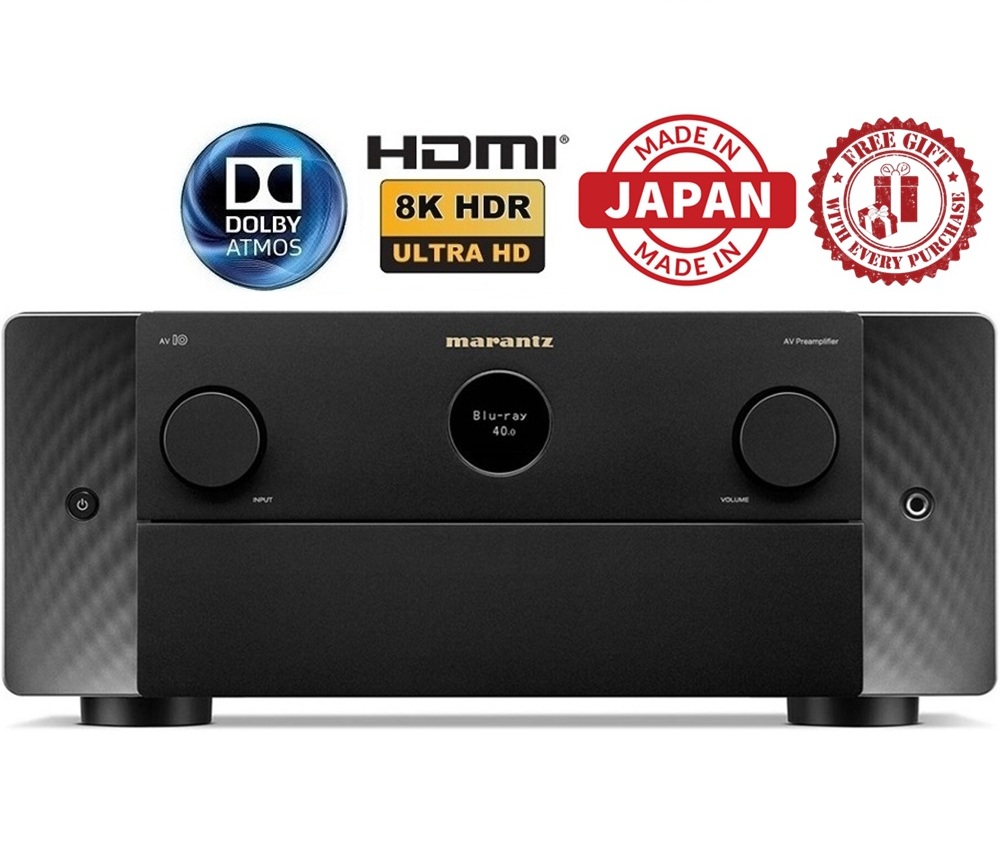

Marantz AV 10 Pre-Amplifier/Processor Made in Japan

SKU: Marantz AV 10

RM 36,999.00

Made in Japan
15.4 channel pre-amp processing
Dolby Atmos, DTS:X, IMAX Enhanced and Auro 3D compatible
8K video support on 7 HDMI inputs
HEOS streaming technology for multi-room music streaming
Balanced XLR and unbalanced RCA pre-outs
18 Months Warranty

Description
Specification

AV 10

AV 10 represents the highest measure of performance and capability for reference-level home theater systems. Marantz Sound Masters meticulously tuned AV 10 for amazing performance with careful parts selection to create the most memorable home theater experiences possible.

Crafted in Shirakawa, Japan
15.4 Channels
7 HDMI Inputs plus eARC
8K and Dolby Atmos
3D Audio
HEOS Built-in

The Apex of Home Cinema

Built upon decades of rich heritage, designed with timeless style, and engineered for utmost performance, Marantz CINEMA Series are the foundation of the world's most demanding home theaters.

Exquisite Design

Immersive spaciousness, warm and rich tone, extraordinary detail and lifelike dynamics are legendary hallmarks of Marantz sound.

Peerless Performance

The Marantz Sound Master meticulously tuned AV 10 for amazing performance with our proprietary HDAM amplification circuitry to create the Most Musical Sound in your home.

Sound Master Tuned

AV 10 comes packed with the latest immersive audio formats, 8K video, room optimization, streaming, and more technology to simplify and elevate your enjoyment.

Technology Leader

Multichannel Surround
DTS-HD Master / DTS:X / DTS:X Pro	Yes / Yes / Yes
DTS Neo:X / DTS Neural:X	No / Yes (15 Ch)
DTS Virtual:X	Yes
IMAX Enhanced	Yes
Dolby TrueHD / Dolby Atmos / Dolby Atmos Height Virtualization / Dolby Atmos Music	Yes / Yes / Yes / Yes
Dolby ProLogic Ilz / Dolby Surround	No / Yes
Auro 3D	Yes
360 Reality Audio / MPEG-H	Yes / Yes
Multichannel Stereo	Yes
Max Number of Processing (Preamp) Channels	15.4

Sound Enhancements
Copper Plated Chassis	Yes
Power Transformer: Toroidal / EI	Yes / No
Current Feedback Topology	Yes
Hyper Dynamic Amplifier Modules (HDAM)	Yes
Pure Direct	Yes
Gold Plated RCA Terminals	Yes
Clock Jitter Reducer	Yes
Audyssey	MultEQ XT32
Audyssey Dynamic EQ / Dynamic Volume	Yes / Yes
Audyssey LFC	Yes
Dirac Live Upgradability	Yes
Compressed Audio Enhancer: MDAX2	Yes

Network
HEOS Multi-Room and Streaming	Yes
Bluetooth Re-Transmit for Bluetooth headphones	Yes
Alexa / Google Voice Assistant / Apple HomePod	Yes / Yes / Yes
Network Audio Sharing	Yes
Lossy Formats: MP3 / WMA / AAC	Yes / Yes / Yes
Lossless Formats: FLAC HD 192/24 / WAV 192/24 / ALAC 192/24	Yes / Yes / Yes
DSD Audio Streaming	Yes (2.8/5.6 MHz)
Gapless Playback	Yes (FLAC, WAV, ALAC, DSD)
AirPlay Audio Streaming	Yes (AirPlay2)
Internet Radio	Yes (TuneIn)
Spotify	Yes (connect)
Pandora	Yes
SiriusXM	Yes
Other Streaming Services	Amazon Music HD, Amazon Music, TIDAL, Deezer, iHeart Radio, Napster, Soundcloud, Mood Mix
Roon Tested	Yes
Compatible with Remote App for Smart Phones	Marantz 2016 AVR Remote
Compatible with Remote App for Tablets	Android / iOS / Amazon Kindle
Ethernet Ports	Yes
Wi-Fi	Yes
Bluetooth	Yes

HDMI
HDMI Inputs: Back / Front	7 / No
HDCP2.3 support	Yes
HDMI Outputs: Main / Zone	2 / 1
HDMI to HDMI Scaling	1080p/4K to 8K
GUI Overlay on HDMI	Yes
HDMI 2.1: 8K/60 Hz AB / 4K/120 Hz AB	Yes / Yes
8K/60 Hz AB / 4K/120 Hz AB Pass-Through In/Out	7 / 2 (Up to 40 Gbps)
HDMI 2.0: 3D / 4K / CEC / eARC	Yes / Yes / Yes / Yes
HDR / HLG / Dolby Vision / HDR10+ / Dynamic HDR	Yes / Yes / Yes / Yes / Yes
ALLM (Auto Low Latency Mode) Pass-Through for Gaming	Yes
Variable Refresh Rate / Quick Frame Transport / Quick Media Switching	Yes / Yes / No
8K Signal Pass-Through / 4K Signal Pass-Through	Yes / Yes
HDMI Pass-Through in Standby Mode	Yes
Picture Adjust / Noise Reduction	No / No
Auto LipSync	Yes

Multi-Room / CI
HEOS Multi-Room Integrated	Yes
HEOS Link Compatibility: IR / IP	Yes / Yes
Multi-Room Zones	3
Zone Audio Source: HDMI / Opt, Coax / Network, USB / Analogue	Yes (2 Ch) / Yes (2 Ch) / Yes / Yes
Zone Audio Output: Speaker / Preout	No / Yes
Zone HDMI Output from HDMI Source	Yes
IP Control / RS232 Control / Web Control / App Control	Yes / Yes / Yes / Yes
IR Flasher In	Yes
Marantz Remote Bus	Yes
DC Trigger Output	2
HDMI Diagnostics	Yes

Others
Auto Speaker Setup by Microphone	Audyssey MultEQ XT32, Dirac Live (Upgrade)
Front Display	2 Line FLD + Port Hole OLED
Graphic User Interface - GUI	Modern HD GUI
GUI Languages	3
Setup Assistent	Yes
Smart Select	Yes
Firmware Update by Network / USB	Yes / Yes
Variable Cross Over	Yes
Optimised Bass Redirection	Yes
Bass Sync	Yes
Auto Power Off	Yes
Sleep Timer	Yes

Inputs / Outputs
Composite In / Out	No / No
Component In / Out	No / No
HDMI In / Out	7 / 3
Multi-Room Video Out: Video / HDMI	No / Yes
Analogue In / Out	5 (1 x XLR) / No
Phono (MM) In	Yes
Digital In: Optical / Coaxial	2 / 2
Multi-Room Out: Analogue / Digital	2 / No
Multichannel Pre-Out	Yes (17.4 RCA & 17.4 XLR)
Subwoofer Out	4 (independent)
Speaker A / B	Assignable Pre-Out
Bi-Amp Drive	Assignable Pre-Out
Multi-Room Speaker Terminal	Pre-Out
Front Inputs: Audio / Composite / Digital (Opt) / HDMI / USB	No / No / No / No / Yes
USB Audio / Made for iPod / Made for iPhone	Yes / No / No
AM/FM Tuner	Yes

General
Metal Front Panel	Yes
System Remote Control	RC-047SR
Pre-Programmed / Learnable / LCD Display	Yes / Yes / Yes
Power Consumption	90 W
Standby Consumption	0.2 W
CEC Standby Consumption	0.5 W
Network Standby Consumption	Less than 2.0 W
Dimensions - Antenna: Horizontal (W x D x H)	440 x 503 x 188 mm
Dimensions - Antenna: Vertical (W x D x H)	440 x 503 x 254 mm
Dimensions - No Antenna (W x D x H)	440 x 483 x 252 mm
Weight	16.8 kg
What's In The Box	Main Unit, Remote Control, Batteries, AM/FM Antennas, Wire Labels, Quick Start Guide, Audyssey Microphone, Cardboard Microphone Stand, 2 External Detachable Antenna, AC Cord
