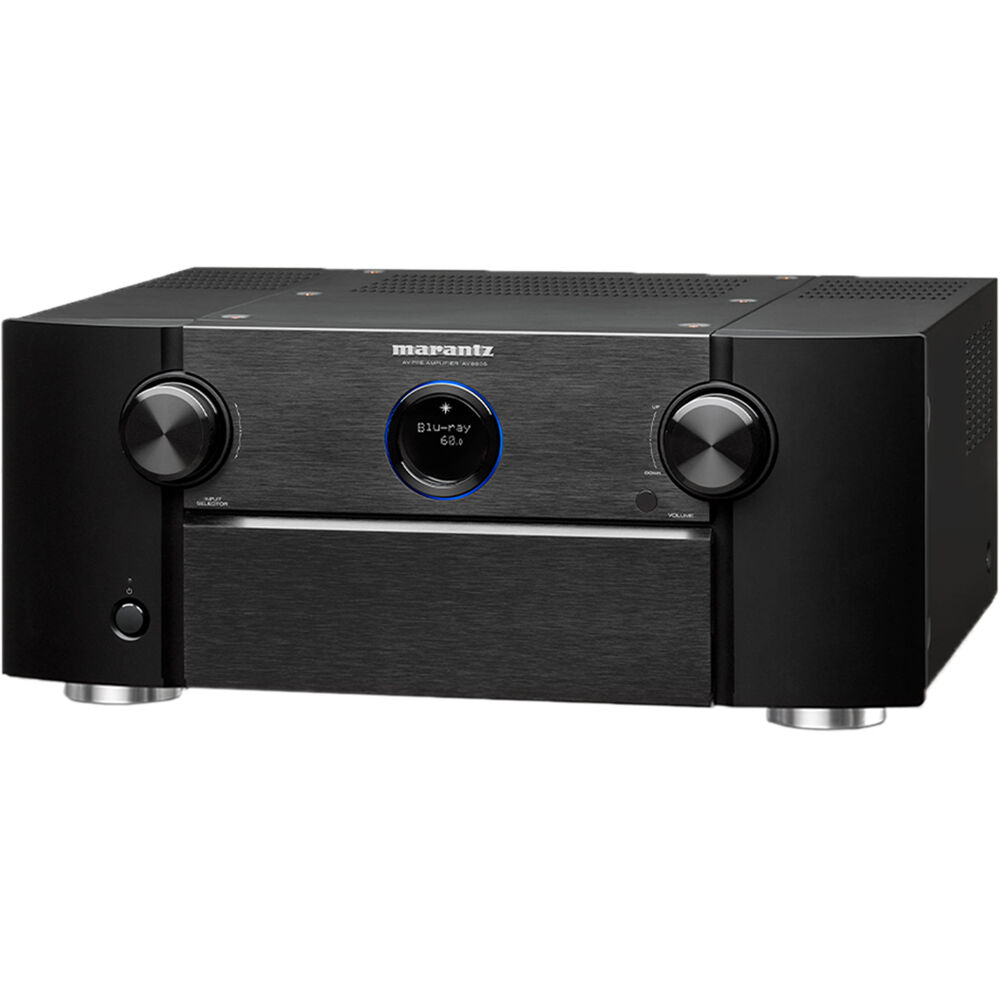

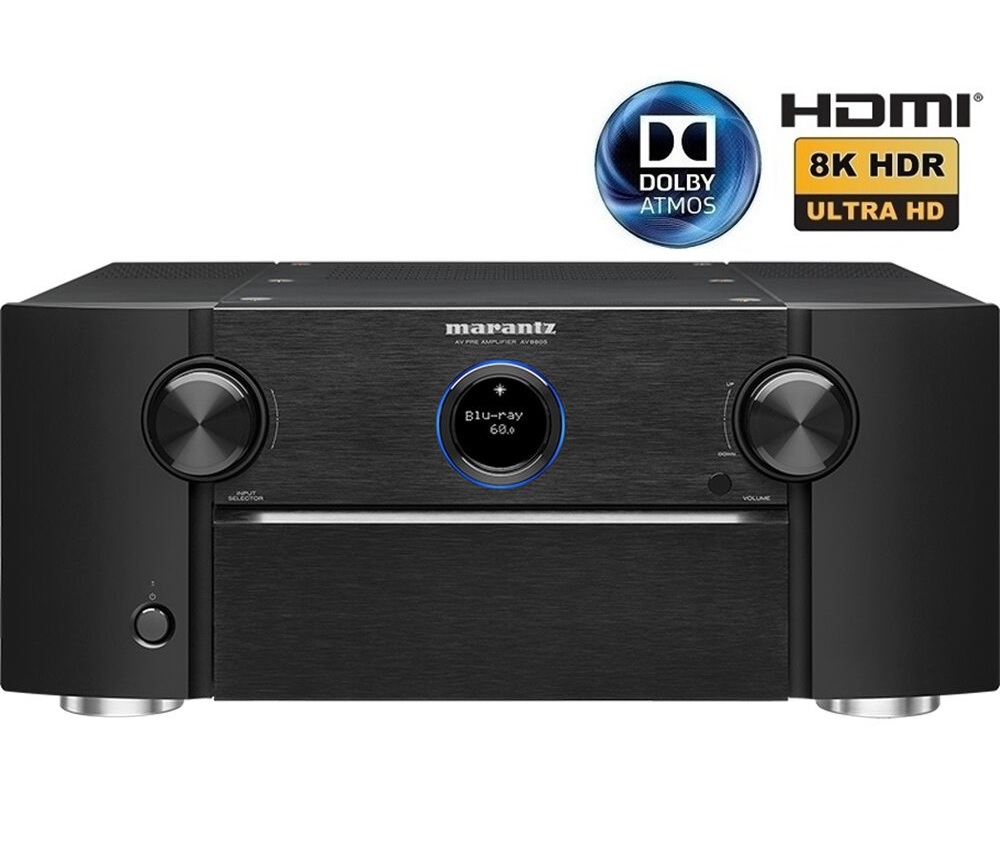

AV8805A

13.2CH 8K ULTRA HD AV SURROUND PRE-AMPLIFIER WITH HEOS BUILT-IN

The Marantz AV8805A pre-amplifier sets the standard for audiophile home cinema with 13.2 channel processing and full 8K pass-through capabilities.

Advanced 13.2 channel pre-amplifier

The Marantz AV8805A processor/pre-amplifier was built for the most advanced home theater enthusiast. With 13.2 channel processing, 15.2 channel XLR and RCA outputs, and flexible amplifier stages, enjoy your movies with a system you deserve.

Masterfully engineered

The AV8805A is made for home cinema enthusiasts who want everything, versatility, flexibility, and musicality. Extensively tuned by world-renowned sound acousticians at the most state-of-the-art facilities, we leverage decades of experience in Hi-Fi to drive exceptional, audiophile-quality surround sound for all your entertainment.

Advanced 8K HDMI connectivity with eARC support

Enjoy exquisite video performance thanks to the latest HDMI technologies. The Marantz AV8805A includes 8 HDMI inputs and 3 outputs for all your favorite sources. One dedicated 8K input supports 8K/60Hz or 4K/120Hz pass-through capability, while Dolby Vision, HLG, HDR10+, 21:9 video, 3D, BT.2020 pass-through and HDCP 2.3 copy protection standard is supported on all HDMI inputs.

Full 3D audio support

Immerse yourself in multi-dimensional audio with the latest surround formats, including Dolby Atmos®, Dolby Atmos Height Virtualization Technology, DTS:X®, DTS Virtual:X™, DTS:X® Pro, IMAX® Enhanced, and Auro-3D®.

The next chapter in movie entertainment

The new AV8805A offers the highest-quality, crystal-clear viewing experience. Enjoy your movies with 8K/60Hz pass-through or upscaling, as well the latest in HDMI technology like Dynamic HDR and Quick Media Switching (QMS), which is used in movies to eliminate video delay.

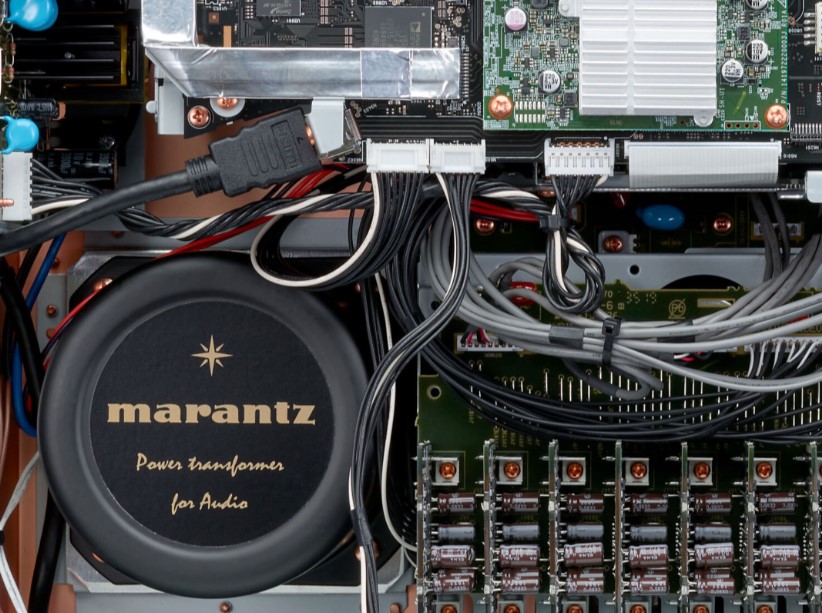

Marantz HDAM and Current Feedback topology

The AV8805A features exclusive Marantz Hyper Dynamic Amplifier Module (HDAM) technology that provide ultra-fast slew rate, true wideband performance, and maximum dynamic range for optimum sound quality.

More than 60 Years of audiophile heritage

Founded in 1953, Marantz has a rich history of designing audio components embraced by music lovers and critical listeners around the world. Because Music Matters, the AV8805A continues our long tradition of delivering a best-in-class listening experience for music and cinema.

Marantz AV8805A Specs
Amplifier
Amplifier Type    Preamplifier
Channels    13.2
Audio Processing
DTS Compatibility    DTS-HD Master Audio, DTS:X
Dolby Compatibility    Dolby Atmos, Dolby Surround, Dolby TrueHD
Auro 3D Support    Yes
Upmixing Technology    DTS Neural:X, DTS Virtual:X, Dolby Atmos Height Virtualization Technology
Supported File Formats    2.8 MHz DSD, 5.6 MHz DSD, AAC, ALAC, FLAC, MP3, WAV, WMA
Supported Sample Rates    Up to 192 kHz / 24-Bit (ALAC, FLAC, WAV)
Video
HDR Compatibility    HDR10, HDR10+, Dolby Vision, Hybrid Log Gamma
Pass-Through Support    8K60p
Upscaling    8K UHD
GUI    Yes

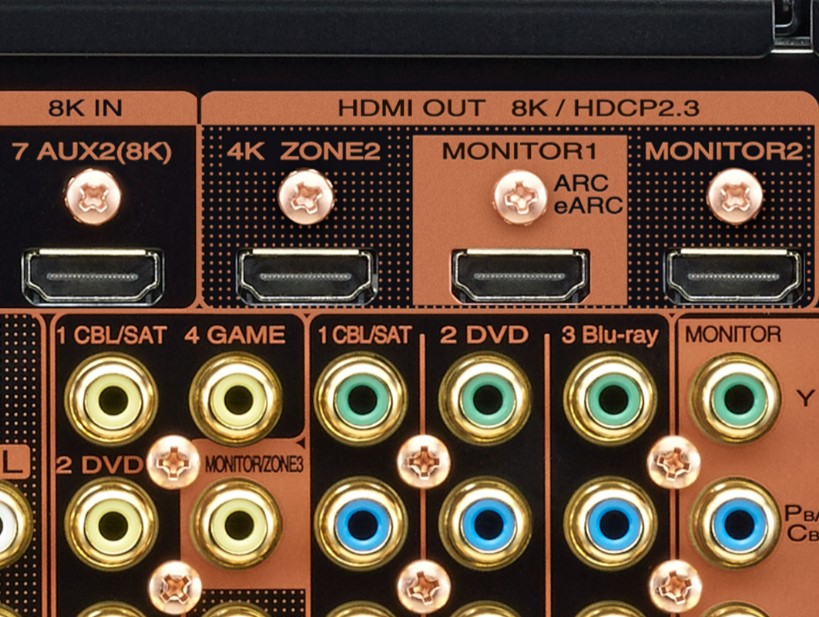

Connectivity
Rear A/V Inputs    7 x HDMI
3 x 3RCA Component
4 x RCA Composite
1 x Stereo XLR Balanced
1 x 7.1-Channel RCA
2 x Optical TOSLINK
2 x Digital Coaxial
6 x Stereo RCA
1 x Stereo RCA (Phono MM) with Ground Screw
Rear A/V Outputs    1 x 15.2-Channel XLR Pre-Out
3 x HDMI
1 x 3RCA Component
2 x RCA Composite
1 x 15.2-Channel RCA Pre-Out
1 x Stereo RCA Zone 2
1 x Stereo RCA Zone 3
Front I/O    1 x HDMI Input
1 x RCA Composite Input
1 x Stereo RCA Input
1 x 1/4" / 6.35 mm Headphone Output
1 x 1/8" / 3.5 mm Setup Mic Input
Other Rear I/O    2 x Bluetooth/Wi-Fi Antenna Terminal
1 x USB Type-A (Power) Output
1 x 1/8" / 3.5 mm (IR) Input
1 x RCA (Remote) Input
1 x RCA (Remote) Output
2 x 1/8" / 3.5 mm (12 V Trigger) Output
1 x DE-9 (RS-232C)
1 x RJ45 (Ethernet)
HDCP Support    Version 2.3
HDMI Compression Modes    4K120AB / 8K60AB
Audio Return Channel (ARC)    eARC
HDMI CEC    Yes
Media Card Slot    None
Wireless Connectivity
Wi-Fi    Yes
Bluetooth    Yes
Wireless Audio Protocols    AirPlay 2, HEOS, Spotify Connect
Control
External Control Support    Android/iOS Control App, Control4, Domotz Pro, OvrC
Virtual Assistant    Works with Alexa, Apple AirPlay, Works with Google Assistant, Josh.ai
Power
AC Input Power    Not Specified by Manufacturer
Power Consumption    Active: 90 W
Standby: 0.2 W
CEC Standby: 0.5 W
Network Standby: 3.5 W
Physical
Weight    30.4 lb / 13.8 kg
